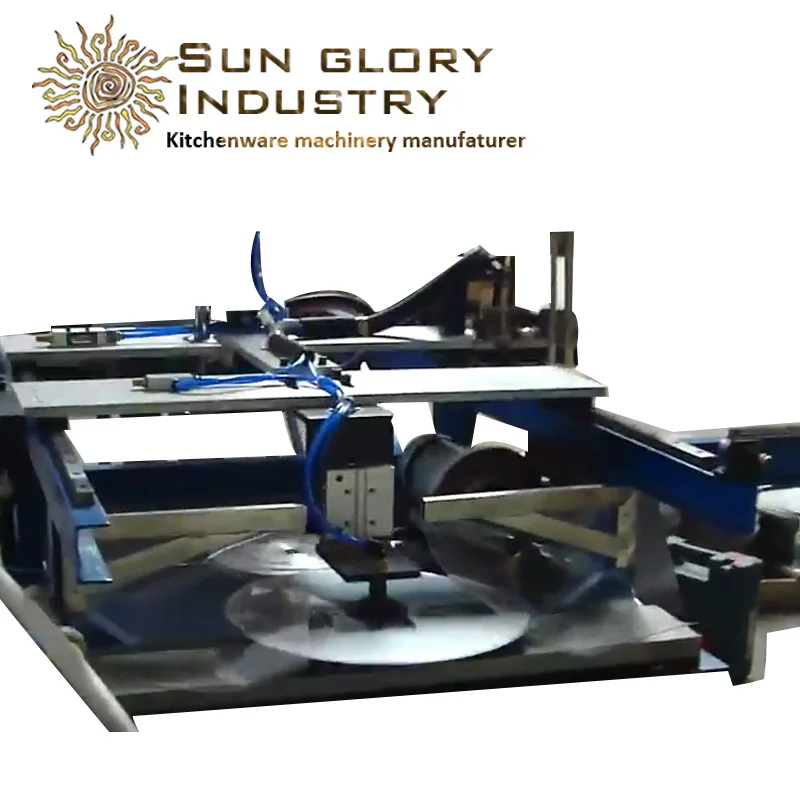

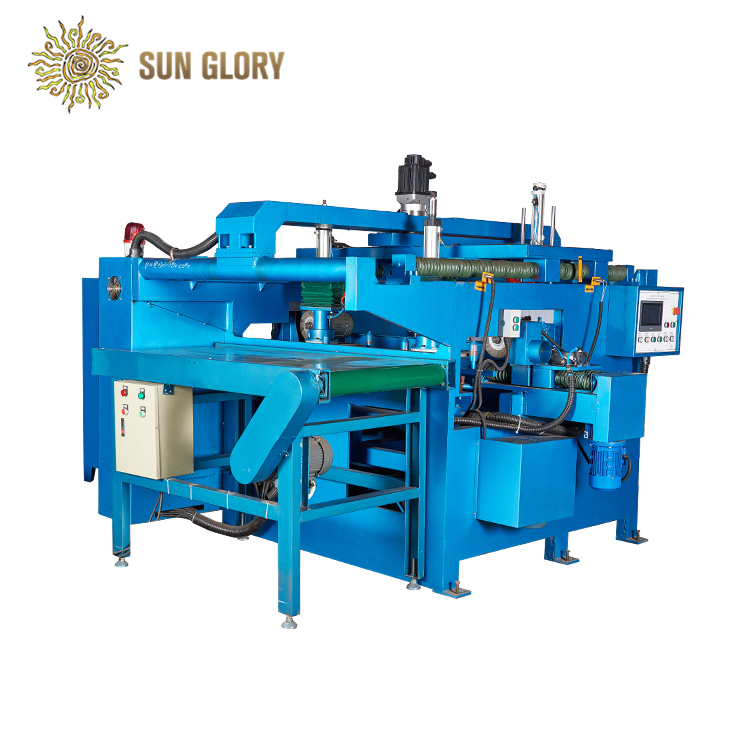

Китайский Автоматический Металлический шлифовальный станок для снятия заусенцев
- Категория товара: Other Grinding Machines >>>
- Поставщик (Оптовый магазин): Guangzhou,Shangguan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
China automatic metal grinding machine for circle edge deburring

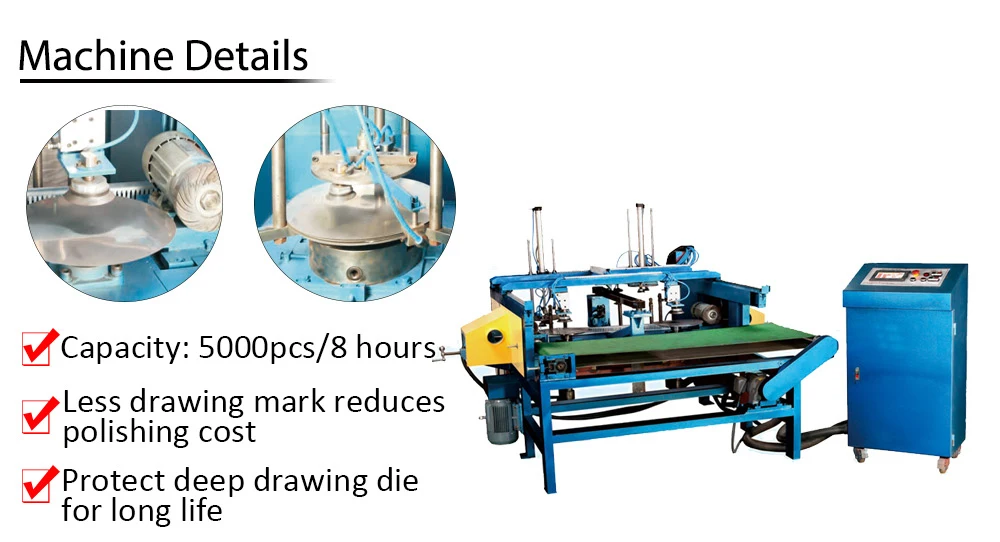

Advantages
1. Capacity: max 16pcs/min, about 7600-5000pcs/8hours
2. Control system: Mitsubishi PLC
3. Protect deep drawing die for longer life
4. Less drawing mark reduces polishing cost
5. Increase deep drawing quantity by reduce die polishing frequency
6. Increase polishing quantity while reduce polish cycling time
| Main Technical Parameters | |

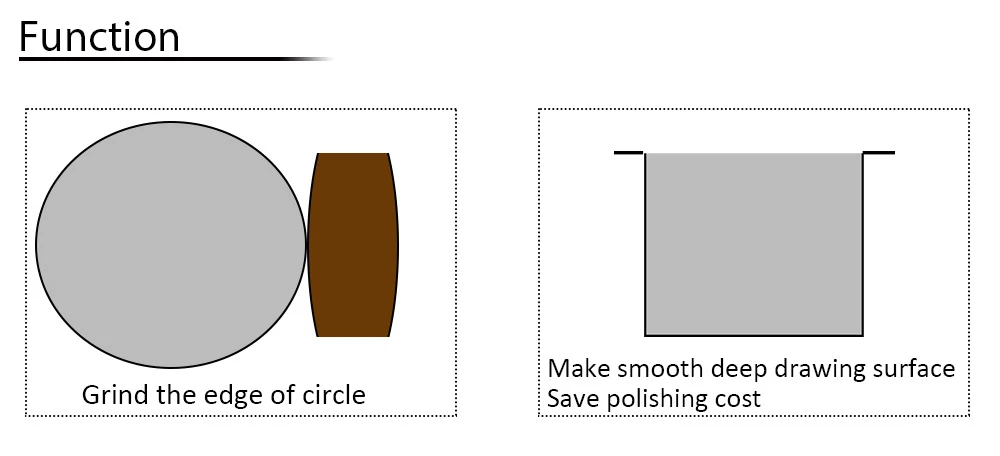

| Function | Circle edge deburring |
| Size of circles | ≤Φ(200-600)mm x 1.5mm(Dia. x Thickness) |
| Size of emery wheel | ≤Φ200mm x 30mm(Dia. x H) |
| Motor power | Emery wheel motor: 1.1kw x 2 |
| Workpiece motor: 1.1kw x 2 | |
| Feeding reciprocating motor: 1.5kw x 1 | |
| Conveyor motor: 0.4kw x 1 | |
| Workpiece holding | Vacuum adsorption |
| Dimension | 2250mm x 2200mm x 1630mm(L x W x H) |
| Weight | About 1.3T |
