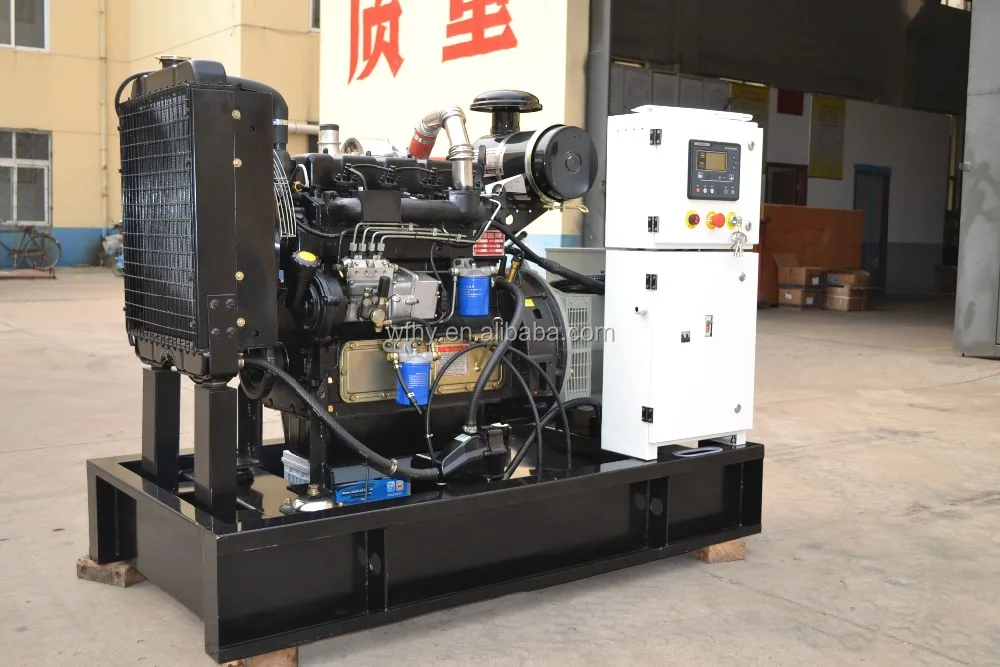

Немецкий генератор deutz 25 кв с автоматическим
- Категория товара: Diesel Generators >>>
- Поставщик (Оптовый магазин): Weifang,Huayuan,Diesel,Engine,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
GERMANY DEUTZ GENERATOR 25KV SPECIFICATION
*Powered by heavy duty industrial diesel engine, Cummins/Deutz/Perkins or China brand engines
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof/silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
* Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110% and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
*Certificate: ISO9001:2000, CE (ESC/070119), BV
| |
Genset model | HF20GF |
Prime power (KW/KVA) | 20/25 |
Standby power (KW/KVA) | 22/27 |
Frequency & voltage | 400V, 50HZ |
No. of Phase | 3 |
Genset type | Open skid type |
Reference Dimension & Weight (W*H, mm)/KGS | 1650*780*1300;780kgs |
DIESEL ENGINE | |
Engine brand & Model | DEUTZ brand, D226B-3D |
Rated output | 30KW |
Rated Speed | 1500RPM |
Engine Type | In-line, direct injection, four stroke |
No. of cylinder | 3 |
Bore*stroke | 105*120mm |
Aspiration method | Naturally |
Governor | Mechanical/Electrical |
Starting method | Electric starting |
Cooling method | Forced water cooled |
Displacement | 3L |
Fuel consumption | 208g/kw.h |
Rotation direction of crankshaft | Counter clockwise(face to flywheel end) |
ALTERNATOR | |
Alternator brand & model | Stamford/Leroy Somer/China reputed brand |
Type | Brushless & self-excited |
No. of phase | 3 |
Volatage | 400V |
Frequency | 50HZ |
Power Factor | 0.8 |
Insulation Grade | H |
Protection Grade | IP22/23 |
Altitude | ≤1000m |
FACTORY SHOW
GERMANY DEUTZ GENERATOR 25KV PRODUCTION LINE
CERTIFICATES
BUSINESS PARTNER

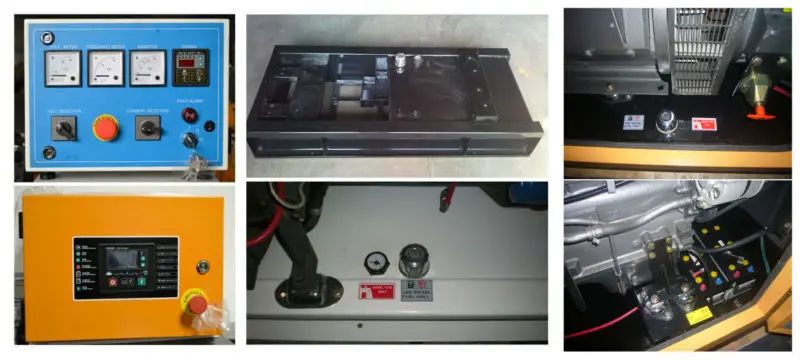

GERMANY DEUTZ GENERATOR 25KV CONFIGRATION

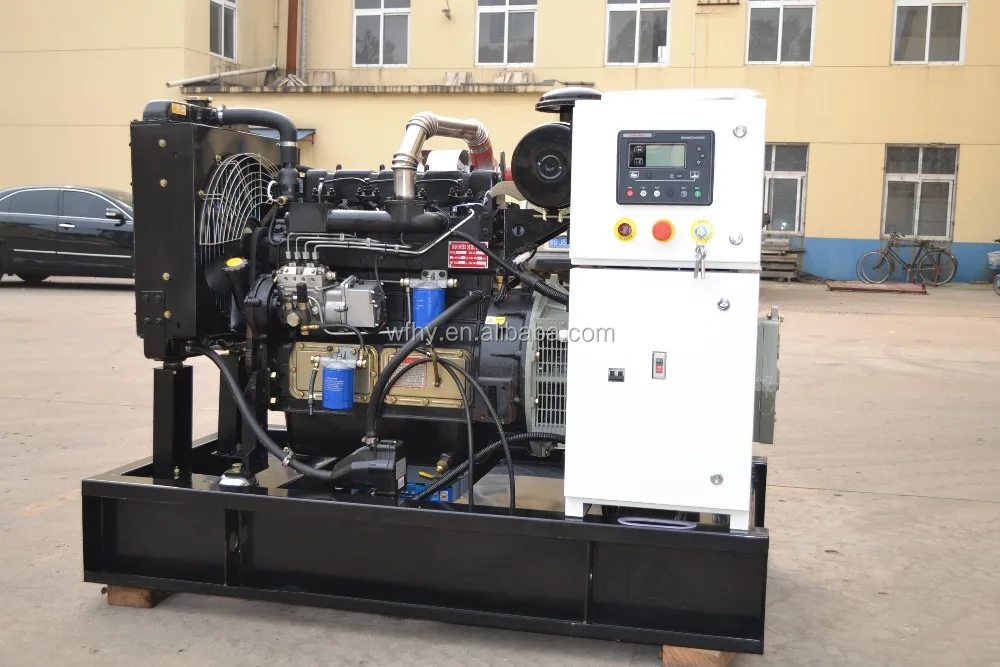

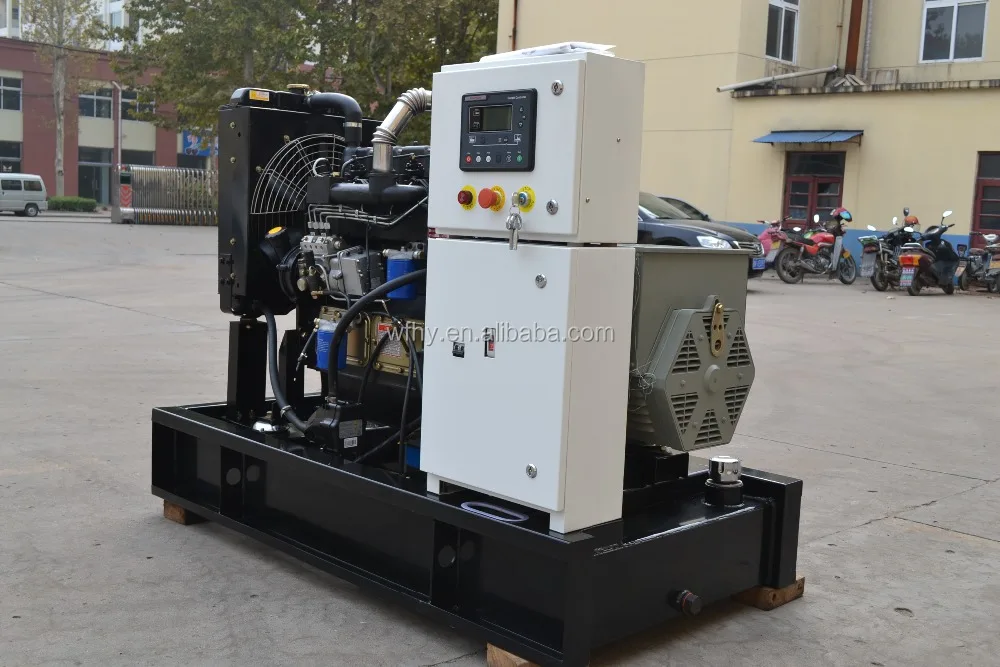

GERMANY DEUTZ GENERATOR 25KV SHOW
Packaging & Shipping
Our Services
*Reply your enquiry in 24 working hours
*Offer customers the lowest price with highest quality
*Dliver the goods to our customer all over the world with speed and precision
*Supply one year guarantee for whole machine from daye of bill of loading or 1000 hours of running or 12 months from date of bill of loading.
