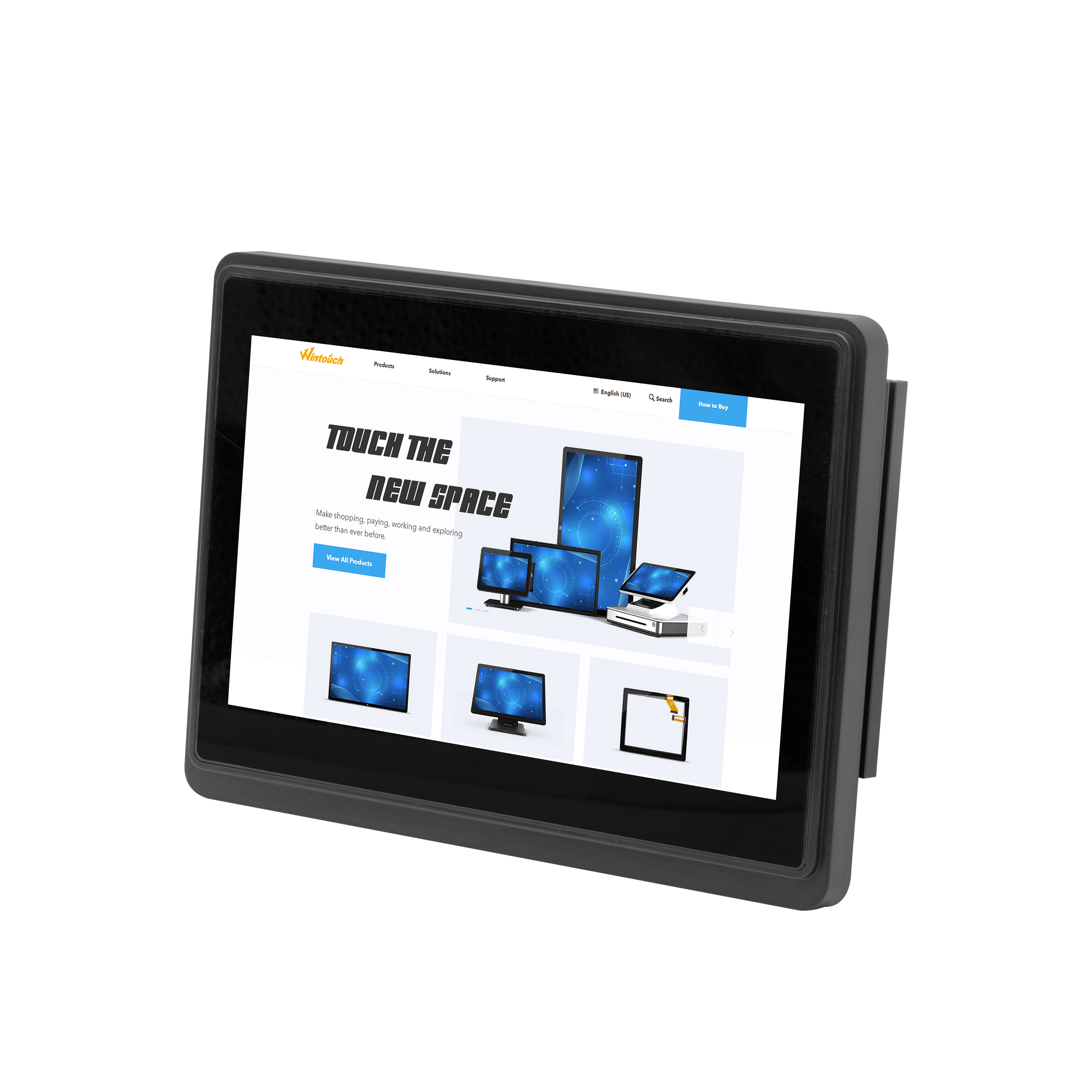

Безвентиляторная Intel Atom Z8350 5000mha батарея все в одном компьютере 8-дюймовый четырехъядерный мини-панель ПК Windows10
- Категория товара: Industrial Computer & Accessories >>>
- Поставщик (Оптовый магазин): Shenzhen,Qianhai,Gole,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

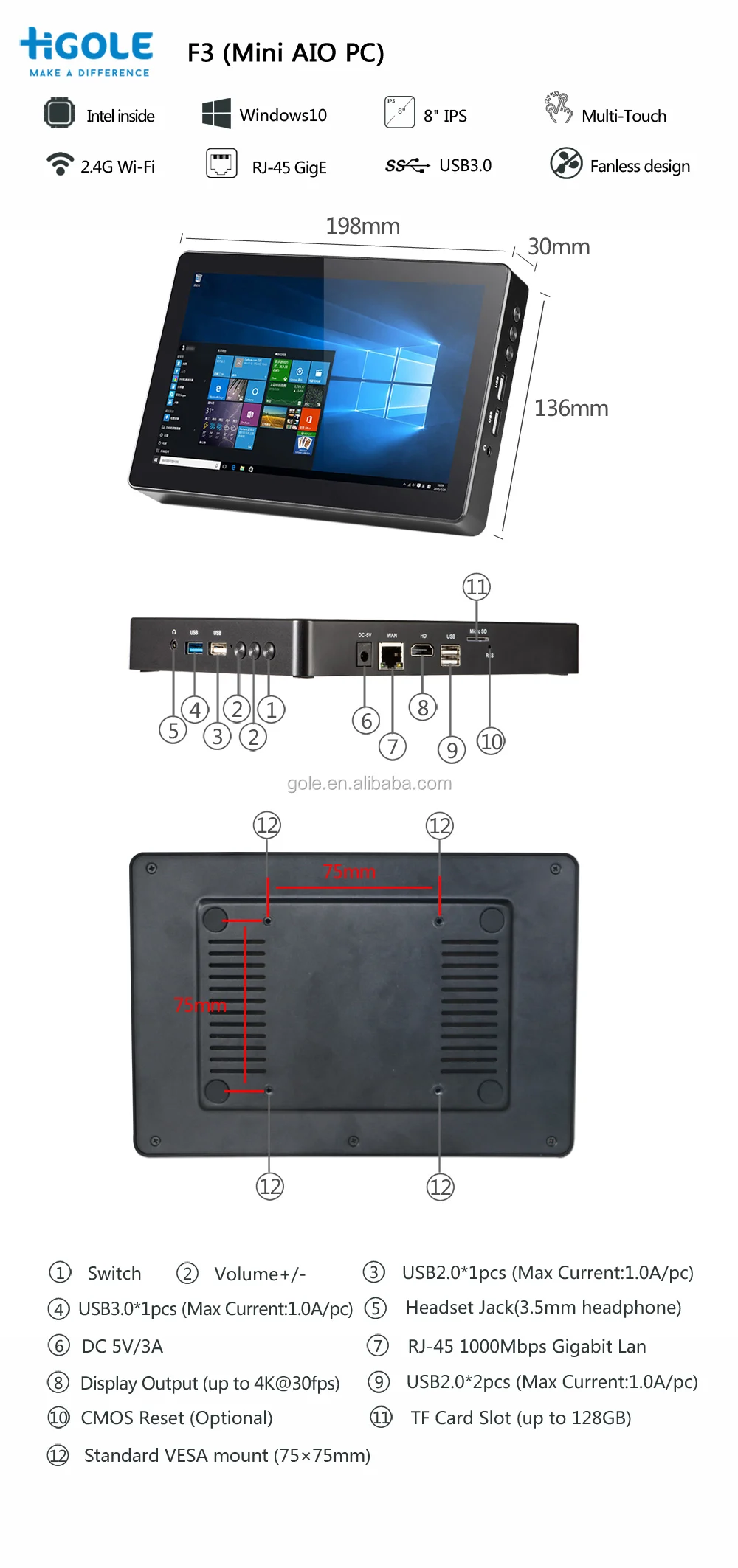

System Physical Standard Configuration: | ||||||||||
Type | Details | Descriptions | ||||||||
Product Form | Form Factor | 8" All-in-one PC | ||||||||
Dimensions | 199X136x27mm | |||||||||
Weight | 0.6KG | |||||||||
LCD | Screen Size | 8" | ||||||||
Screen Resolution | 800×1280 IPS | |||||||||
TP | Touch Module | G+G Multi-Touch | ||||||||
Battery | Type | Rechargeable lithium polymer | ||||||||
Capacity | 5000mAh/3.7V | |||||||||
Working Time | 6 hours (FHD local video display) | |||||||||
System Hardware Configuration: | ||||||||||
Type | Details | Descriptions | ||||||||
CPU | Type | Intel Atom x5-Z83XX Quad-Core | ||||||||
Speed | 1.44GHz ~ 1.84GHz | |||||||||
GPU | Type | Intel HD Graphics Gen8 | ||||||||
Memory | Capacity | 4GB | ||||||||
Storage | eMMC | 64GB | ||||||||
Speaker | Built-in | 8Ω/1W | ||||||||
G-sensor | Built-in | Yes | ||||||||
Network Connections: | ||||||||||
Type | Details | Descriptions | ||||||||
WIFI | WIFI Module: Realtek 8723BS | WIFI 802.11b/g/n 2.4G | ||||||||
Blue tooth | Blue tooth Module: Realtek 8723BS | BT4.0 | ||||||||
Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan | ||||||||
Interface Configuration: | ||||||||||
Type | Details | Descriptions | ||||||||
USB Interface | USB3.0 | ×1pc | ||||||||
USB2.0 | ×3pc | |||||||||
SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) | ||||||||
Audio Jack | 3.5mm headphone (Output only) | ×1pc | ||||||||
HDM I | HDMI1.4 | ×1pc | ||||||||
Video output through HDM I | Up to 4K | |||||||||
Button Switch: | ||||||||||
Type | Details | Descriptions | ||||||||
Power | On/Off | ×1pc | ||||||||
Volume | Down/UP | ×1pc | ||||||||
Main Accessories: | ||||||||||
Type | Details | Descriptions | ||||||||
Power adapter | DC 5V/3A | ×1pc | ||||||||
User's Manual | User's Manual | ×1pc | ||||||||
Software Configuration: | ||||||||||
Type | Details | Descriptions | ||||||||
Power on Function | By Power Button or Auto Power on | Optional | ||||||||
Operating System | Windows 10 | Optional | ||||||||
Linux | Test by end user | |||||||||
Environment: | ||||||||||
Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) | ||||||||
Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||||||
Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||||||
Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||||||
Certification: | ||||||||||
CE | CE | Optional | ||||||||
Other | Other | Optional | ||||||||
Features
1. Mini size 8 inch, portable
2. Low power, 5V 3A, Power consumption: 120watt/day, 3600watt/month
3. IPS multi touch screen
4. Support WIFI, Blue tooth
2. Low power, 5V 3A, Power consumption: 120watt/day, 3600watt/month
3. IPS multi touch screen
4. Support WIFI, Blue tooth
5. Multi interfaces, RJ45, HD-MI, RS232, USB3.0, USB2.0, TF card reader
6. Bulit with 5000mAh/3.7V Rechargeable lithium polymer
6. Bulit with 5000mAh/3.7V Rechargeable lithium polymer
7. Wide usage, POS, education, 3D priting, video meeting, industrial control, etc

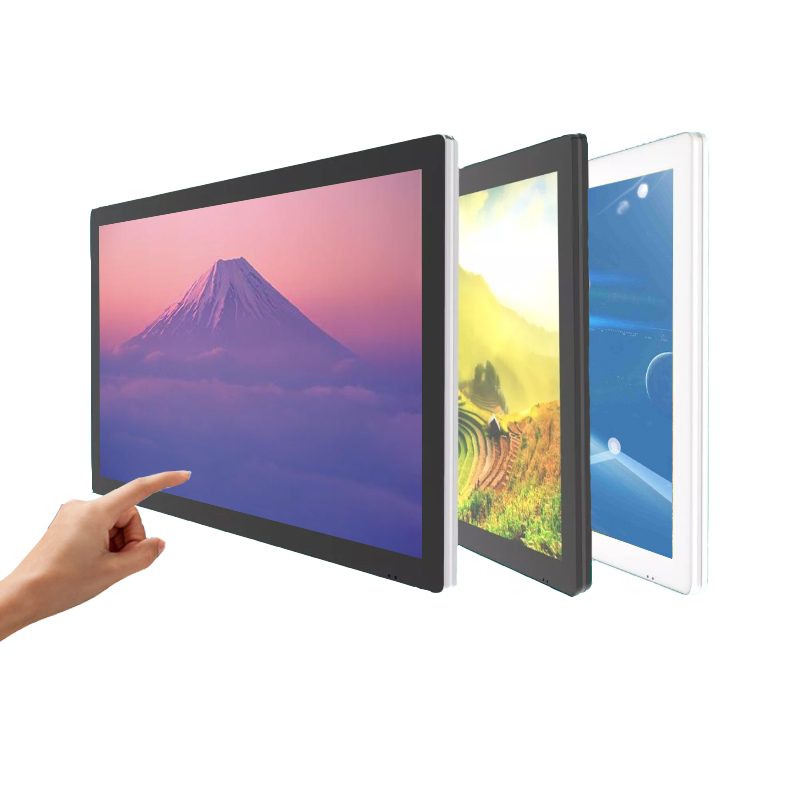

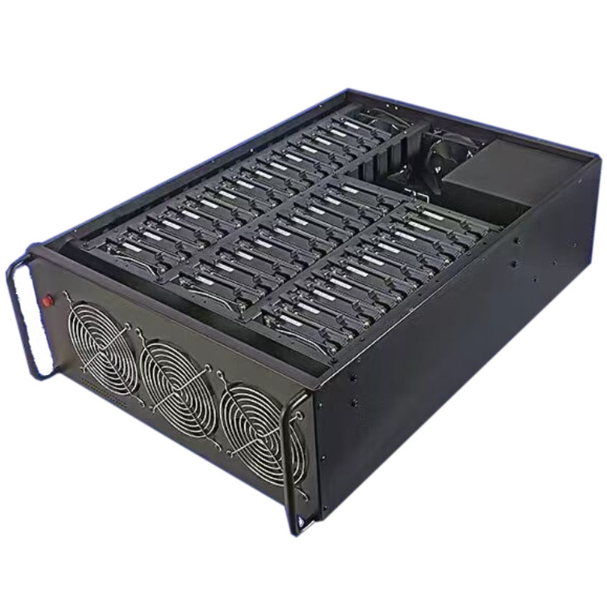

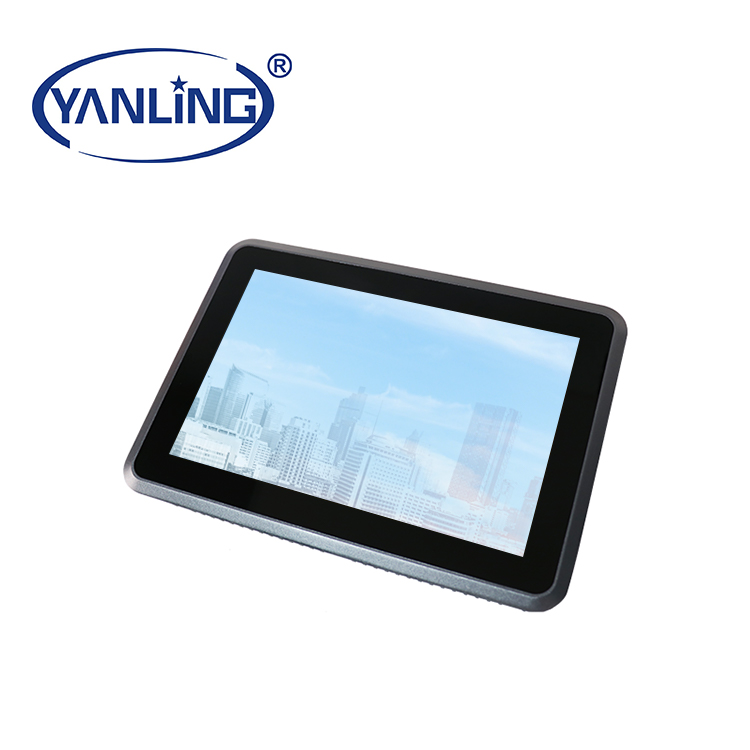

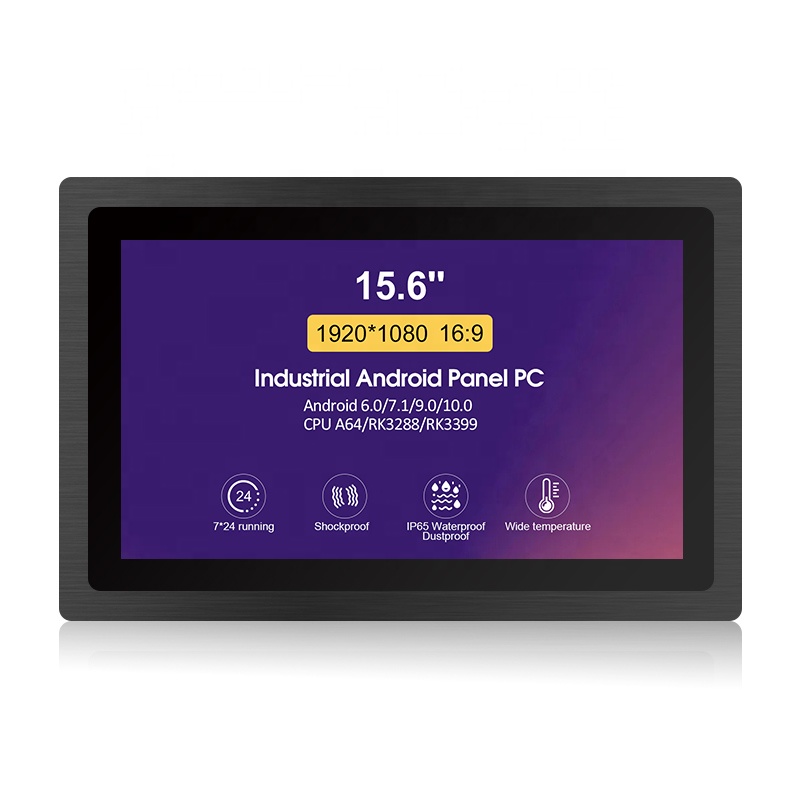

Related Products

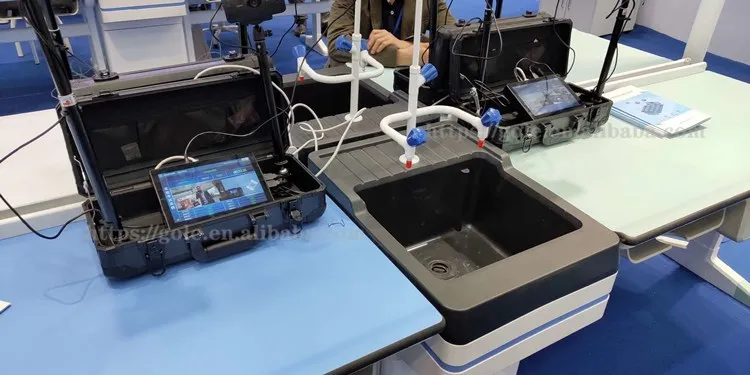

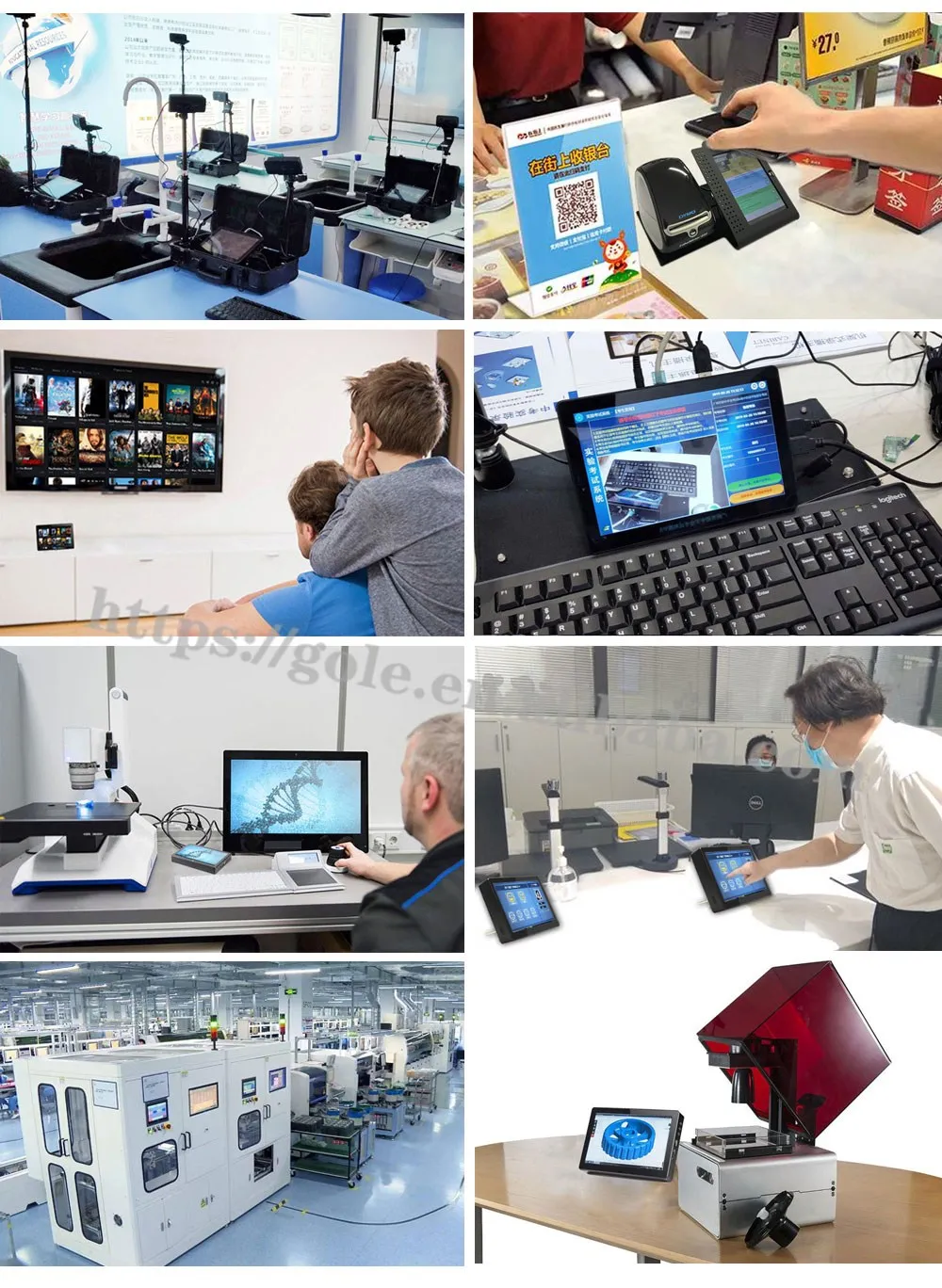

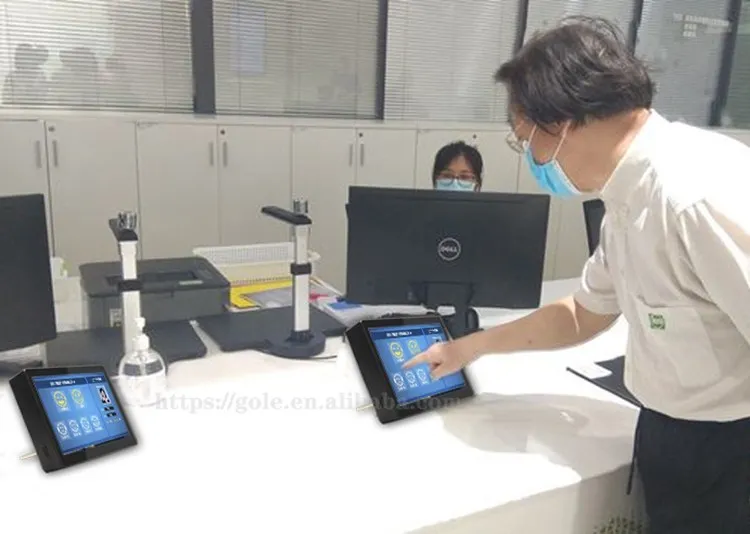

Product Usage
With Intel Apollo CPU, RJ45 Gigabit Lan, HDM I, multi capacitive touchscreen, the industrial all in one pc can be widely used in POS system, printing, media, education, industry control, restaurant catering, etc. It is portable, power saving and very cheap and can be applied to various situations.

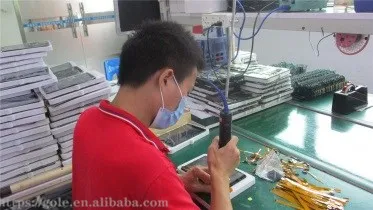

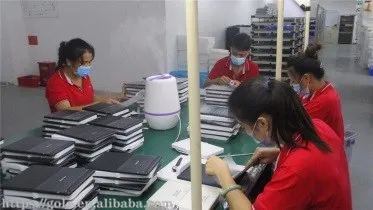

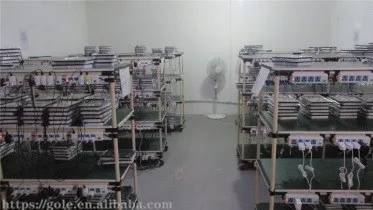

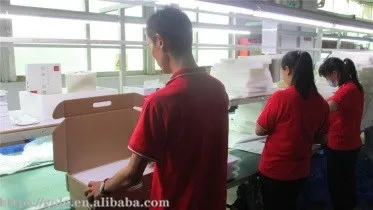

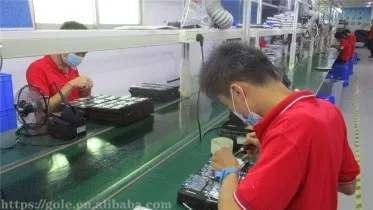

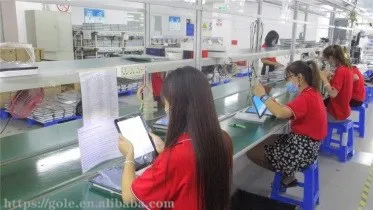

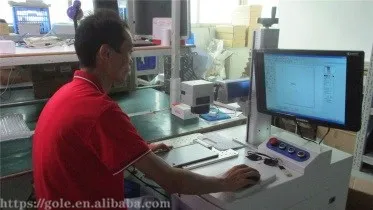

QC Flow

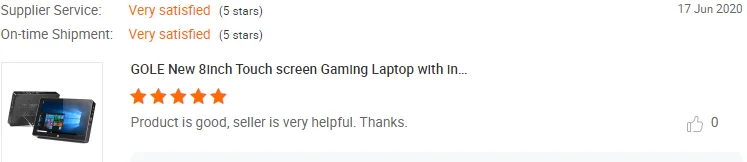

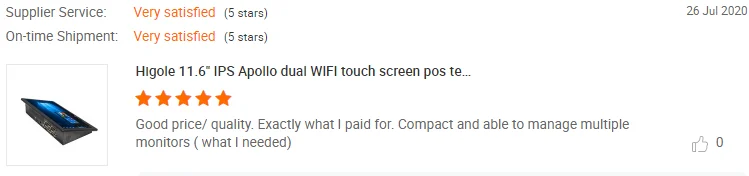

Customer Feedback
Our Advantages
Keeping up with market demand and industry cutting-edge technology, Shenzhen Qianhai Gole Technology Co. Ltd. is committed to providing world-class products and services to the global market with unremitting innovation spirit. In the innovative three-proofing rugged computer, MINI desktop computer, IoT Device, Edge server computer and many other products, We provide one-stop solutions from ID to MD, Firmware, Hardware, APP, OTA server. Our company has more than 100 staffs, and electronic comprehensive laboratory, reliability laboratory, etc., We have strict quality control system and ISO/9001 international quality system certification.
We support OEM and ODM business, and can do logo customized. Welcome all of you visiting us and hope to cooperate with you!
We support OEM and ODM business, and can do logo customized. Welcome all of you visiting us and hope to cooperate with you!
Company Profile
Shenzhen Qianhai Gole Technology Co., Ltd. was established in 2008. It is a state-level high-tech enterprise. It is a leading supplier of three-proofing rugged computers, all in one touch pc, industrial tablet pc, industrial computer and intelligent equipment in industry. We have established strategic partnerships with Intel, Microsoft, ALLWINNER, Rockchips and other top high-tech companies in the world. The company's business is all over the world and provides intelligent equipment solutions for many well-known international brands.
FAQ
Q : Are you manufacturer?
A: Yes, we are manufacturer with our own R&D team, production lines, sales department, after-sales service team etc. We can provide OEM/ODM customized service.
Q: What is the minimum order (MOQ)?
A: We accept one unit for standard products. If necessary, we can even customize your logo. For OEM & ODM required order, welcome to contact our sales department for more details.
Q: How long will it take for the delivery?
A: For the standard products, our safe stock is 2000pcs per month. The delivery date is around 3-5 working days. Shipping method is by DHL/UPS/FEDEX/TNT.
Q: How to order and pay?
A: We accept Alibaba trade assurance online order, T/T bank transfer, Paypal, Western Union, L/C at sight etc.
Q: What's your products warranty?
A: We offer 12 months as warranty.
Q: How to repair the device if any problem?
A: We will provide technical support online to solve software problems. For the hardware problems, we can send the parts or components to customers and teach them how to fit it they have technicians. Or send back the defective unit to us to fix it.
A: Yes, we are manufacturer with our own R&D team, production lines, sales department, after-sales service team etc. We can provide OEM/ODM customized service.
Q: What is the minimum order (MOQ)?
A: We accept one unit for standard products. If necessary, we can even customize your logo. For OEM & ODM required order, welcome to contact our sales department for more details.
Q: How long will it take for the delivery?
A: For the standard products, our safe stock is 2000pcs per month. The delivery date is around 3-5 working days. Shipping method is by DHL/UPS/FEDEX/TNT.
Q: How to order and pay?
A: We accept Alibaba trade assurance online order, T/T bank transfer, Paypal, Western Union, L/C at sight etc.
Q: What's your products warranty?
A: We offer 12 months as warranty.
Q: How to repair the device if any problem?
A: We will provide technical support online to solve software problems. For the hardware problems, we can send the parts or components to customers and teach them how to fit it they have technicians. Or send back the defective unit to us to fix it.
