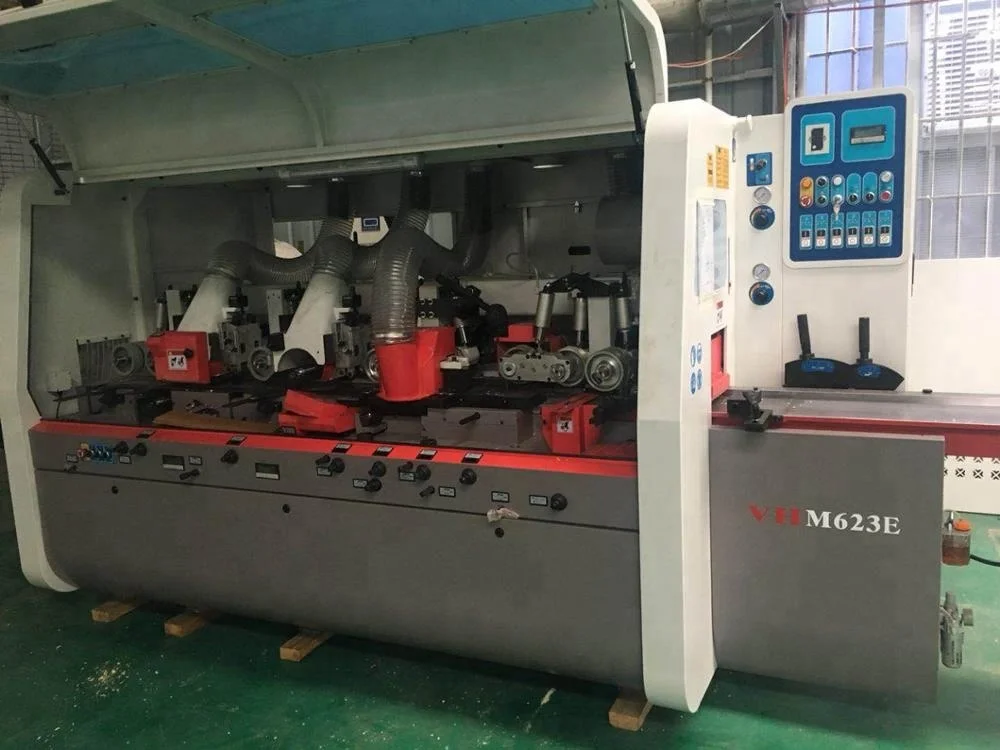

VH-M623E MDF Furniture High Speed 6 Axis 230mm Wood Flooring 4 Side Moulder

Professional Solution

Processing Hard wood strip, floor, doors and large cutting capacity strips.

MODEL	VH-M623E

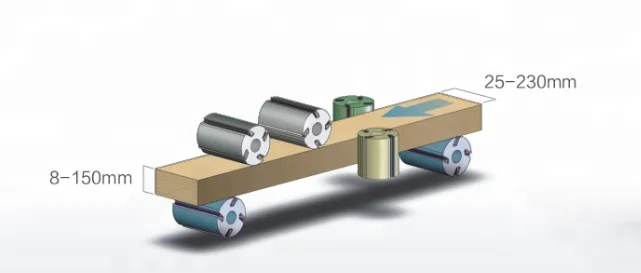

Working Width	25-230mm
Working Thickness	8-160mm
Working Table Length	1970mm
Feeding Speed	6-36m/min
Main Spindle Diameter	Φ40mm
Main Spindle Revolution	6000r/min
Air Pressure	0.6MPa
1st Lower Shaft	7.5kw/10HP
1st Upper Shaft	11kw/15HP
Right Vertical Spindle	7.5kw/10HP
Left Vertical Spindle	7.5kw/10HP
Second Upper Shaft	7.5kw/10HP
Second Lower Shaft	7.5kw/10HP
Feeding Beam Lifting	0.75kw/1HP
Feeding Motor	5.5kw/7.5HP
Total Power	55.1kw/74HP
Right Vertical Spindle	Φ125-Φ180mm
Left Vertical Spindle	Φ125-Φ180mm
1st Lower Shaft	Φ125mm
1st Upper Shaft	Φ125-Φ180mm
Second Upper Shaft	Φ125-Φ180mm
Second Lower Shaft	Φ125-Φ180mm
Feeding Wheel Diameter	Φ140mm
Dust Outlet Diameter	Φ140mm
Overall Size(L*W*H)	4073x1565x1920mm/20GP
Weight	4300kg

Our Customers:

Our Big Family:

Warranty?

Mechanical parts one year,Electrical parts three months

Any aftersale support available?

Yes we have, Engineers available to service machinery overseas

Payment:

TT 30% advanced payment,70% balance remitted before shipment.

Shrink film,plywood case packing will have extra cost.

Shanghai FumaWoodworking Machinery & Equipment Co., LTD is specialized in making woodworking machine,and also run as an agent for various brands and their plentiful models, so we can give you the most professional service with a competitive price. If you have interest in our production, please let me know.
