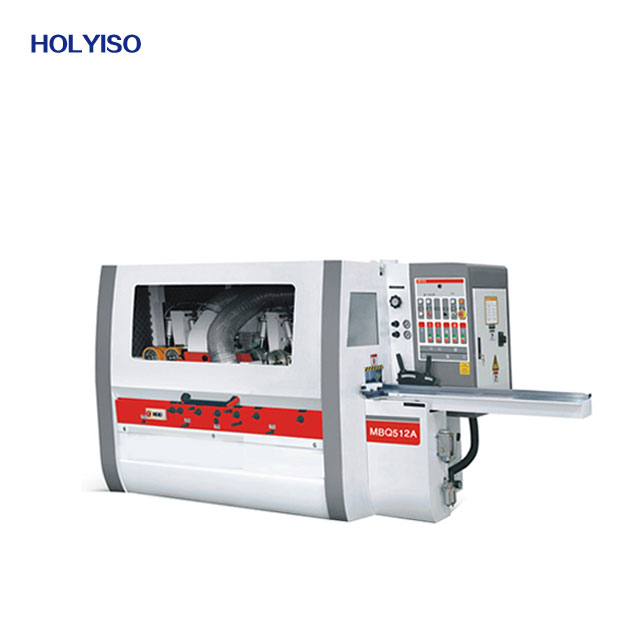

HOLYISO Automatic Heavy Duty Wood Planer Industrial 4 Side Moulder Planer MBQ512A
- Категория товара: Wood Planer >>>
- Поставщик (Оптовый магазин): Foshan,Holyiso,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Wood working surface Four-side planer machine MBQ512A
Model | MBQ512A |
Working width | 25-120mm |
Working thickness | 8-100mm |
Spindle amounts | 5pcs |
Spindle speed | 6000rpn |
Feed speed | 6-35m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ160 |
Left vertical cutter | φ125-φ160 |
First top cutter | φ125-φ160 |
Second top cutter | φ125-φ160 |
Second bottom spindle | φ125-φ160 |
Motor power First bottom cutter | 4kw/5.5hp |
Feed motor | 3kw/4hp |
Beam elevation | 0.55kw/0.75hp |
Total power | 18.75kw/23.25hp |
Suction hood Dia. | φ125mm |
Overall dimensions | 3500*1410*1650mm |
Packing dimensions | 3700x1610x1835mm |
Weight | 1830kg |

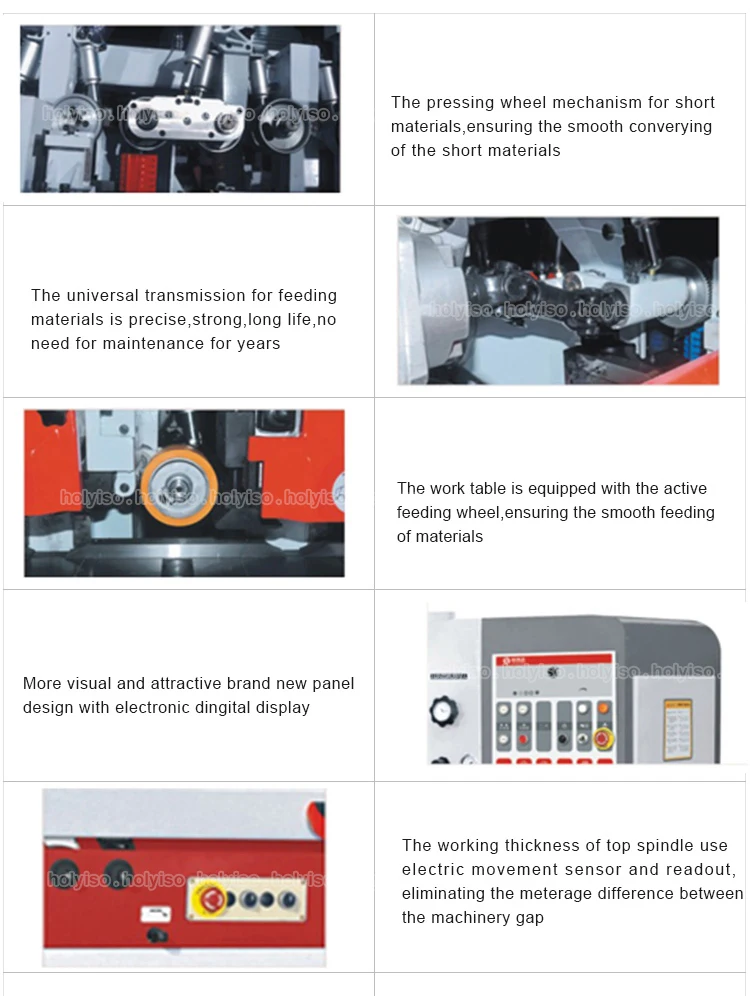

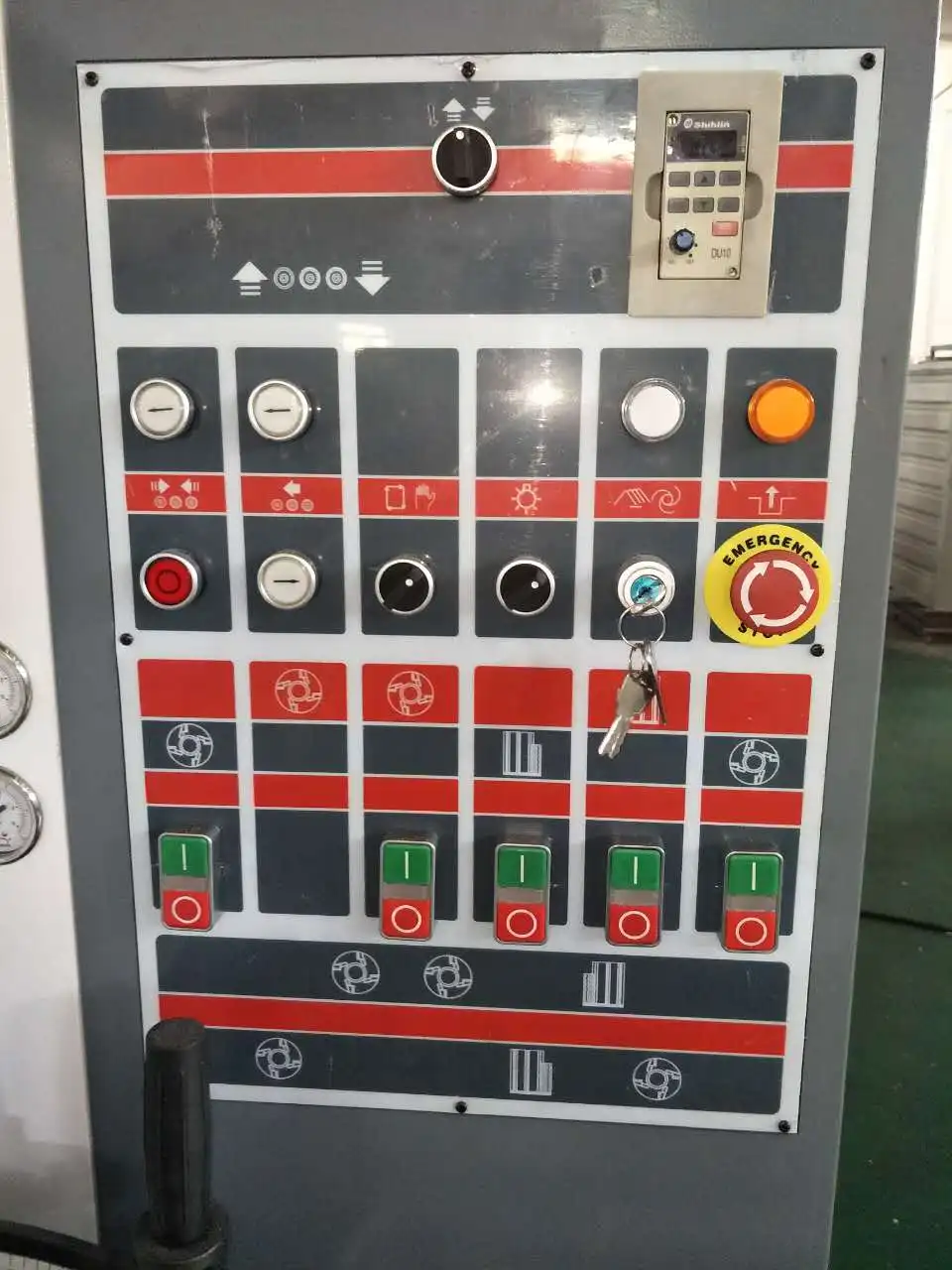

Details Images
Outstanding Characteristic:
* This adopts frequency conversion material feeding,material feeding speed ranges from 6-35m/min.

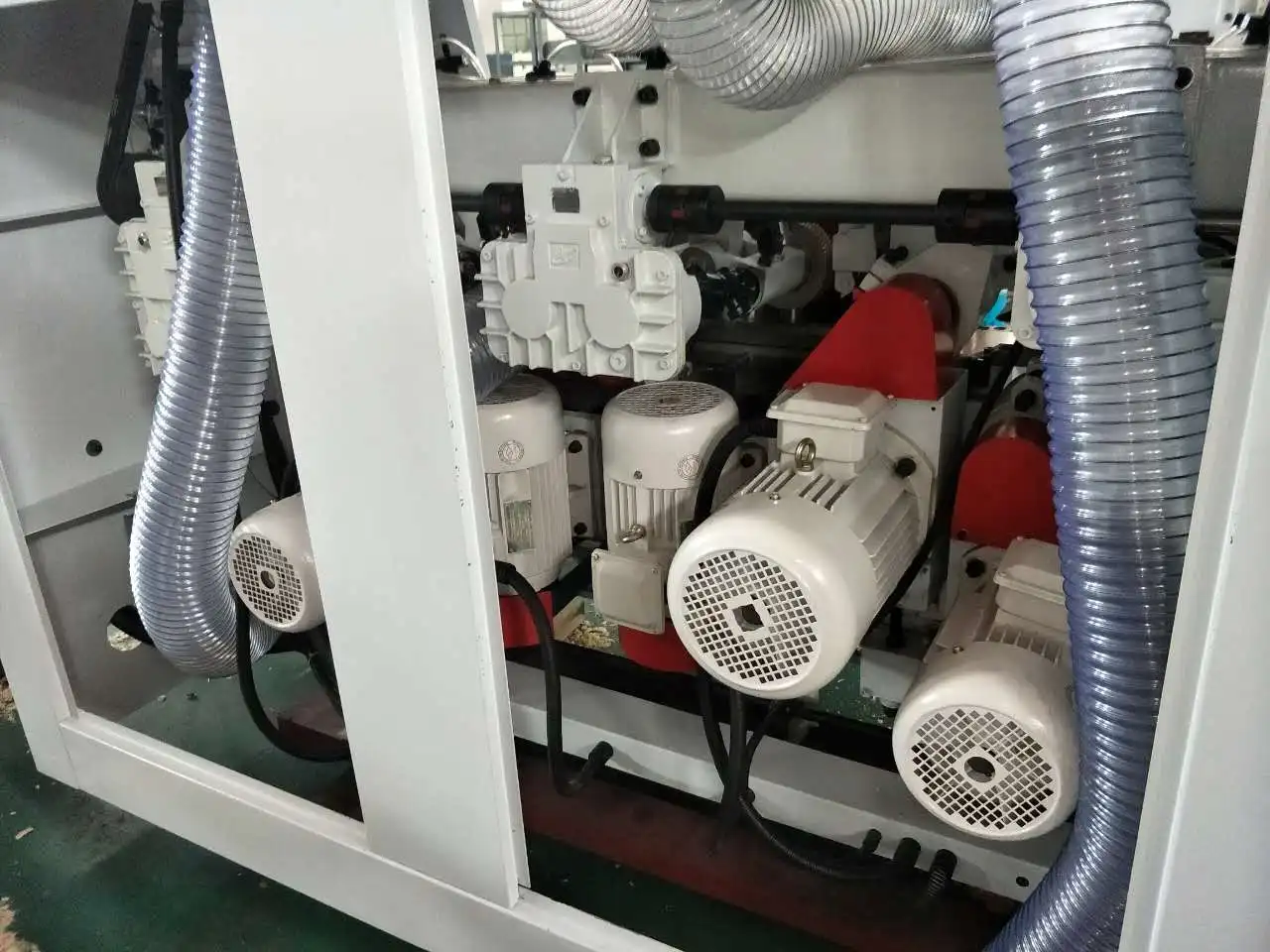

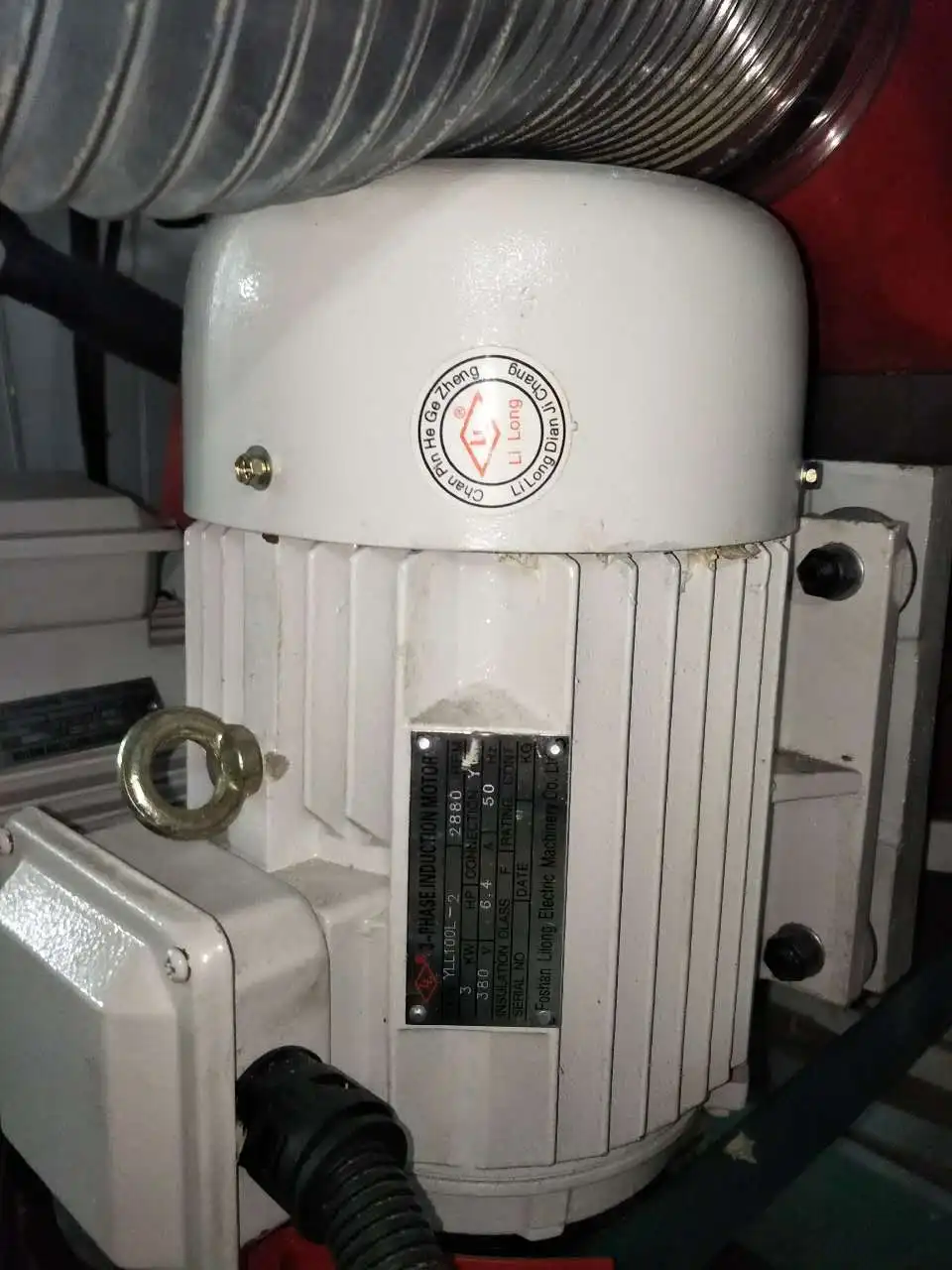

* Each main shaft is driven by independent electric motor,cutting force is powerful.
* Main shaft is adjustable to focus on the front,operation is convenient.
* Hard chrome plating worktable is durable.
* Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
* Multi-group drive rollers improve feeding efficiency.
* Adopts central charging system ,features convenience and promptness.
* International brands electrical parts are applied for good stability.
* On the horizontal axis with the front support means to improve the rigidity of the spindle.

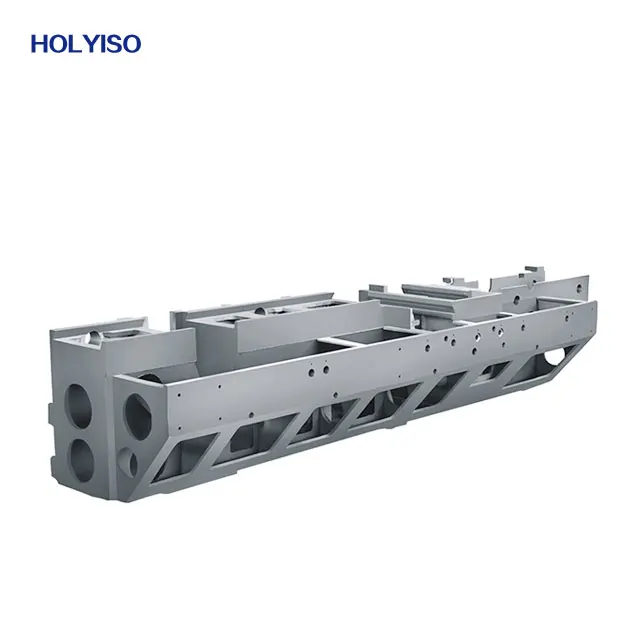

* Spare parts are thick and solid to maintain high precision,high stability and high reliability.
* Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth
feeding of timbers with different thickness.
* Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
* This adopts frequency conversion material feeding,material feeding speed ranges from 6-35m/min.
* Each main shaft is driven by independent electric motor,cutting force is powerful.
* Main shaft is adjustable to focus on the front,operation is convenient.
* Hard chrome plating worktable is durable.
* Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
* Multi-group drive rollers improve feeding efficiency.
* Adopts central charging system ,features convenience and promptness.
* International brands electrical parts are applied for good stability.
* On the horizontal axis with the front support means to improve the rigidity of the spindle.
* Spare parts are thick and solid to maintain high precision,high stability and high reliability.
* Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth
feeding of timbers with different thickness.
* Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.

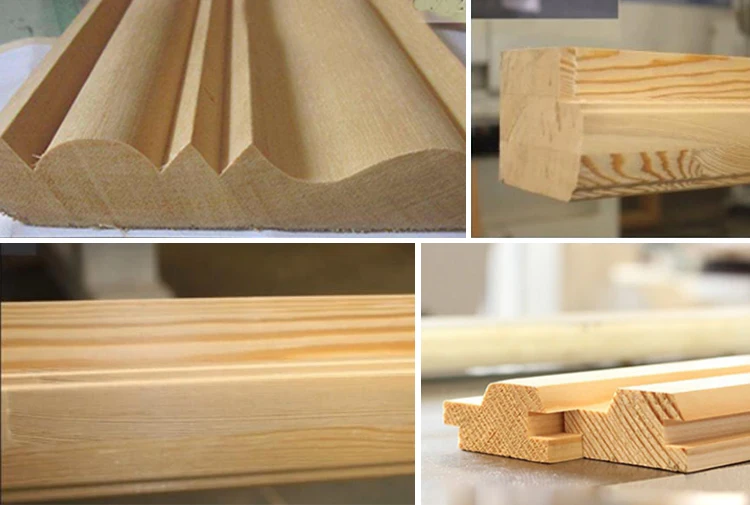

Finish Product:
Send Inquiry
Why Choose Us
Packing&Shipping
1.Delivery:
We can guarantee delivery on time.
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technicalsupport and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is stillhave any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technicalsupport and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is stillhave any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
