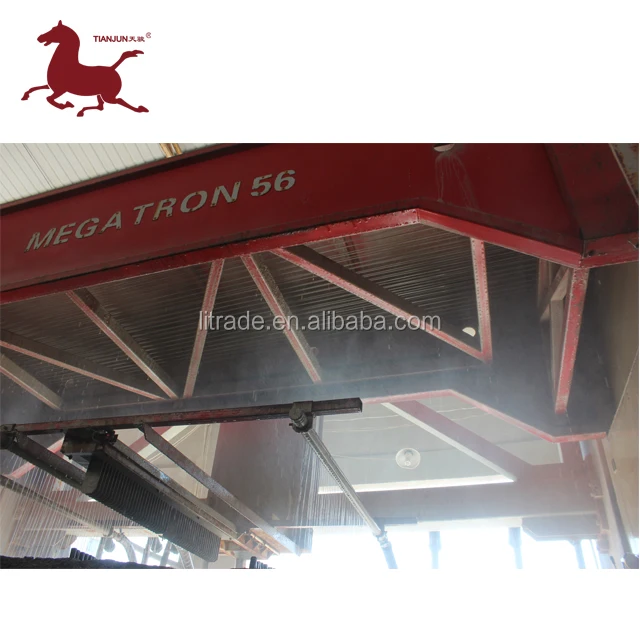

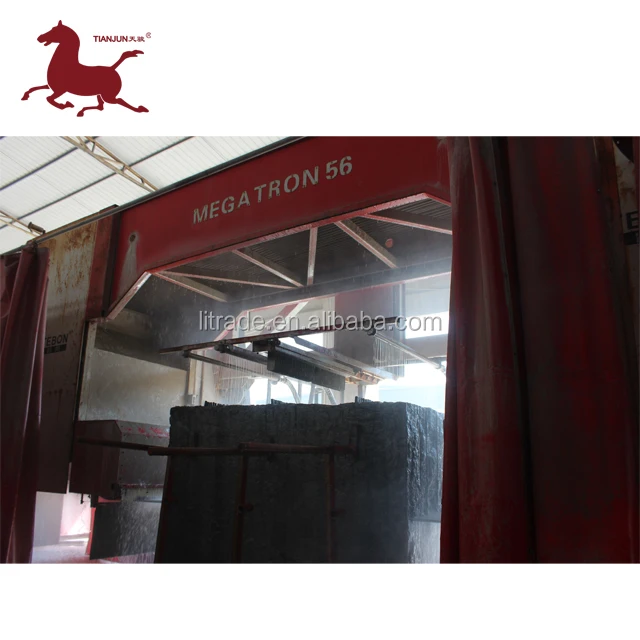

Алмазная многопроводная пила для резки гранитных плит, 24 шт. провода
- Категория товара: Stone Machinery >>>
- Поставщик (Оптовый магазин): Xiamen,Eastern,Pegasus,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

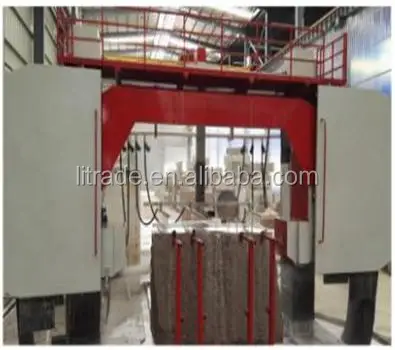

Dimond Multi-wire Saw Machine for Granite Slab Cutting 24pcs wires
| Model | TJTB-ZJP24 | |
| Max. Cutting Size | mm | 3600*2100 |
| Number of Alloy-steel Wire | pcs | 24 |
| Center Distance of Wire Saw | mm | 27.6 |
| Wire Saw Speed | m/s | 20-35 |
| Cutting Thickness | mm | 20 |
| Wire Length | mm | 265000 |
| Alloy-steel Diameter | mm | 7.2 |
| The Cooling System Flow | l/min | 600 |
| Cooling Water Pump Motor Power (Asynchronous Motor) | kw | 4.5 |
| Water Jet Plane Lifting Motor (Servo Motor) | kw | 0.45 |
| Main Motor Power (AC Variable Frequency Motor) | kW/hz | 132/5-50 |
| Lifting Motor Power | kW/hz | 2.5/50 |
| Trolley Motor Power (AC Variable Frequency Motor) | kW/hz | 2.2/50 |
| Wire Saw Tension (Hydraulic Tension) | n | 2000-2500 |
| Total Power | kw | 125 |
| Equipment Weight | ton | 40 |
| Trolley Loading Weight | ton | 40 |
| Overall Dimension | mm | 13500*7000*4000 |
