1840 зазор Кровать Металла Токарный Станок
- Категория товара: Manual Lathe >>>
- Поставщик (Оптовый магазин): Zhejiang,Kaida,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 150 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
MODELS | DC1440-E DC1460-E | DC1640-E DC1660-E | DC1840-E DC1860-E DC1880-E | DC2040-E DC2060-E DC2080-E | |||
CAPACITY | |||||||
Max. swing over bed | 360mm | 400mm | 460mm | 500mm | |||
Max. swing over cross slide | 200mm | 250mm | 290mm | 330mm | |||
Max. swing over gap | 600mm | 660mm | 700mm | 740mm | |||
Distance between centers | 1000/1500mm | 1000/1500/2000mm | |||||
Max turning length | 850/1350mm | 850/1350/1850mm | |||||
Bed with | 336mm | ||||||
HEADSTOCK | |||||||
Spindle bore | 80mm | ||||||
Spindle mount | D1-8 | ||||||
Taper bore of spindle | MT-7 | ||||||
Steps of spindle speed | 12 | ||||||
Range of spindle speed | 42-1800rpm | 25-1800rpm | |||||
GEARBOX | |||||||
Range of longitudinal feeds | 0.04-2.46mm | ||||||
Range of cross feeds | 0.02-1.23mm | ||||||
Number of inch threads | 61 | ||||||
Range of inch threads | 1-5/8 - 72 T.P.I. | ||||||
Number of metric threads | 24 | ||||||
Range of metric threads | 0.5-20mm | ||||||
Number of D.P threads | 45 | ||||||
Range of D.P threads | 96-3 1/4D.P | ||||||
Number of module threads | 20 | ||||||
Range of module threads | 0.25-10M.Pmm | ||||||
CARRIAGE | |||||||
Max. tool size | 25x25mm | ||||||
Max. compound slide travel | 130mm | ||||||
Max. cross slide travel | 280mm | 310mm | |||||
TAILSTOCK | |||||||
Tailstock sleeve travel | 130mm | ||||||
Taper in tailstock sleeve | MT-5 | ||||||
OTHERS | |||||||
Main motor | 5.5kw (7.5HP) | ||||||
Net weight | 2250/2550kg | 2300/2600kg | 2350/2650/2900kg | 2750/3000/3250kg | |||
Overall dimension (LxWxH) | 2310x2810x1050x1310mm | 2310x2810x1050x1340mm | 2310x2810/3320x1050x1370mm | 2310x2810/3320x1050x1390mm | |||
PRODUCT CONFIGURATION

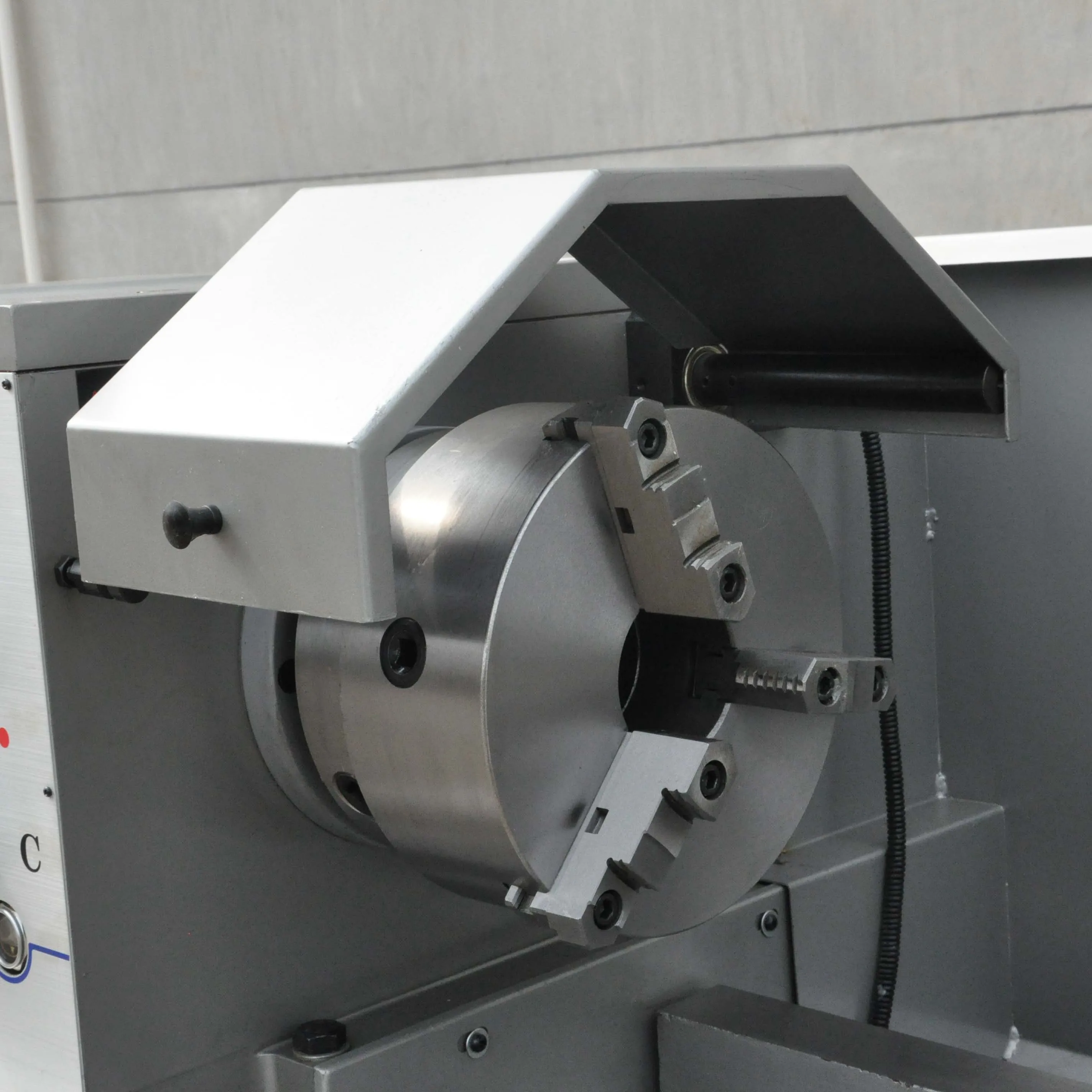

Chuck cover, tool post cover and leadscrew cover are optional.
Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.

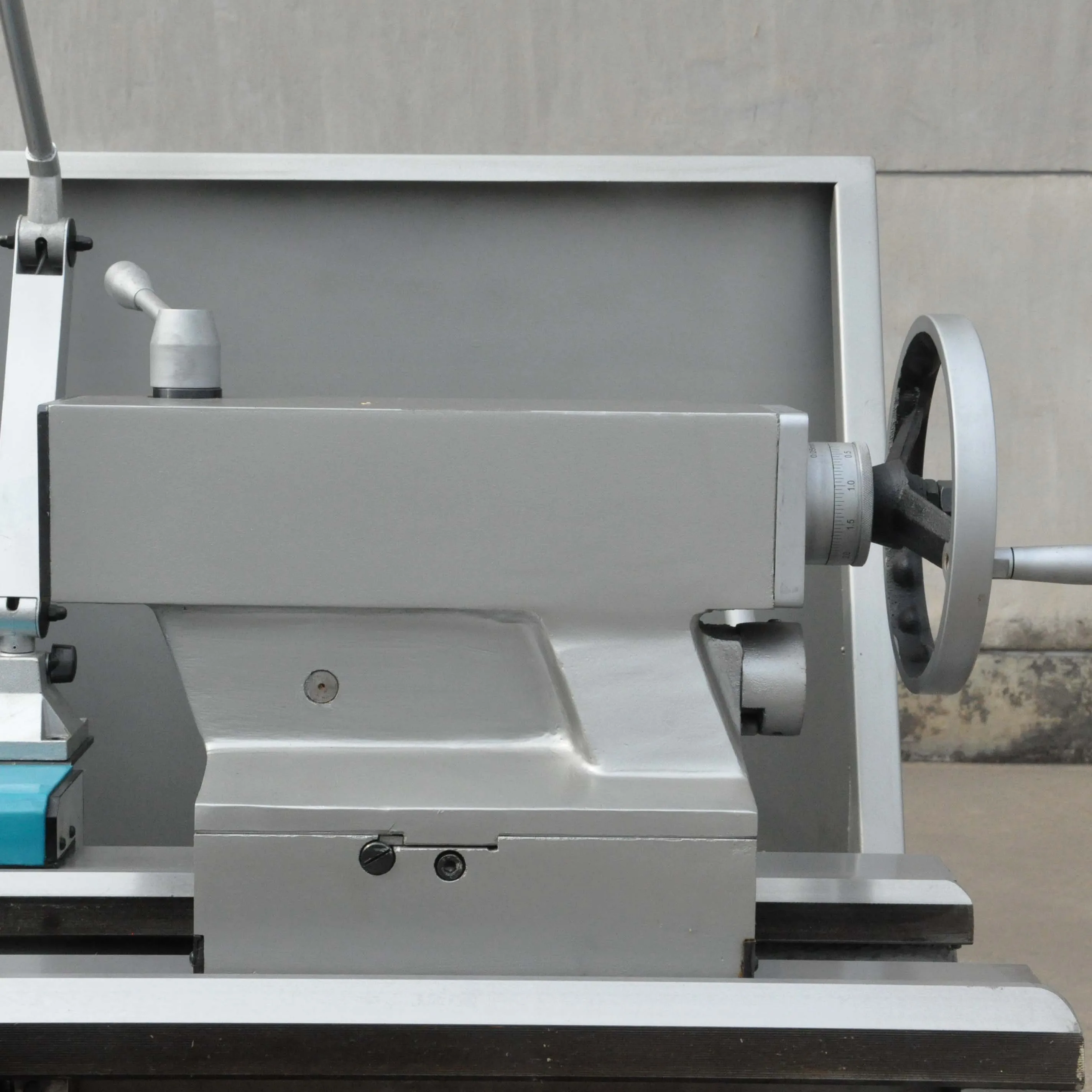

Manual tailstock
Tool box with accessoires.
