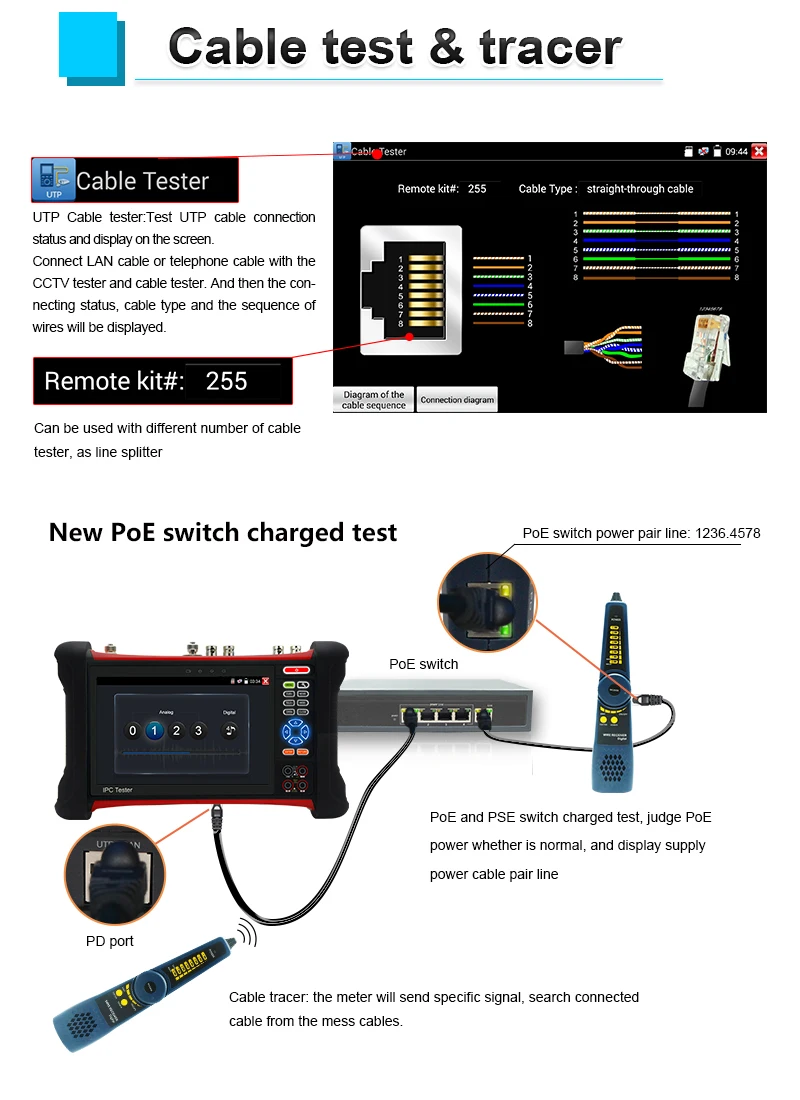

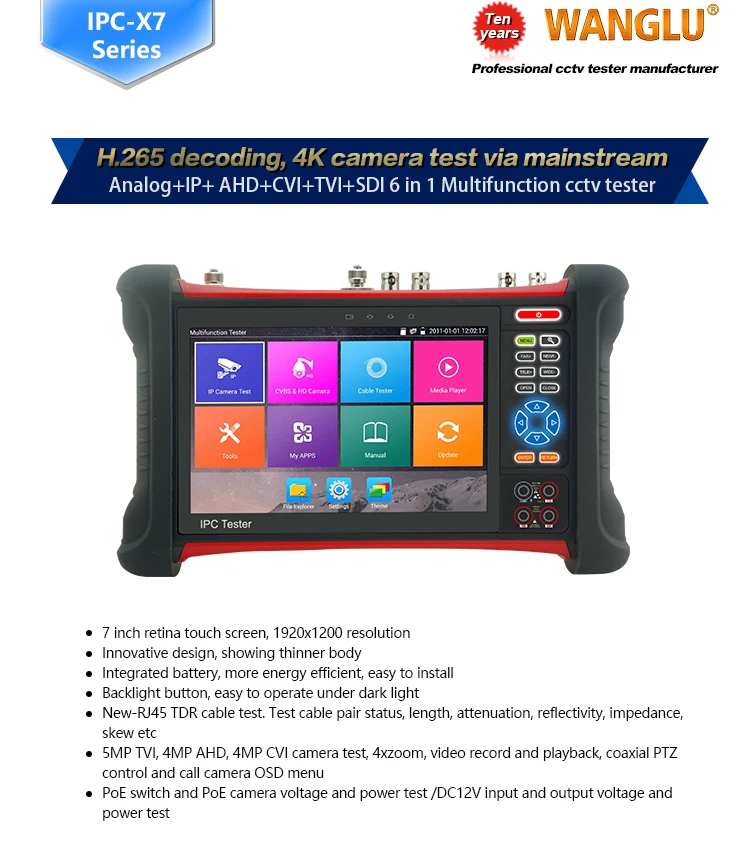

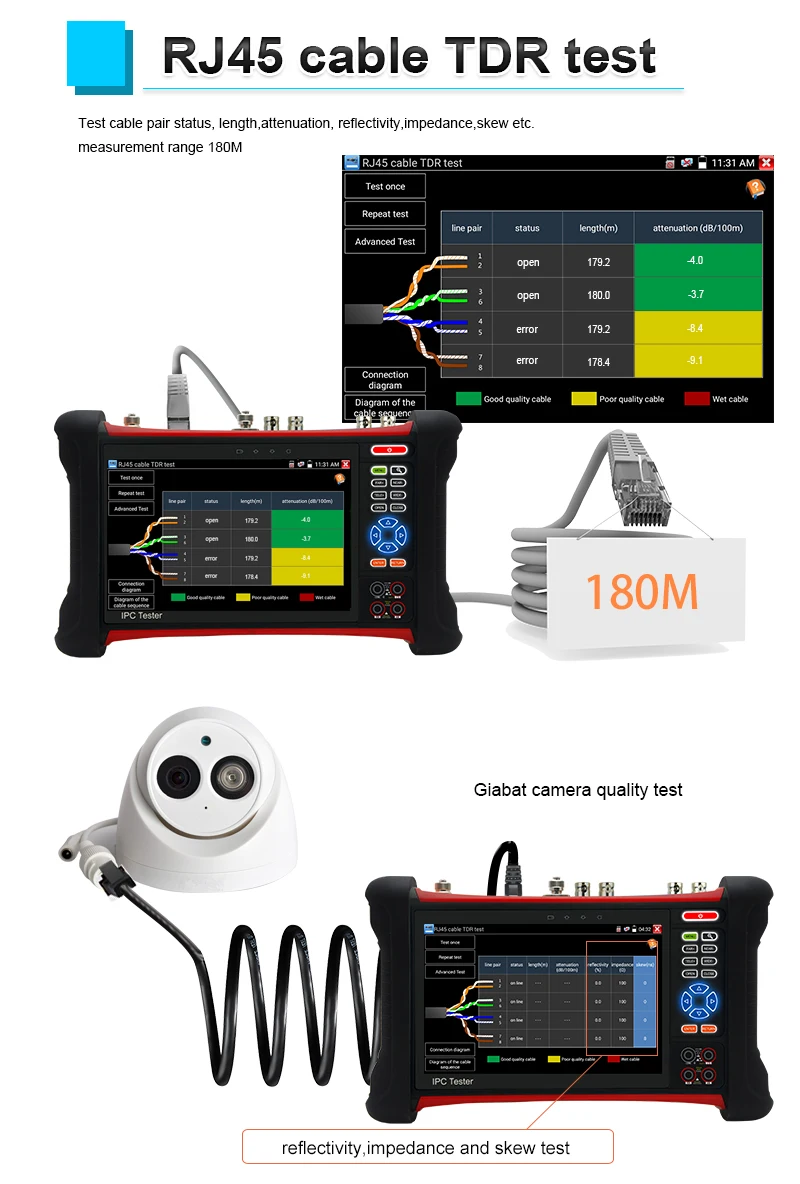

Newest 7 inch IP+Analog +AHD+ TVI+ CVI +SDI ONVIF cctv tester with HD Input and RJ45 TDR cable test , Retina touch screen,1920*1200 resolution
Basic model : X7
Full model :X7-MOVTADHS

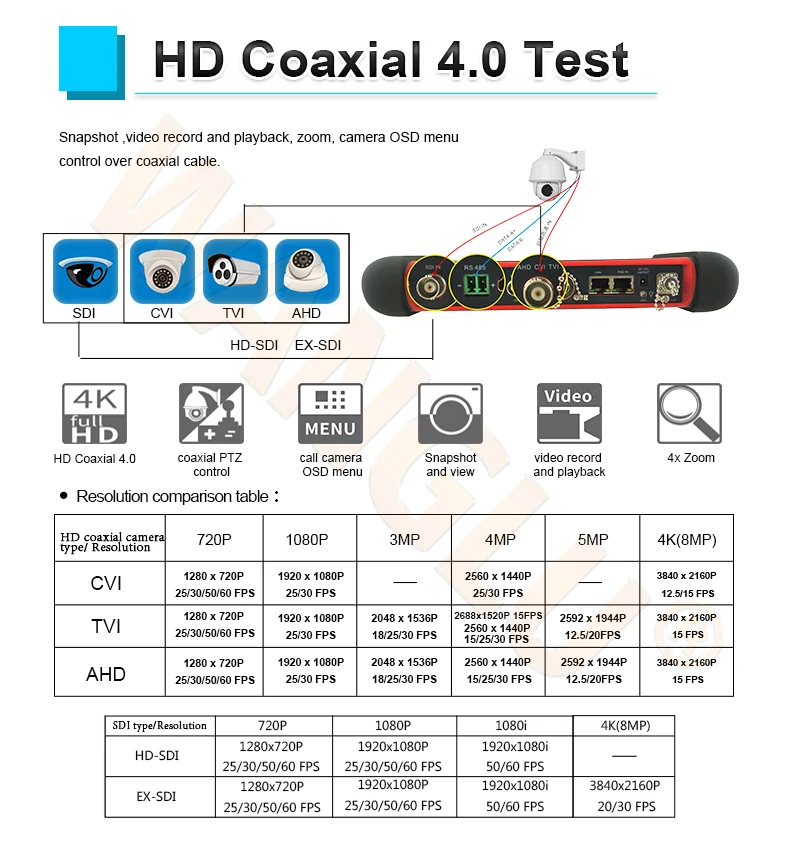

4K H.265/H.264,8MP TVI, 8MP CVI, 5MP AHD
SDI/EX-SDI CCTV camera tester
Specification

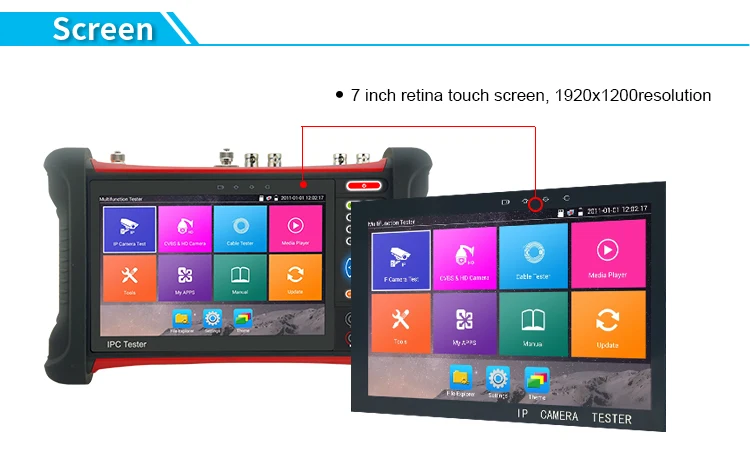

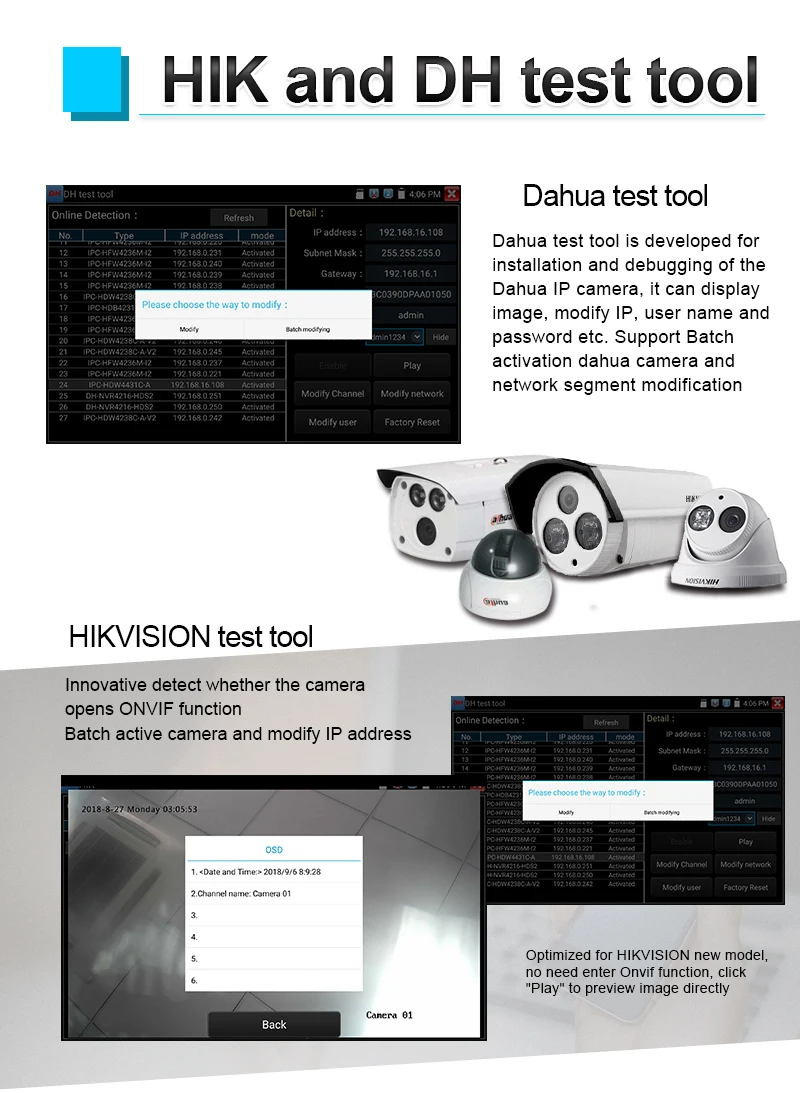

1. New -7 inch touch screen cctv tester with retina display ,1920*1200 resolution 2. New- 4 K support H.264 and H .265 IP camera via mainstream code testing 3. HD CVI camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu 4. New- HD TVI camera image display, support TVI 3.0,Hikvision 3MP TVI camera testing , zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu 5. AHD camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu 6. HD SDI camera test ,support 1080P/60Hz 7. New- Rapid video, by pressing just one key to detect all network cameras and auto play the images 8. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can generator testing report 9. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS 10. New- In HD mode, It can converter test from analog to digital with dual test window IP & HDN or Analog & HD 11. New- Screen management, change function’s icons order, create new directory 12. New- Themes: Lite and normal model can select , change the icons and desktop background , sliding effect etc 13. New- Shortcut button, drop-down menu , you can select PoE power ,IP setting, WLAN switch, HD IN functions etc in any interface 14. New- Screen lock, password lock and pattern lock are optional 15. New- HD signal in and out , supports up to 1080P 16. New- HD signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot 17. New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable 18. New- Traffic monitoring of the tester "Lan port", display network port or WIFI connection real-time upload and download speeds and other network parameters 19. New- Customers self update software ,you can install apps with android version ,such as QQ, wechat etc 20. ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF) 21. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot 22. New- 4K video files and MKV/MP4 media files play 23. PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank 24. New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable 25. OSD menu rotates in 180 angle 26. 8GB SD card including 27. Support mobile app of the IP camera 28. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address 29. Display its genuine resolution of the IP camera images 30. IPC test, combine with more than 80 brand camera, such as IP, KEDA, HIKVISION and TIANDY camera. 31. Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG. 32. Video screen snapshot ,video recording ,files named and save, easy to find 33. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement 34. Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator 35. POE voltage measurement, PING test ,IP address scan, port flashing etc 36. Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools 37. 7.4 V /5000mAh Lithium Ion Polymer Battery, after 5~6hours charging , working time lasts 10 hours
