Product Description

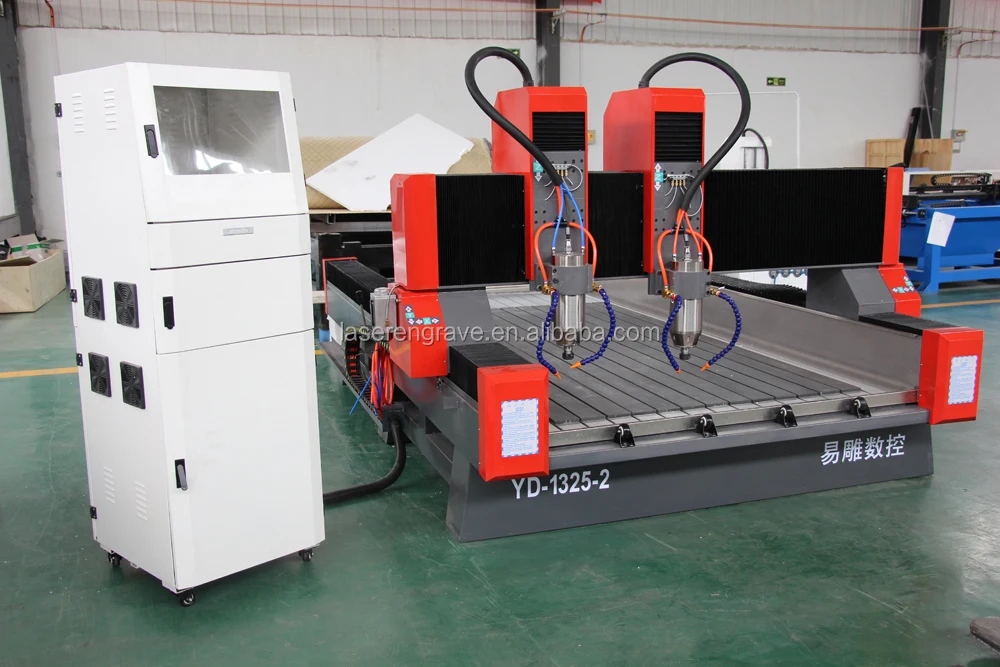

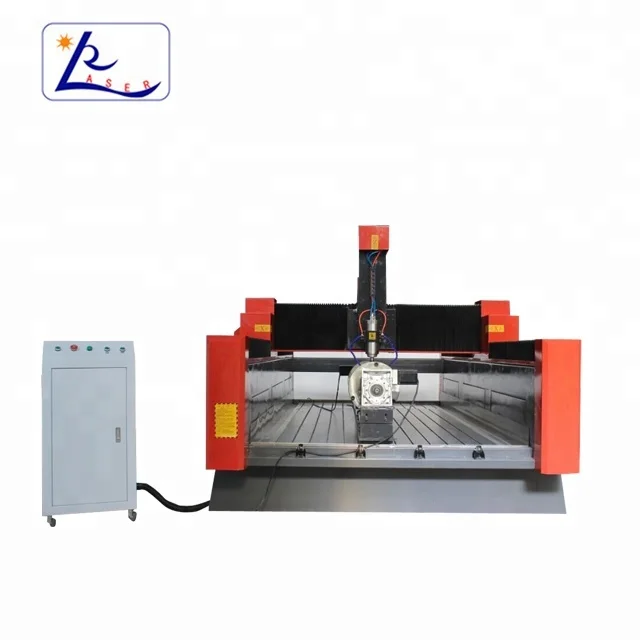

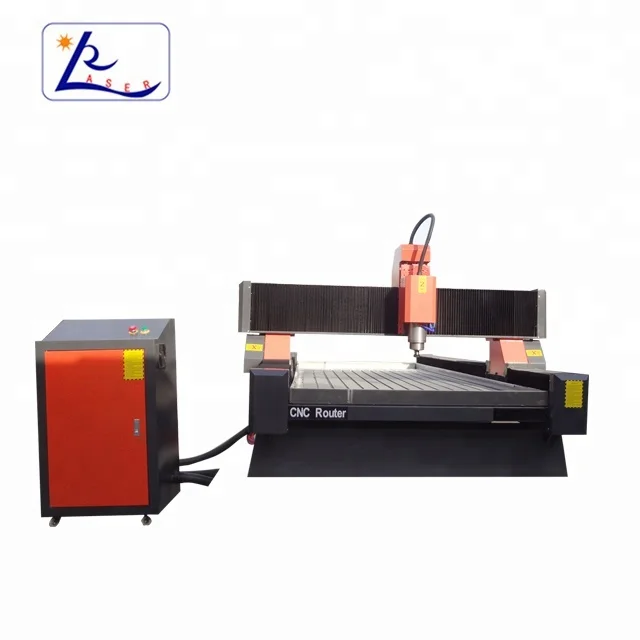

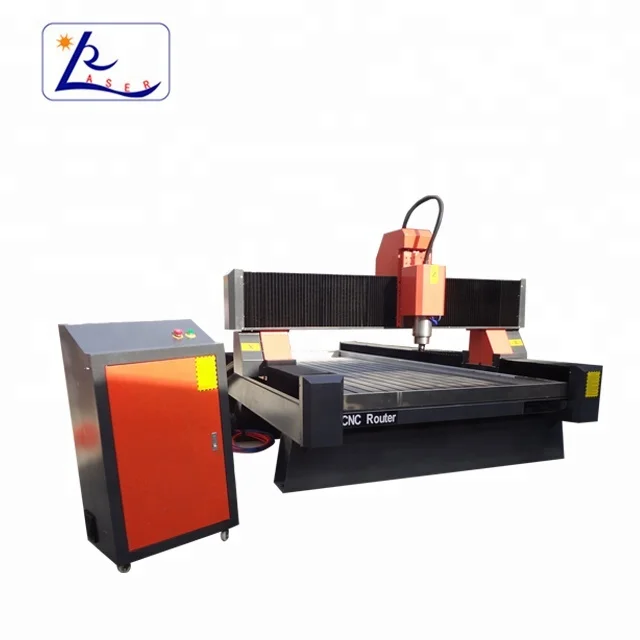

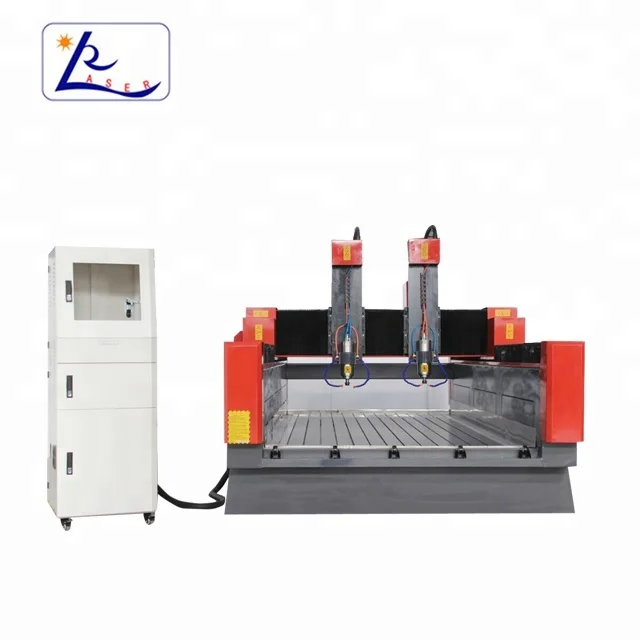

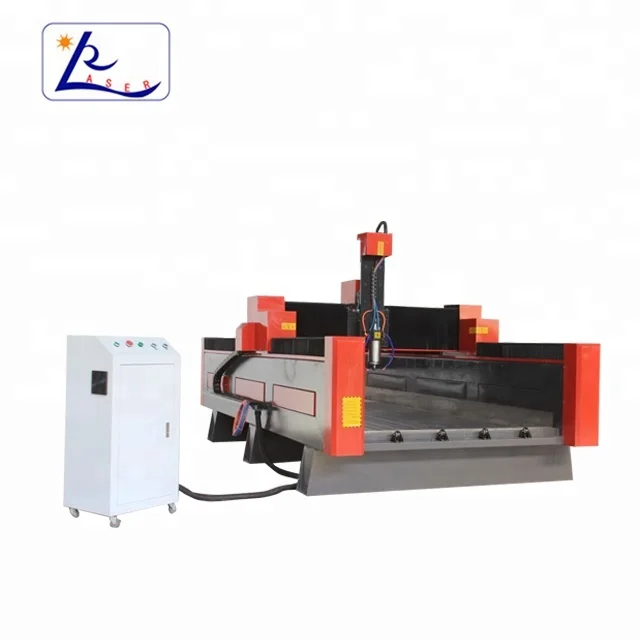

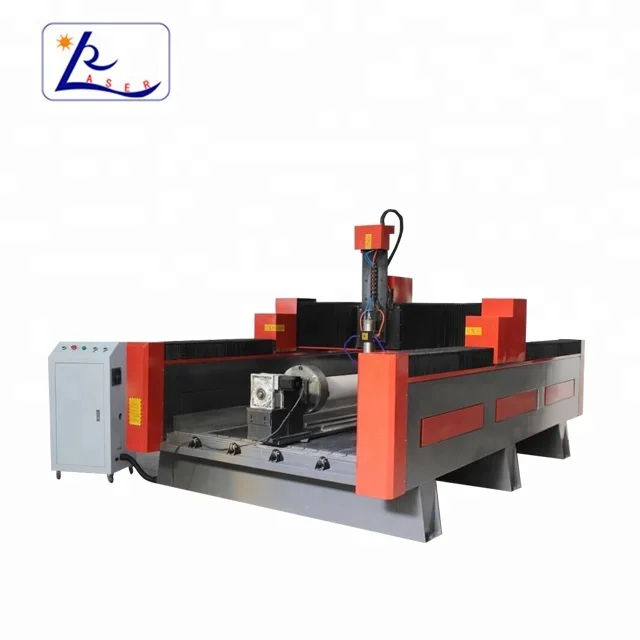

Tombstone Marble Granite Stone CNC Router
Stone carving Machine 1325
Feature of stone cnc router:
1.5.5KW or 7.5KW water cooling spindle, with big strength, long life, and low noise.
2.Popular NC studio controller, easy operation and convenient by PC computer.
3.Taiwan imported HIWIN linear guide. With high precision, long life and top pressure-tolerant performance.
4, YAKO stepper /servo motor and drivers, strong anti-interference ability, large power and high accuracy
5,X and Y axis: are with Rack and Pinion, Z axis is with Taiwan TBI ball screw.
Details:
Parameters
| NO. | Item | Parameter |
| 1 | X,Y,Z Working Area | 1300mmx2500mmx400mm |
| 2 | Processing Accuracy | ±0.05mm |
| 3 | Repositioning Accuracy | ±0.02mm |
| 4 | Table Surface | T-slot Combined |
| 5 | Frame | Welded Structure |
| 6 | X, Y Structure | Rack and Pinion Drive, Hiwin Linear Rail |
| 7 | Z Structure | Ball Screw ,Hiwin Linear Rail |
| 8 | Max. Power Consumption | 4.0Kw (Without spindle) |
| 9 | Max. Rapid Travel Rate | 42000mm/min |
| 10 | Max. Working Speed | 30000mm/min |
| 11 | Spindle Power | 5.5 KW water Cooling Spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | YAKO driver / Stepper or Sevor Motor |
| 14 | Working Voltage | AC380V /50 60Hz, 3PH |
| 15 | Command Language | G Code |
| 16 | Operating System | Ncstudio System(Mach3,DSP option) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 512M(U Disk) |
| 19 | Collet | ER32 |
| 20 | X,Y Resolution | <0.03mm |
| 21 | Software Compatibility | Artcam, Type3 Software (Option: JD software) |
| 22 | Running Environment Temperature | 0 - 45 Centigrade |
| 23 | Relative Humidity | 30% - 75% |
| 24 | Packing Size | 3600*2250*1750mm |
| 25 | N.W. | 1600KG |
| 26 | G.W. | 1800KG |

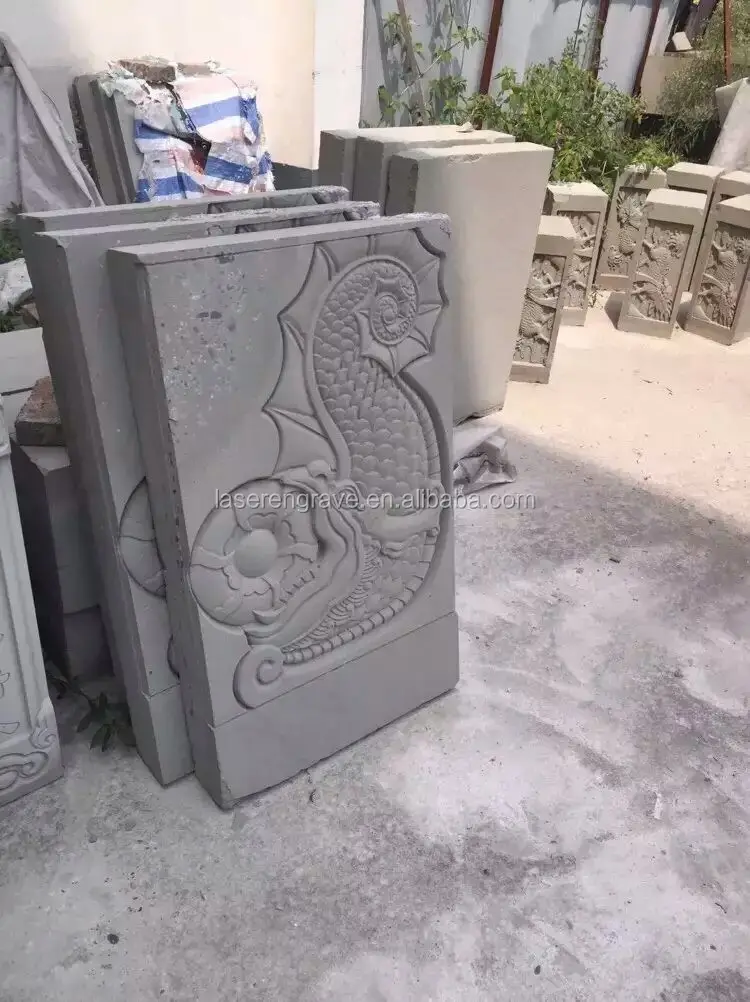

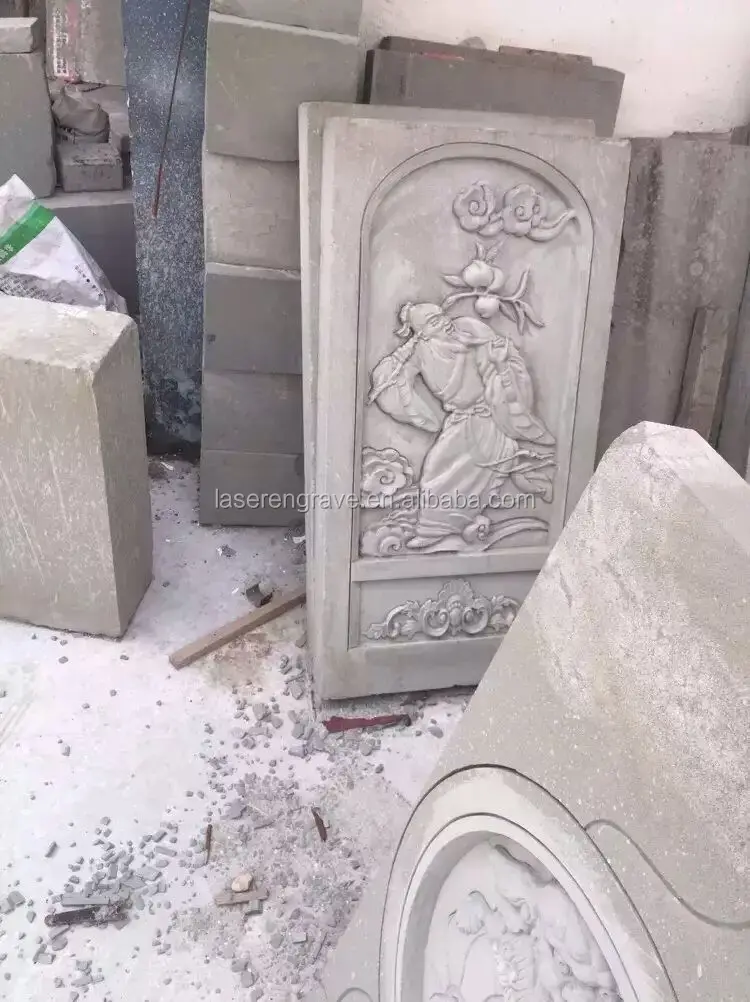

Samples/ Application
Application materials:
Stone material: natural marble, granite, artificial stone, tombstones, stone, jade carving and processing.
Decoration categories: ceramics, crystal, glass, plastic, chemical synthetic organic glass board, PVC board, wood, plastic, metal, plastic materials, such as line carve, 2d, 3d bottom tip carving, 3d relief, cutting, edge, drilling.
Packing and shipping
Firstly, the machine will be packed with plastic film tightly. And the plastic film will be many layers onto the machine to keep dust proof.
Secondly, the machine will be packed by fumigation wooden box, and will put some foam between the playwood box and machine.
Thirdly, outside the machine, and wrapped with stainless steel belt on the packages.
OEM Service
Q1.What control system it use ?
A:NC studio, DSP, Mach3, Syntec control system for choose.
Q2.Which kind of machine is more suit for me?
A:It is according the material and processing thickness and the working area .Tell me your materials and
thick, we will recommend you suitable machine.
Q3.How to support me if i don't know how to use it?
A:Free training within the warranty by WhatsApp, Skype, Fax, Mail, Wechat, QQ. We also can dispatch our
technician to customer’s company to provide training and support if customer agree the air ticket and hotel.
Q4.How transport?
A:By sea.

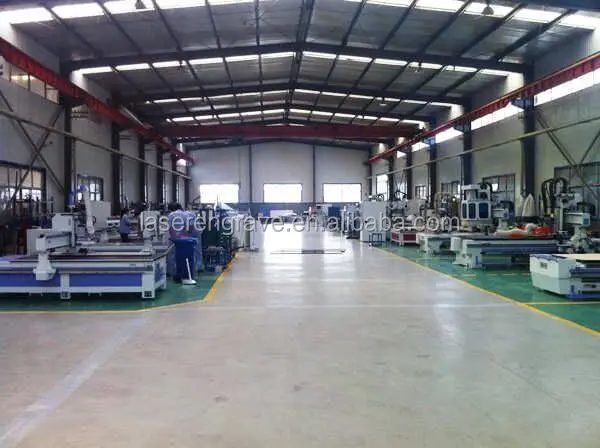

Company Information
FAQ
Q:If some problems happened during warranty period ?
A: We will supply free parts for this machine during the warranty period if machine have any problems
without man-made reasons, We also supply free afterservice forever.
Q:How long is the delivery time?
A: For standard machines, it would be 10-15 days; For non-standard machines & customized machine
according to client s specific requirements, it would be 15 to 30 days.
Q:The payment terms?
A: T/T, L/C, West Union, Paypal etc.
Q:How about the packaging ?
A:All of our machine packed with water proof thin plastic inside and plywood box, free from fumigation,
outside the machine, and wrapped with stainless steel belt on the packages.
