Products Description

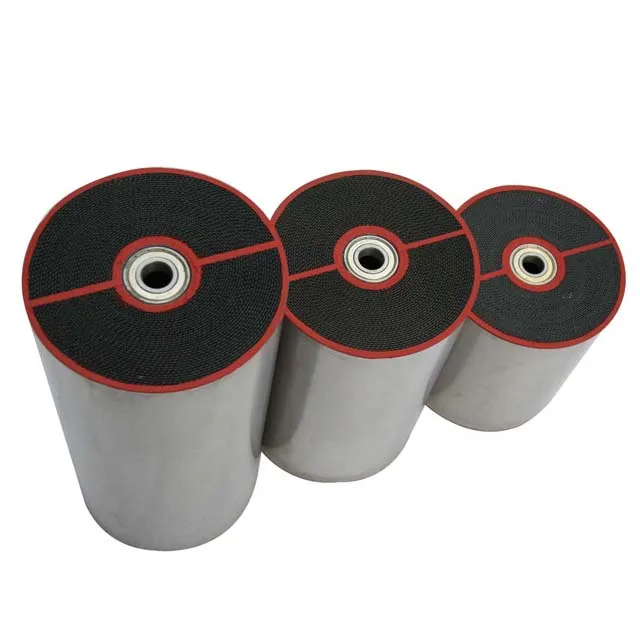

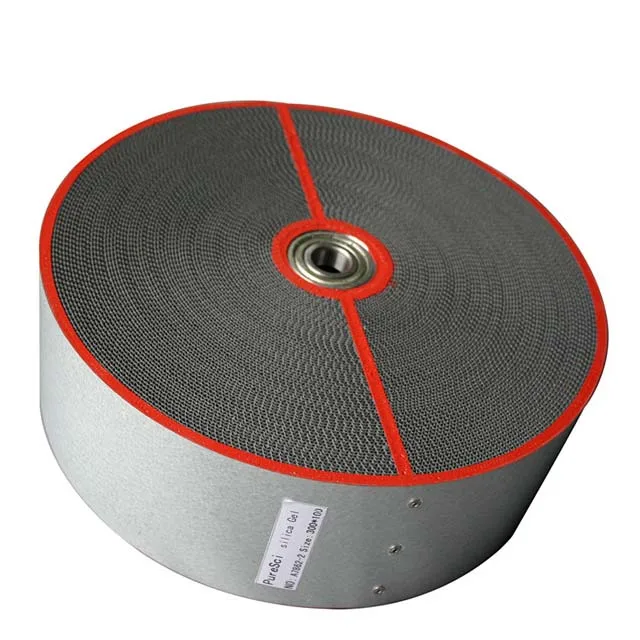

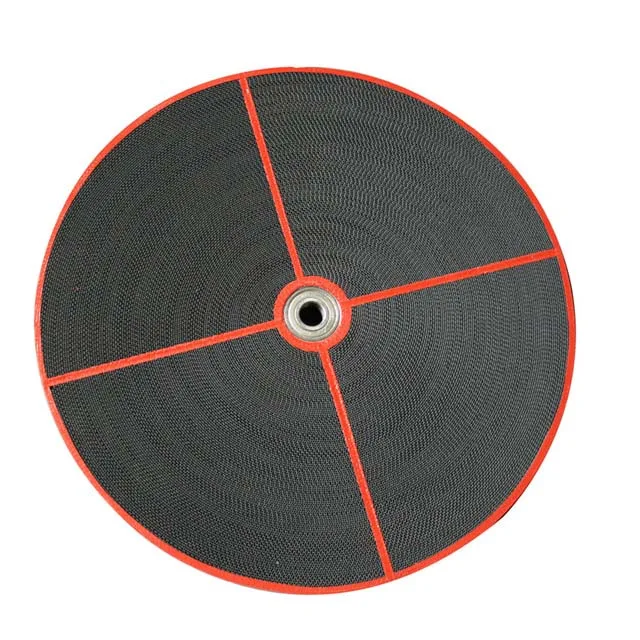

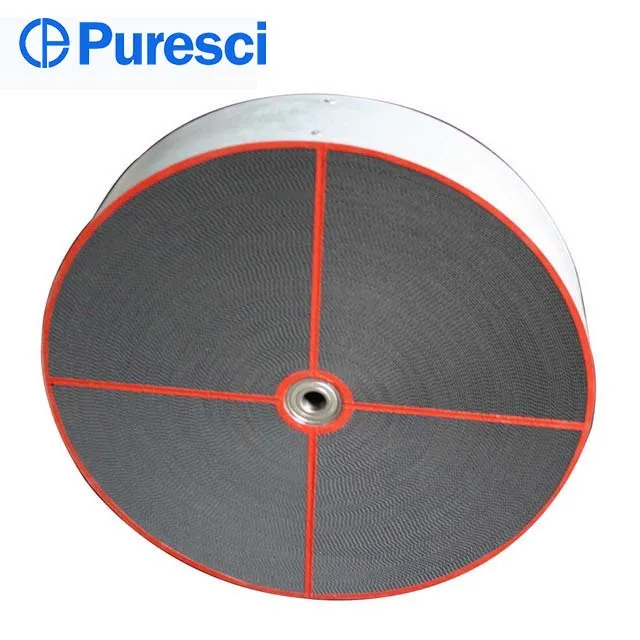

Common Silica Gel Type desiccant rotor: PSS
PSS rotor is used for normal humidity and low dew point operation in high regen. temp., and suitable for most dehumidification applications.
It has the outstanding performance in wide range of applications.
( Relative humidity 10% ~ 40%,
Dew point -50℃ ~ -75℃）
Our Advantages
1. Surface Strength
500N/㎝² {50kgf/㎝²}
2. Coating Performance
Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance,anti-corrosion, no odor and high hardness.
3. Advanced Manufacturing Techniques
Axis Perpendicularity error precision ±0.1mm（Below 1500mm）, ±0.2~0.3mm（1500~3000mm）.
Improve tightness, reduce friction, reduce the probability of rotor cracking.

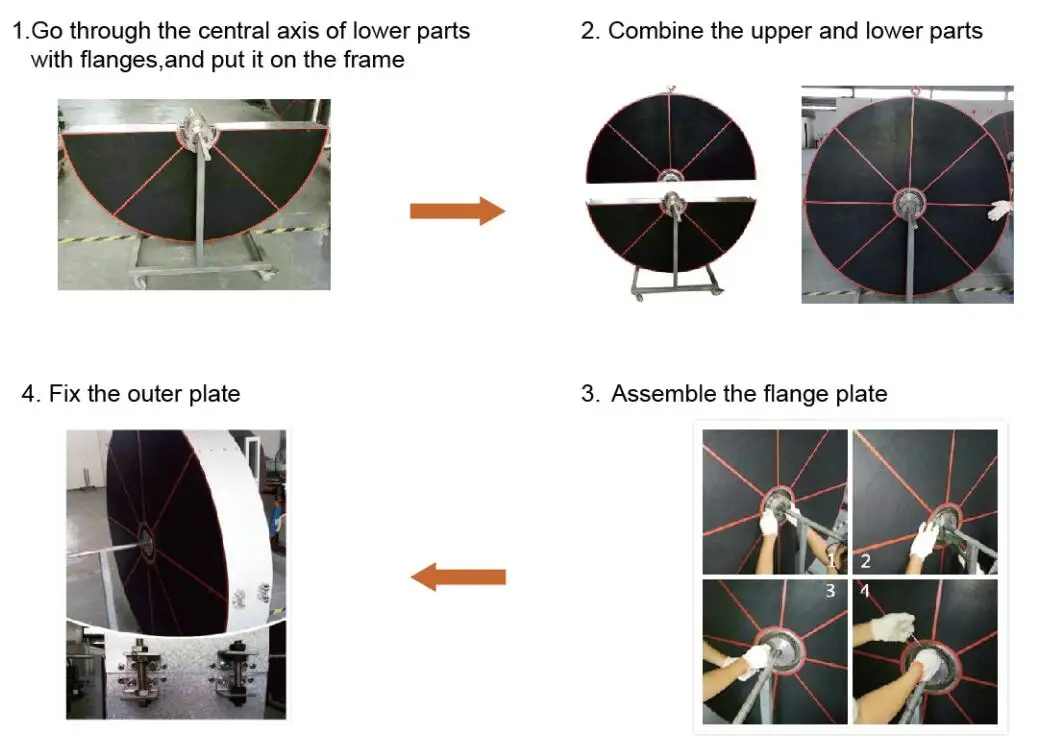

4. Assembly Steps on Site of Big Split of Type
It is recommended that using the split type for diameter ≥ 2200mm, due to transporation problems.
It's easy way to assemble upper and lower parts on site.

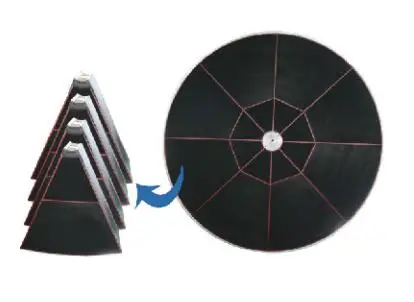

5. Replacement Program
If the space is narrow, the rotor can be shaped into fans to assemble.
6. Long Service Life
We made the life test and calculated use life according to Arrhenius theoretical formula. As the combination of losts of repeated experiments and accurate theoretical calculation, serivice life can be as long as 8 ~ 12 years.
Product Paramenters
1. Test Record of PSS (1 : 3) Dehumidification Performance
( Process airflow inlet : T=15℃ 95% / T=12℃ 95% )
Face Velocity (m/s) | Regen. Temp. (℃) | Speed of Rotor (r/h) | Regen. Inlet Air | Process Inlet Air | Process Outlet Air | Moisture Removal (g/kg) | ||||
Humidty Ratio (g/kg) | Temp.(℃) | Humidity Ratio (g/kg) | Temp.(℃) | Humidity Ratio (g/kg) | ||||||
2 | 120 | 12 | 19.36 | 15.01 | 10.09 | 38.33 | 2.76 | 7.33 | ||
3 | 120 | 12 | 19.44 | 15.02 | 10.11 | 35.6 | 3.05 | 7.06 | ||
2 | 120 | 12 | 19.47 | 12.30 | 8.30 | 35.2 | 2.00 | 6.30 | ||
3 | 120 | 12 | 19.53 | 12.10 | 8.30 | 33 | 2.10 | 6.20 | ||
2 | 120 | 12 | 20.00 | 15.00 | 10.10 | 40.3 | 2.20 | 7.90 | ||
2 | 120 | 12 | 20.00 | 12.00 | 8.30 | 36.5 | 1.60 | 6.70 | ||

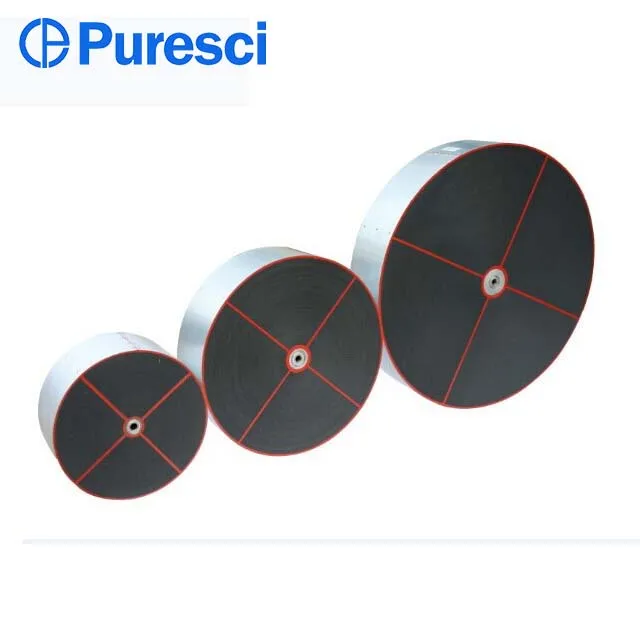

Products Structure and Dimensions
Besides standard dimensions (Diameter and Thickness), non-standard desiccant wheels can be customized according to customers' requiremens, such as 50mm, 65mm, 100mm and 150mm.
ROTOR SIZE | ||||||
Diameter(mm) | Thickness(mm) | Shaft Diameter(mm) | Lifting Rings | |||
180-550 | 50, 100, 150, 200, 300, 400 | 50 | NO | |||
600-850 | 200, 300, 400 | 70 | NO | |||
965-1070 | 200, 300, 400 | 100 | YES | |||
1200-1650 | 200, 300, 400 | 150 | YES | |||
1730-3000 | 200, 300, 400 | 240 | YES | |||
Product Packing and Shipping
Company Profile

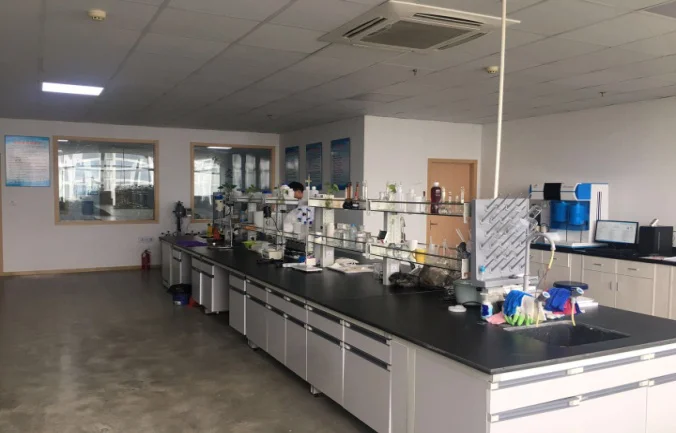

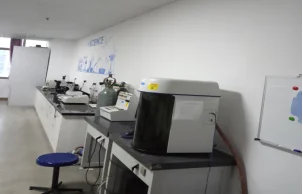

Material R&D Lab:
We focus on the existing silica gel, molecular sieve, adsorbent resin etc in-depth development and application research.

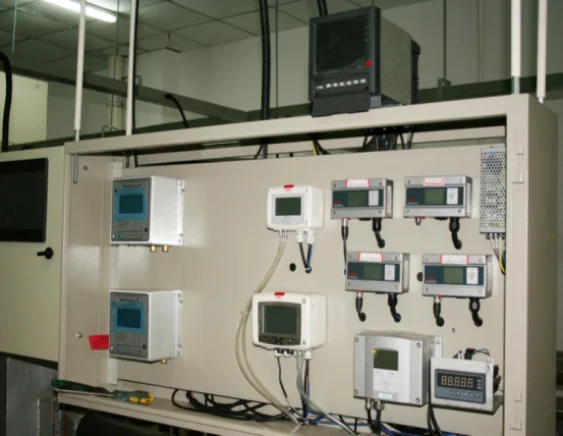

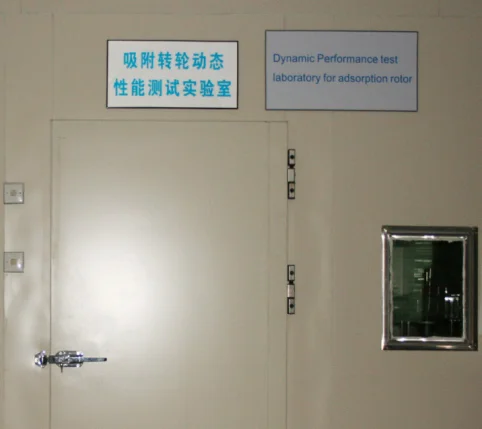

Dynamic Test Lab:
It can accurately simulate actual situation of engineer application and provide data support for design, selection and
calculation of desiccant rotor and dehumidification system.
calculation of desiccant rotor and dehumidification system.
Factory:
Precision production facilities and consummate production technology is a guarantee of high quality.
Our Service:
Pre-Sale Service
1.Technical Service consultation.
2.PC and mobile phone selection software.
3.Support service - product test,system design, R&D technical support.
In-Sales Service
Precision production facilities and consummate production technology is a guarantee of high quality.
After-Sales Service
Timely delivery,quickly help customers solve technical problem and optimize equipment performance,
ensure terminal customers to run dehumidification equipment efficiently.
1.Technical Service consultation.
2.PC and mobile phone selection software.
3.Support service - product test,system design, R&D technical support.
In-Sales Service
Precision production facilities and consummate production technology is a guarantee of high quality.
After-Sales Service
Timely delivery,quickly help customers solve technical problem and optimize equipment performance,
ensure terminal customers to run dehumidification equipment efficiently.
FAQ
Q1: What's your terms of packing?
The package of desiccant rotor is polyfoam and wooden case. It will be very safe for shipping.
Q2: What's your terms of payment?
100% advance pament by T/T before delivery .
Q3: What's your temrs of delivery?
EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
Usually 7-10 days.
The specific lead time depends on the items and the quantity of the order.
Q5: Can you produce according to the samples?
Sure.We provide customized services and OEM service.
Q6: What's your sample policy?
Sample service is available. All charges such as sample cost and courier cost are on customers' account.
