Модуль ЖК-дисплея COB 16x2 STN
US $0.30-$1.00
Транфлективный положительный графический ЖК-дисплей Mono 96x64 FSTN
- Категория товара: Graphic Display >>>
- Поставщик (Оптовый магазин): Formike,Electronic,Co.,Ltd.,(Dongguan)
Поделиться:
Описание и отзывы
Характеристики

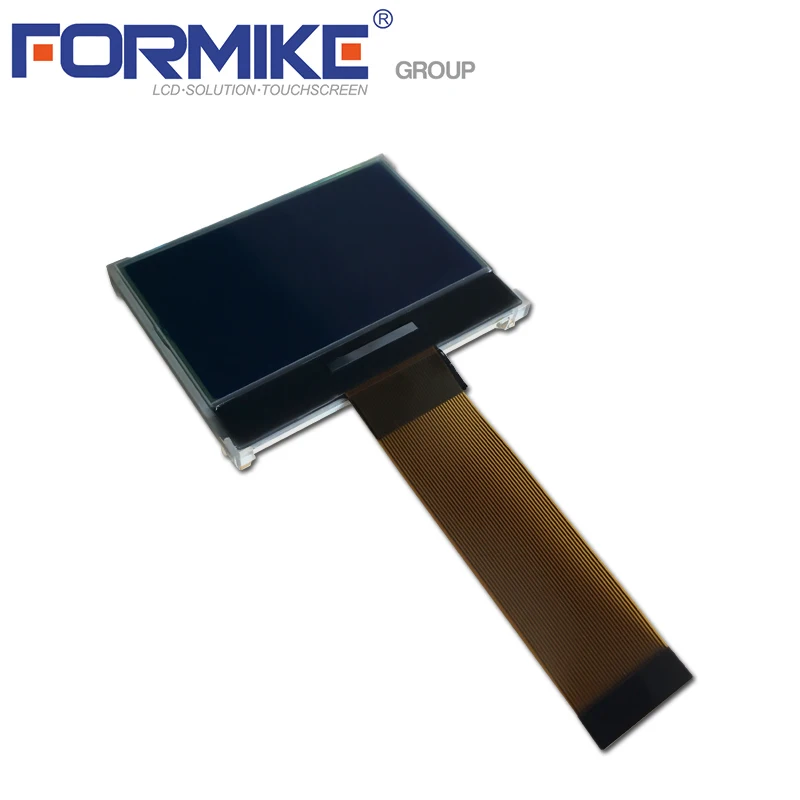

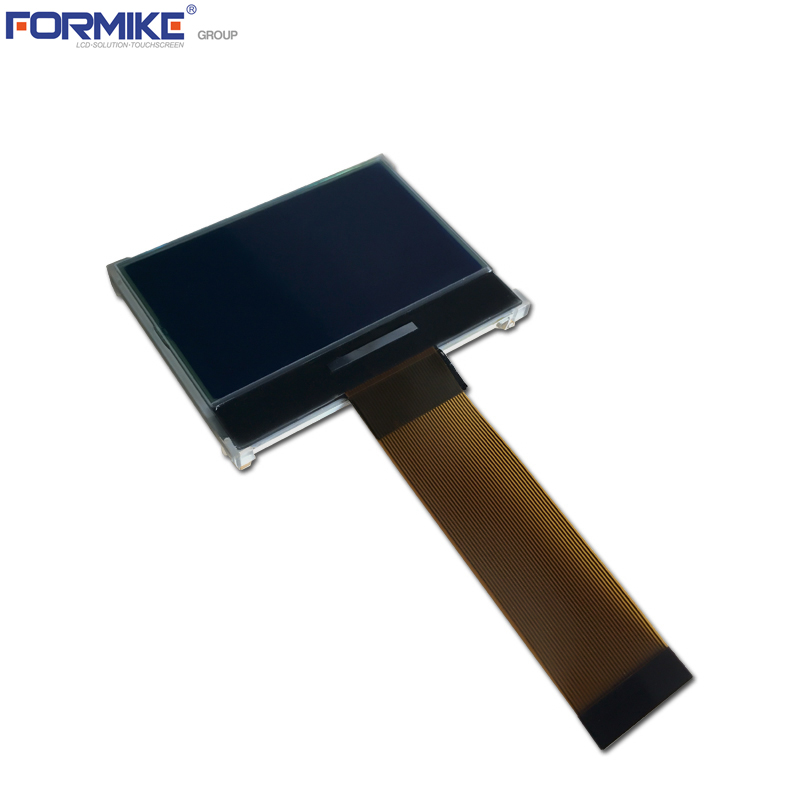

Mono 96x64 FSTN Transflective Positive graphic lcd
| Product Description | 96x64 FSTN Transflective Positive graphic lcd |
| LCD Name | Mono 96x64 FSTN Transflective Positive graphic lcd | ||
Display Mode | FSTN, Positive | Display Format | 96x64 dots |
Polarizer Type | Transflective | Viewing Direction | 6 O’clock |
Outline Dimension | 28x22.3x1.8mm | LCD Connector | COG/FPC |
Viewing Area | 25x15.3mm | Driving Method | 1/65 Duty, 1/9 Bias |
Working Temp. | 0℃~+55℃ | Driver IC | ST7549 |
Storage Temp. | -10℃~+60℃ | Backlight | no backlight |
| Product Application | graphic lcd |
Application
Mobile phone, Multimedia products and other electronic Products Etc.
96x64 FSTN Transflective Positive graphic lcd
| Related Products | 96x64 graphic lcd |
 |  |  |

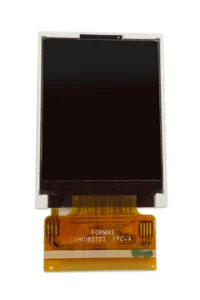

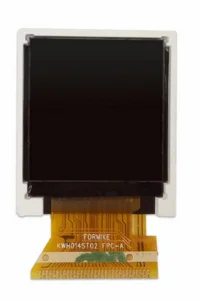

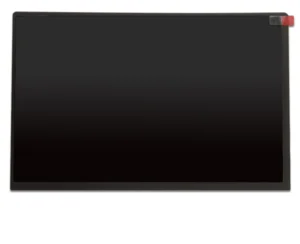

| 1.44 inch 128x128 square TFT LCD display | 1.77 inch 128x160 TFT LCD display | 2.0 inch 176x220 TFT LCD display |
 |  |  |

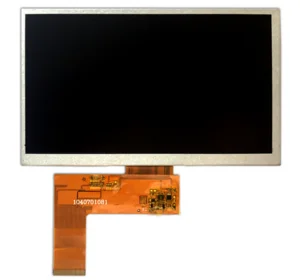

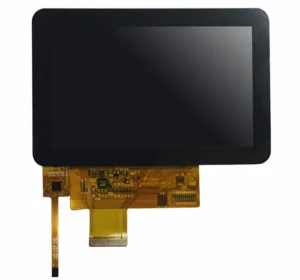

| 5 inch 800x480 TFT LCD display with capacitive touch pannel | 7 inch 800x480 Resolution TFT LCD screen | 10.1 inch 1280*800 IPS TFT LCD Display |
| Our Company |

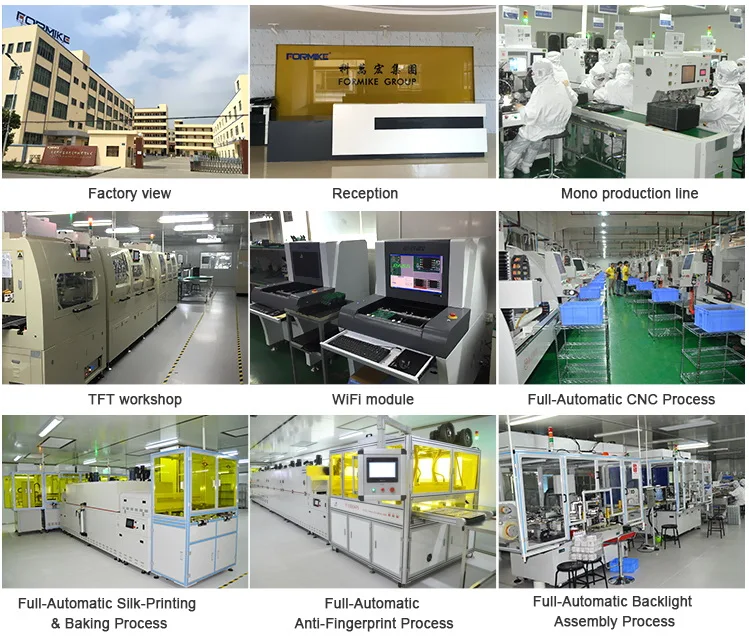

| Factory Workshop |
| Quality Assurance | 96x64 transflective lcd graphic |
| Package & Shipment | FSTN Transflective Positive graphic lcd |

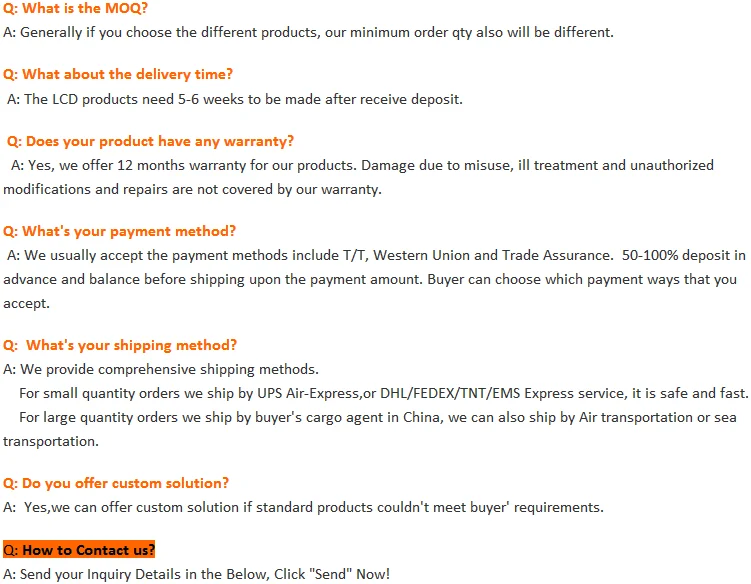

| FAQ | FSTN graphic lcd |
