Модуль ЖК-дисплея COB 16x2 STN
US $0.30-$1.00

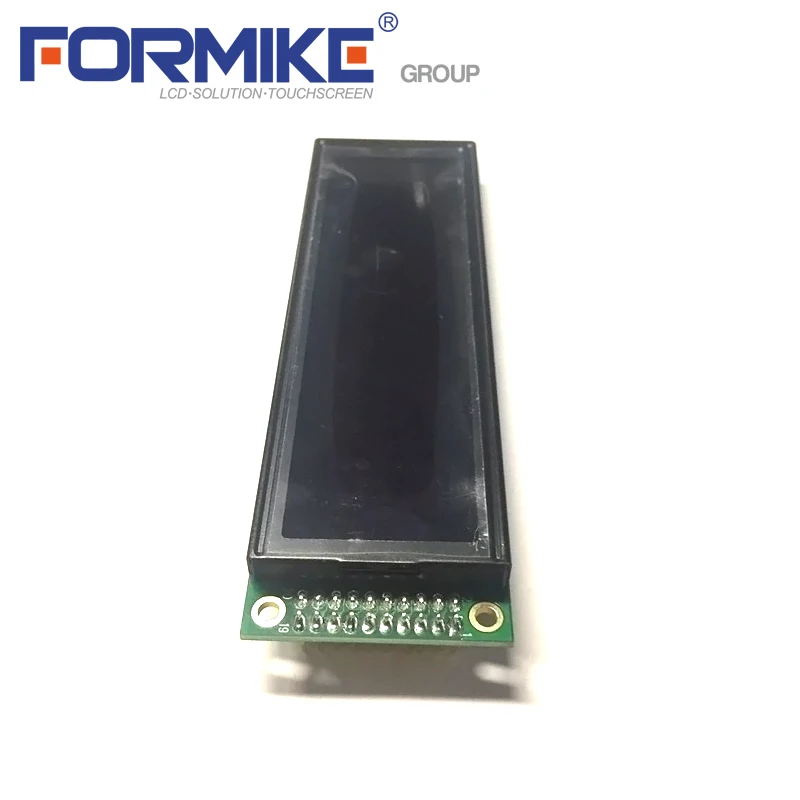

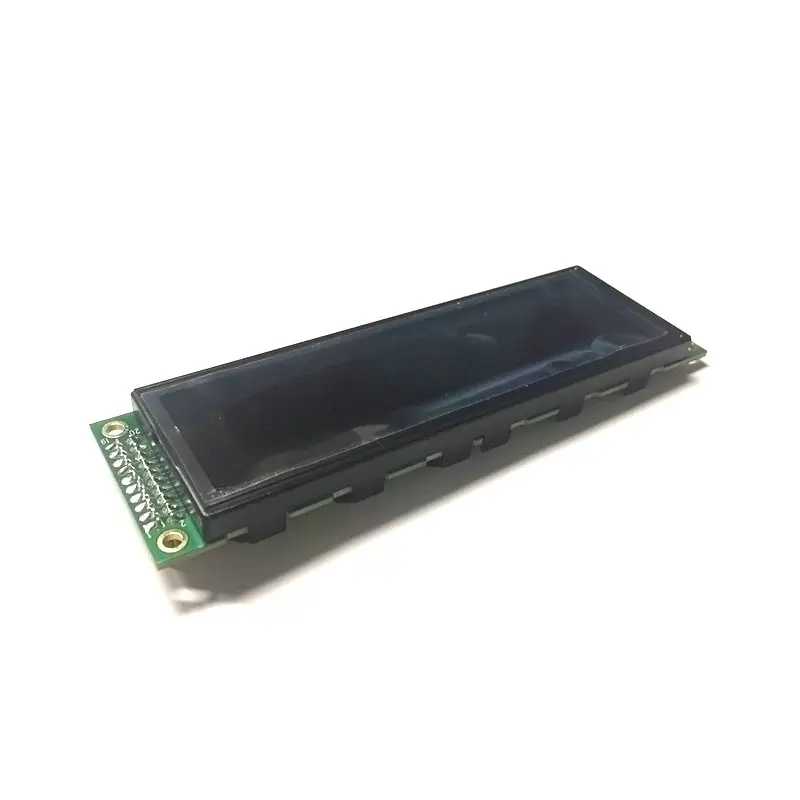

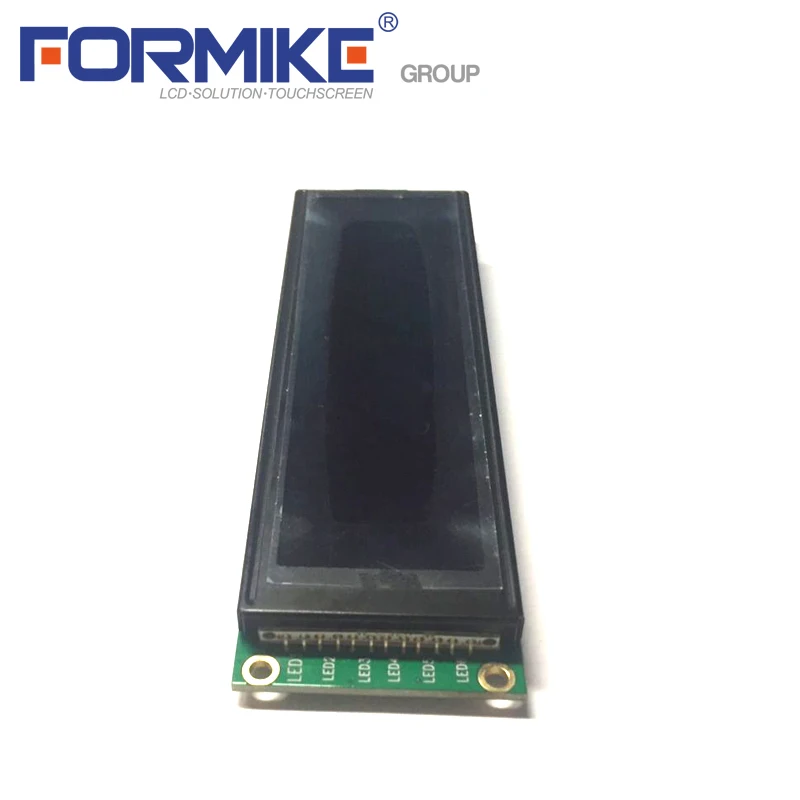

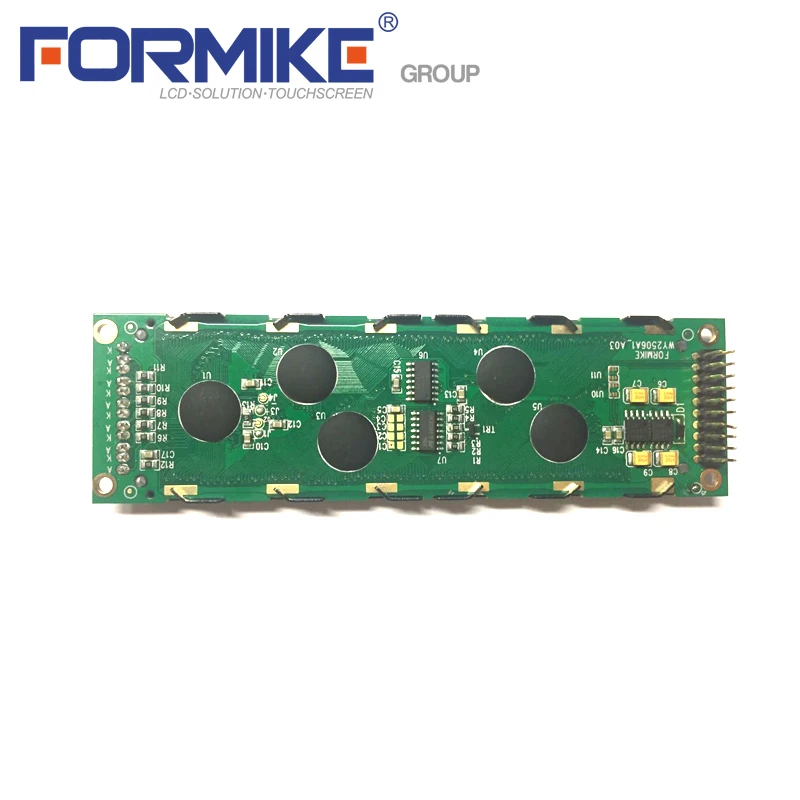

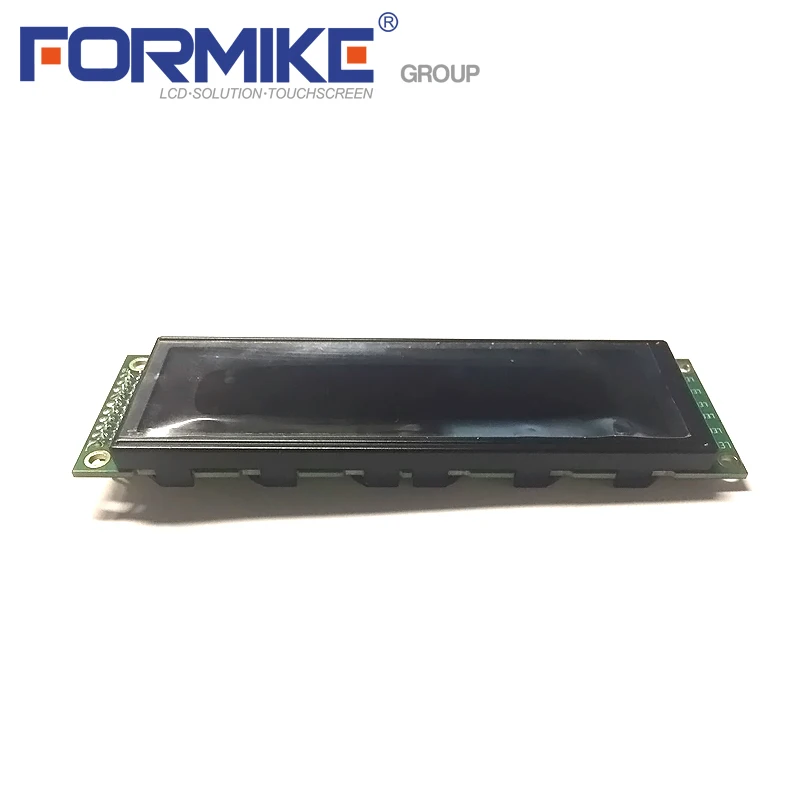

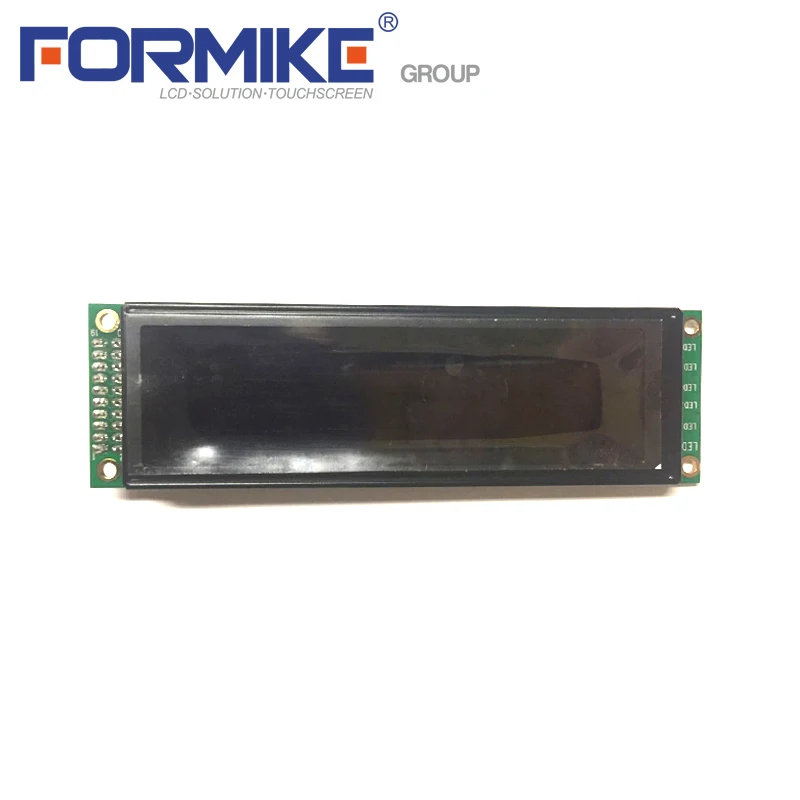

Black negative graphic lcd module 256x64 display with green backlight
- Категория товара: >>>
- Поставщик (Оптовый магазин): Formike,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Main parameters
- We supply Monochrome LCD including Character LCD, graphicd LCD, segment LCD and custom LCD solutions.
- We are 19 years SGS & BV verfied LCD manfacturer with complete LCD production lines.
- We support custom solution for the LCD part or the whole LCD.
| Product Image |
| Product Description |
| Feature | |
| Item | Black negative graphic lcd module 256x64 display with green backlight |
| Display Format | 256x64 pixels |
| Display Mode | FFSTN, Negative, Transmissive |
| Viewing direction | 6 o'clock |
| Backlight | Green LED backlight |
| Interface | Parallel, 20 metal pins |
| Operation temp | -20°C~70°C |
| Storage temp | -30°C~80°C |
| Mechanical Specifications | |
| Dimensional outline (W*H*T) | 137.0(W) x39.6(H) x16.4(T)mm |
| Viewing area (W*H) | 108.6MIN(W) x29.6MIN(H)mm |
| Active Display Area | 102.37(W) X 25.57(H)mm |
| Delivery Information | |
| Lead time | 1-5days for sample; 5-7 days for mass production |
| Shipping way | By DHL,FEDEX,UPS or appointed forwarder |
| Loading Port | Hong Kong or Shenzhen port |
| Mono LCD Type |
 |  |  |
| Character COB LCD module | Character COG LCD module | segment LCD |
 |  |  |
| Graphic COB LCD module | Graphic COG LCD Module |
| LCD Product Range |
|
♦ Monochromic LCDs/LCD Modules |
| ◊ VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory |
| ◊ Graphic,Character,Alphanumeric and In cell touch modules |
| ◊ COB,COG,TAB Package |
| ♦ Color TFT LCD Modules |
| ◊ 0.96inch to 13.3inch color TFT LCD Display |
| ♦ Touch Screen |
| ◊ Capacitive touch screen |
| ◊ Resistive touch screen |
| ♦ OLED Display |
| ◊ 0.49inch to 5.5inch |
| ♦ Complete solutions |
| ♦ Complete technical supports |
| Our Factory |
| Our Capacity |
| LCD | Size: 406 x 356 mm | 65,000 SET |
| Thickness: 0.40, 0.55, 0.70 and 1.10mm | ||
| Dot air gap: 10 um | ||
| LCD Module & CTP | Dot air gap: 10 um | 1500K |
