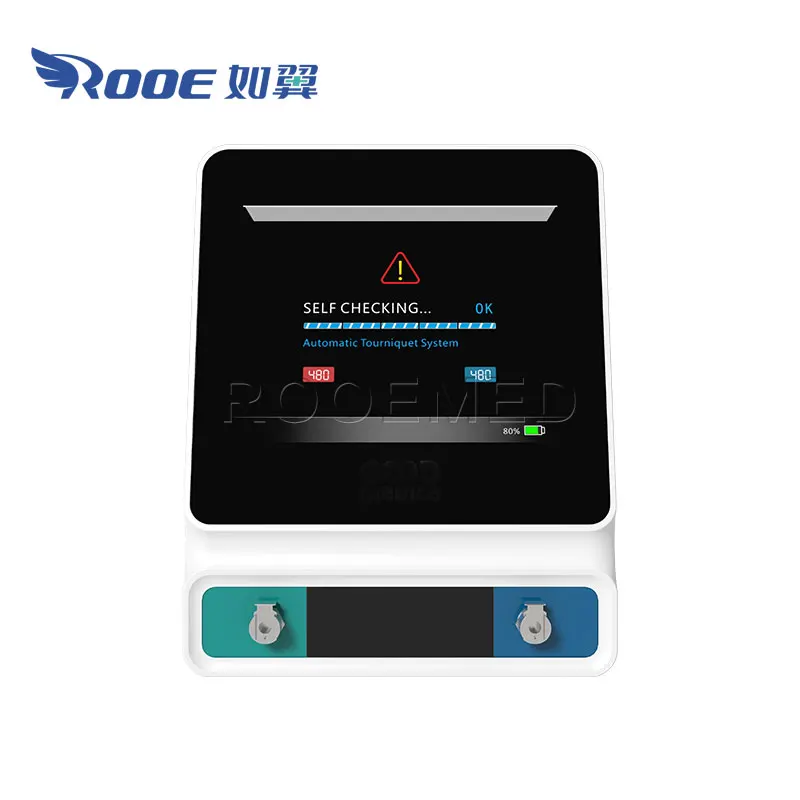

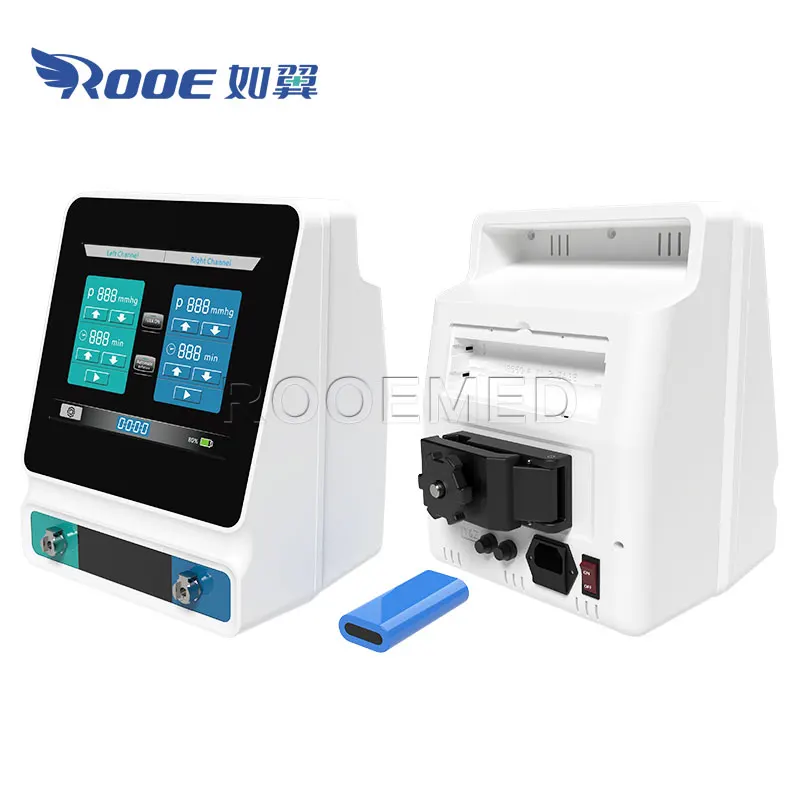

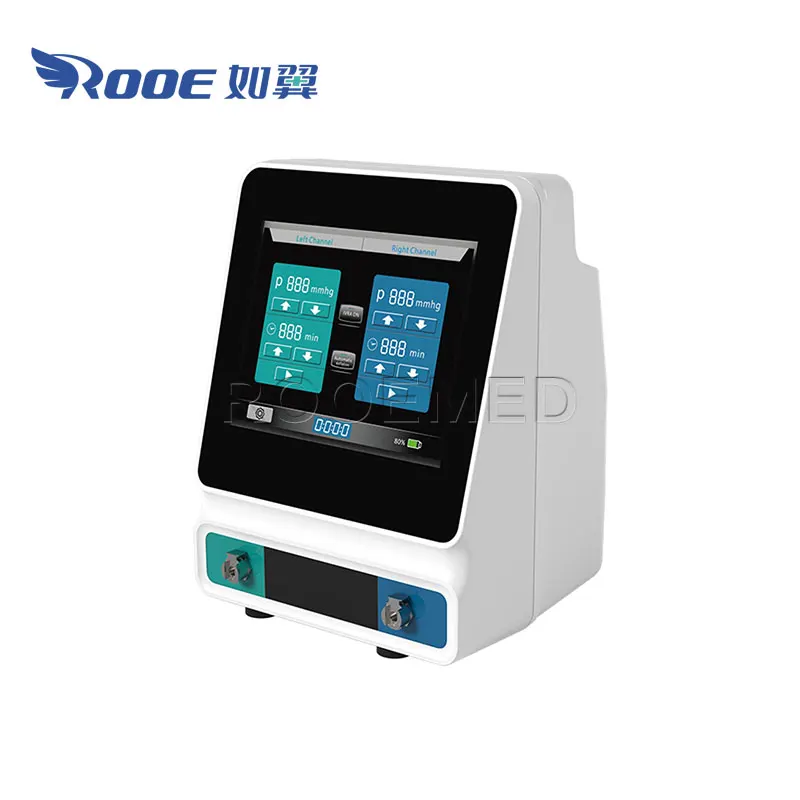

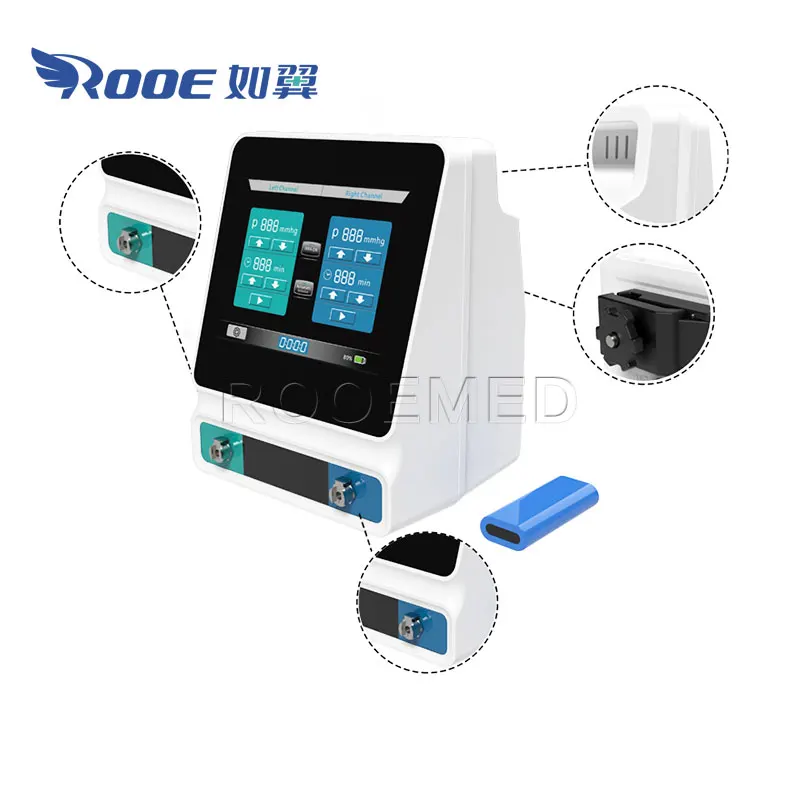

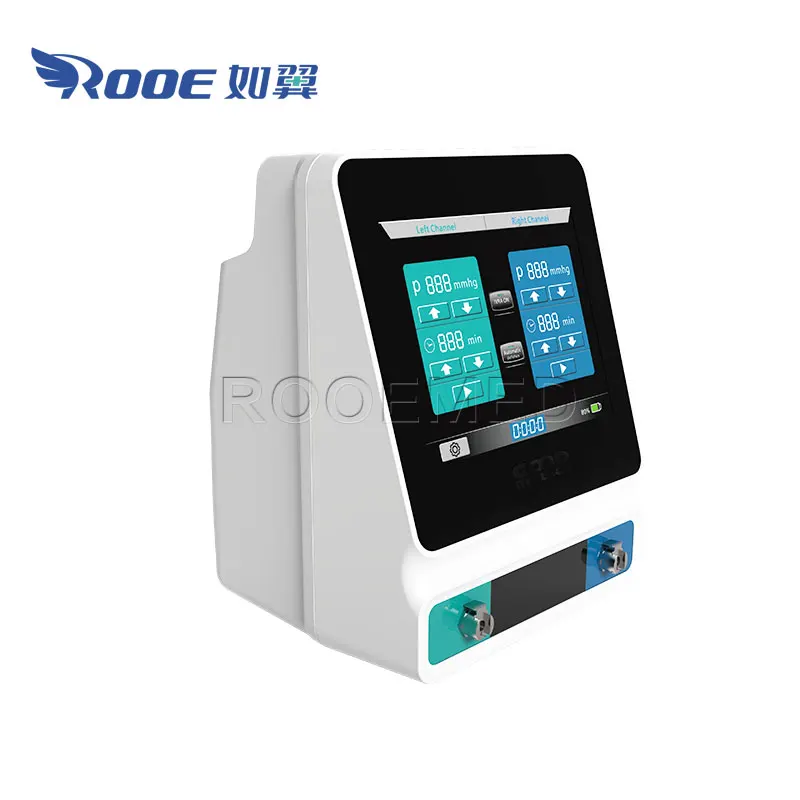

ATS-103 Pneumatic Automatic Double Channel Tourniquet System with Touchscreen

Description:
Electronic Tourniquet mainly compresses blood vessels by inflating the hemostatic cuff to achieve the purpose of hemostasis. Digital tourniquet is used for bleeding stop during limb surgery (not for bleeding stop). The Dual Port Tourniquet is made of high quality materials and can touch the screen, with excellent performance. The Automatic tourniquet body is a lightweight and flexible instrument suitable for most people's various instruments.
Safety
1. Battery back-up, visual and audio alarms, positive locking connectors, and other proprietary features help ensure patient safety.
Reliability
1. Advanced microprocessor technology includes self-diagnostic tests and continuous monitoring for consistently dependable performance.
Convenience
1. Fast inflation and deflation save time for busy operating room personnel. Ergonomic contours facilitate handling and operation for positive, confident control.
High Quality Inflation
1. The Tourniquet System addresses important concerns in medical tourniquet system design, providing the features that healthcare facilities demand for safety, reliability and convenience.
Patient Safety
1. Dual cuffs provide precise, independent monitoring and performance for bilateral or Bier Block procedures.
2. Accurate pressure monitoring for patient safety and confidence.

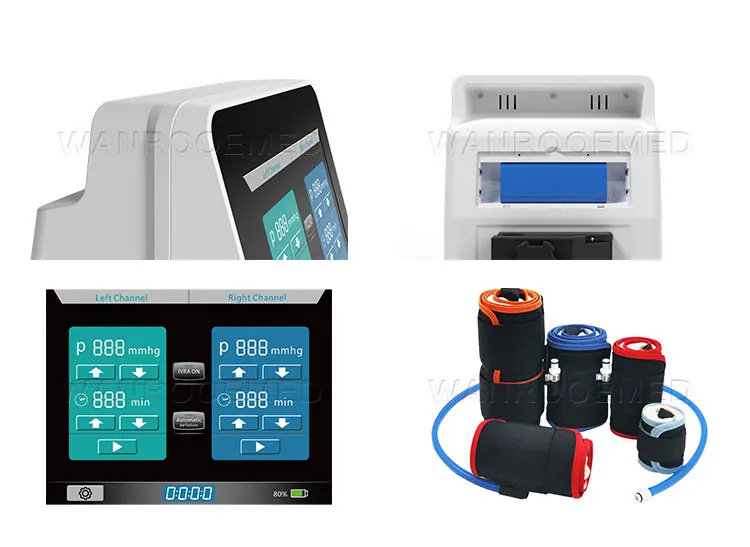

User Friendly
1. Large LED display is adjustable and easy to read, even from a distance.
2. Simple setup includes user-defined default pressure and time settings.
3. Lightweight, portable unit can be mounted on an I.V. pole or placed on a table.
| Model | ATS-103 |
| Number of Ports: | Dual Port |
| Mounting options: | Table or Moving bracket |
| Battery Type and Duration : | Lithiumlon / 4 hrs |

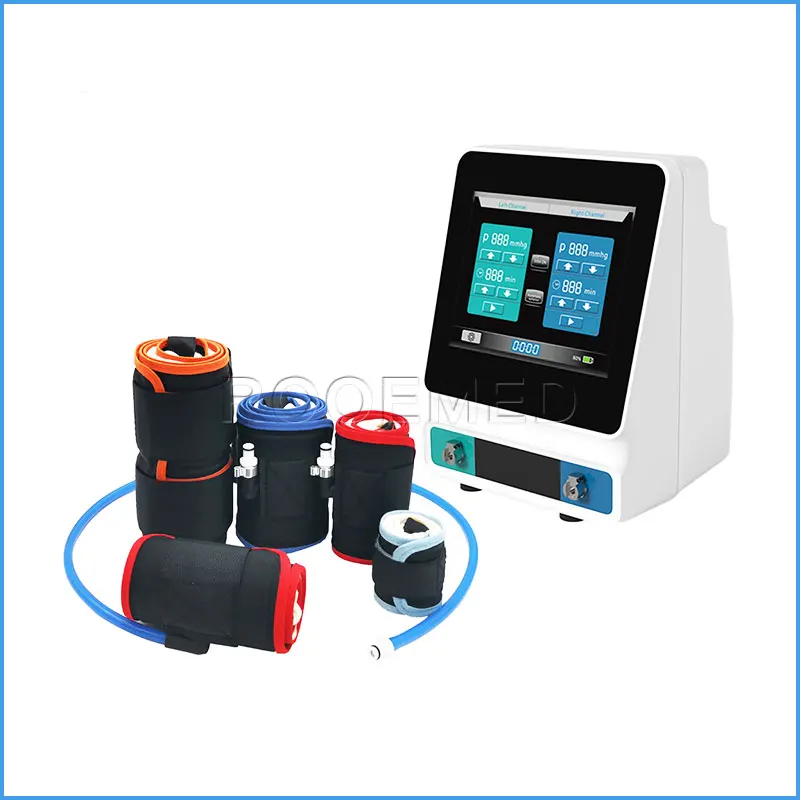

| 6 pcs of cuffs: | 12inch 18inch 34inch(each size 2 pcs) |
| Working Conditions: | |
| a) Ambient temperature: | 5 ºC-40 ºC |
| b) Relative Humidity: | ≤ 85% |
| c) Atmospheric Pressure: | 860hPa- 1060hpa |
| d)PowerSupply : | AC100-240V 50Hz/60Hz |
| e)rated input power: | 90VA |
| Performance | |
| The pressure range of the rated output air pressure: | 30 mmHg to 650 mmHg; |
| Inflation time at maximum rated air pressure (from pressure less than30 mmHg): | ≤ 60 s |
| Work noise: | ≤ 80dB |
| Pressure control: | ± 10 mmHg(Adjustable) |
| Continuous: | 240min |
| Package: | 620*620*430mm, 13KGS |
