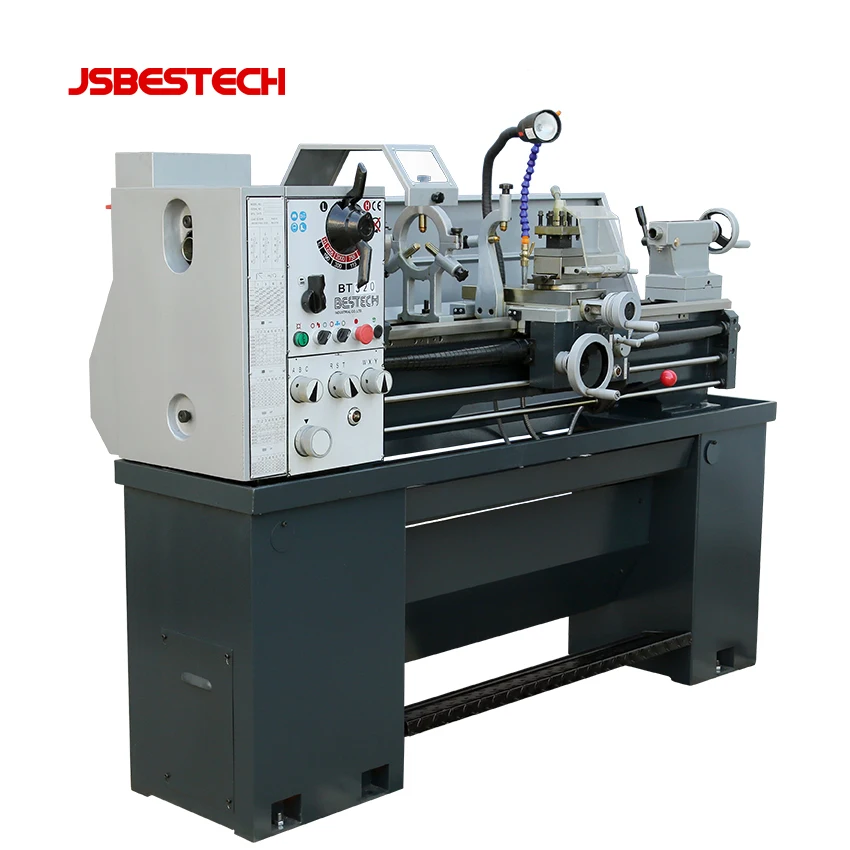

BT320 токарный станок по низкой цене с системой
- Категория товара: Ручной токарный станок >>>
- Поставщик (Оптовый магазин): Jiangsu,Bestech,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
BT320 Cheap price metal turning lathe machine with cooling system
Precision ground and hardened bedways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Three different length beds are available
Spindle speed range 70-2000r/min
D1-4 cam lock spindle nose
Ф52mm Spindle bore for optional
Two speed motor for optional
Model No. | BT320 |
Swing over bed | 330mm(13") |
Swing over cross slide | 198mm(7-25/32") |
Swing in gap diameter | 476mm(18-3/4") |
Swing in length of gap | 210mm(8-1/4") |
Center height | 166mm(6-1/2") |
Center between distance | 80 / 910/1000 mm |
Bed width | 187mm |
Bed length | 1248mm(49-1/8") |

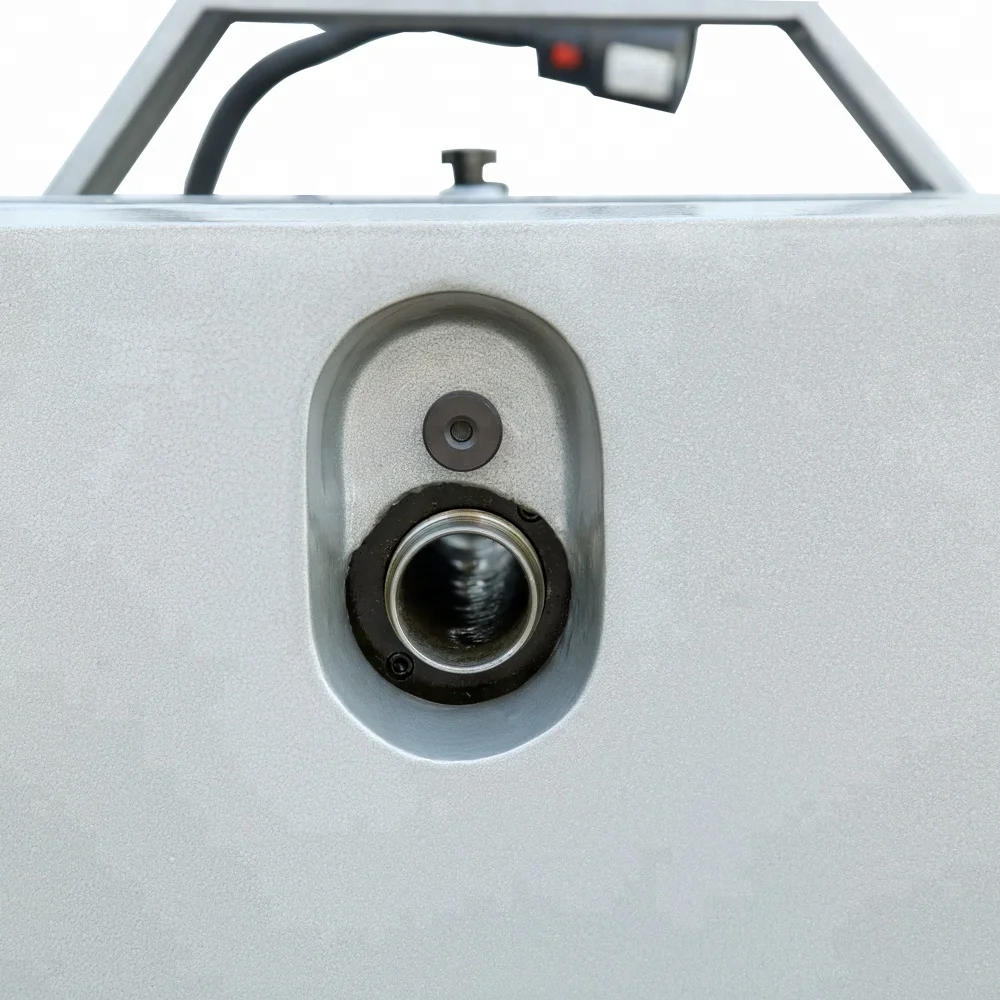

Spindle bore | 38mm(1-1/2")&52mm(2") |
Spindle nose | D1-4" or A2-4" |
Taper in sleeve | NO.3 Morse |
Speeds number | 8 or 16(pole changeable motor) (optional) |
Speeds range | 70-2000r.p.m.or 35-2000r.p.m.(2 speed motor) |
Cross slide travel | 160mm(6-5/16") 118mm(4-5/16") |
Compound rest travel | 68mm(2-11/16") |
Max. carriage slide travel | 75mm |
Lead screw thread | 8T.P.I. or 3mm pitch |
Feed rod diameter | 19mm(3/4") |
Cutting tool max section | 16mm×16mm(5/8"×5/8") |
Threads imperial pitches | 36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) |
Threads metric pitches | 28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) |
Longitudinal feeds imperial | 36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev) |
Longitudinal feeds metric | 36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev) |
Cross feeds imperial | 36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev) |
Cross feeds metric | 36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev) |
Quill diameter | 32mm(1-1/4") |
Quill travel | 100mm(3-15/16") |
Quill taper | NO.3 morse |
For main motor | 1.5KW 3PH or 1PH |
Standard Accessories | Optional Accessories |
Three jaw chuck | Coolant system |
Four jaw chuck | Foot Brake |

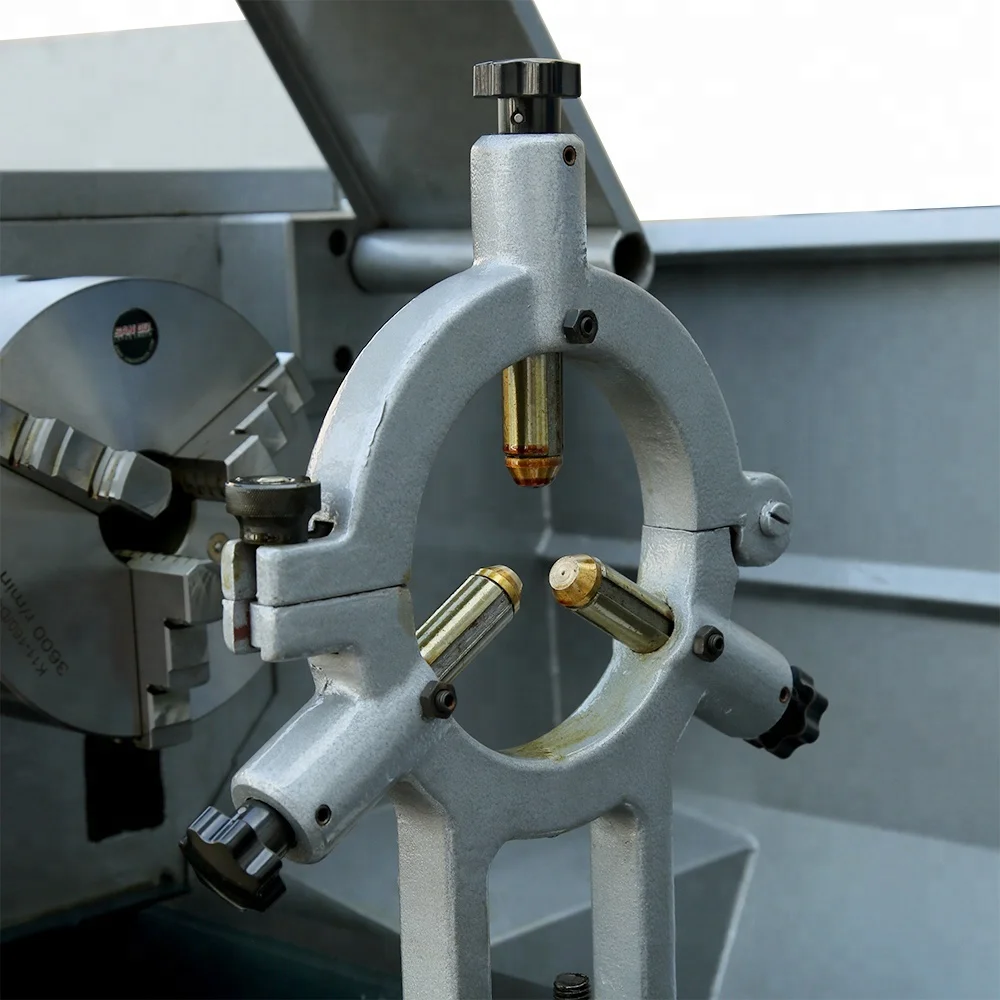

Steady rest | Driving plate |
Follow rest | Living center |
Face plate | Taper turning attachment |
Dead center | Tailstock chuck |
Thread chasing dial | Stopper |
Chip tray | Chuck cover |
Splash guard | Leadscrew cover |
Toolbox & tools 1set | Cutter |
2 axis and 3 axis DRO |

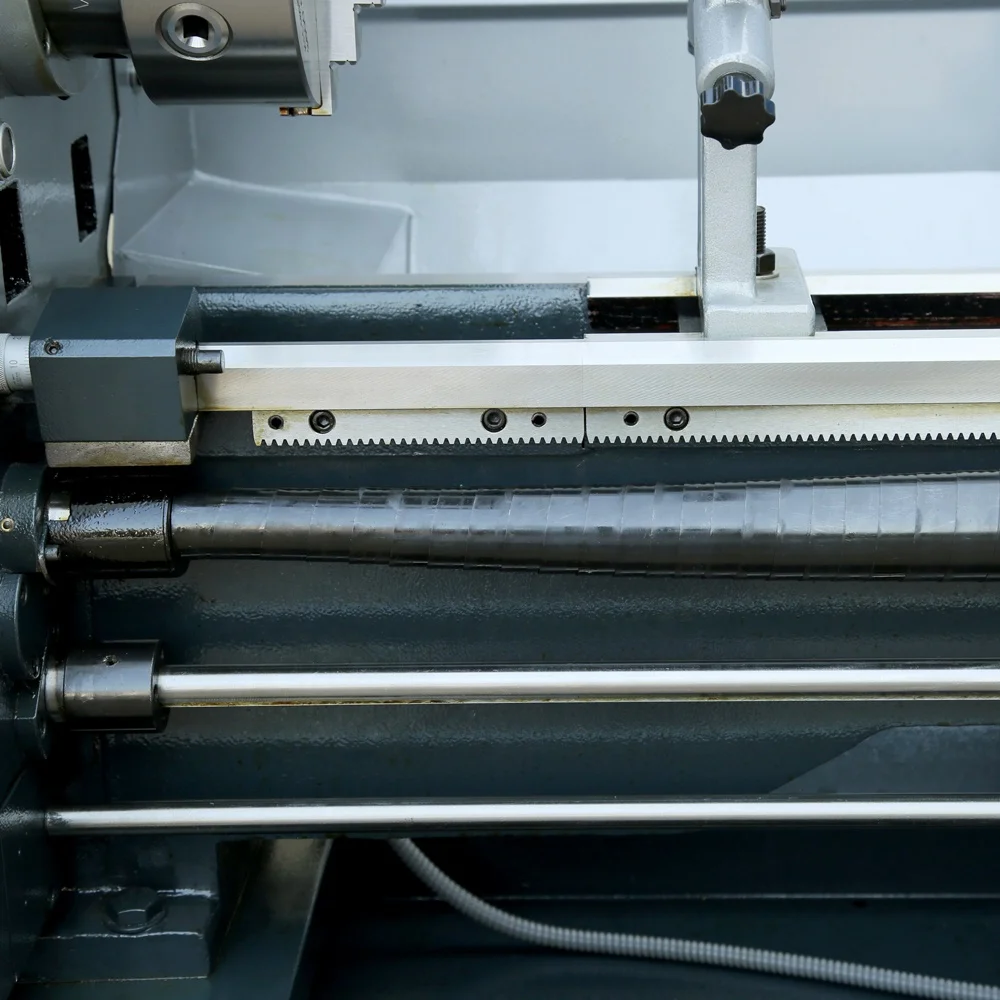

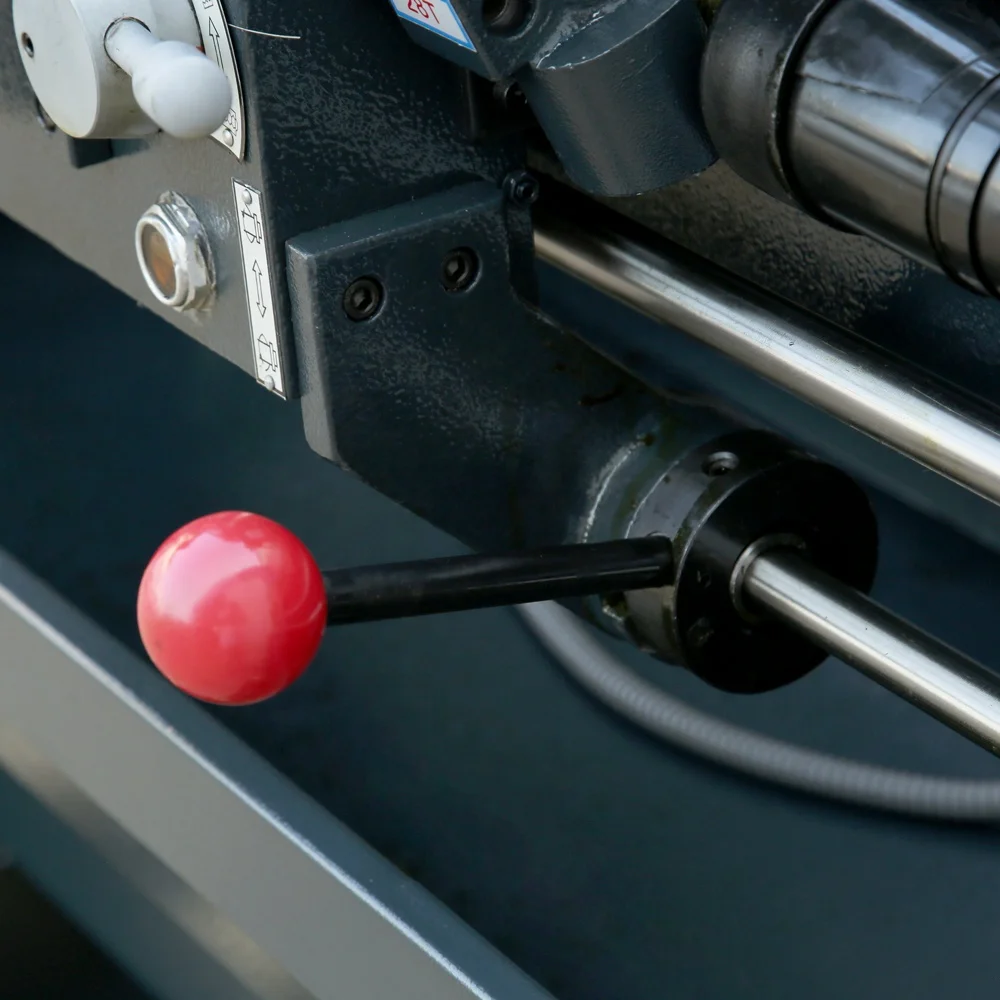

Detailed Images
Product packaging
Related Products
Certifications
Company Profile
JSBESTECH offered a large range of high speed precision lathe. Currently our major products include Bench Lathes (manual and CNC), Drilling Milling Machine, Drill Press, Bench Grinder, Table Saw and Band Saw,etc. which suitable for multiple purpose, to our clients of worldwide. No matter for education, tool room or industrial production line, from small to middle size, our clients have many choice to select the lathe machine which most match his request. And we also manufacturing quality CNC lathes for you to choose.
