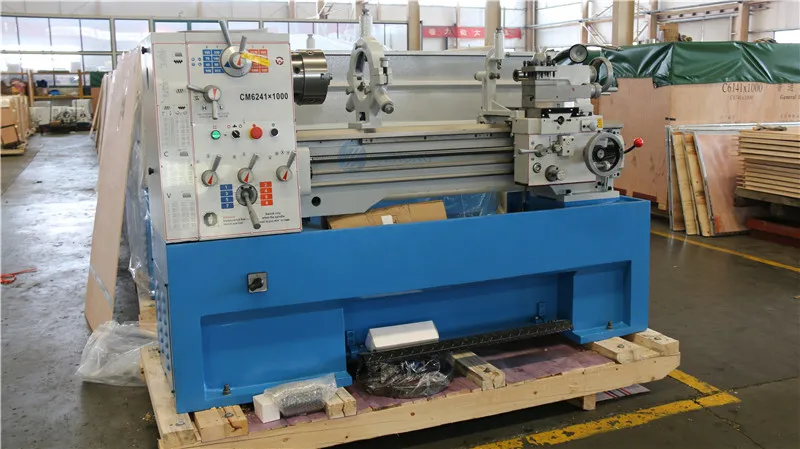

Токарный станок CM6241 с горизонтальным металлическим
- Категория товара: Ручной токарный станок >>>
- Поставщик (Оптовый магазин): Shandong,Luzhong,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features :
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
SPECIFICATION | CM6241 |
Swing over bed | 410mm(16") |
Swing over cross slide | 255mm(10") |
Swing in gap | 580(23") |
Length of gap | 250(10") |
Distance between centers | 1000mm(40") /1500mm(60’’) |
Center height | 205(10’’) |
Width of bed | 250(10") |
Spindle nose | D1-6 |
Spindle bore | 52mm(2") |
Taper of spindle bore | No.6Morse |
Range of spindle speed | 16 changes 45-1800r/min |
Max.travel of compound rest | 140mm(5-1/2") |
Max.travel of cross slide | 210mm(8-1/4") |
Leadscrew pitch | 4T.P.I. |
Max.Section of tool | 20×20mm(13/16") |
Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) |
Cross oeeds range | 0.025-0.85mm(0.001"-0.0335"/rev) |
Metric threads range | 39kinds 0.2-14mm |
Inch threads range | 45kinds 2-72T.P.I |
Diametrical pitches range | 21kinds 44D.P. |
Module pitches range | 18kinds 0.3-3.5M.P. |
Dia.of tailstock sleeve | 50mm(2") |
Travel of tailstock sleeve | 120mm(4-3/4") |
Morse taper of tailstock sleeve | No.4 Morse |
Cross adjustock | ±13mm(±1/2") |
Power of main motor | 2.8/3.3kw(3.8/4.5HP)3PH |
Power of coolant pump | 0.1KW(1/8HP),3PH |
Overall dimension(L×W×H) | 1940/244×850×1300mm |
Packing size(L×W×H) | 2060/2560×900×1640mm |
Net weight/Gross weight | 1160/1350 1340/1565kg |

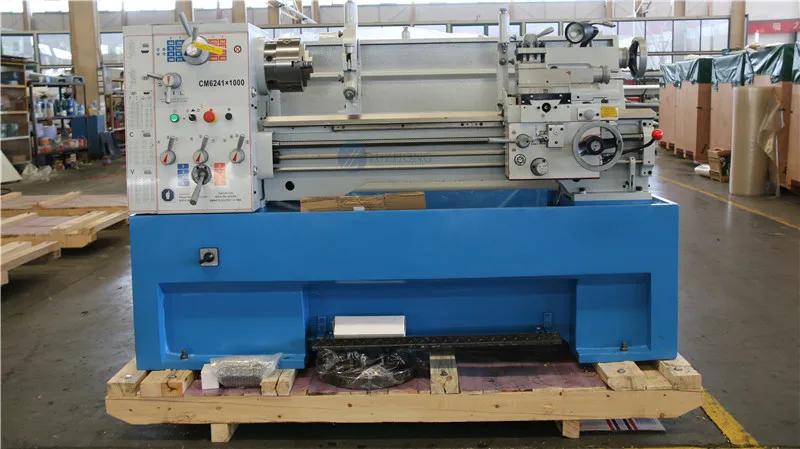

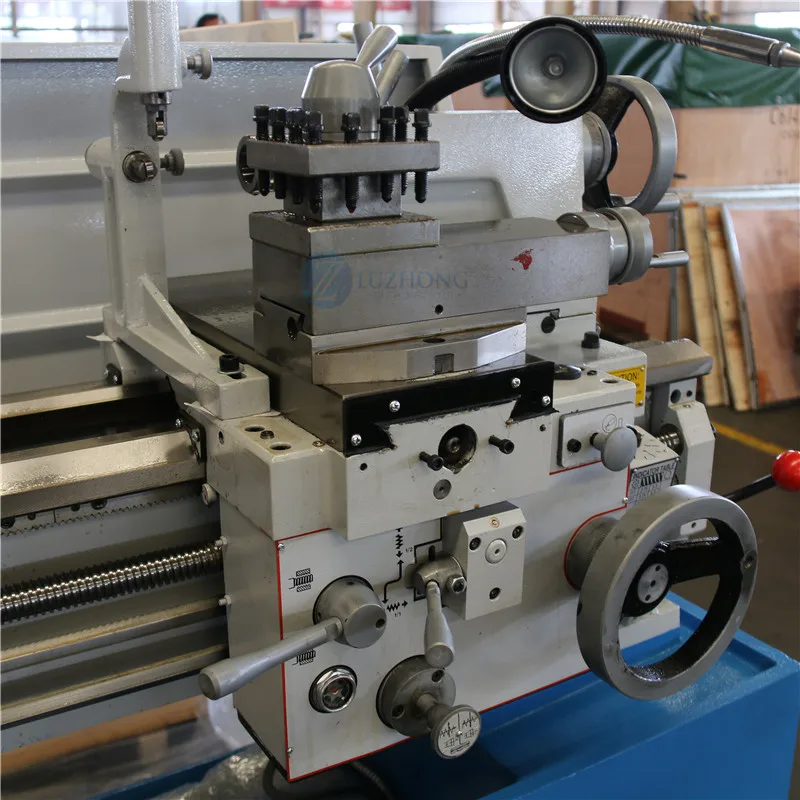

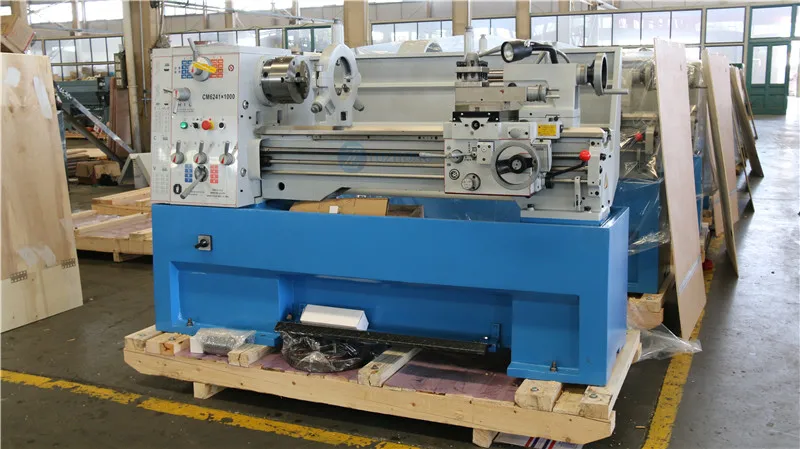

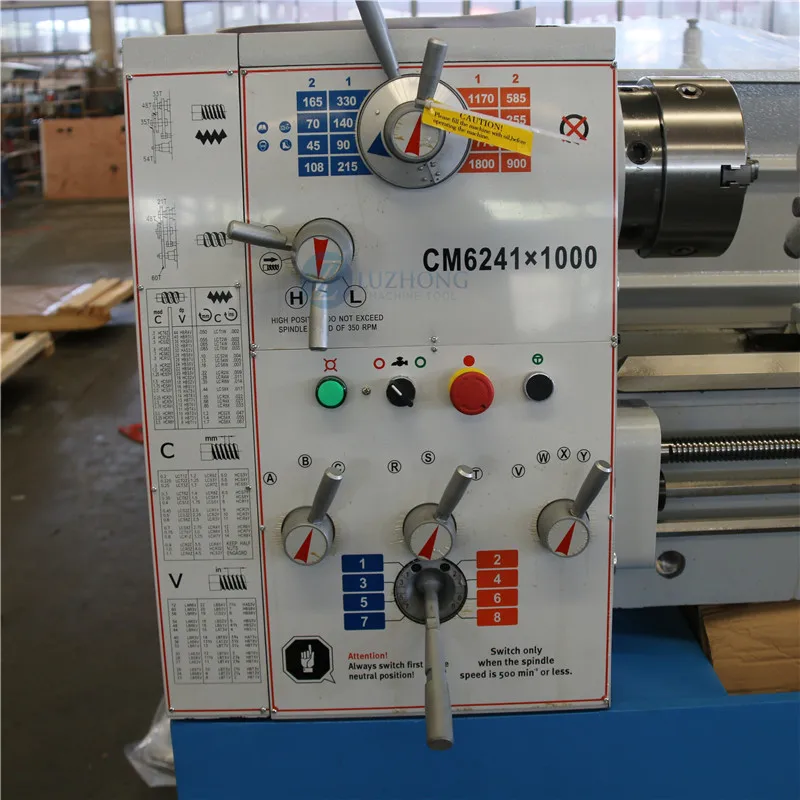

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
