Stable Quality Double-Sided Wood Planner / Planner Wood Machine
Product Description
Double-sided planing machine can be applied to all types of furniture and flat materials, tables and chairs, coffee table, cabinet plane planing, which can greatly reduce the labor intensity and improve production efficiency.
Technical parameters
Modle | HT-MB202 |
Max working widht | 200mm |
Max working thickness | 150mm |
Max planing depth | upper slitter 3mm Plunge cut 2mm |
Min working length | 170mm |
Spindle speed | 7800r/min |
Main spindle power | 3kw |
Diameter of spindle | 80mm |
Feeding speed | 7or 9m/min (adjustable) |
Weight | 280kg |
Dimension | 650*720*1280mm |
We have several models of this machine.The following are the brief technical parameters of other models.
Modle | HT-MB202 | HT-MB203 | HT-MB204 | HT-MB205 | HT-MB206 |
Max working widht | 200mm | 300mm | 4000mm | 500mm | 600mm |
Max working thickness | 150mm | 150mm | 150mm | 150mm | 150mm |
Max planing depth | upper slitter 3mm Plunge cut 2mm | Upper slitter 3mm plunge cut 2mm | upper slitter 3mm plunge cut 2mm | upper slitter 3mm plunge cut 2mm | upper slitter 3mm plunge cut 2mm |
Min working length | 170mm | 170mm | 170mm | 170mm | 170mm |
Spindle speed | 7800r/min | 7800r/min | 7800r/min | 7800r/min | 7800r/min |
Main spindle power | 3kw | 3kw+2.2kw | 3kw+3kw | 4kw+3kw | 4kw+4kw |
Diameter of spindle | 80mm | 80mm | 80mm | 80mm | 80mm |
Feeding speed | 7or 9m/min (adjustable) | 7or 9m/min (adjustable) | 7or 9m/min (adjustable) | 7or 9m/min (adjustable) | 7or 9m/min (adjustable) |
Weight | 280kg | 340kg | 370kg | 480kg | 550kg |
Dimension | 650*720*1280mm | 750*720*1280mm | 870*720*1280mm | 950*790*1300mm | 1050*790*1300mm |

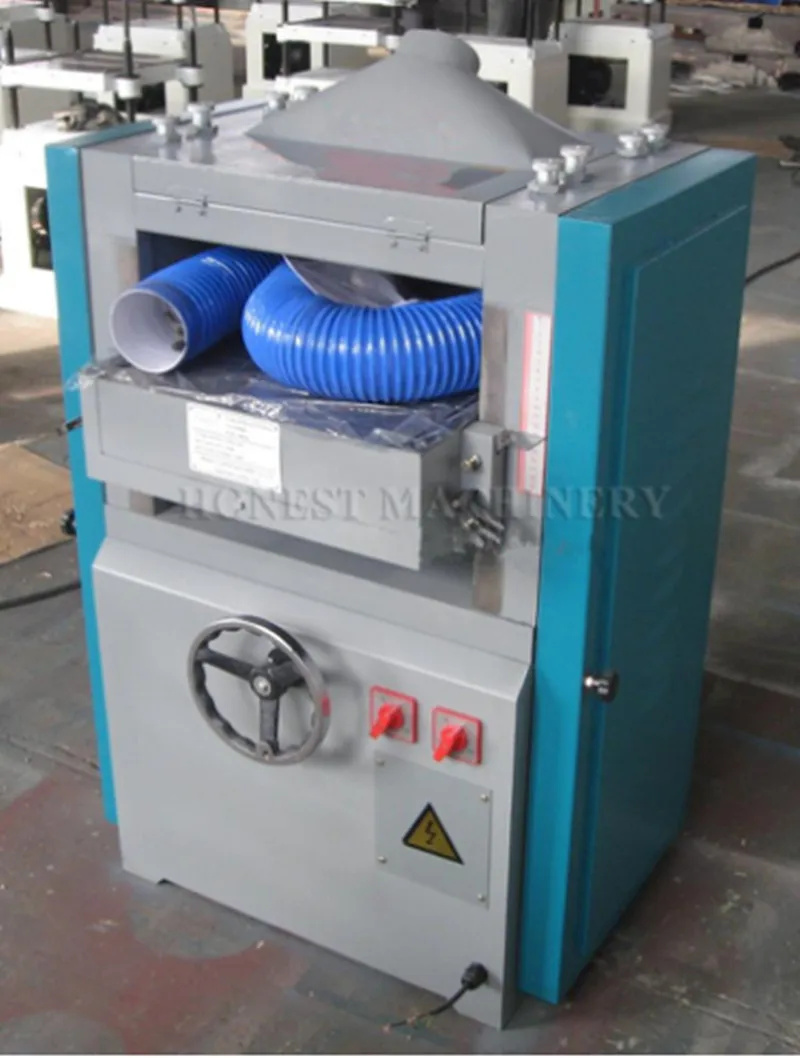

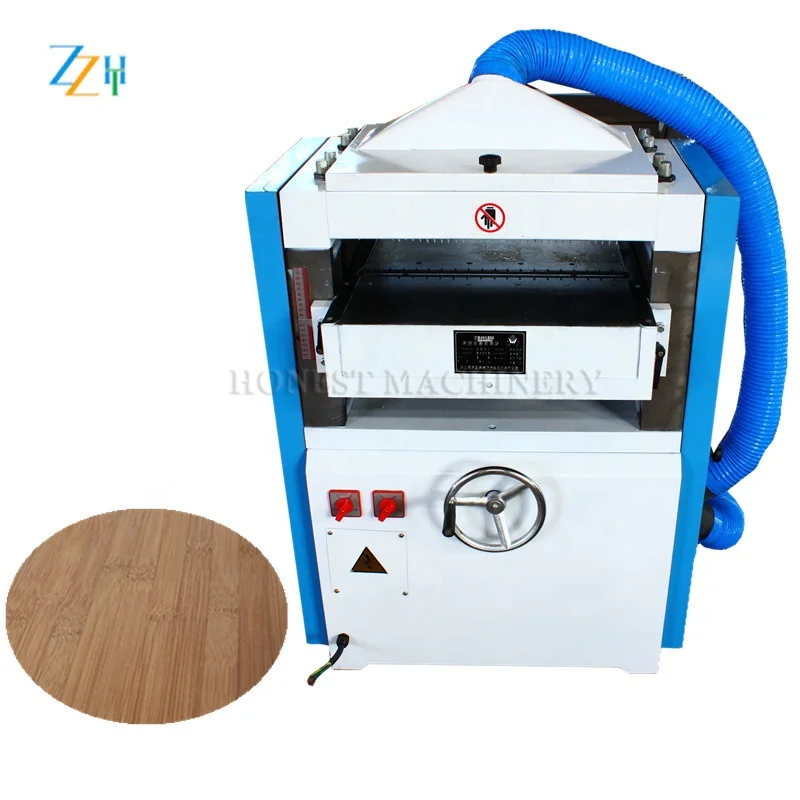

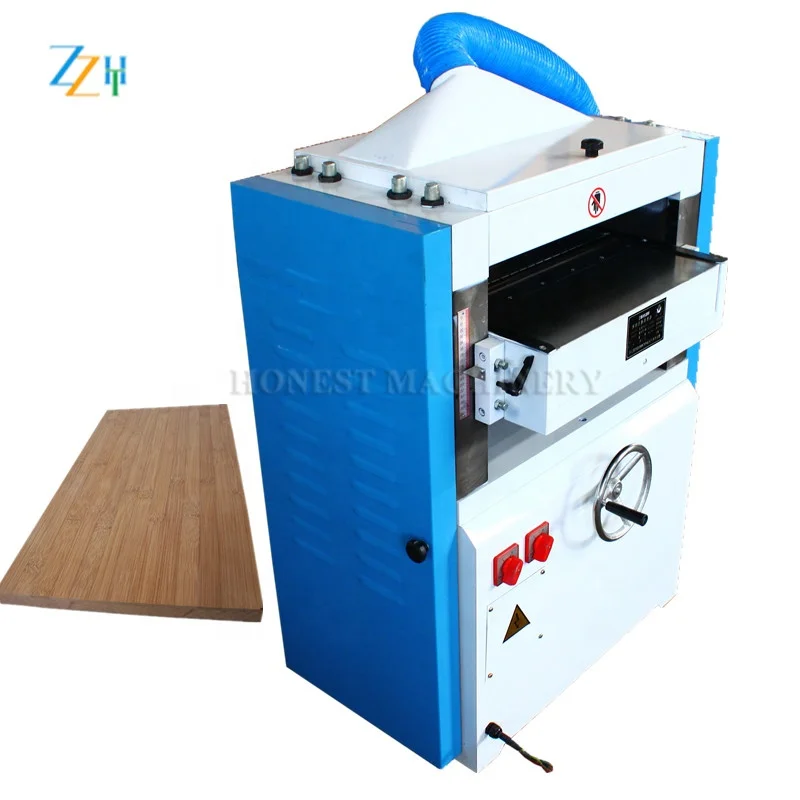

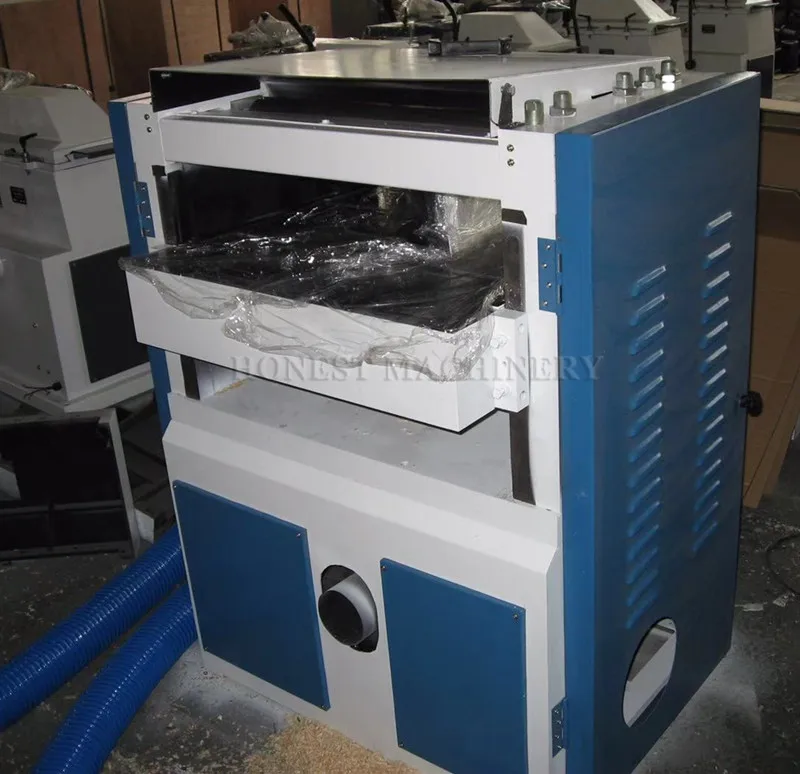

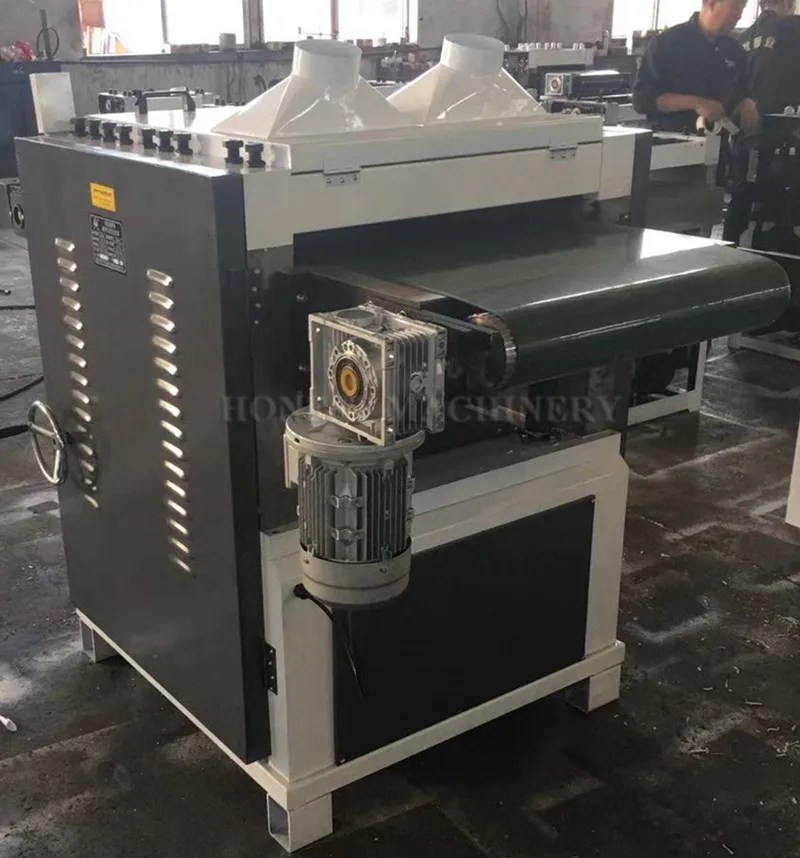

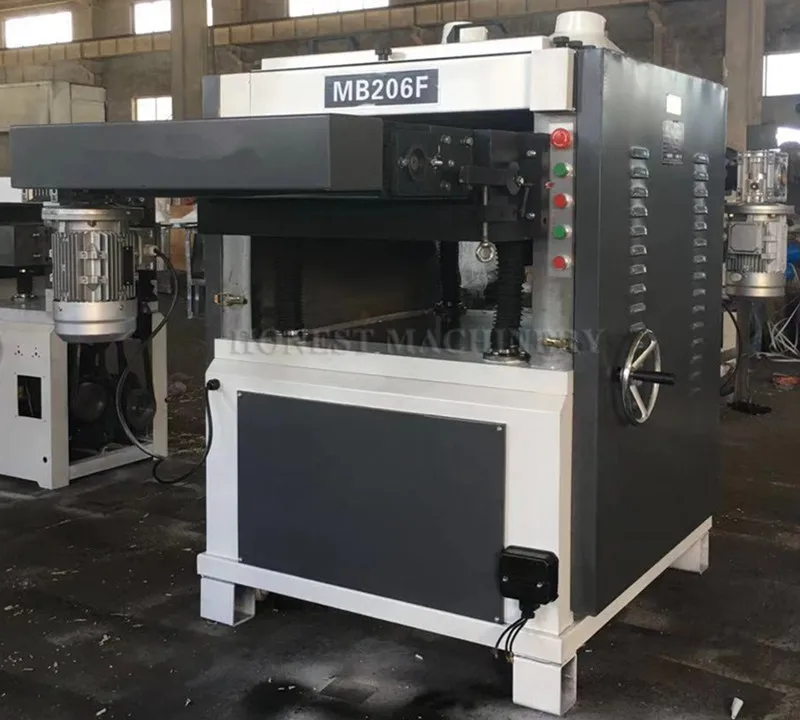

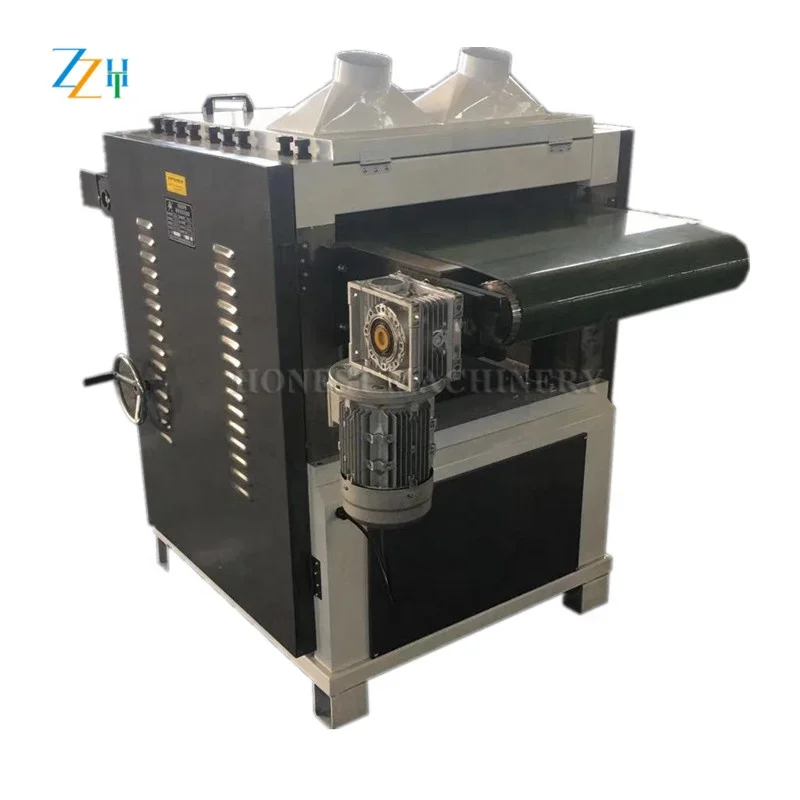

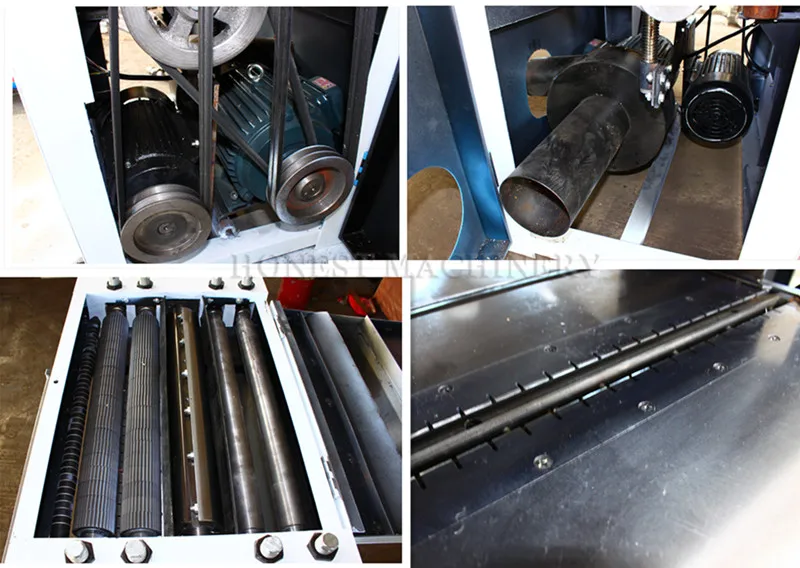

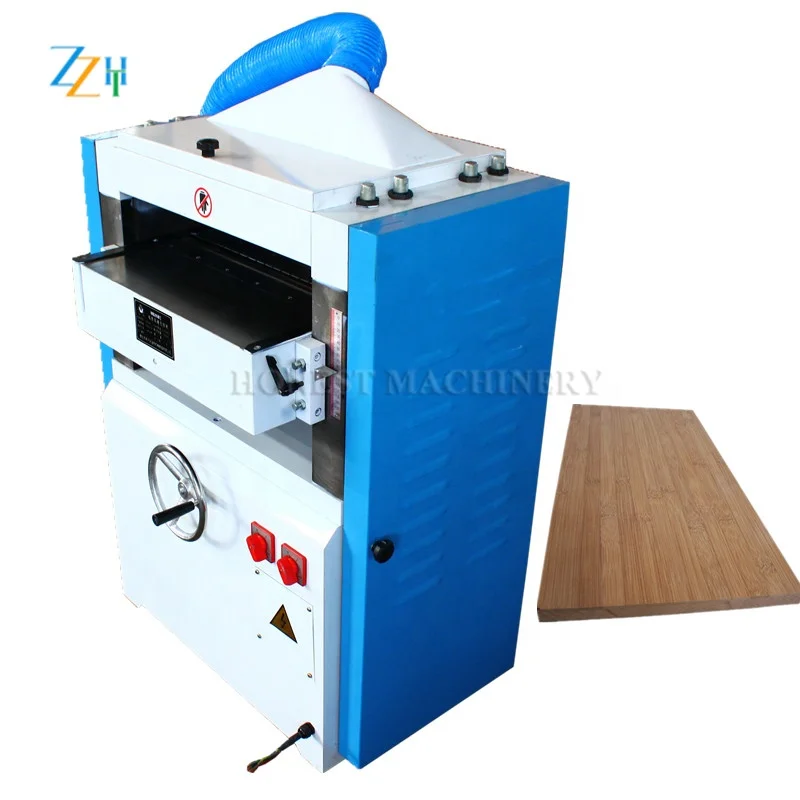

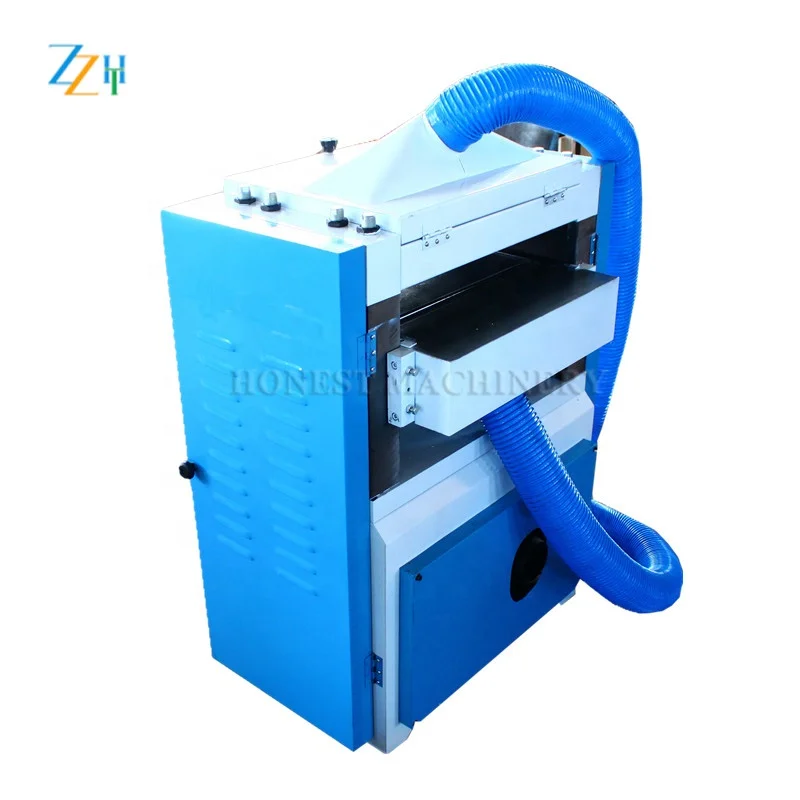

Pictures of Product
