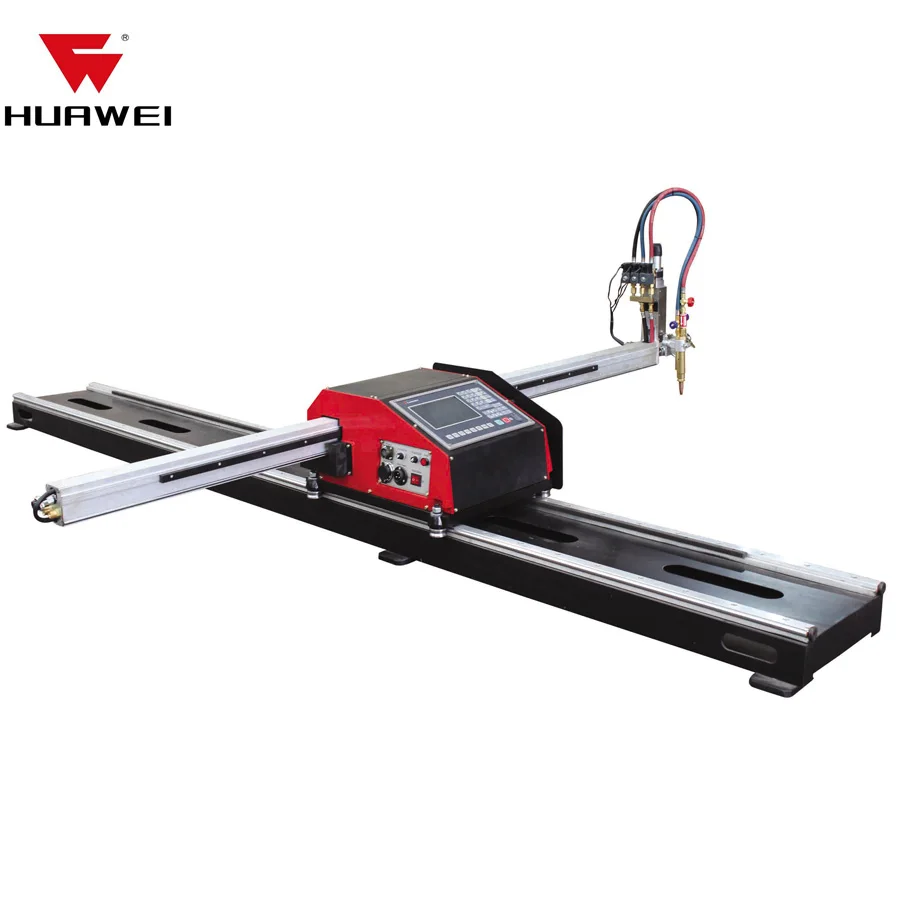

HNC-1500W portable CNC Plasma Cutting Machine China Shanghai Huawei

Product Description

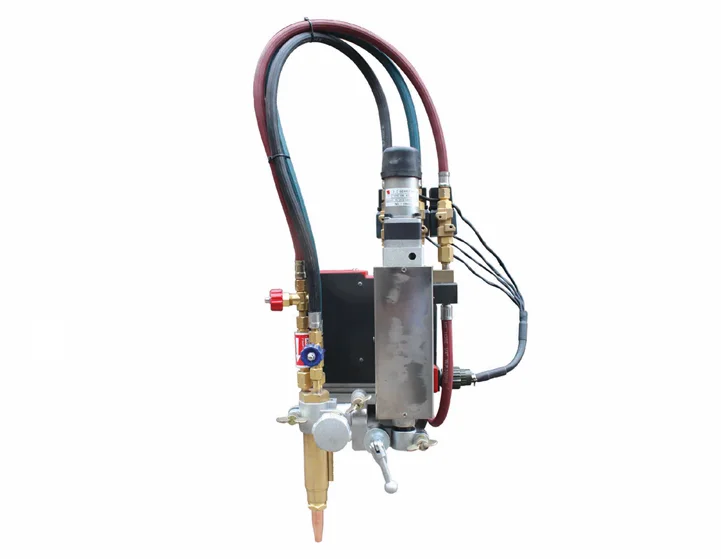

It is the flame cutting torch. It could also replace the plasma cutting torch.

We will supply the plasma torch holder for you and that is in the package.

Product  Features



(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.

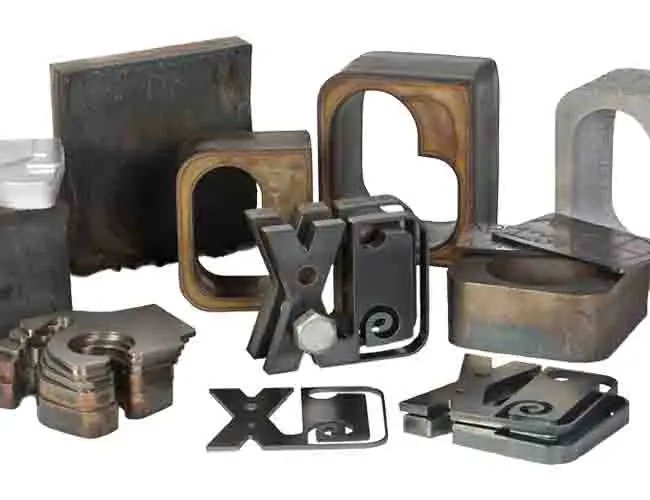

(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel, and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches according to the
feedback of the plate height changes, THC can keep the good effect of cutting meanwhile,

protect the torch from damage and prolong the life span of the nozzles.
(9) With the status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.

Model

Cutting Range

MM

Supply Voltage

V/HZ

Cutting TorchNumber

of groups

Cutting speed

(mm/min)

MAX no-loading

speed

(mm/min)

Overall dimensions

L*W*H

Weight

(kg)

HNC-1500W-21500*2000AC220V-50HZ150-75030002.5*2.2*0.37108
HNC-1500W-2.51500*2500AC220V-50HZ150-75030003*2.2*0.37121
HNC-1500W-31500*3000AC220V-50HZ150-75030003.5*2.2*0.37134
HNC-1500W-3.51500*3500AC220V-50HZ150-75030004*2.2*0.37147
HNC-1500W-41500*4000AC220V-50HZ150-75030004.5*2.2*0.37160
HNC-1500W-5
1500*5000
AC220V-50HZ
150-750
3000
5.5 *2.2*0.37
186
HNC-1500W-61500*6000AC220V-50HZ150-75030006*2.2*0.37212
