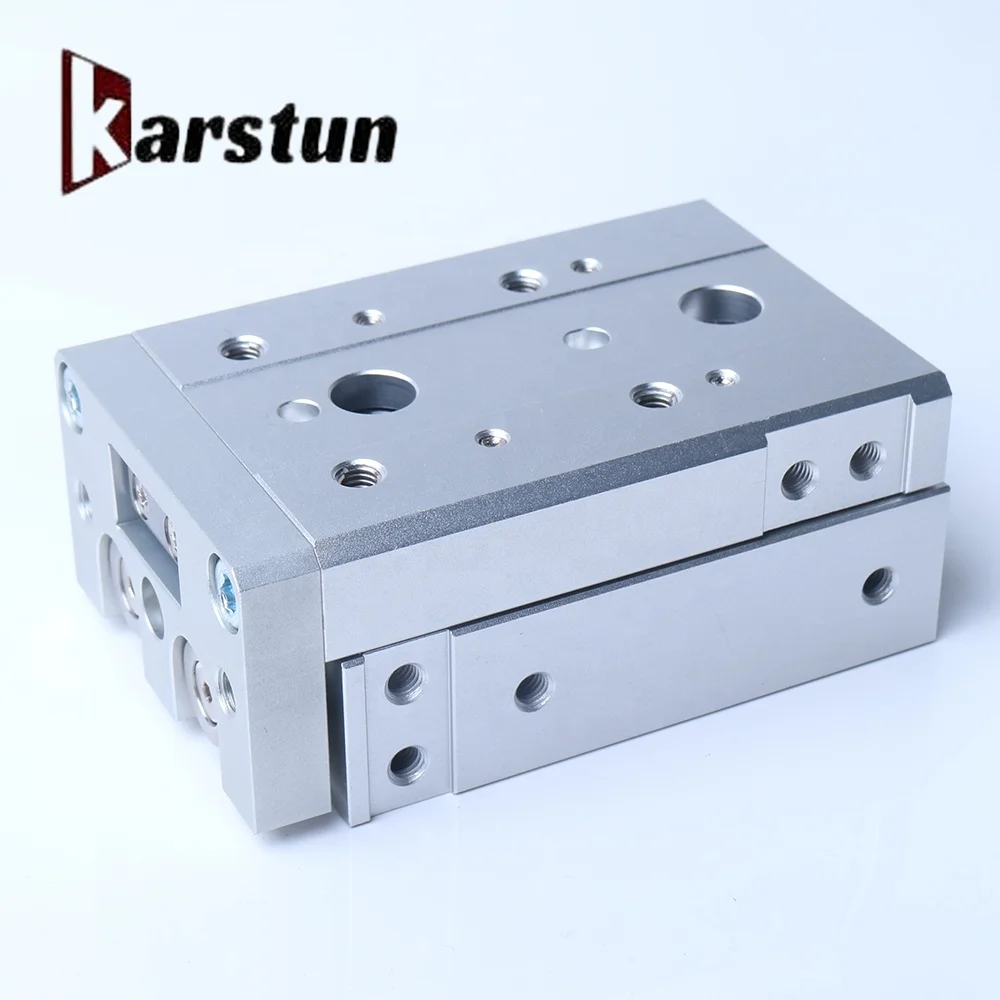

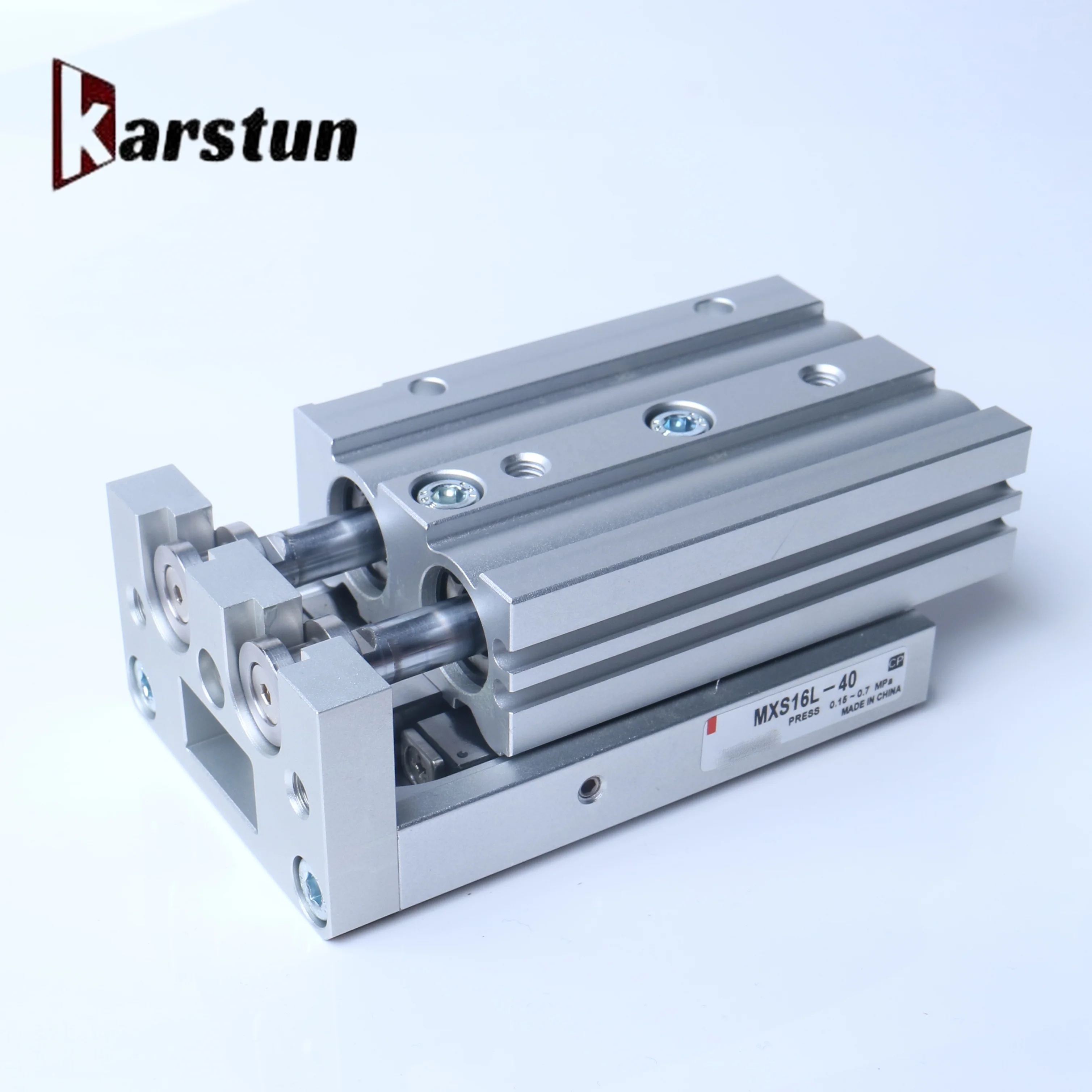

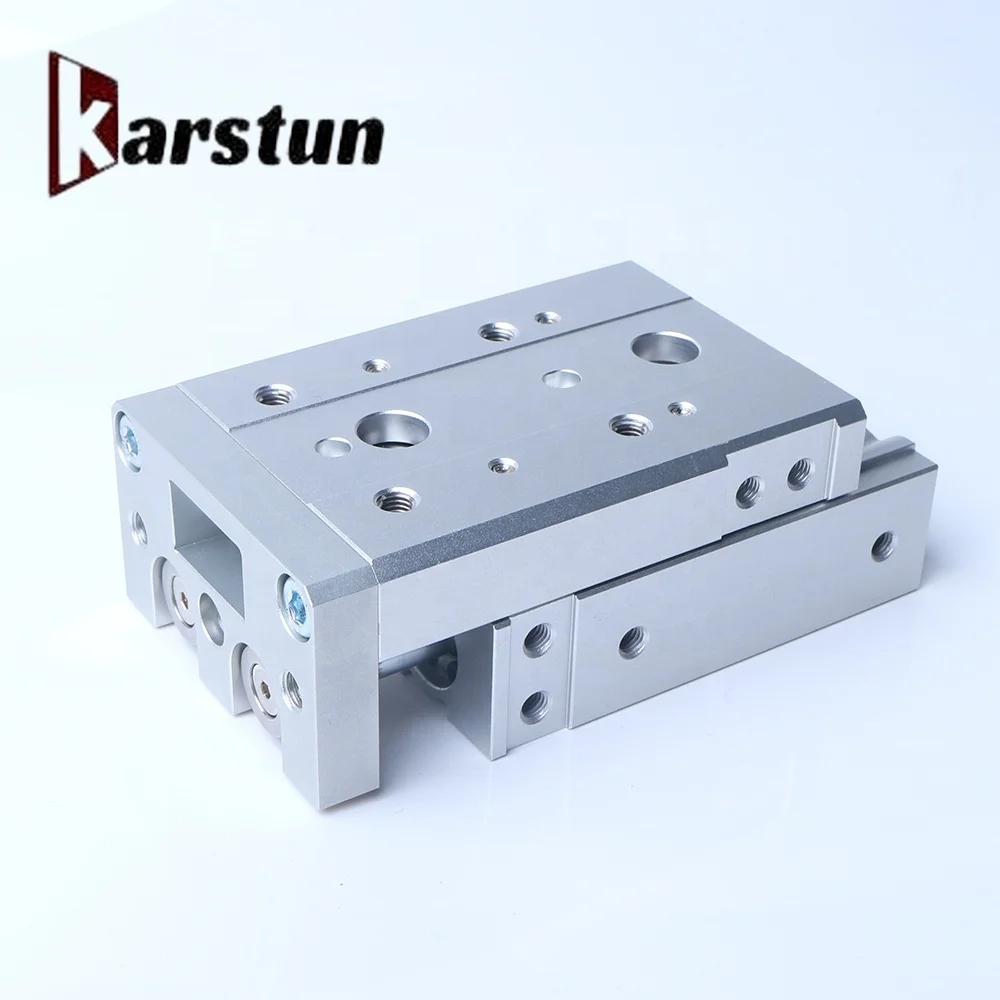

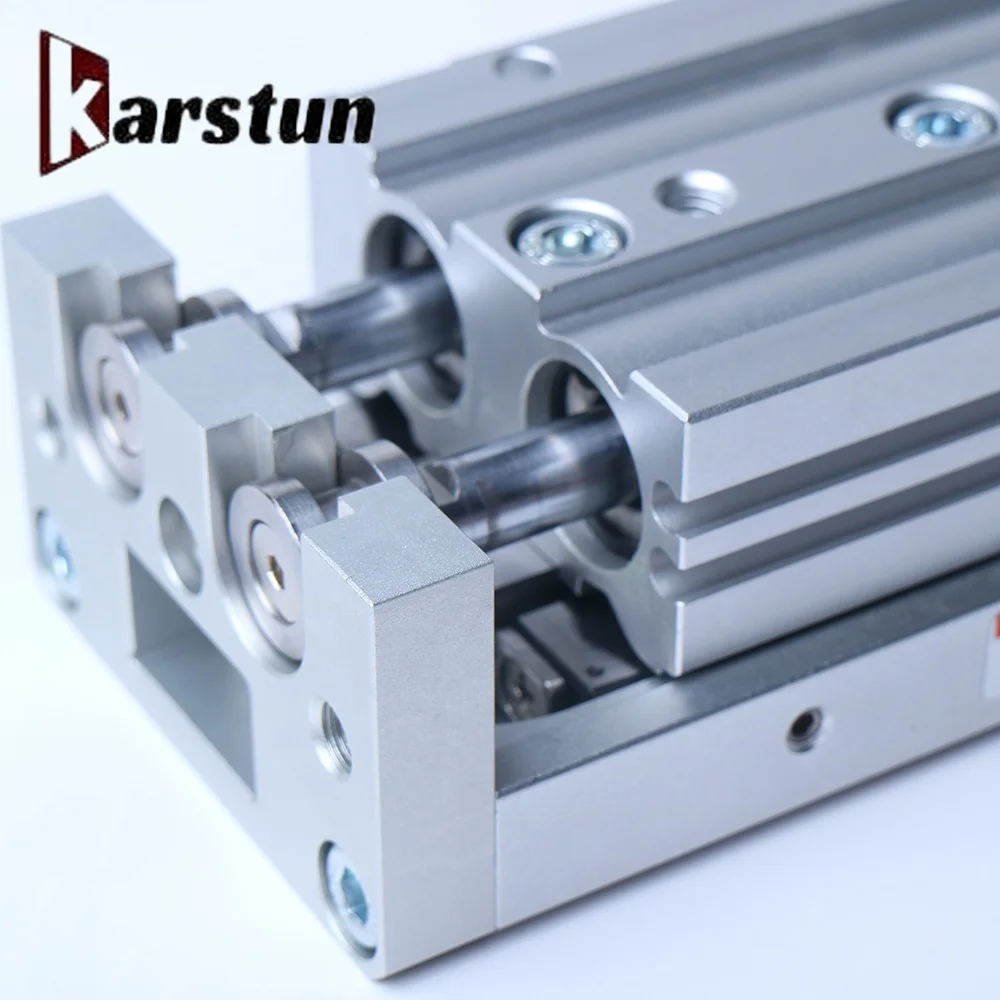

SMC Type Air Slide Table/Pneumatic Cylinder MXS8-10 Series
Product Description
1.MXS Series Sliding Table Cylinder
2.Equivalent to SMC
3.Integration of work table and cylinder.
4.1 year warranty
SMC Type Air Slide Table/Pneumatic Cylinder MXS68-10Series
MXS Series Sliding Table Cylinder
Features:
1.MXS series sliding table cylinder..
2.Equivalent to SMC MXS series sliding table cylinder, with the same appearance.
3.Bore size(mm): 6, 8, 12, 16, 20, 25.
4.Work table and air cylinder are compactly integrated..
5.High precision, compact design, for precision assembly processes.
6.Dual piston rods, wide variety of adjuster option.
7.Symmetric type is avilable.
| Boresize | 6 | 8 | 12 | 16 | 20 | 25 |
| Port size | M3X0.5 | M5X0.8 | 1/8" | |||
| Fluid | Air | |||||
| Action | Double acting | |||||
| Working pressure | 0.15 to 0.7MPa | |||||
| proof pressure | 1.05MPa | |||||
| Working temperature | ~10~60 degree | |||||
| Piston speed | 50 to 500mm/s | |||||
| Cushion | Rubber bumper(standard: with stroke adjuster) shock absorber(option) | |||||
| Lubrication | no need | |||||
Dimensions
| No. | Description | Material | Note |
| 1 | Body | Aluminum alloy | Hard anodized |
| 2 | Table | Stainless steel | Heat treated, Electroless nickel plated |
| 3 | Cover | Synthetic resin | |
| 4 | Rod | Stainless steel | |
| 5 | Piston assembly | - | With magnet on one side |
| 6 | Rod cover | Aluminum alloy | Anodized |
| 7 | Seal support | Brass | Electroless nickel plated |
| 8 | Head cap | Synthetic resin | |
| 9 | Floating bushing | Stainless steel | |
| 10 | Steel balls | High carbon chrome bearing steel | |
| 11 | Parallel pin | Stainless steel | |
| 12 | Seals | NBR |

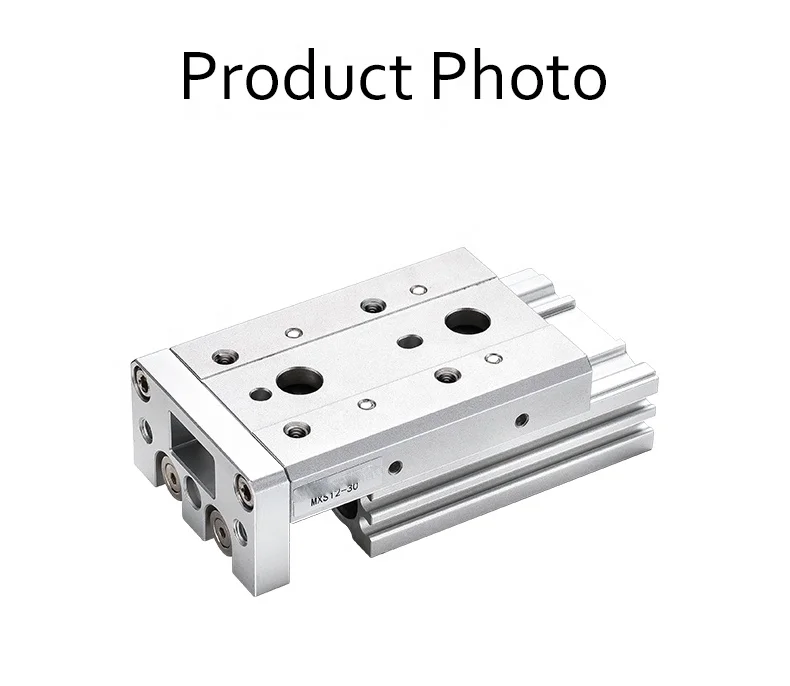

Product Show
Below is a display of our company's products
Size drawing:
SMC Type Air Slide Table/Pneumatic Cylinder MXS6 Series
