Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300

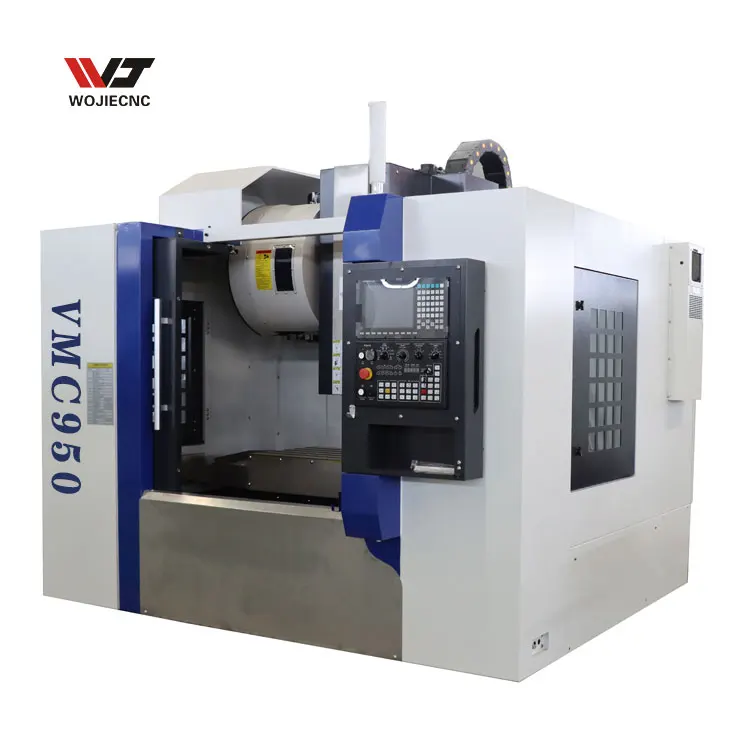

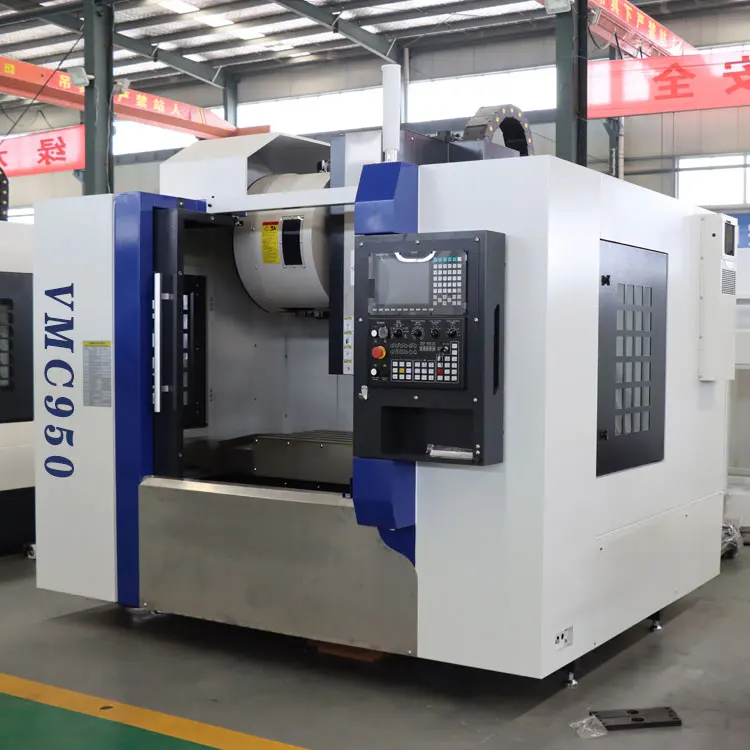

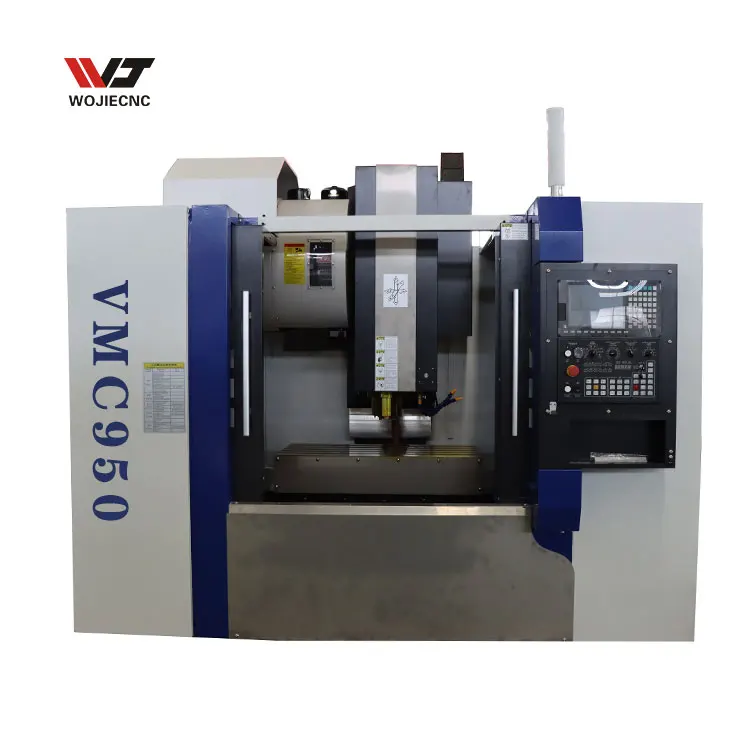

Вертикальный обрабатывающий центр с ЧПУ VMC950 фрезерный станок с ЧПУ для металла
- Категория товара: Machine Centre >>>
- Поставщик (Оптовый магазин): Zaozhuang,Wojie,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
CNC machining machines for sale message center | VMC950 | |
Capacity | ||
table size | 1000*550mm | |
Max. table load | 800kg | |
Distance between spindle center and column guide surface | 560mm | |
Distance between spindle end face and worktable surface | 150-750mm | |
X/Y/Z Max.feed speed | 1000mm/min | |
X/Y/Z Max.rapid traverse | 24/24/20m/min | |

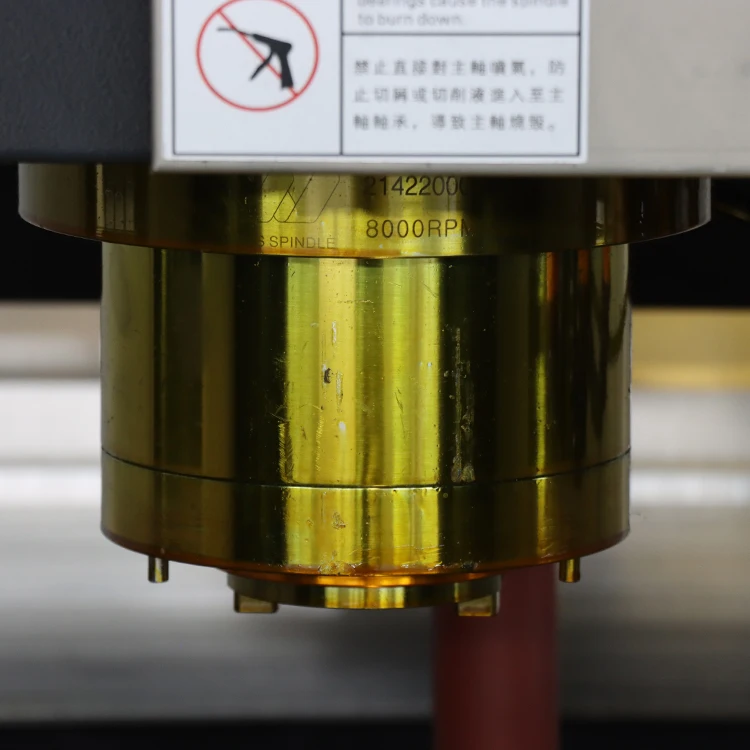

The spindle maximum speed | 8000r/min | |
The spindle taper hole | BT40 type | |
Spindle motor | 7.5/11kw | |
X/Y/Z axis servo motor | 1.5/1.5/2kw | |
X/Y/Z motor connection | Direct connrtion | |
X/Y/Z guide rail form | 3 axis liner guide rails | |
The workbench t slot | 5-18*100mm | |
Repeat positioning accuracy | ±0.005mm | |
Tool magazine | Arness/Arm | |
Tool capacity | 24 Armless/24Arm | |
Maximum tool weight | 8kg | |
Net Weight | 6500 kg | |
Overall Dimension | 2400*2450*2350mm | |
Standard accessory Optional accessory
1.Fanuc-0i-mate-MD 1.Mitsubishi M70/GSK218M/Fanuc
2.full enclosure machine guard change 2. Funnel type tool change
3.Arm type ATC 3.chip car
4.automatic central lubrication system with alarm 4.4th axis
5.Z axis counter-balance weight 5.Metrol tool setters
6.spindle cooling unit 6.transformer to suit local power supply
7.spindle side air blow 7.screw type chip conveyor
8.machine window with safety glasses
1.Fanuc-0i-mate-MD 1.Mitsubishi M70/GSK218M/Fanuc
2.full enclosure machine guard change 2. Funnel type tool change
3.Arm type ATC 3.chip car
4.automatic central lubrication system with alarm 4.4th axis
5.Z axis counter-balance weight 5.Metrol tool setters
6.spindle cooling unit 6.transformer to suit local power supply
7.spindle side air blow 7.screw type chip conveyor
8.machine window with safety glasses

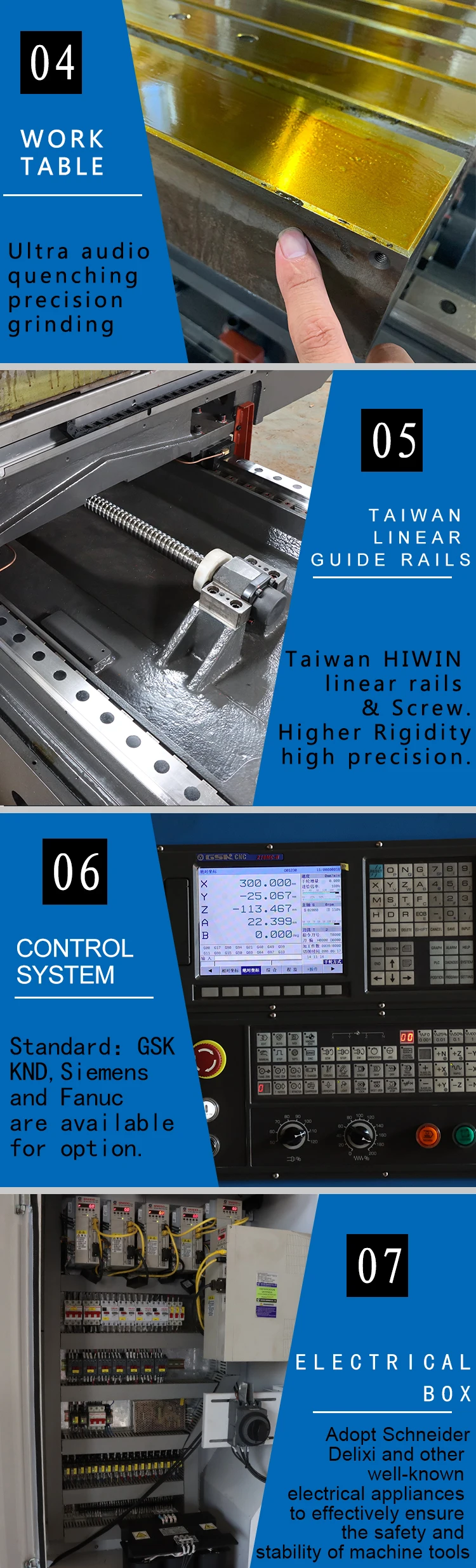

Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
