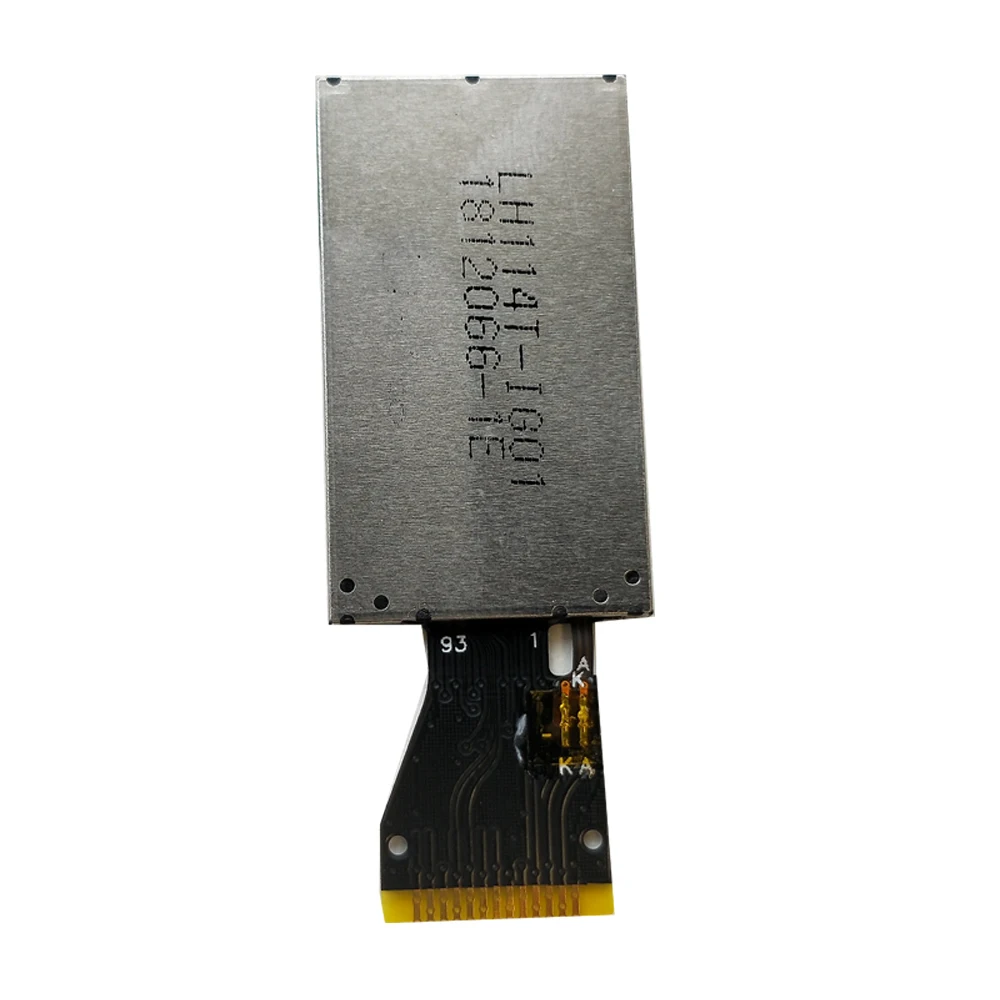

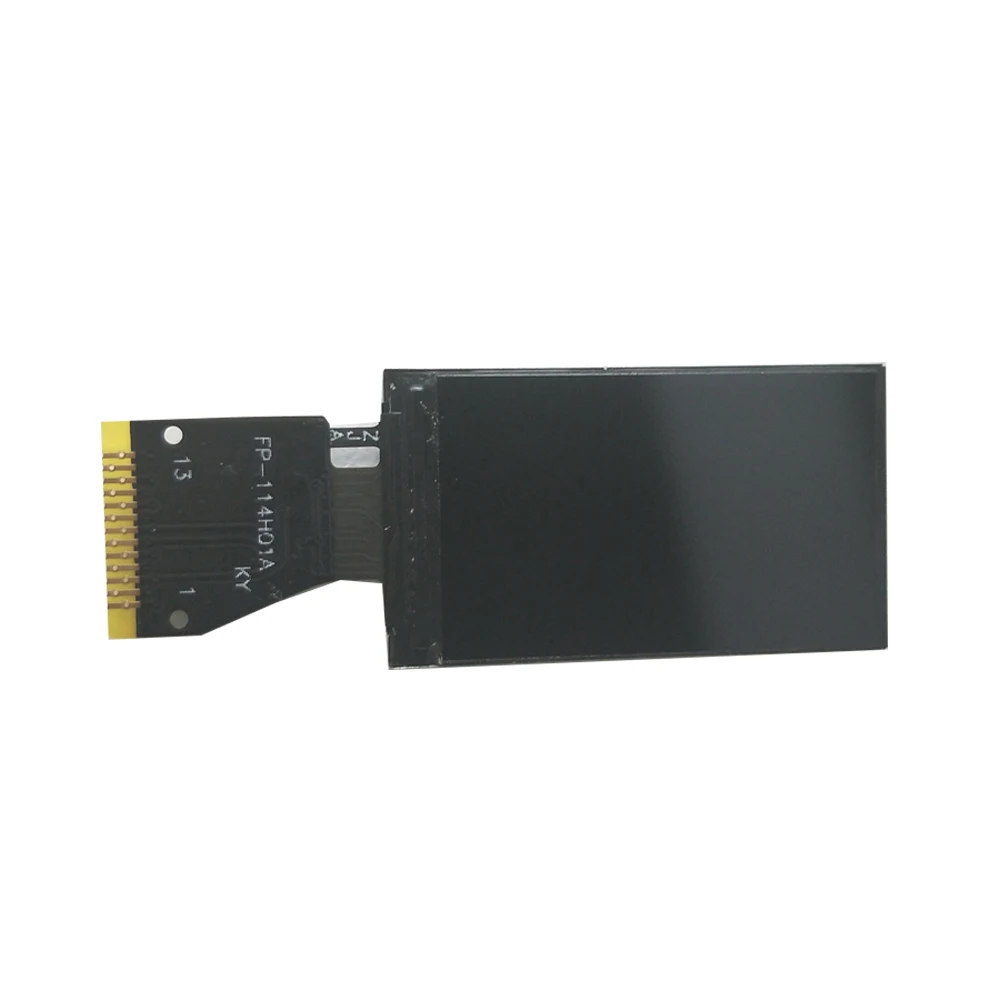

1,14 дюймовый 135x240 TFT ЖК-дисплей full view ST7789VW
- Категория товара: Used Monitors >>>
- Поставщик (Оптовый магазин): Dongguan,Shineworld,Innovations,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
1.14nch 135RGBx240 Small TFT Display for Electronic Cigarette
| Diagonal Screen Size | 1.14 inch |
| Number of Pixels | 135(H)RGB x 240(V) |
| Module Construction | TFT |

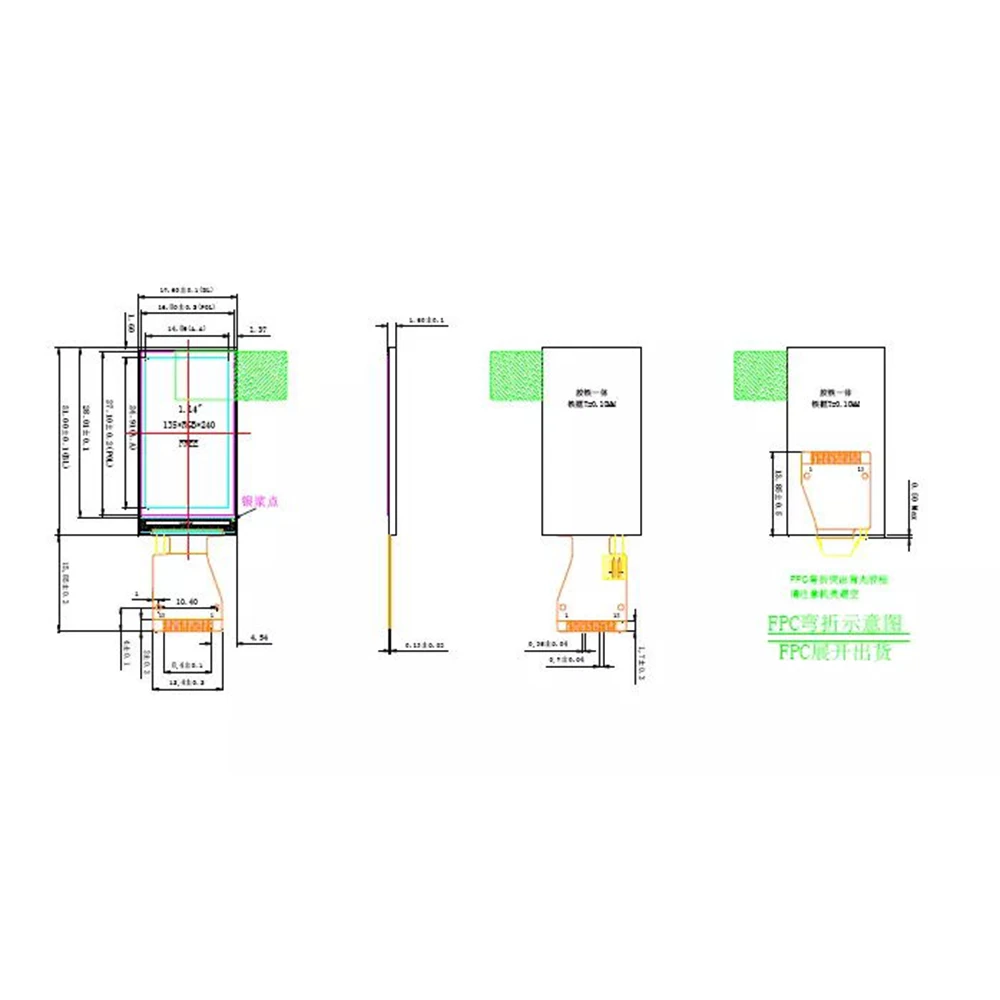

| Panel Size | 17.6(H) x 31.0(V) x1.6 (D) mm |
| Active Area | 14.864(H) x 24.912(V) mm |
| Pins | 13 |
| Drive IC | ST7789VW |
| Interface | 4-wire SPI |
| Pixel pitch | 0.1101(H) x 0.1038(V) mm |
| Assembly | Soldering |
Temperature range
| Item | Min. | Max. |
| Operating Temperature (°C) | -20 | 70 |
| Storage Temperature (°C) | -30 | 80 |
TFT HOT SALE
ABOUT US
Process Flow
Trade Information:
Trade Terms: EXW, FOB, CIF, DDU
Payment Terms: T/T, PayPal, Western Union, Escrow
Payment Condition: 40% in Advance as Deposit, 60% Balance before Shipment
Lead Time: 2-6 Working Weeks
Shipping: By sea, Air and Express
WIS ISO certification
