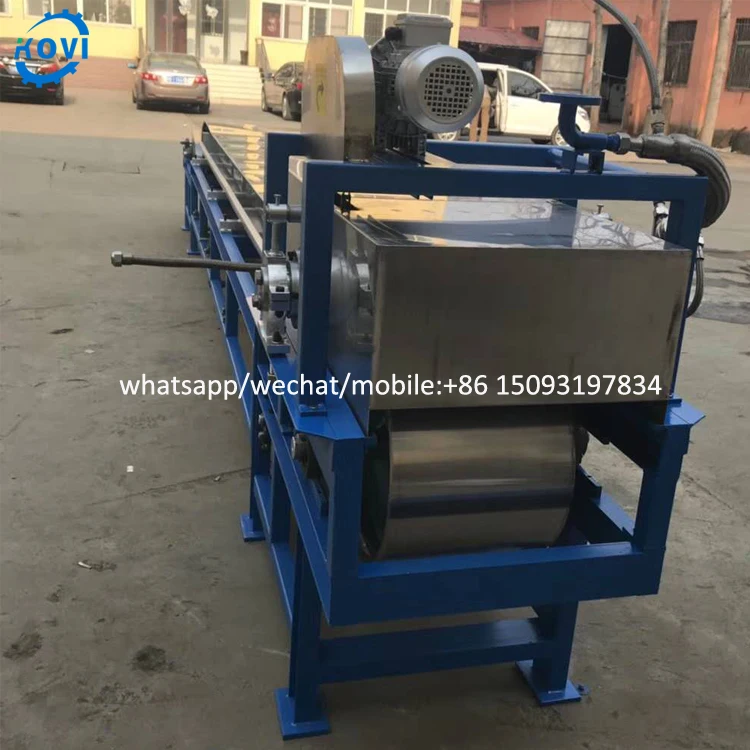

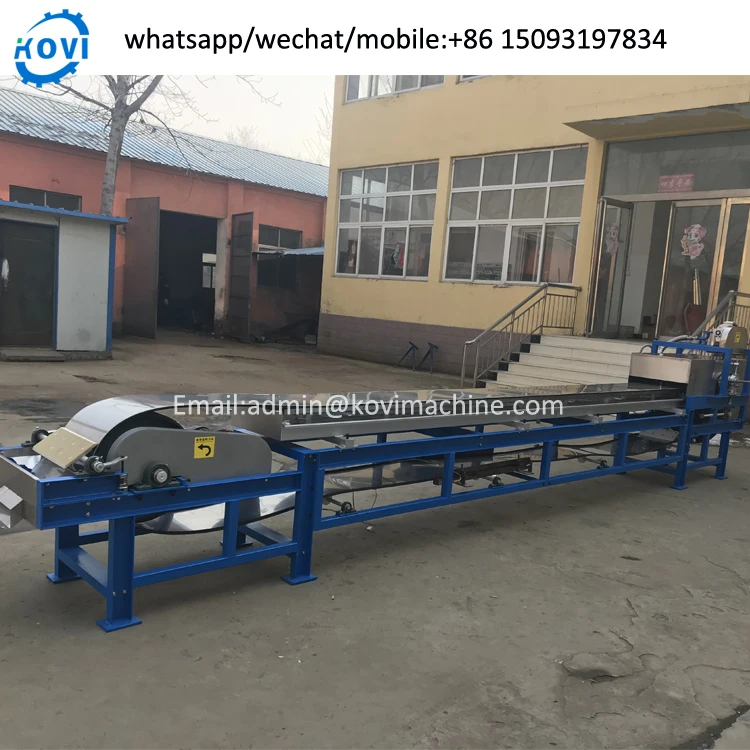

Аппарат для производства парафинового воска CE, мини-гранулятор воска

depilatory wax granulator machine , paraffin wax granulation machine , wax granules making machine , resin granule making machine ,sulphur granulating machine

Sulfur, paraffin wax, petroleum resin, alcali sulphide, C5, C9 resin, resin C5C9 polymer resin; Asphalt, maleic anhydride, stearic acid, hot melt adhesive, rubber and plastic additives, antioxidant, antiager, all kinds of additives, etc

Working principle

Rotary belt condensation granulator is using low melting point characteristic of the material (50 ℃ to 300 ℃)
Molten material through the special distributing device . Then distributing it on moving steel belt .  Use the cooling device which at the bottom of steel belt  . Then make the material condensation , solidification . granulation

Feature

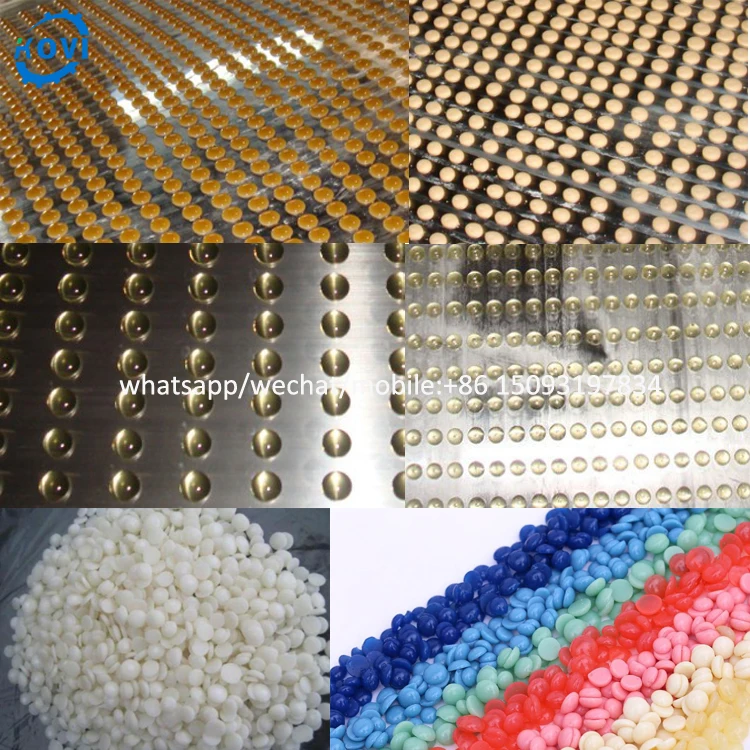

1. Granulator size can be choose between 4mm -12mm . Shapes can make granule, strip and flake
2.Equipment adopts frequency control, can choose a suitable speed according to the nature of the material
3.Product uniform particles,  and beautiful, forming rate above 95%
4.Widely used van, melting point of material between 50 ℃ to 300 ℃, all can granulation forming, toxic materials can be closed.

Machine compose

1.Paraffin granulate distributing device
2.Stainless steel cooling tanks system
3.Frequency conversion electric control cabinet
4.Reducer transmission system
5.Stainless steel  ALU-IND
6.Stainless steel valve
7.Sprayer , temperature probe
8.Stainless steel Rotary Steel Belt
9.Glue carbon steel conveyor roller
10.Complete frames and accessory

KVZL-40 and 60 model can package it in wooden box and delivery it by LCL

2. two sets KVZL-40 KVZL-60 model and KVZL -100 KVZL-120 KVZL-150 model should loading in one 20" 40"container
