Распродажа, шпиндель с воздушным охлаждением 12 кВт и сборником ER40 для шпинделя с ЧПУ
- Категория товара: Machine Tool Spindle >>>
- Поставщик (Оптовый магазин): Jinan,Yinfan,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
high quality Square 3.5kw air cooling spindle with Collect ER25
Product Description

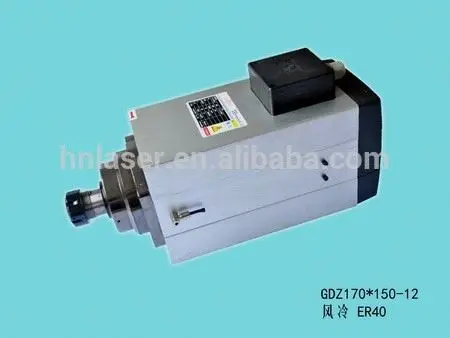

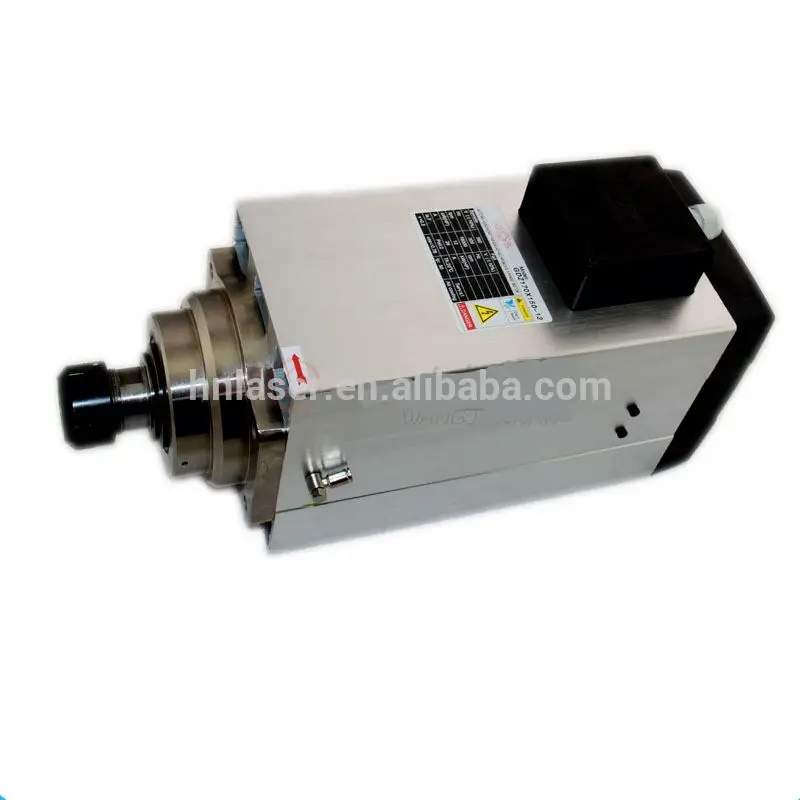

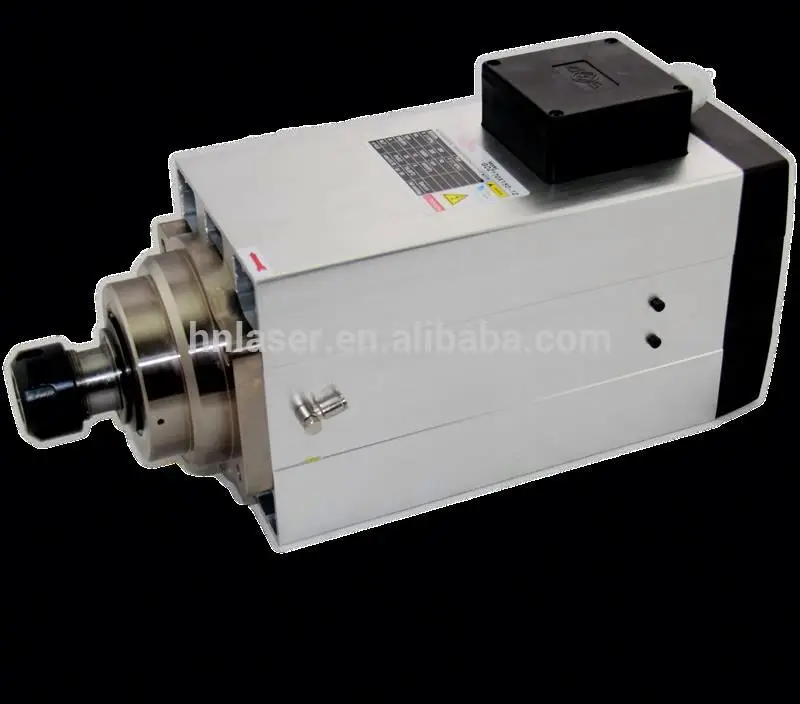

Spindle Type:GDZ170*150-12
Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

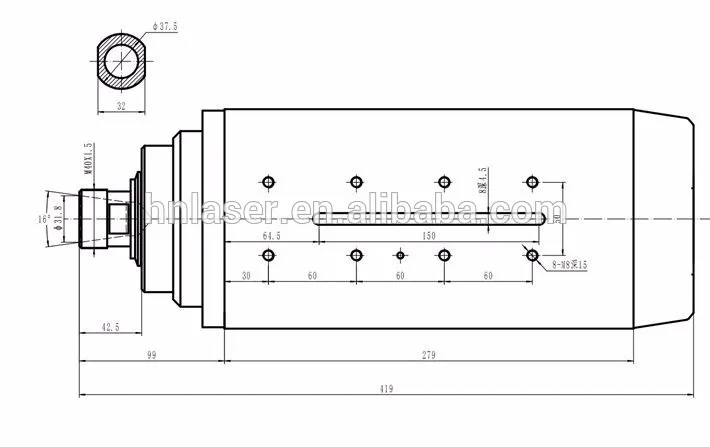

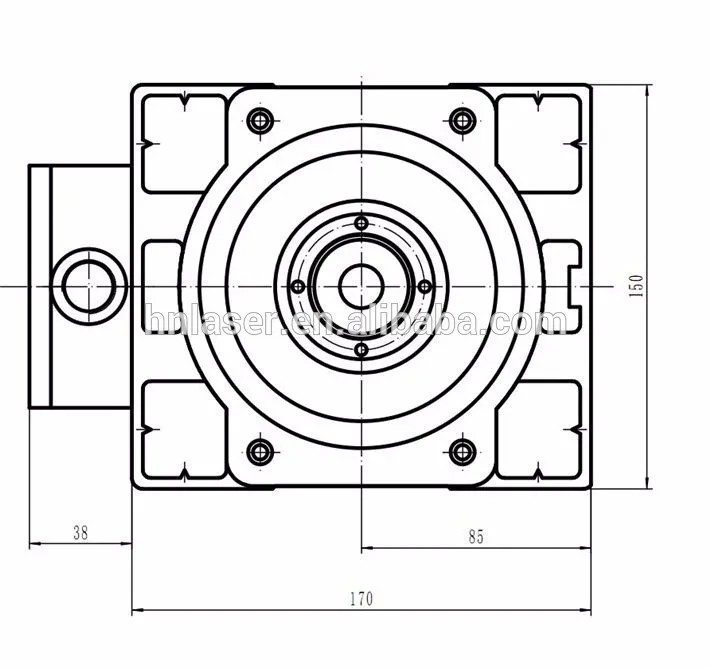

Product photo and size:
Technology Para
12KW air cooling Para:
| Spindle Type | GDZ170*150-12 |
| Diameter | 170*150mm |
| Speed | 18000rpm |
| Power | 12KW |
| Voltage | 380V |
| Current | 26A |
| Frequency | 300HZ |
| Joint of nose | ER40 |
| Lub | grease |
| Cool | air cooling |
| Bearing type | 7010CP4*2+7006CP4*2 |
| Weight | 40KG |
| Torque | 1.92Nm |
| Collect | ER40 |
| Collect nut | 12.7mm,16mm,20mm,30mm |

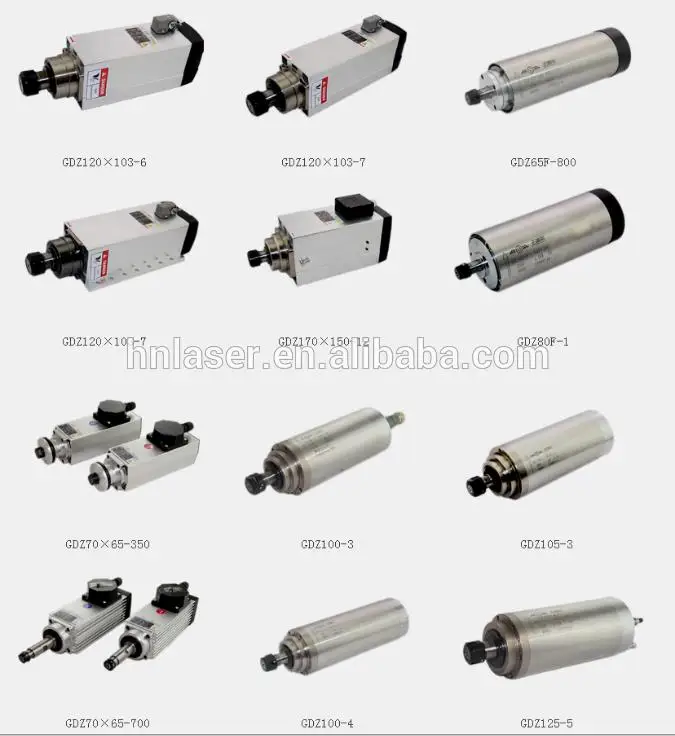

We can provide:
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw cooled by air: 8kw,9kw
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.
Packaging & Shipping
1.Packing: The goods are packed with foam and carton or wood carton to ensure perfect condition when reach you.
2.Goods delivery:We will ship the goods by FedEx or UPS or DHL etc express to you within 3 days and supply you the tracking numble immedicately as soon as the goods are sent out .
3.Shipping time: about 4-5 working days will be arrival (depend on location)
