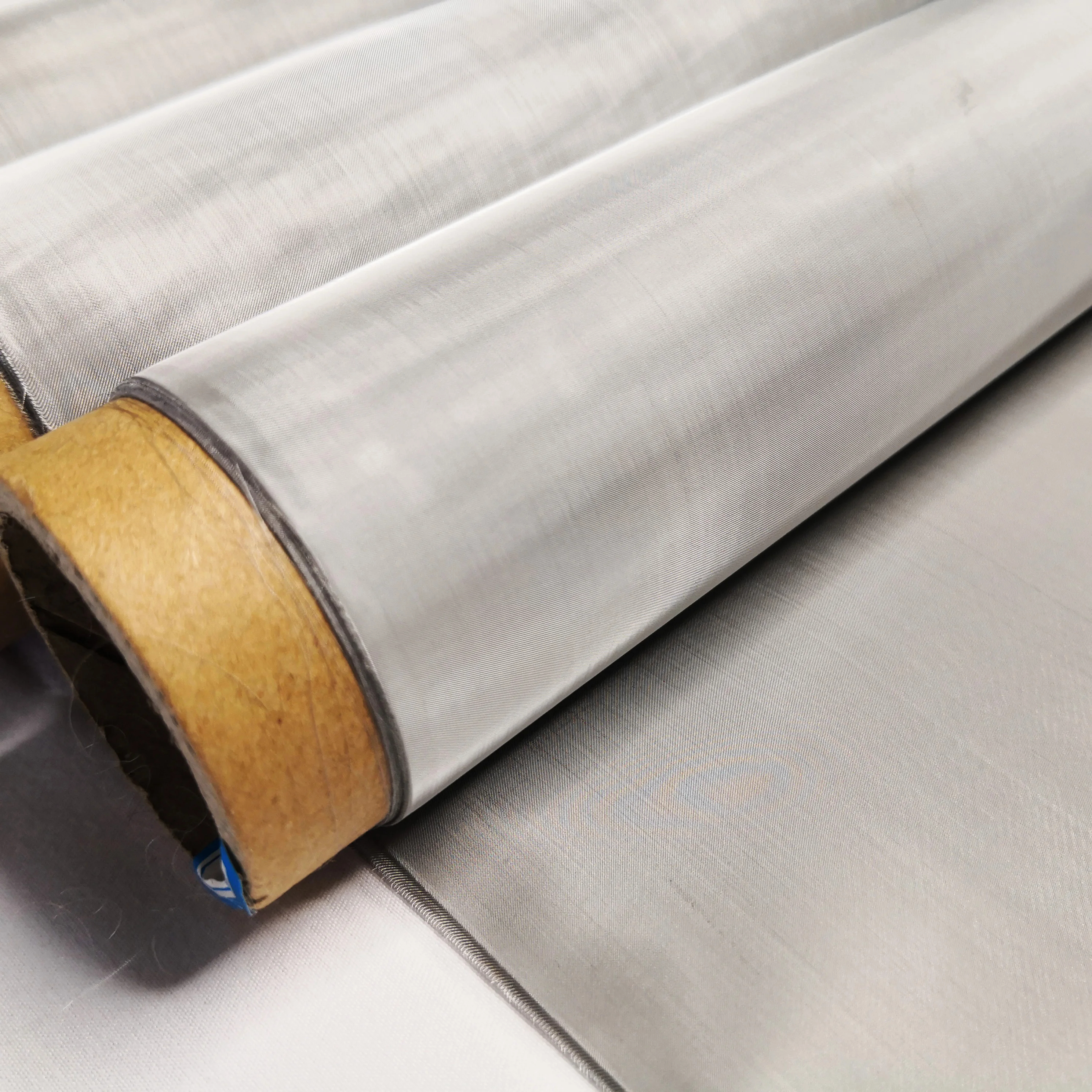

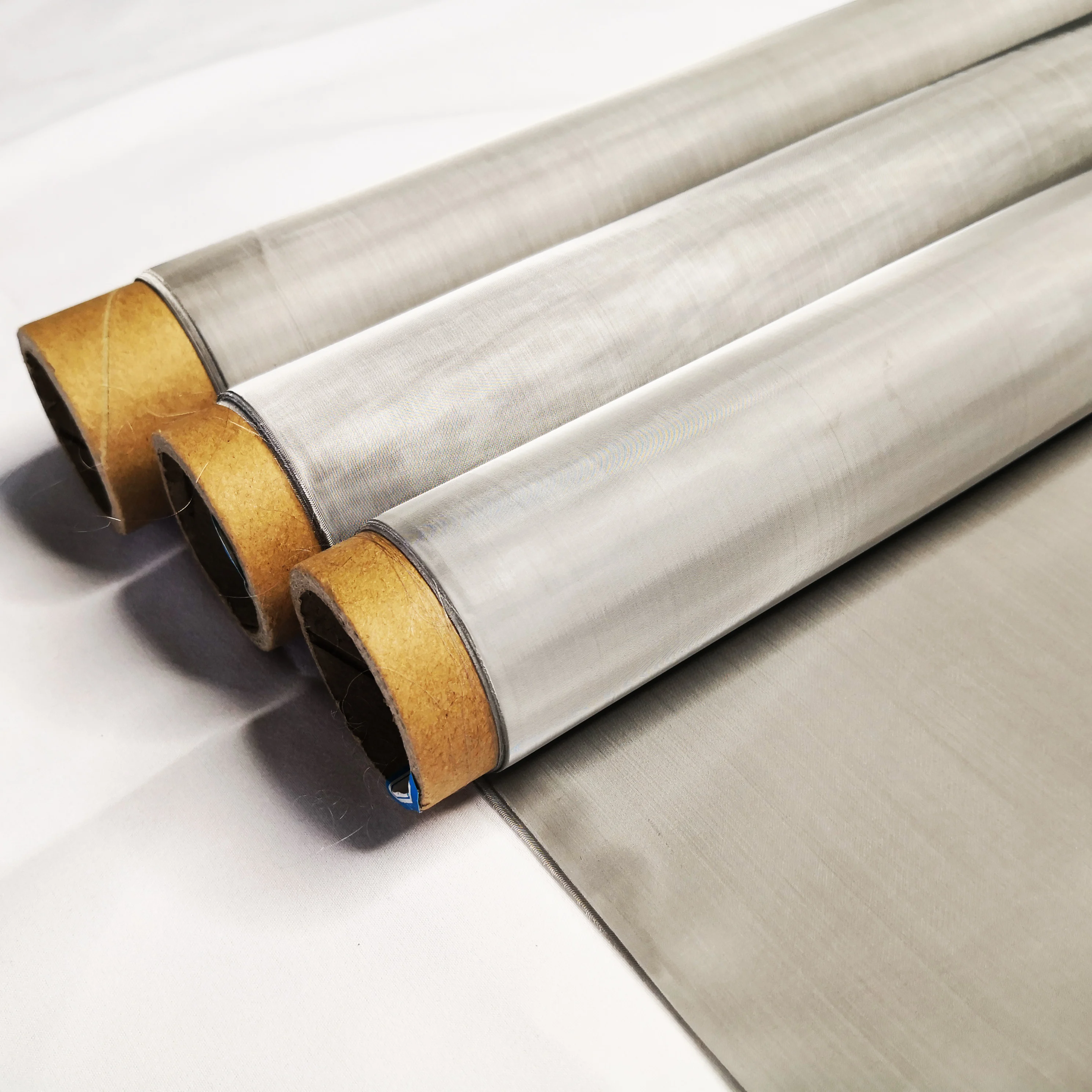

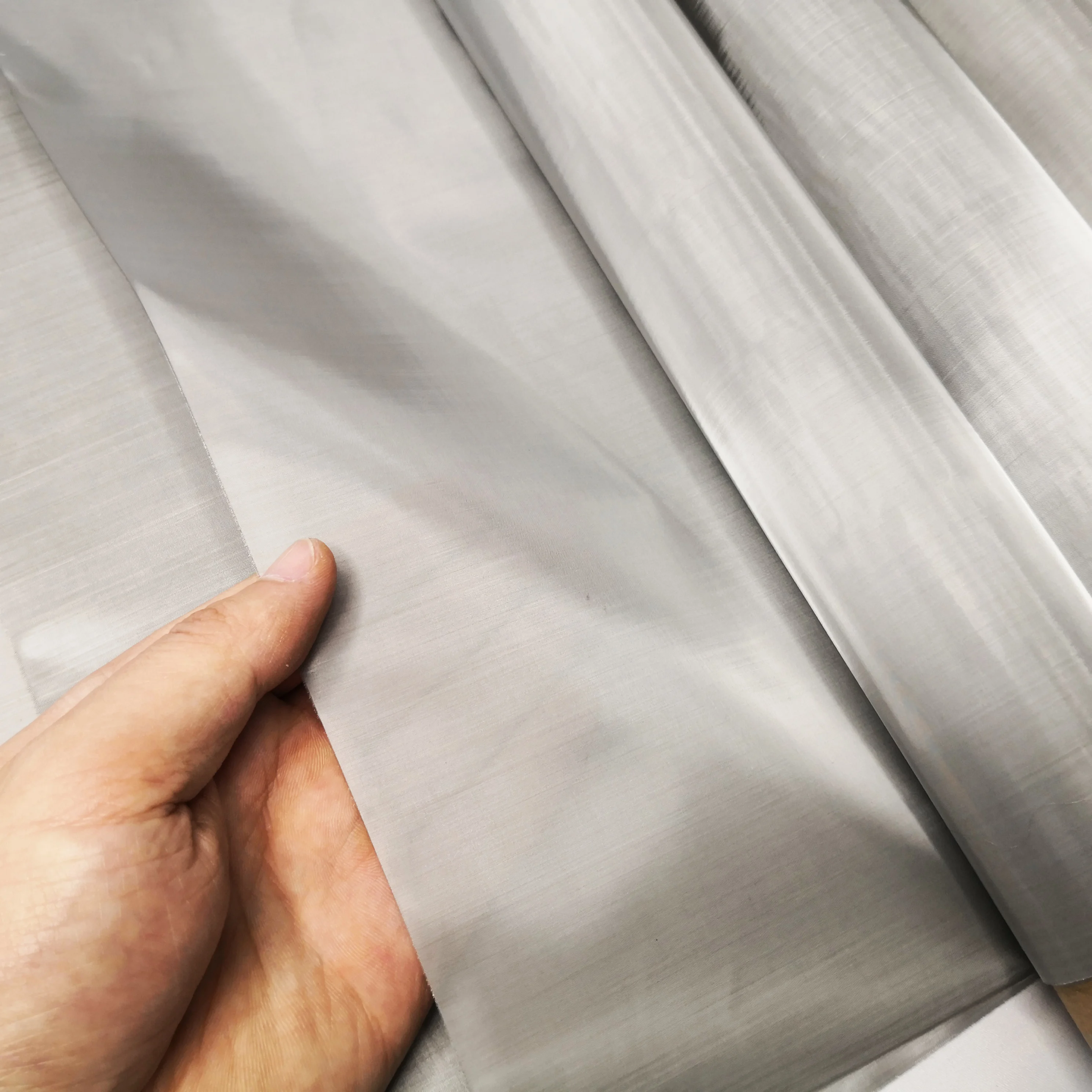

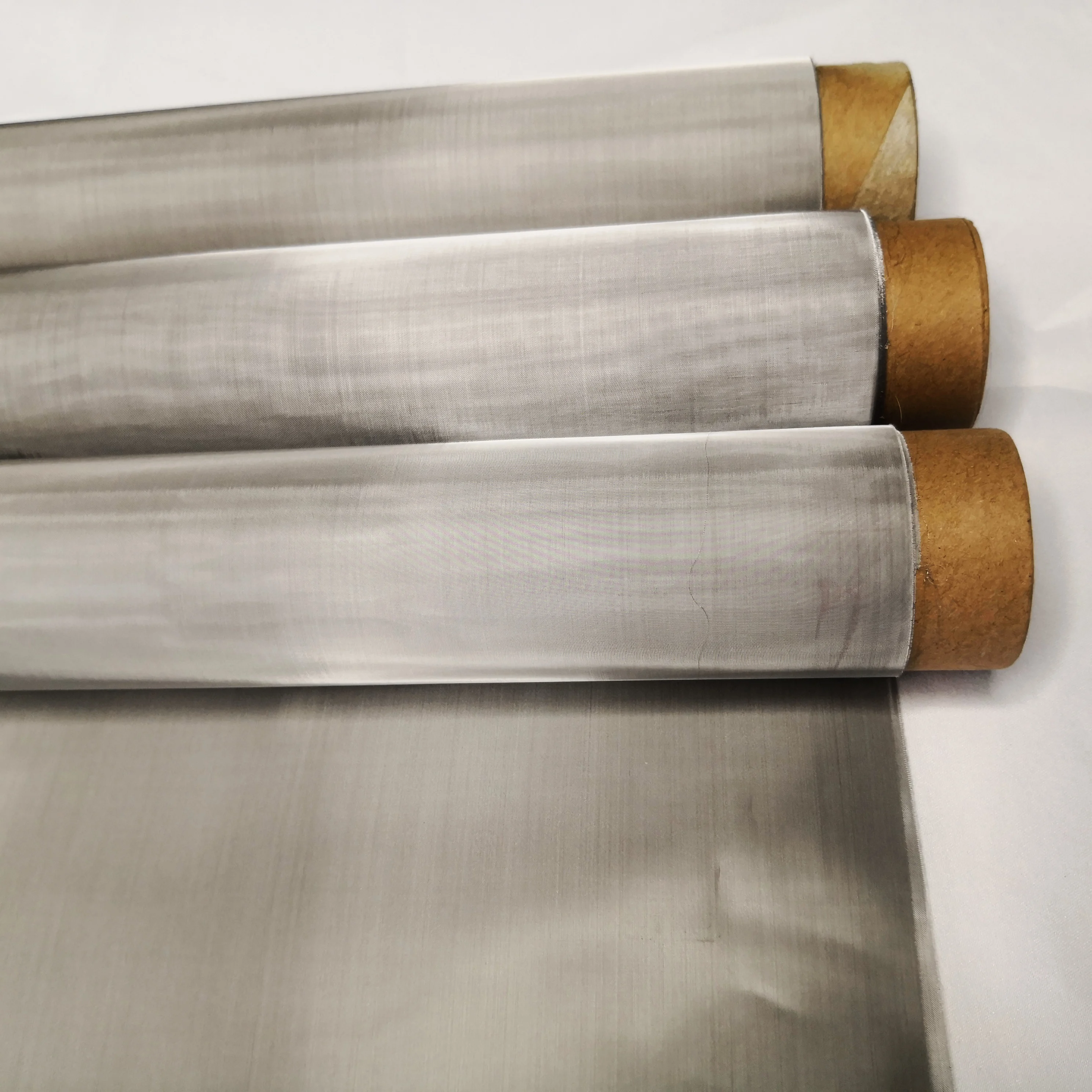

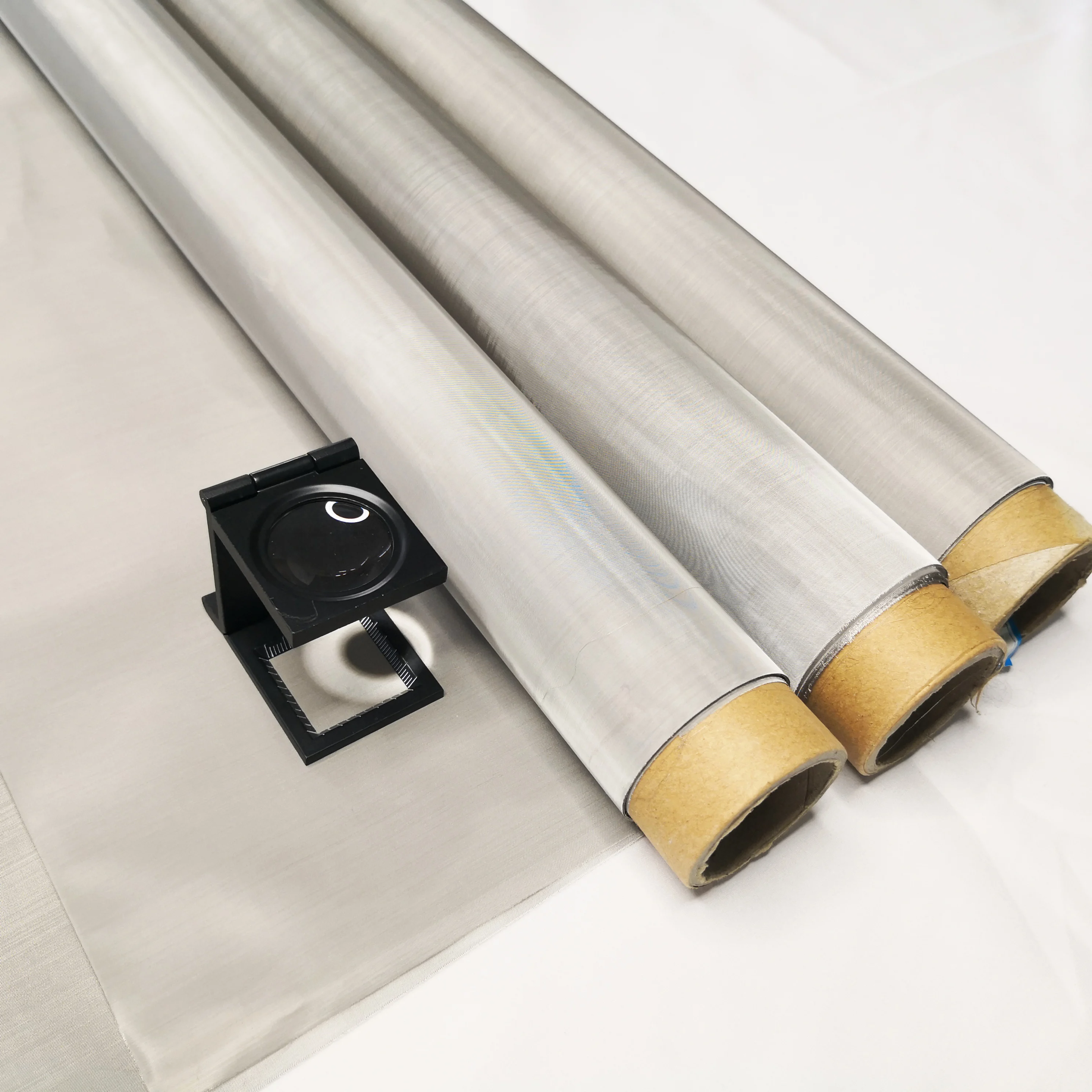

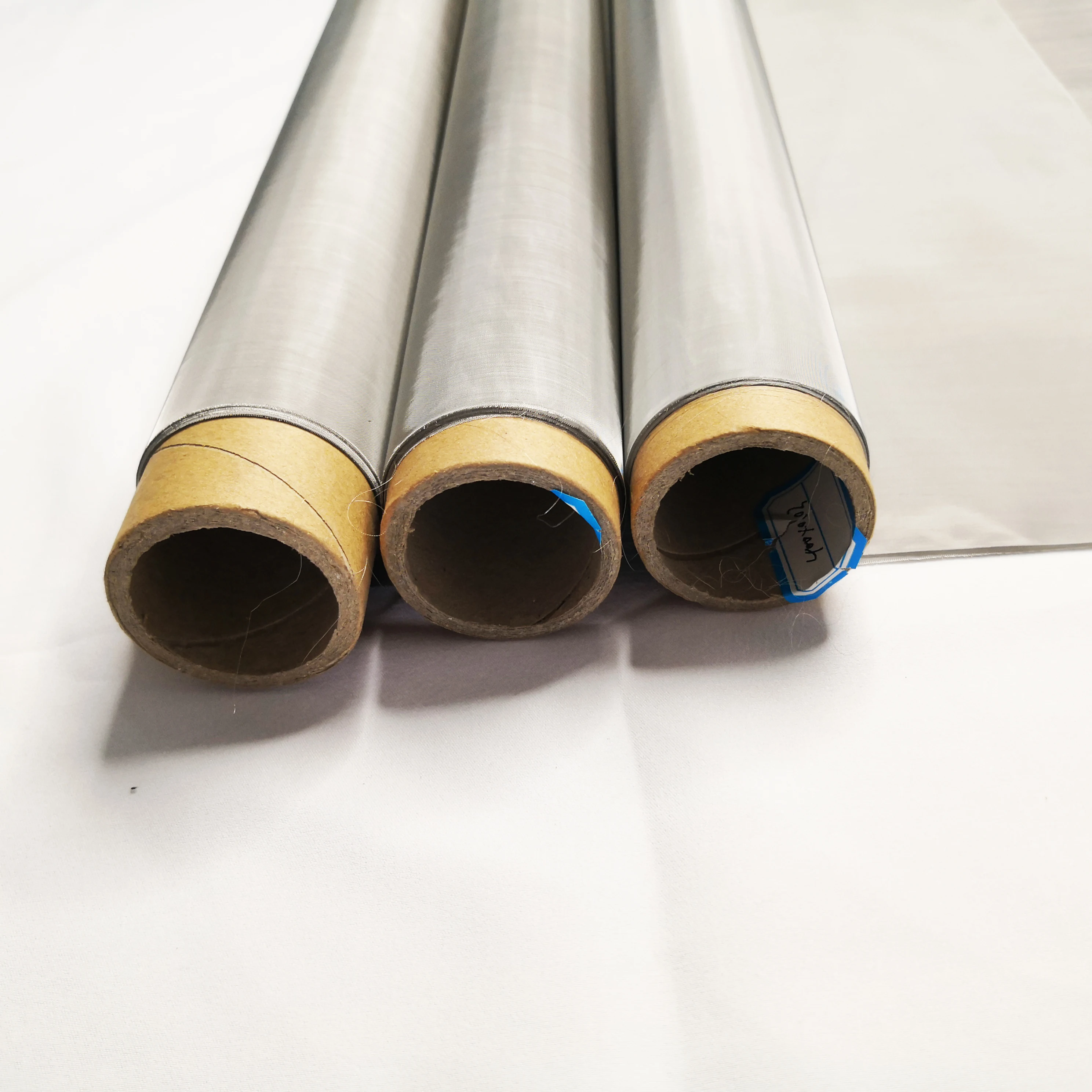

Высокопрочная проволочная сетка из нержавеющей стали 304 316L, 50 микрон
- Категория товара: Printing Mesh >>>
- Поставщик (Оптовый магазин): Beijing,PFM,Screen,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
High tension 50 micron 304 316L stainless steel screen printing wire mesh
Product Description
| Products Description |
Stainless steel printing mesh
High tension:Much higher tension than common polyester mesh, and this property is very stable;
Super Precision: Uniform wire diameter and aperture with extremely low difference;
Low Elongation: Very small elongation of wire mesh at high tension;
High Flexibility: The wire mesh will not lose elastictiy at extreme tension;
High Corrosion Resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affect of nonelectrostatic for printing and ensure the safety of printing;
Good Heat-melting Resistance: Special features of steel wire mesh .
Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
| Product Name | High tension 50 micron 304 316L stainless steel screen printing wire mesh |
| Color | Slivery |
| Certificate | SGS |
| Size | 1m |
| Mesh Aperture | 41 46 48 50 55 68 micron (80x80mesh--400x400mesh) |
| Brand | PFM |
| Application | High Precision Printing |
Specifications
Stainless Steel Printing Mesh | ||||||
Mesh/inch | Wire? Dia. | Opening (μm) | Open Area | Thickness | Through ink | Calender thickness |
80x80 | 90 | 228 | 52 | 198-207 | 103.0 | 168-170 |
80x80 | 120 | 198 | 39 | 276-288 | 92.9 | 228-230 |
100x100 | 100 | 154 | 36.8 | 230-240 | 77.2 | 188-190 |
120x120 | 80 | 132 | 39 | 184-192 | 65.8 | 148-150 |
150x150 | 60 | 109 | 41.7 | 138-144 | 50.0 | 138-142 |
165x165 | 45 | 109 | 50.1 | 95-104 | 45.1 | 78-80 |
165x165 | 50 | 104 | 45.6 | 110-115 | 45.6 | 88-90 |
180x180 | 45 | 96 | 46.4 | 99-104 | 41.5 | 78-80 |
180x180 | 50 | 91 | 42 | 115-120 | 41.7 | 88-90 |
200x200 | 40 | 87 | 46.9 | 81-82 | 43.0 | 68-70 |
200x200 | 50 | 77 | 37 | 115-120 | 42.0 | 88-90 |
230x230 | 35 | 75 | 46.7 | 72-76 | 37.0 | 50-67 |
250x250 | 30 | 72 | 49.7 | 63-64 | 30.0 | 48-49 |
250x250 | 35 | 67 | 43 | 76-78 | 32.0 | 59-61 |
250x250 | 40 | 62 | 49.7 | 82-86 | 34.0 | 50-80 |
270x270 | 35 | 59 | 39.4 | 76-80 | 30.0 | 58-70 |
290x290 | 20 | 68 | 41.7 | 43-44 | 18.4 | 29-30 |
300x300 | 30 | 55 | 38 | 66-68 | 28.0 | 40-59 |
325x325 | 23 | 55 | 49.8 | 49-53 | 25.4 | 38-39 |
325x325 | 28 | 50 | 41.2 | 63-64 | 26.4 | 50-51 |
325x325 | 30 | 48 | 38 | 66-68 | 24.0 | 40-59 |
350x350 | 25 | 48 | 43 | 52-54 | 18.7 | 41-50 |
400x400 | 18 | 46 | 51.3 | 36-40 | 20.0 | 28-30 |
400x400 | 23 | 41 | 40.7 | 50-54 | 19.0 | 35-48 |

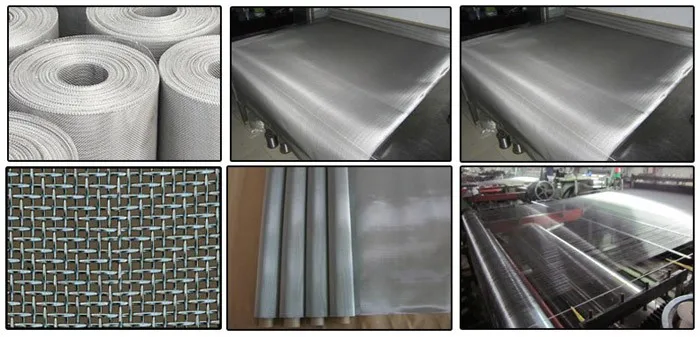

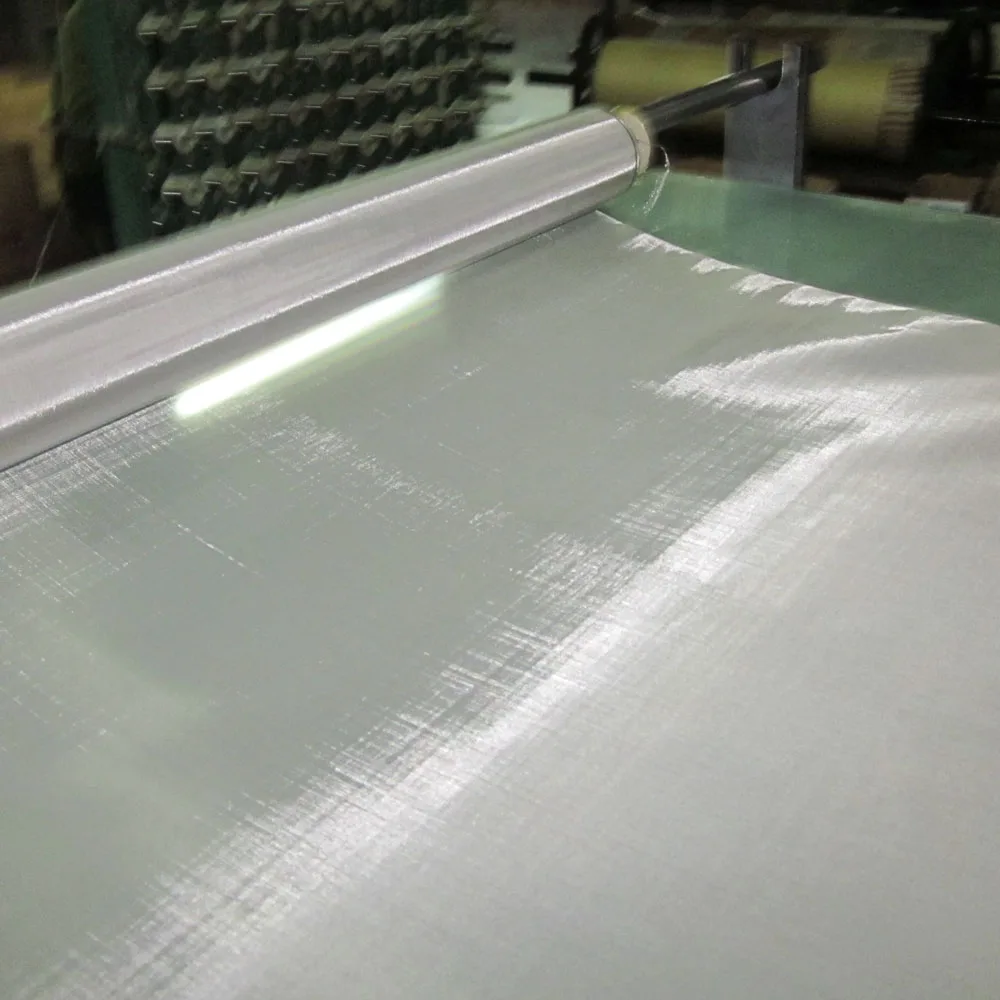

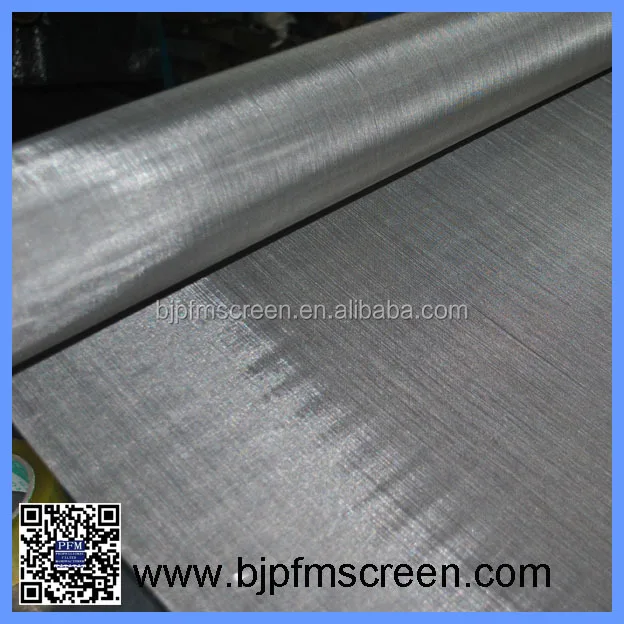

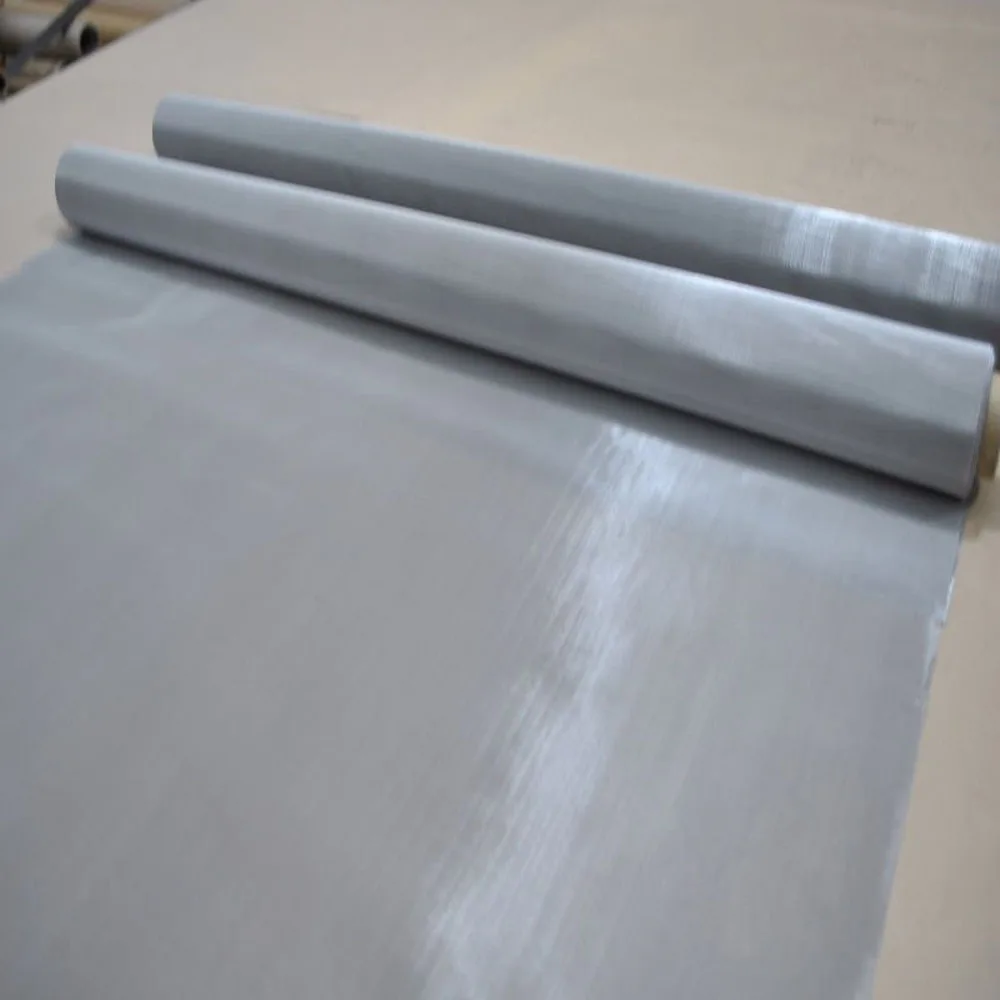

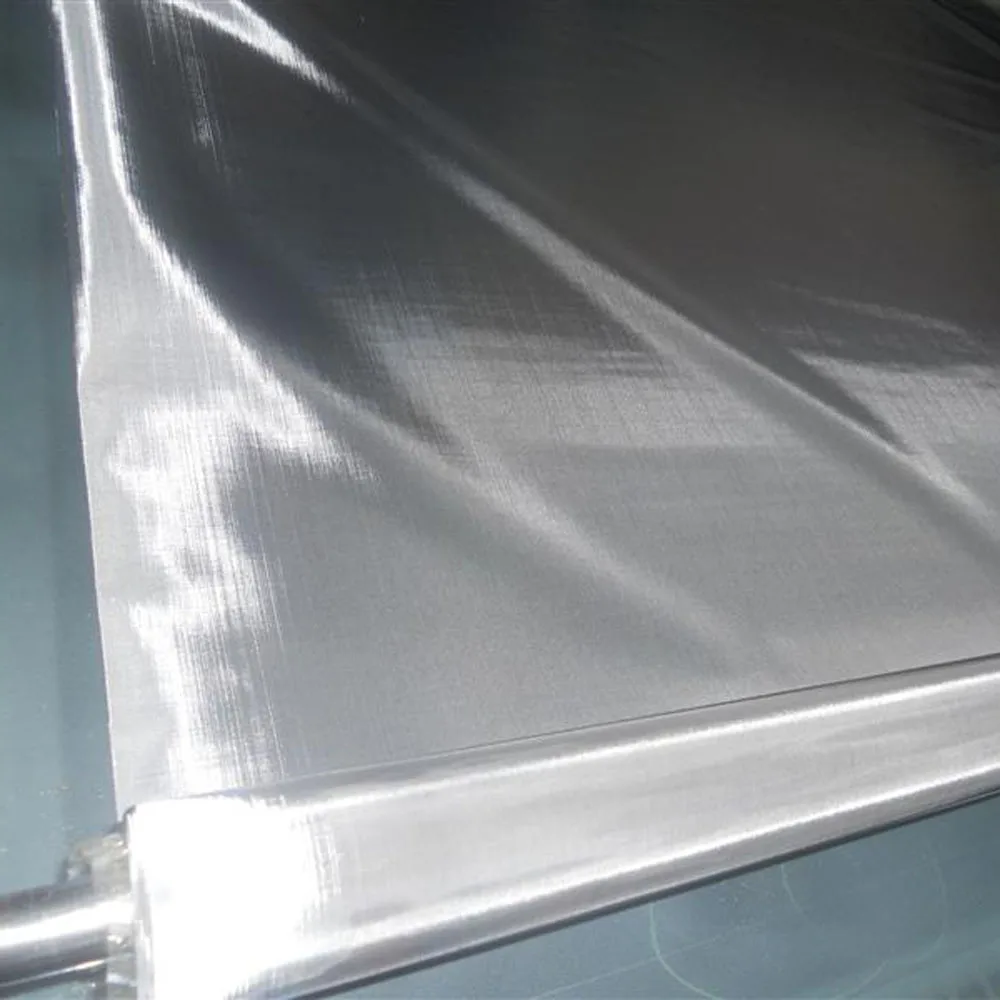

Detailed Images
| Detailed Images |
Products Application
| Products Application |

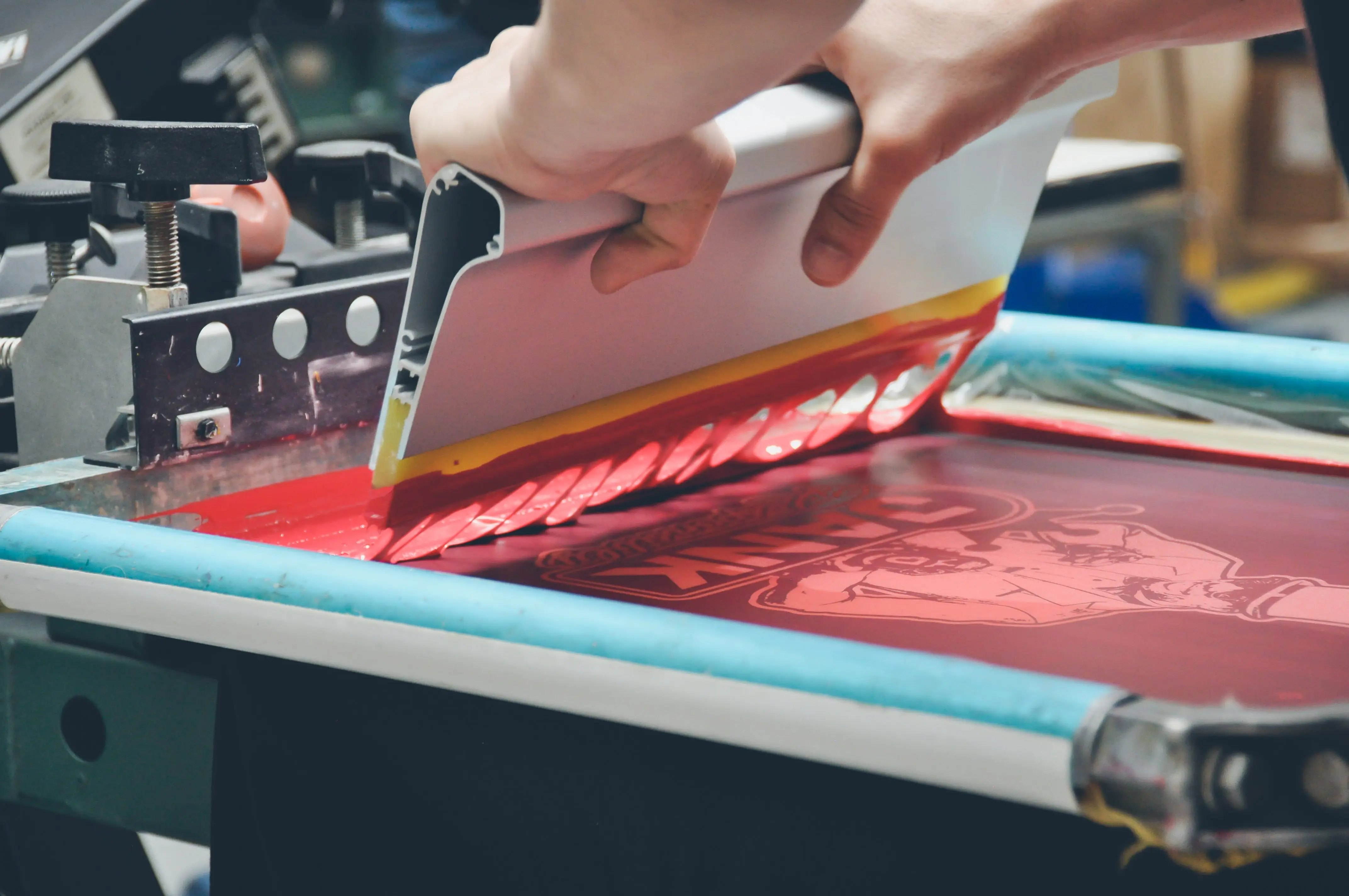

Application of 50um stainless steel printing mesh :
Filter, Sieve and Seperation for air, liquid, solid, powder, oil etc
Screen Printing Mesh for solar battery, PCB processing, glass printing, ceramics printing, cigarette case printing, magazine printing etc.
Related Products
| Related Products |
Stainless steel square hole filter mesh
Our Company
| Our Company |
Founded in 1987. PFM Screen is a professional manufacturer of polyester/nylon filter mesh, stainless steel mesh and polyester filter belt.
Our company is located in Langfang City and the factory is located in Anping county -- the famous Wire Mesh Land of China, with a land area of 40.000 square meters, a construction area of 13, 000 square meters. PFM factory has 83 sets P7100& P7150 Sulzer polyester printing mesh weaving looms, 23 sets Sweden Texo polyester dryer fabric looms, 50 sets Japanese GRS1300 wire mesh looms, and 46 sets of other machine and devices including automatic warp arranging machine, heat setting machine Austria Automatic seaming machine and other test facilities.
With more than 30 years development, PFM is not only professional in field of polyester mesh and stainless steel mesh. But also wire mesh filters and nylon filter bags. Our strong R&D capability (56 engineers and technicians) enables us to innovate almost every day. So the customized orders are available.
Beijing PFM Screen as our exporting company has exported our products into more than 50 countries all over the world, such as USA, Germany,U.K., Canada, England, Brazil, South Africa, Kenya, Morocco Russia, Indonesia, Singapore, Pakistan, Malaysia, Thailand, etc.
Our products focus on quality and fast delivery, and all our staffs focus on service.
Packing & Delivery
| Packing & Delivery |
The common packaging:
High tension 50 micron 304 316L stainless steel screen printing wire mesh:

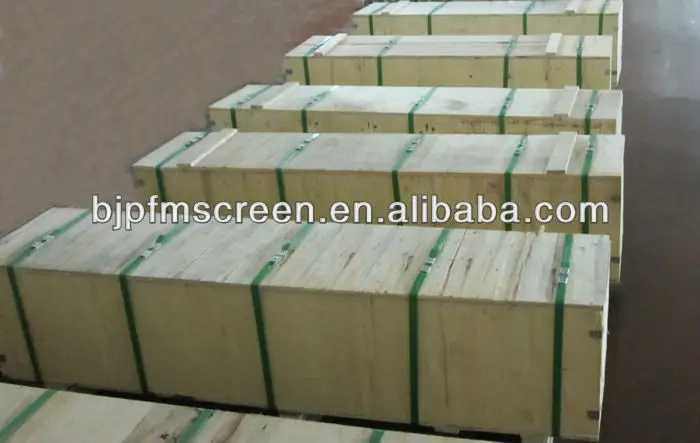

Waterproof paper or air bubble film inside, wooden case or plywood case outside or according to the customers' request
The common shipping:
1. for small quantity, shipped by courier.
2. for large quantity, shipped by air or by sea.
3. tracking number will be emailed to you after the order has been shipped.
4. If you have forwarder in China, we can send to your forwarder for free.
Our Services
| Our Service |
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply to you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me feedback. If you have any questions about the problem, contact us, we will offer the solve way for you.
5.Sample testing support.
6.Changing for new if dissatisfaction.

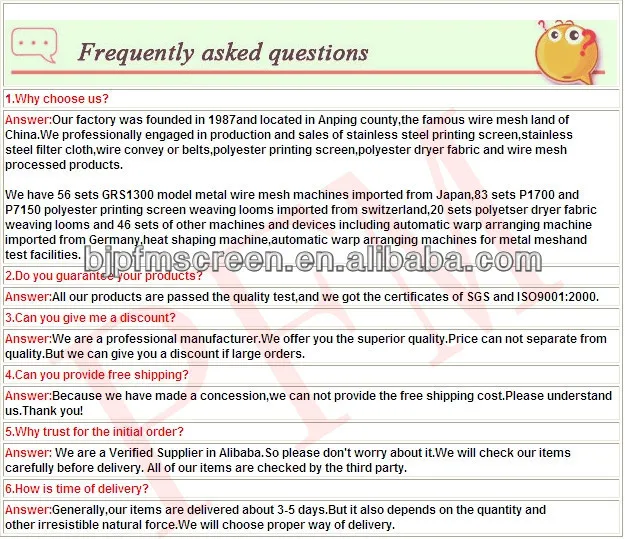

FAQ
| FAQ |
