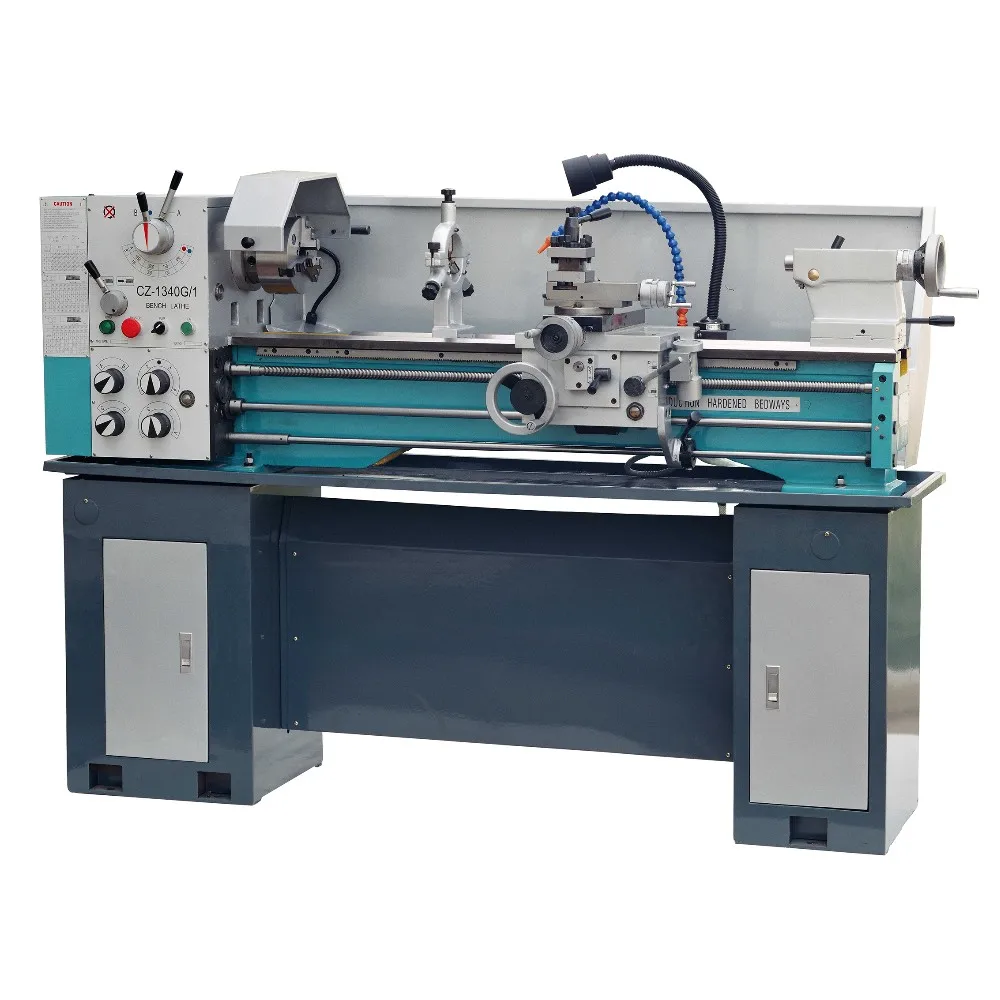

Домашний токарный мини-станок CZ1340G/1 с диаметром шпинделя 51 мм
- Категория товара: Manual Lathe >>>
- Поставщик (Оптовый магазин): Chizhou,Syntop,CNC,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features
Easy and fast operating gearbox
Enough strong power motor
ASA D4 camlock spindle nose
Supersonic frequency hardened bed way.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available..
Specifications for CZ1340G/1 | ||
Swing Over Bed | 330mm | |
Swing Over carriage | 195mm | |
Swing over gap | 476mm | |
Distance Between Centers | 1000mm | |
Width of bed-way | 186mm | |
Spindle diameter | 51mm | |
Taper of spindle | MT5 | |
Step of speed | 8 | |
Range of speed | 70~2000r.p.m | |
Head | D1-4/D1-5 | |
Metric thread | 26kinds (0.4~7mm) | |
Inch thread | 34kinds(4~56T.P.I) | |
Moulder thread | 16 kinds(0.35~5M.P) | |
Diametral thread | 36 kinds(6~104D.P) | |
Longitudinal feeds | 0.052~1.392 (0.002"~0.0548") | |
Cross feeds | 0.014~0.38 (0.00055"~0.015") | |
Diameter of lead screw | φ22(7/8") | |
Pitch of lead screw | 3mm or 8T.P.I | |
Saddle travel | 1000mm | |
Cross travel | 170mm | |
Compound travel | 74mm | |
Barrel travel | 95mm | |
Barrel diameter | 32mm | |
Taper of center | MT3 | |
Motor power | 1.5(2HP) | |
Motor for coolant system's power | 0.04(0.055HP) | |
Machine(L×W×H) | 1920×760×760 | |
N.W./G.W.(main machine) | 505/565 | |
