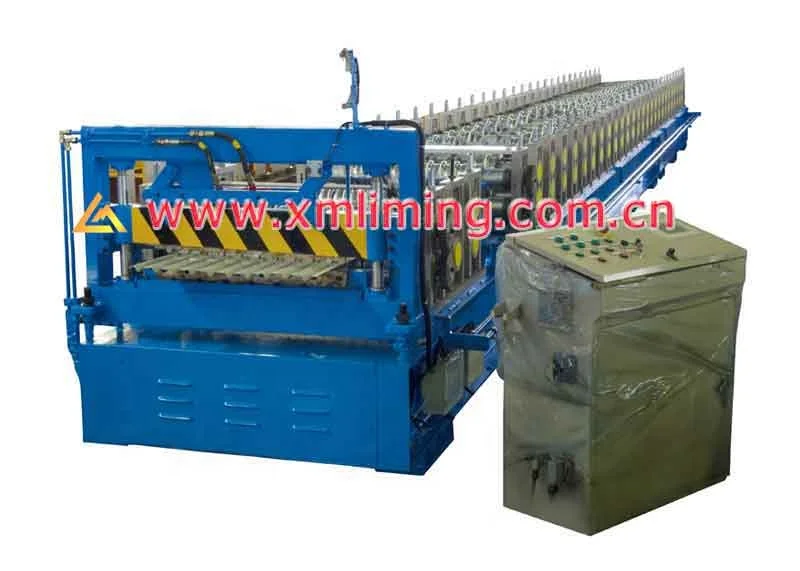

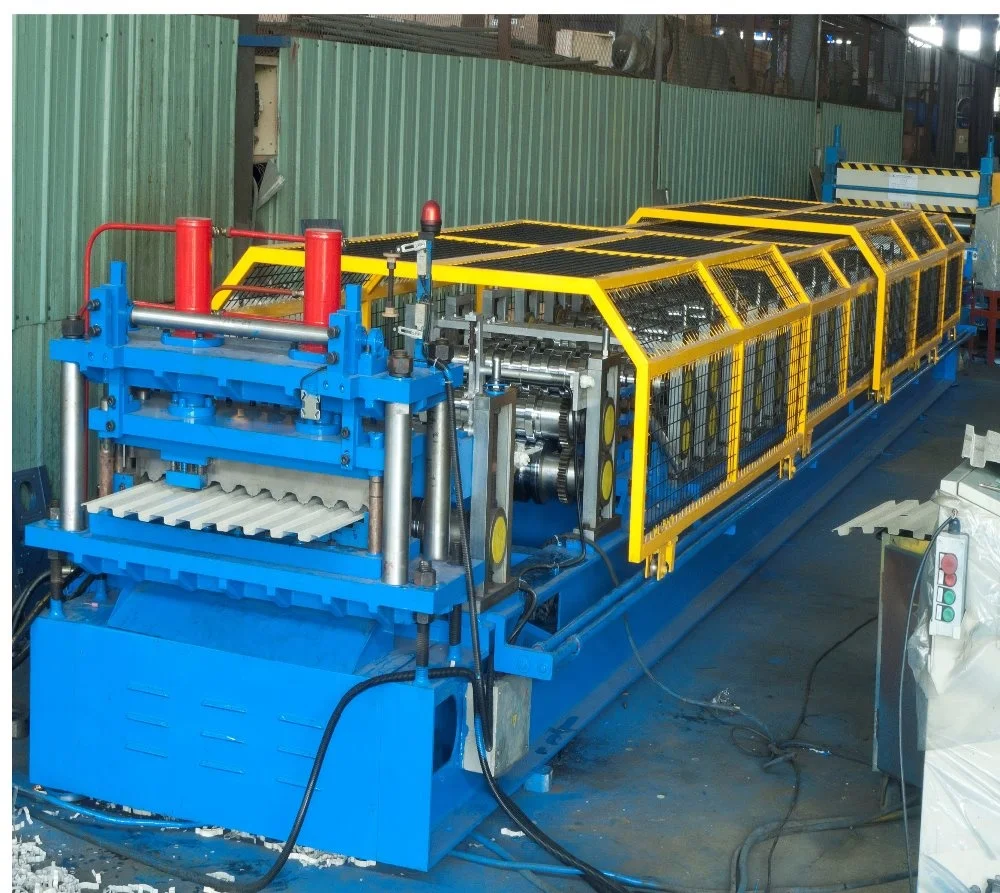

Product Description

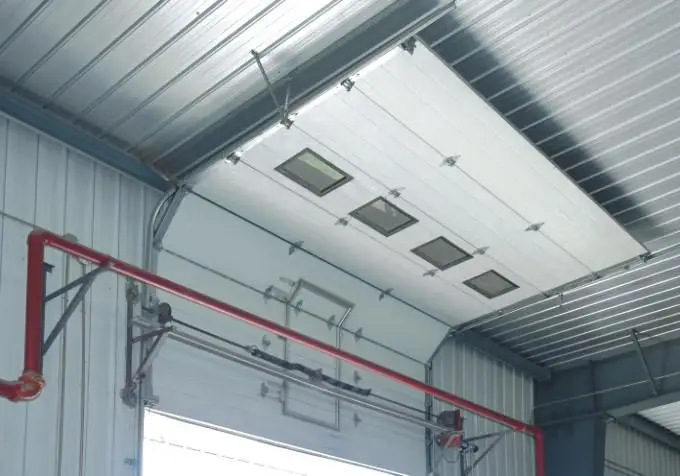

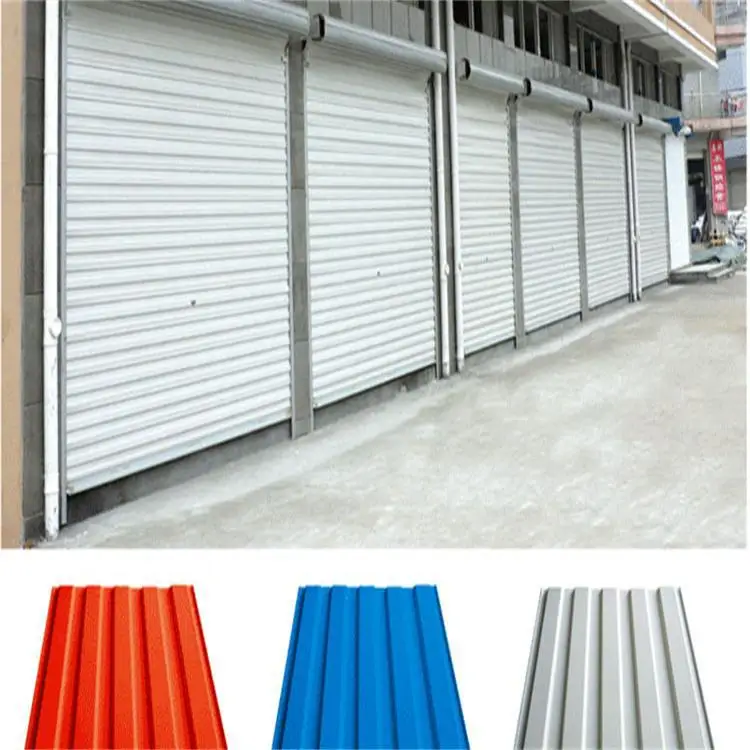

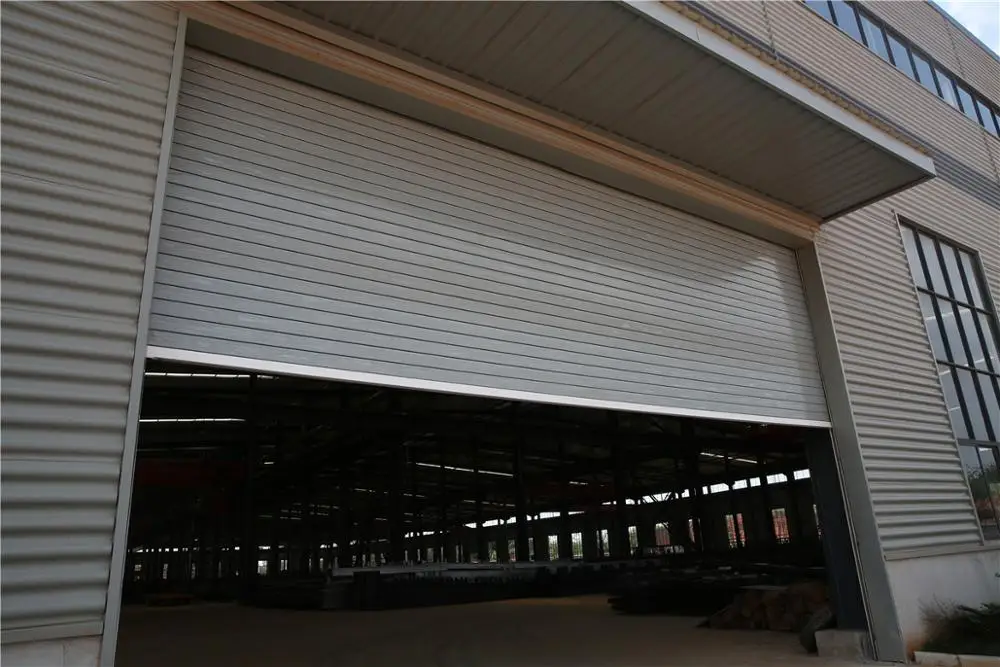

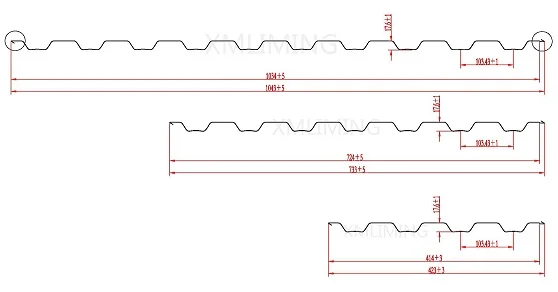

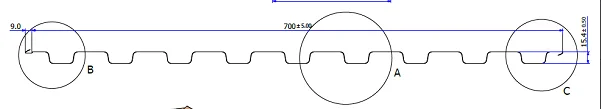

We can provide varies of rolling shutter doors production machines.This machine can be used to produce the below 4 profiles

(1)The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.5-1.2mm
Effective width	300/400±3mm
Feeding width	398/498mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	20 stages
Material of forming roller	40Cr, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW, frequency speed control
Max. Line speed of roll former	12m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	4 KW

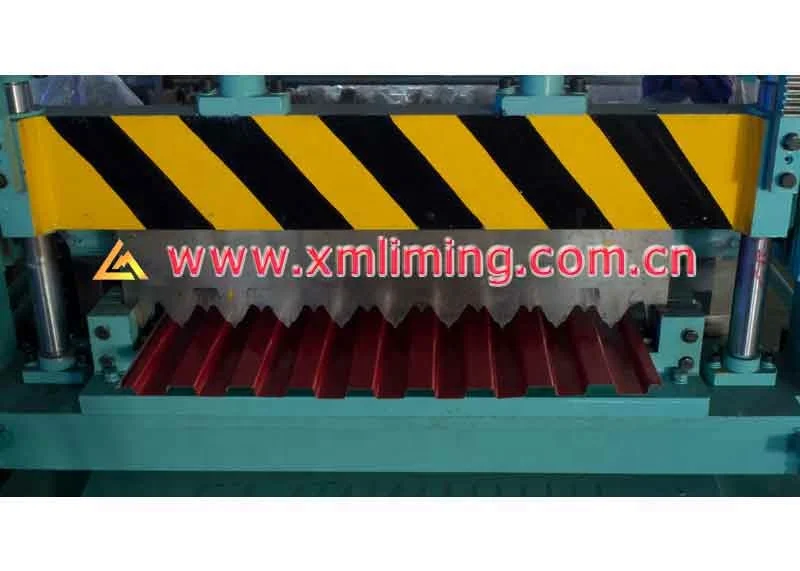

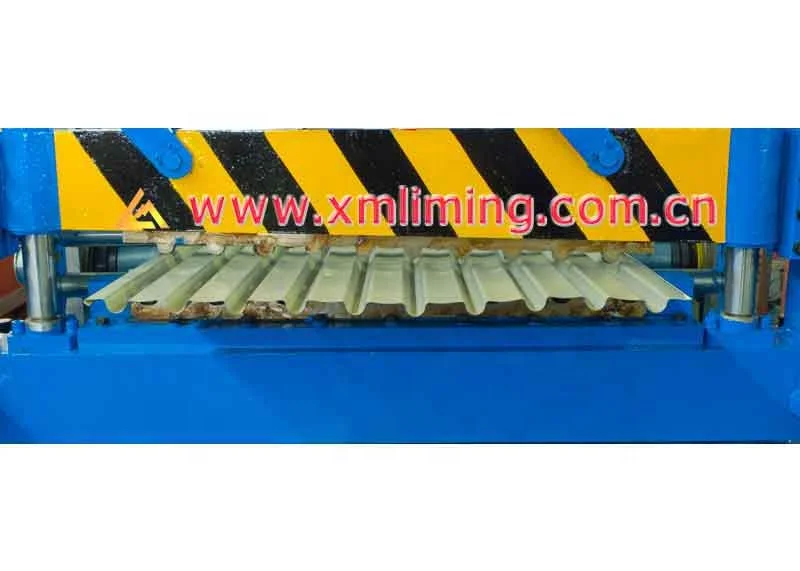

Material of cutting blade	Cr12, heat treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	8750mm×1380mm×1400mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer’s requirements
(2) PLC Control system
PLC	Siemens brand (ABB brand is available if required)
Touch Screen	Siemens brand (ABB brand is available if required)
Inverter	Schneider brand (ABB brand is available if required)
Encoder	Omron brand
(3)Product rack
Description	un-powered, 3 units
(4)Option: CE certificate Pl refer to the attached pictures for details
(5) Service after sell
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements. Installation: (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation. (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians. a) Position the machine in the buyer’s factory. b) Prepare necessary electric wiring. c) Prepare material of trial running. d) Provide labors for assistance and installation during installation. e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.
