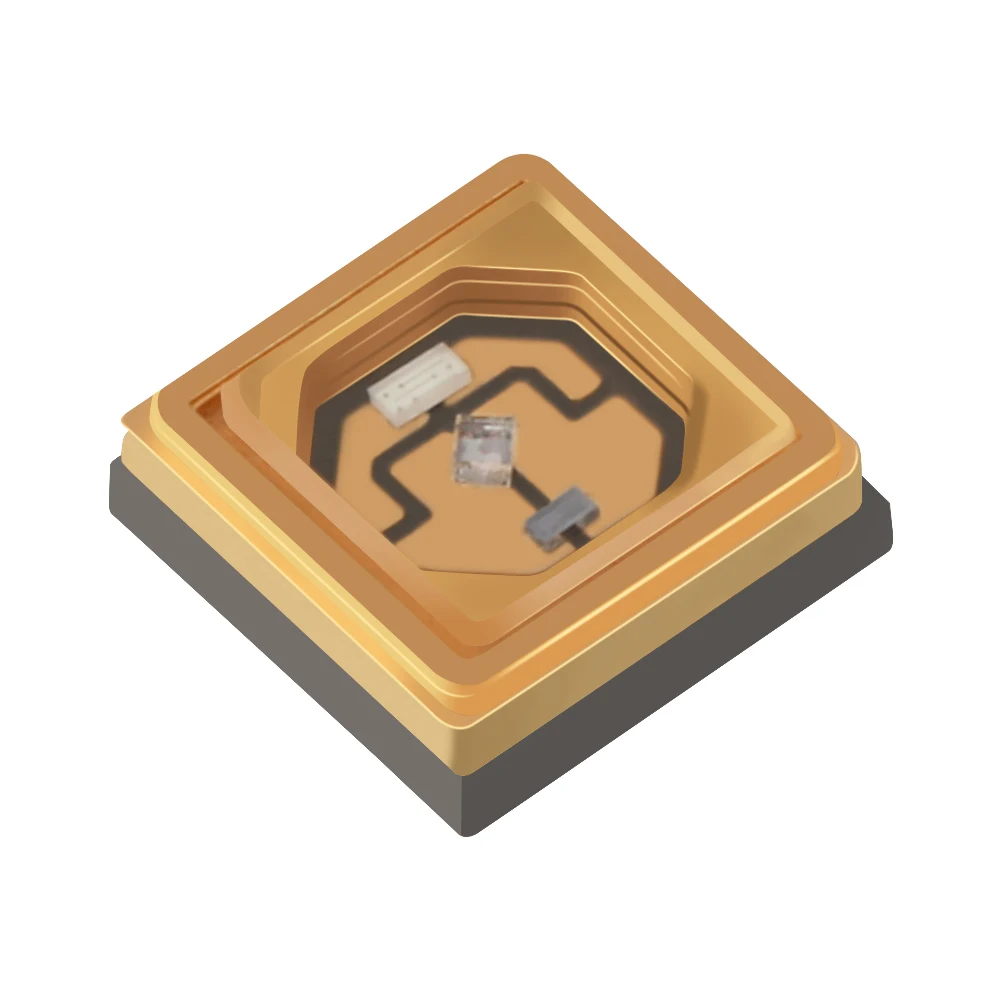

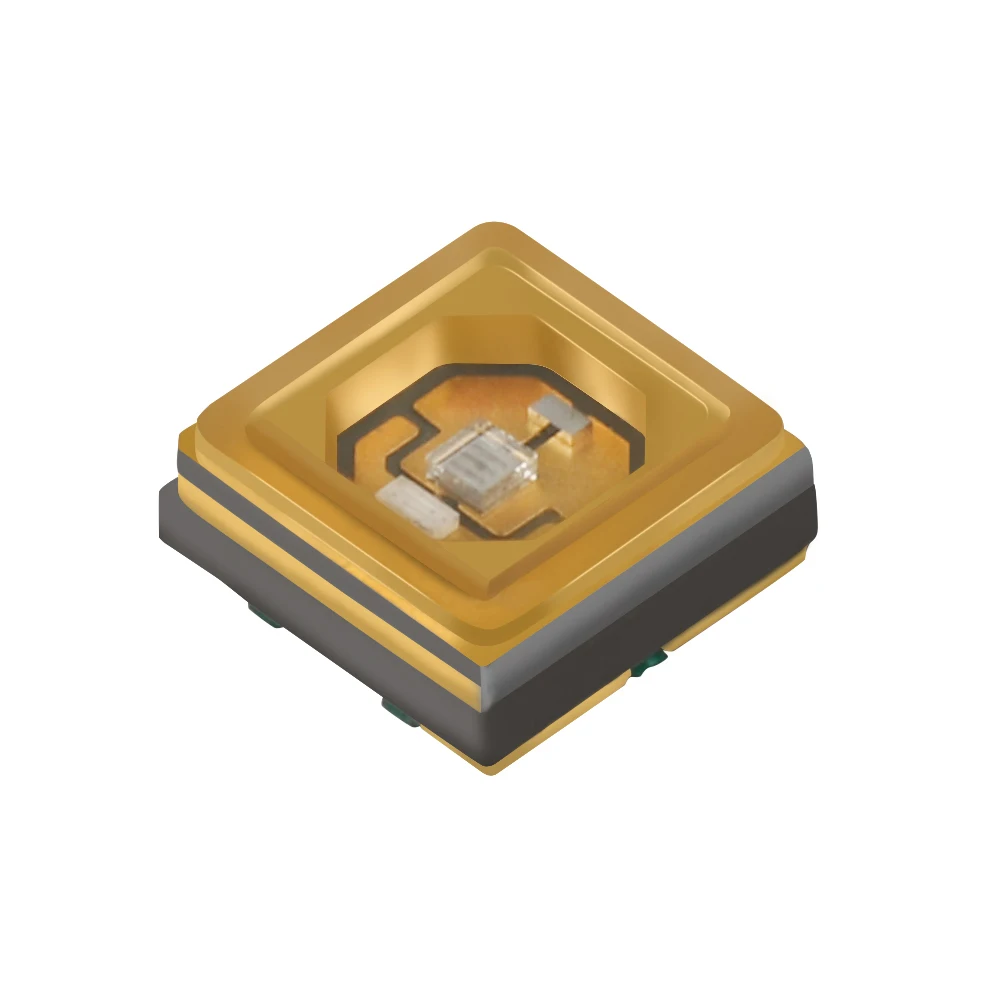

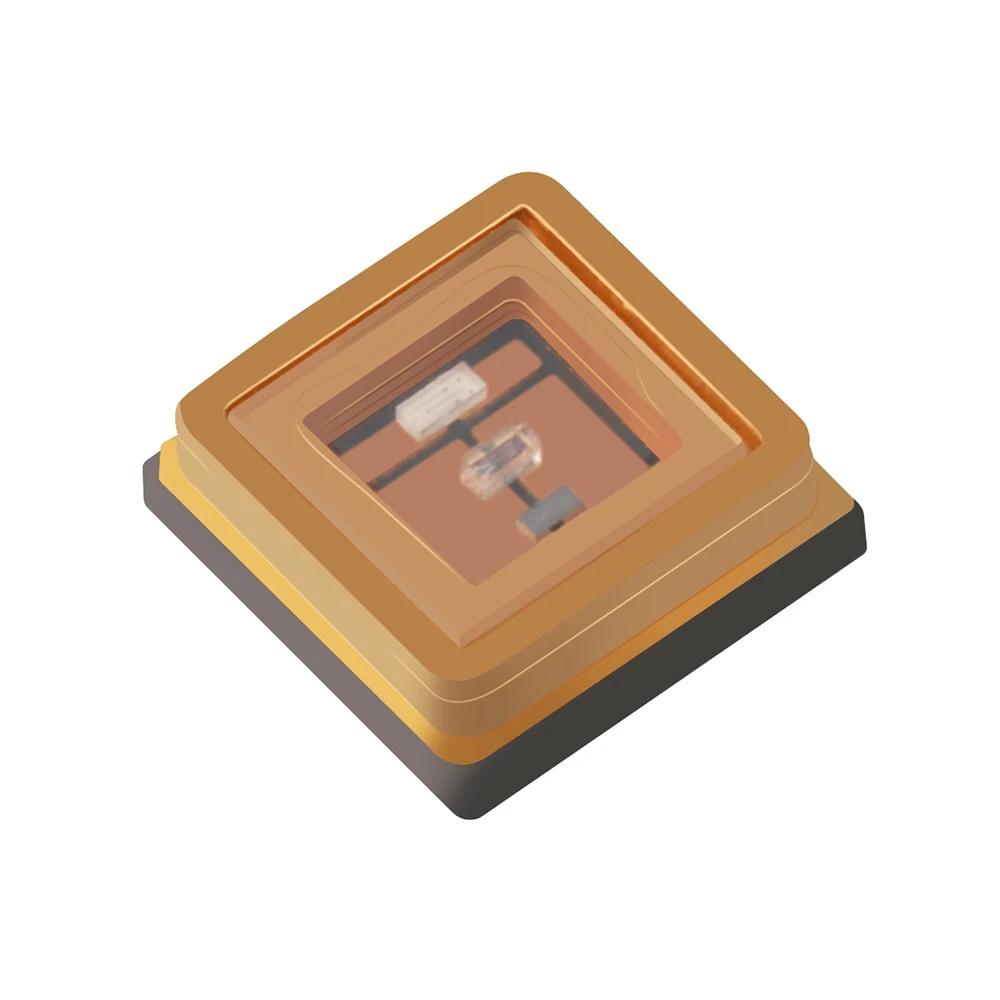

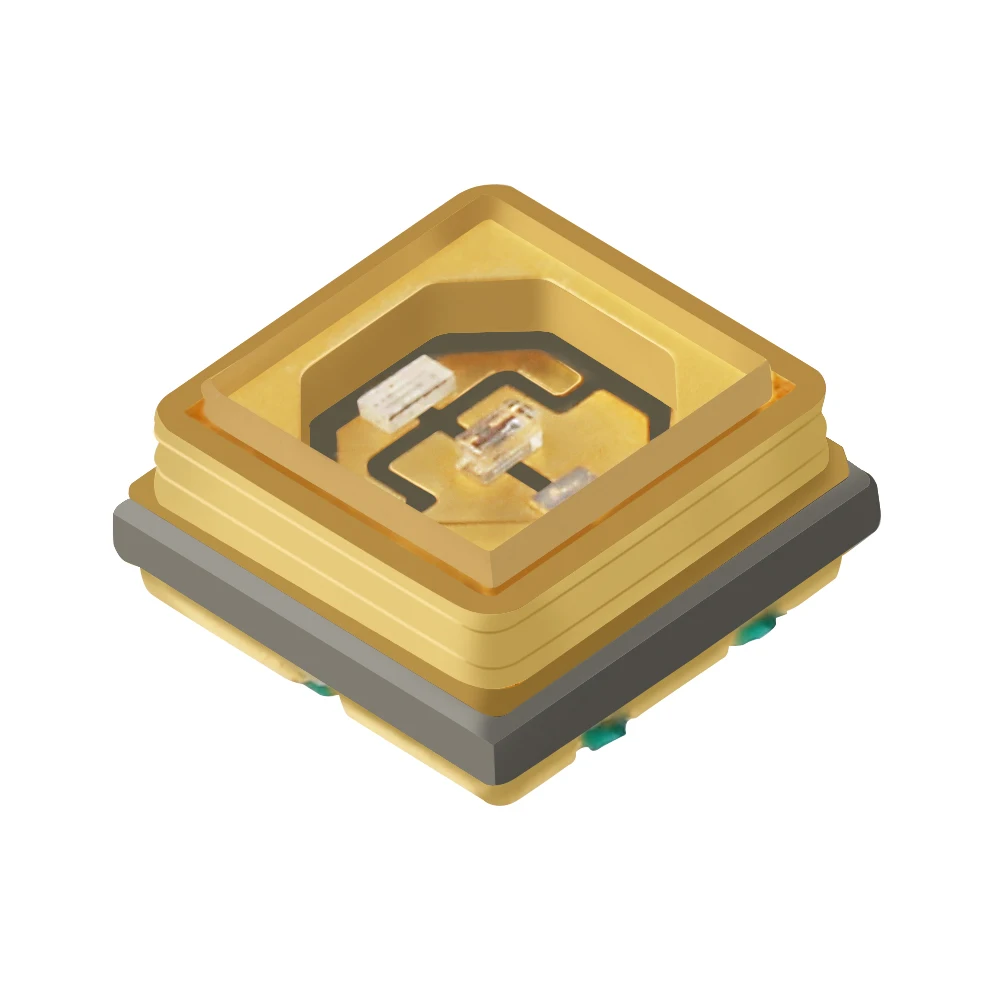

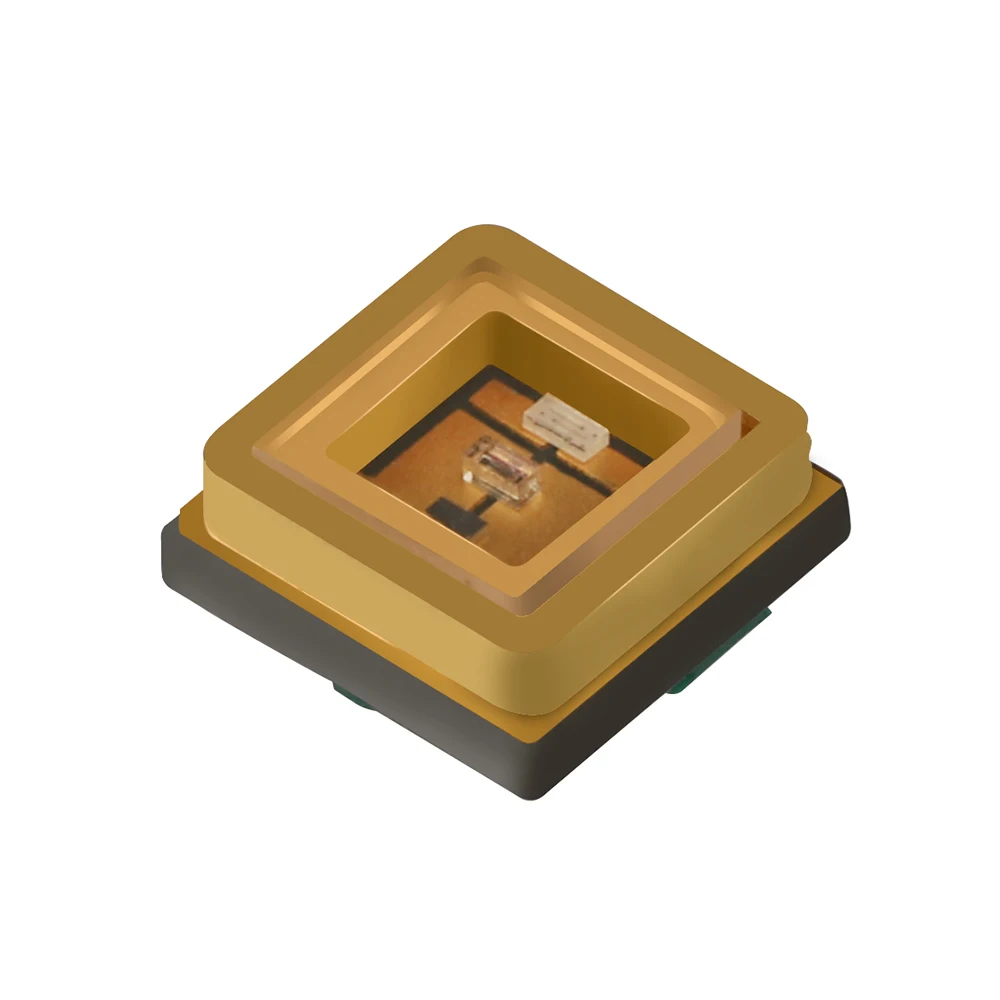

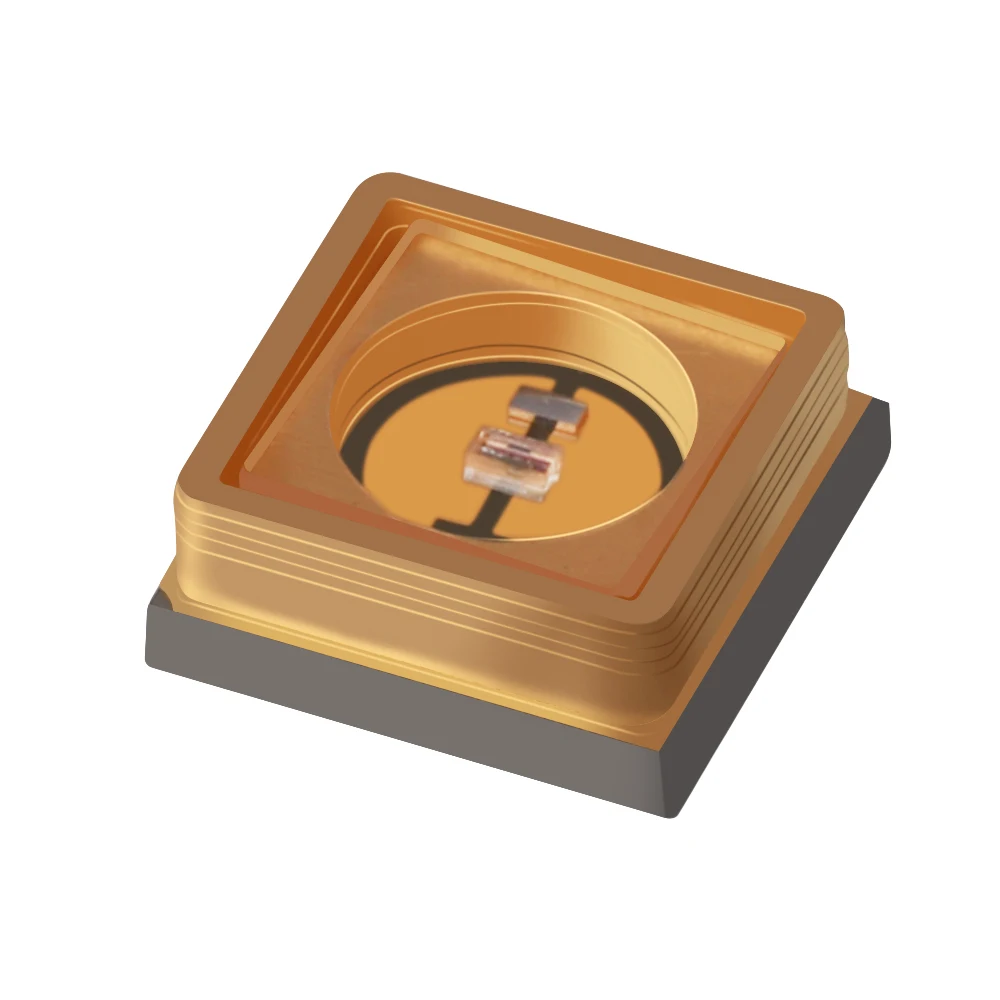

Deep UV UVA UVC 0.2W LED 3535 with Emission Wavelength Between 270nm to 280nm and 390nm to 405nm
- Category: Lamp LED >>>
- Seller: Tuozhan,Optoelectronics,Company,Limited
Share on:
Product Overview
Description
Deep UV UVA UVC 0.2W LED 3535 with Emission Wavelength Between 270nm to 280nm and 390nm to 405nm
Specifications:
- Input Voltage(V):5-8V,3-3.4V Warranty(Year): 3-Year
- Type:UV LED, UVC+UVA LED CHIP Support Dimmer: Yes
- Lighting solutions service:Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
- Lifespan (hours): 1000 Working Time (hours):1000
- Chip Material: INGAN Emitting Color:Purple
- Optical Attenuation(%):5 Power: 0.2w
- Power Dissipation: 200 Viewing Angle(°):120
- Operating Temperature(℃):-40 - 80 Storage Temperature(℃):-40 - 80
- Brand Name: Tuozhan Certification: RoHS,Reach
- Wavelength: 280nm, 365NM, 400NM, 275, 270-280nm,390-400nm
- Product Name: UVC LED Chip
- Application:Sterilization & Disinfection Forward Voltage:5-8V
- Size: 3.5*3.5mm Current: 40-200mA
- Function: UVC Sterilizer

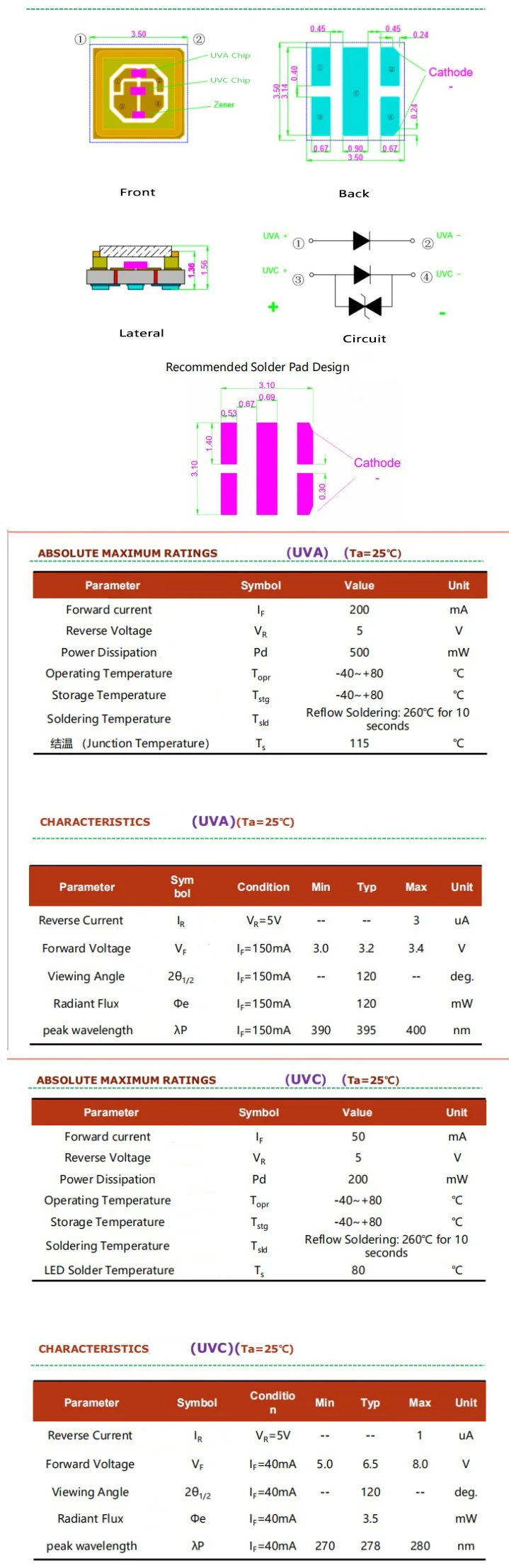

| P/N | Rated voltage (V) | Forward current (mA) | peak wavelength (nm) | Radiant Flux (mW) | Viewing Angle 2θ1/2 | ||||
| Min. | Typ. | Max. | Typ. | Max. | Typ. | Min. | Typ. | Typ. | |
F.35.00046 | 5 | 6.5 | 8 | 50 | 270-280 | 5 | 120° | ||
| 3 | 3.2 | 3.4 | 200 | 390-400 | 120 | ||||
Product Desicription:
PRECAUTION FOR USE
(1) This device should not be used in any type of fluid such as water, oil, organic solvent, etc. When washing is required, IPA should be used. (2)When the LEDs are illuminating, operating current should be decided after considering the ambient maximum temperature.
(3) LEDs must be stored to maintain a clean atmosphere. If the LEDs are stored for 3months or moreafter being shipped from TuoZhan, a sealed container with a nitrogen atmosphere should be used forstorage.
(4) The LEDs must be used within seven days after opening the moisture proof packing. Repack unused Products with anti-moisture packing, fold to close any opening and then store in a dryplace. (5)The appearance and specifications of the product may be modified for improvement withoutnotice.
(6) This LED is sensitive to the static electricity and surge. It is recommended to use a wrist Band oranti-electrostatic glove when handling the LEDs.
(7) On manual soldering, a solder tip must be needed as grounded for usage. If over voltage whichexceeds the absolute maximum rating is applied to LEDs, it will cause damage LEDs and result indestruction. Damaged LEDs will show some unusual characteristics such as leak current remarkablyincrease ,turn-on voltage becomes lower and the LEDs get unlighted at low current.
(8)Warm prompt "The UV damage eyes, Do not stare at the light source, And don't shine a lightinto someone's eyes"

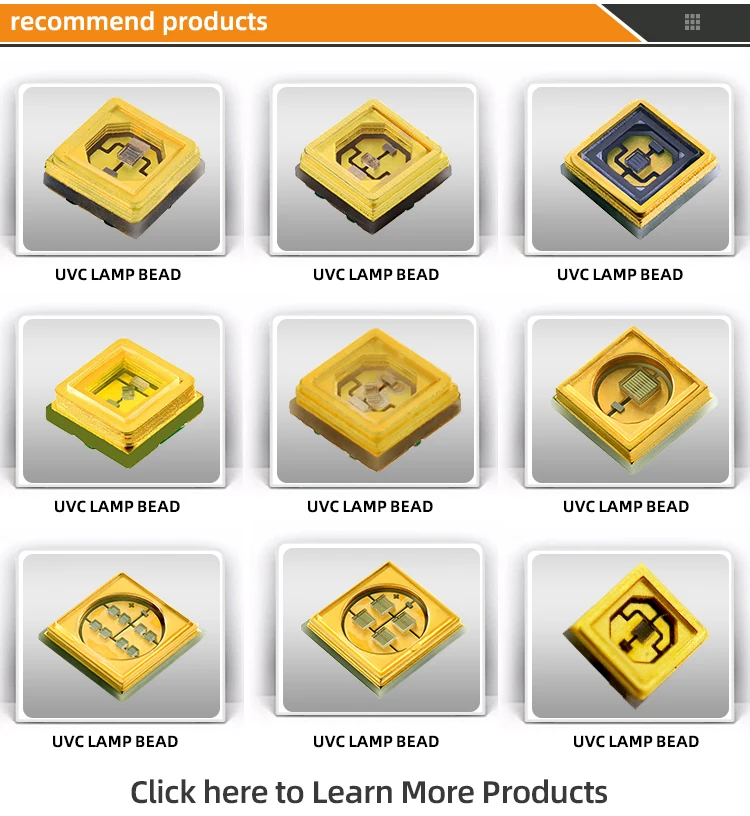

We Recommend
