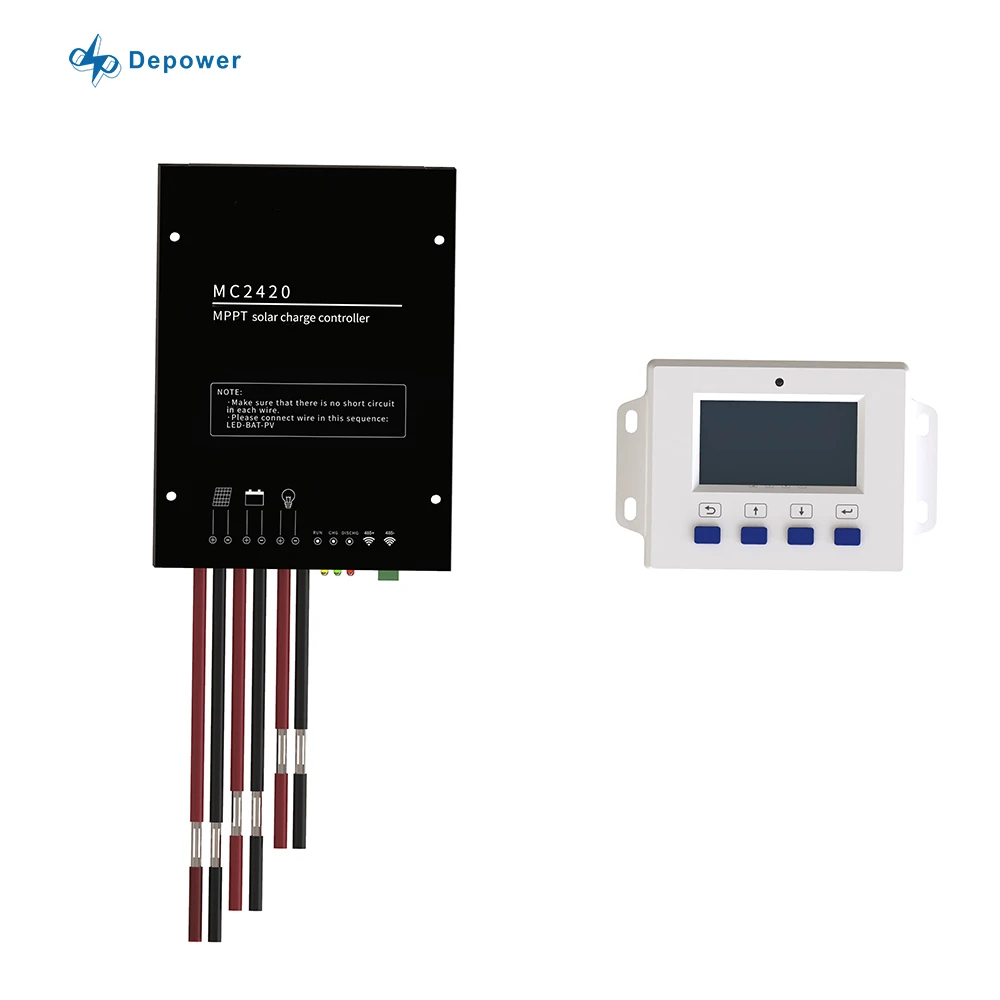

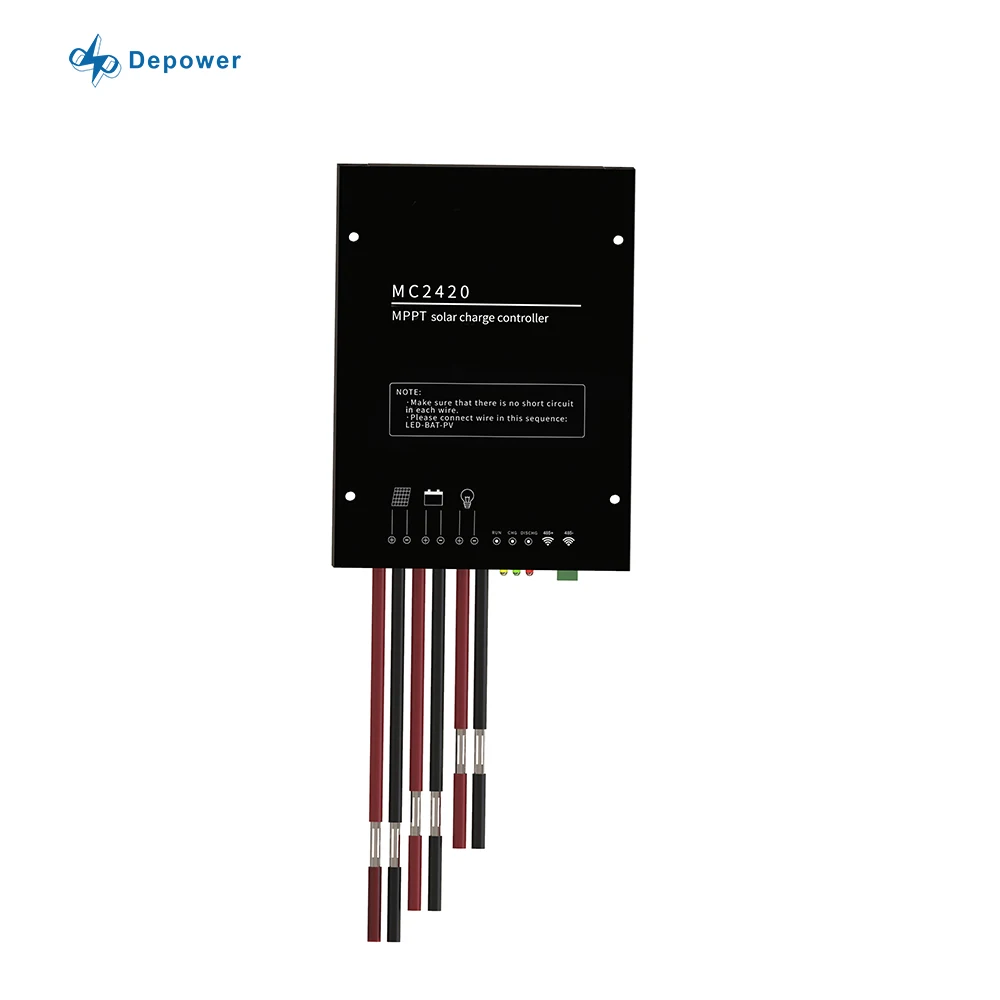

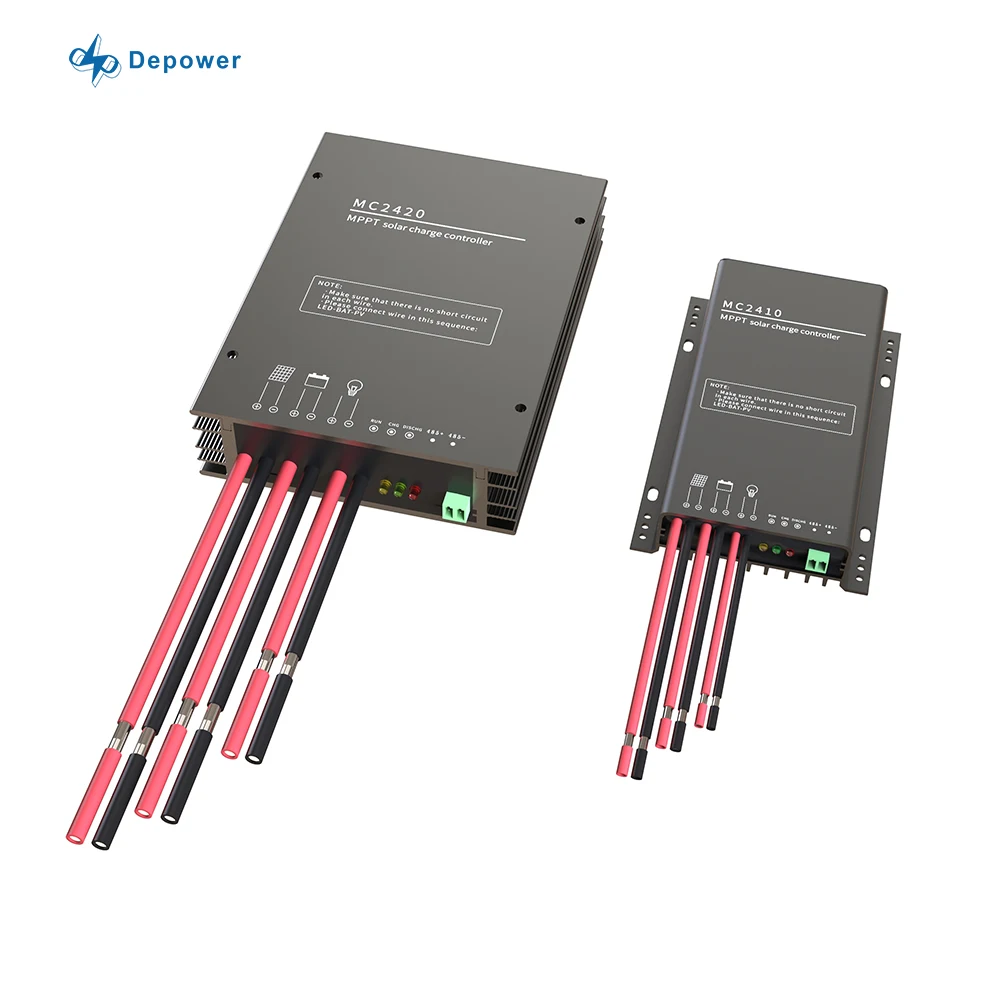

12V24V 20A MPPT Solar Charger Controller IP67 Solar Charge Controller For Solar System MC2420
- Category: Solar Charger Controllers >>>
- Seller: Shenzhen,Depowersupply,Electrical,Co.,Ltd.
Share on:
Product Overview
Description
Technical Specification
12V24V 20A MPPT Solar Charger Controller Battery Charger Inverter Charger for Solar System MC2420
Specification
Content | Model | unit | ||
MC2410 | MC2420 | |||
Battery type | LiFePO4/Li | - | ||
Rated system voltage | 12/24V | - | ||
Max. charge current | 10 | 20 | A | |
Charge voltage range | 8～30 | V | ||
Boost charge voltage(Settable) | 14.4(12V), 28.8(24V)(Optional) | V | ||
Float charge voltage(Settable) | 13.8(12V), 27.6(24V)(Optional) | V | ||
Low voltage disconnect(Settable) | 10.8(12V), 21.6(24V)(Optional) | V | ||
Low voltage reconnect(Settable) | 11.8(12V), 23.6(24V)(Optional) | V | ||
Max. PV input voltage | 50 | 100 | V | |
Solar panel Max. Power | 130(12V) | 260(12V) | W | |
260(24V) | 520(24V) | |||
MPPT voltage range | 16≤Vp≤45(12V), | 15≤Vp≤75(12V), | V | |
31≤Vp≤45(24V) | 30≤Vp≤75(24V) | |||
Rated Ouput current | 10 | 20 | A | |
Over load/Short circuit protect | 105%～200% times the rated current for 10 seconds | - | ||
Short circuit protection | ||||
MPPT efficiency | ≥99.9% | - | ||
Max charge efficiency | 97% | 97.5 | - | |
Communication | RS485 | - | ||
Operating temperature | -35～60 | ℃ | ||
altitude | 3000 | m | ||
Waterproof level | IP65 | - | ||
Certification | CE,ROSH | - | ||
Weight（kg） | 0.32 | 0.83 | KG | |
Size（mm） | 129*82*23.5 | 155*114.5*24 | mm | |
Product Feature-MPPT Solar charge controller of solar Off-grid system
1. Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
2. MPPT efficiency ≥99.9%, system power generation efficiency up to 98%, improve system efficiency and reduce system cost
3. Charging conversion efficiency is up to 98.4%
4. Battery reverse connection protection
5. Prevent discharging from battery to solar pane
3. Charging conversion efficiency is up to 98.4%
4. Battery reverse connection protection
5. Prevent discharging from battery to solar pane
