Sealed Industrial Momentary Limit Microswitch With Wire
- Category: Switches >>>
- Seller: Wenzhou,Yarong,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Information

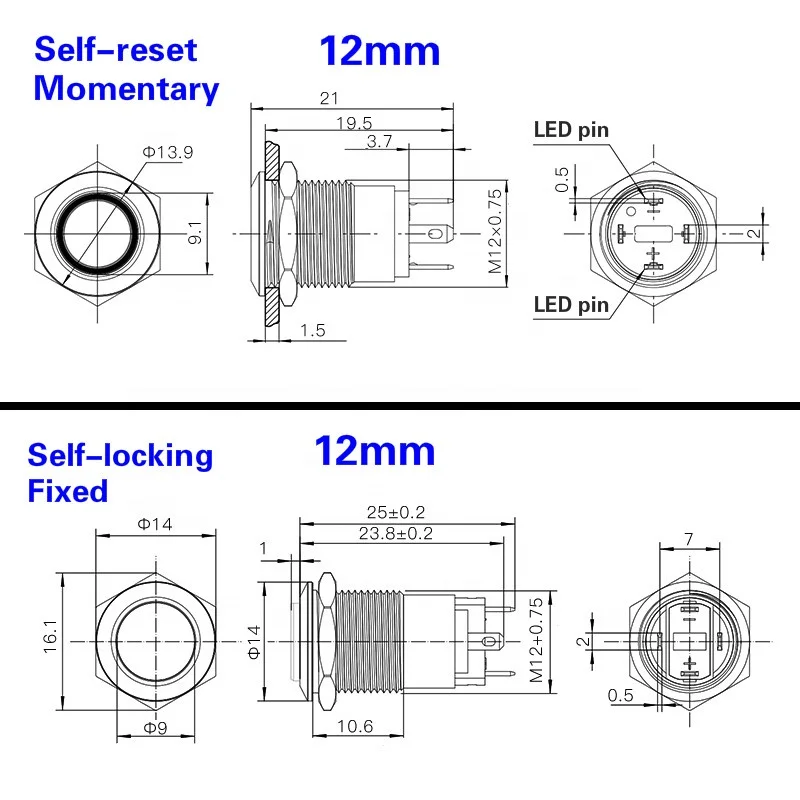

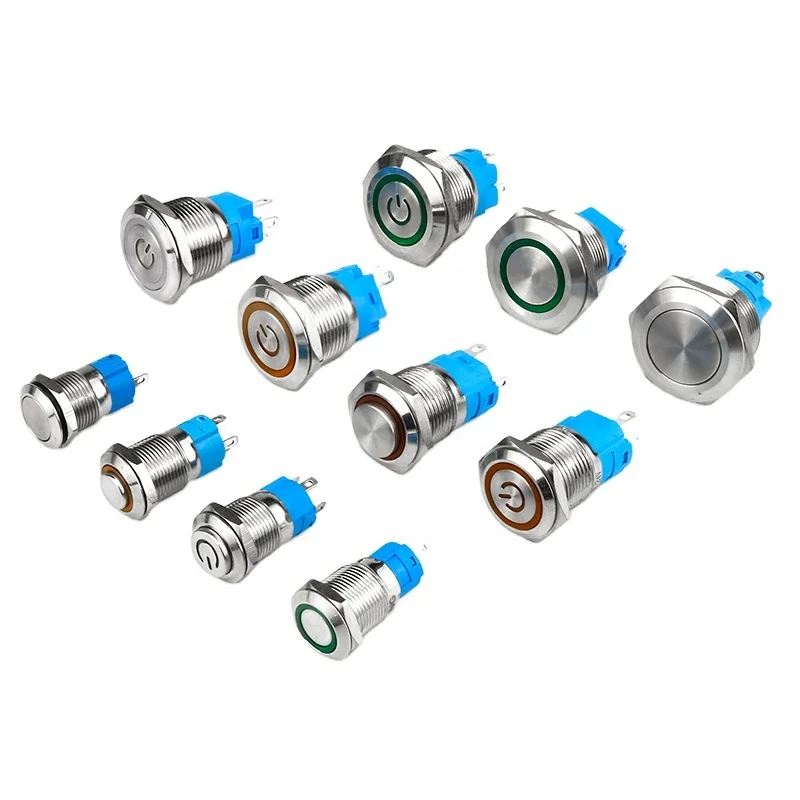

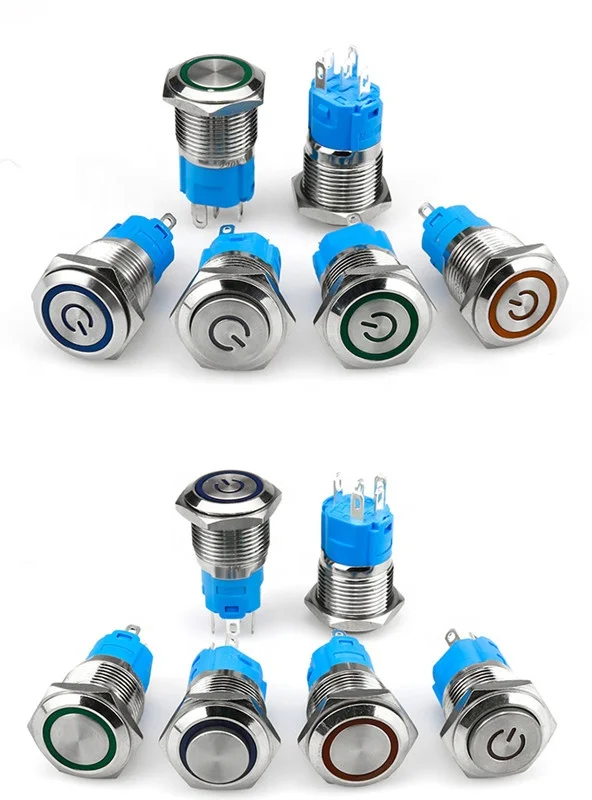

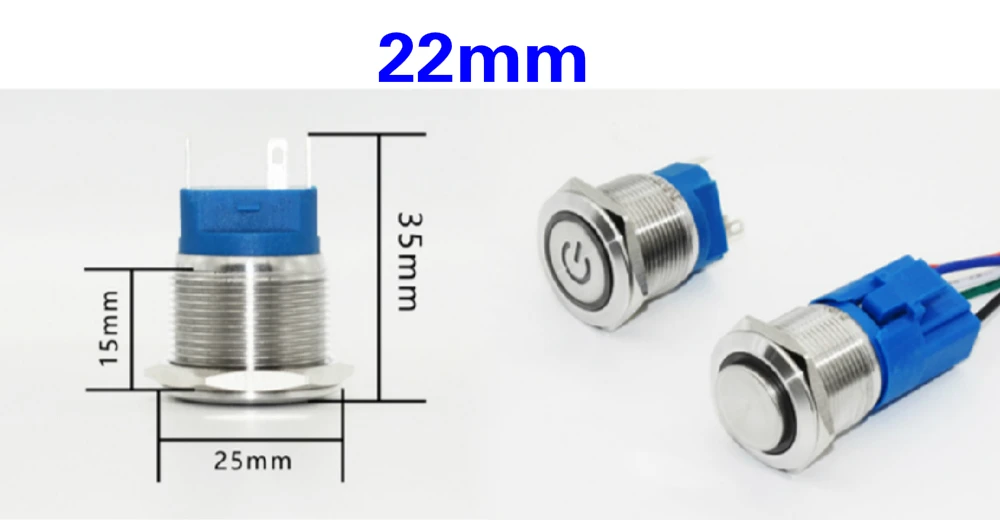

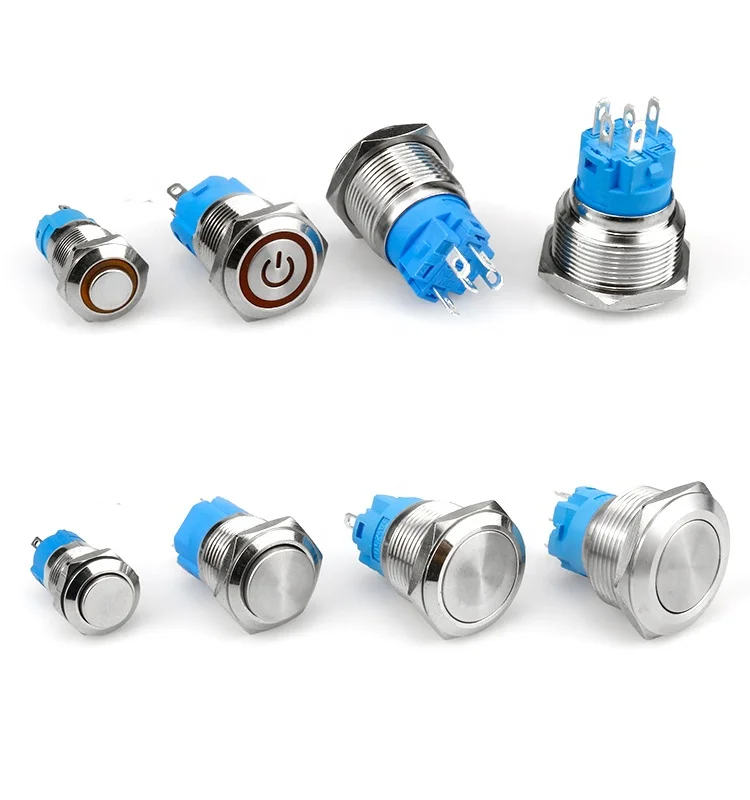

12mm 16mm 19mm 22mm push button switch latching momentary illuminated waterproof buttons switches

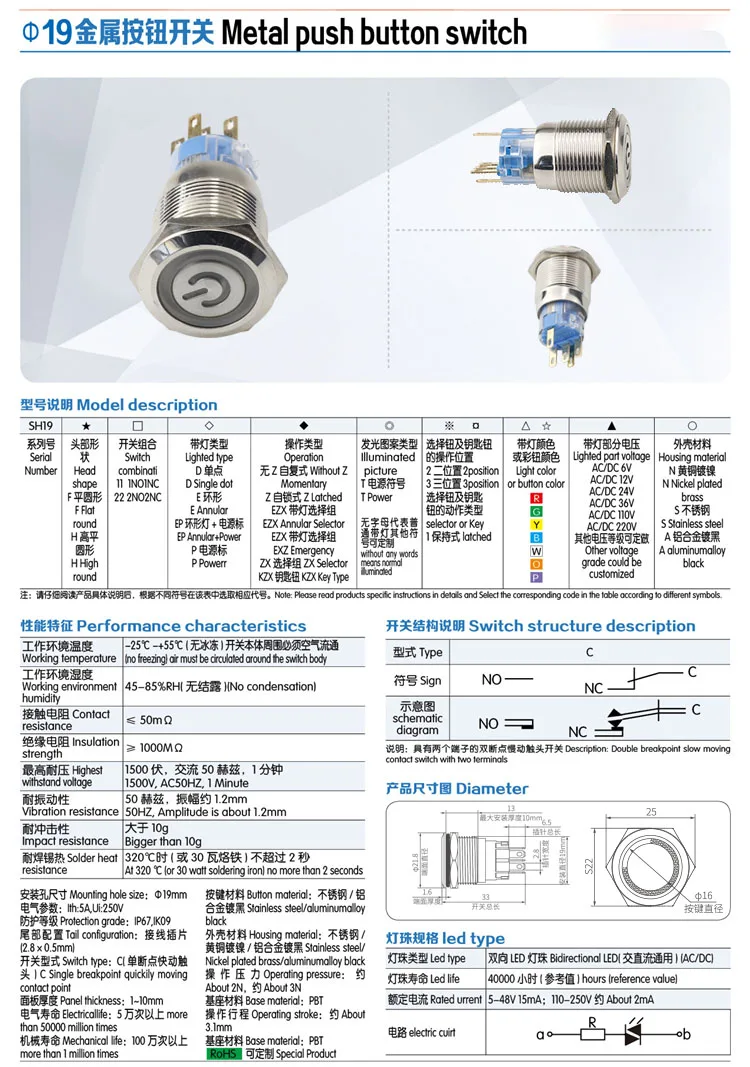

| The Product Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤4mm or customised the others |
| Dielectric Strength | 1500VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -25℃~+55℃ | Outshell/Press Key | Stainless Steel/copper plated/aluminum oxide |
| Electrical Life | 50000 cycles | Base material | PA66 |
| Mechanical Life | Latching-200,000 cycles Momentary-1000,000 cycles | Transmissive cover | PC |
| Protection Level | IK10 | Pins Contact | Copper palted sliver |
| Waterproof Level | IP67 | Spring | Steel wire |
| Led Lamp Parameters | |
| Project | Parameter |

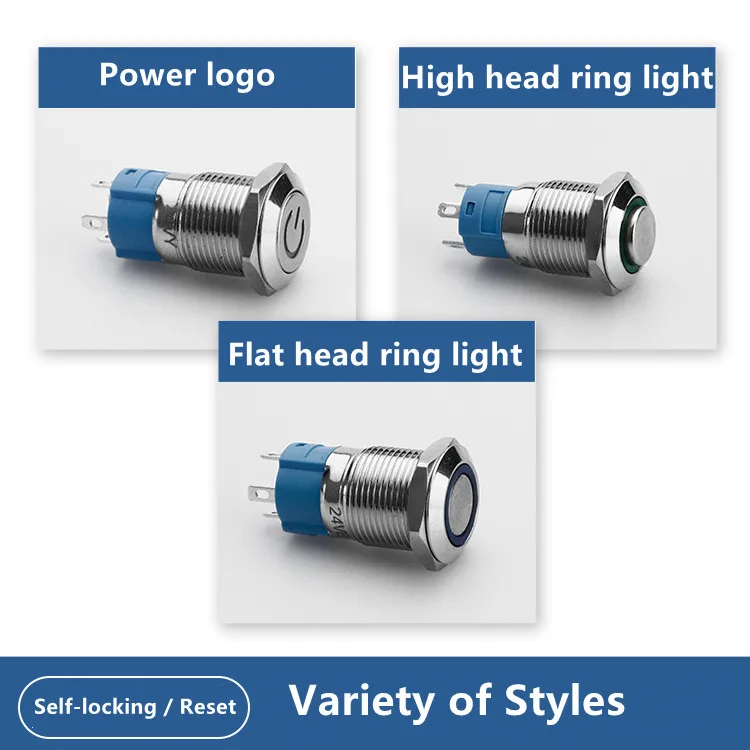

| Led Symbol | Ring/Power Symbol/Dot/Ring+Power Symbol/Customized |

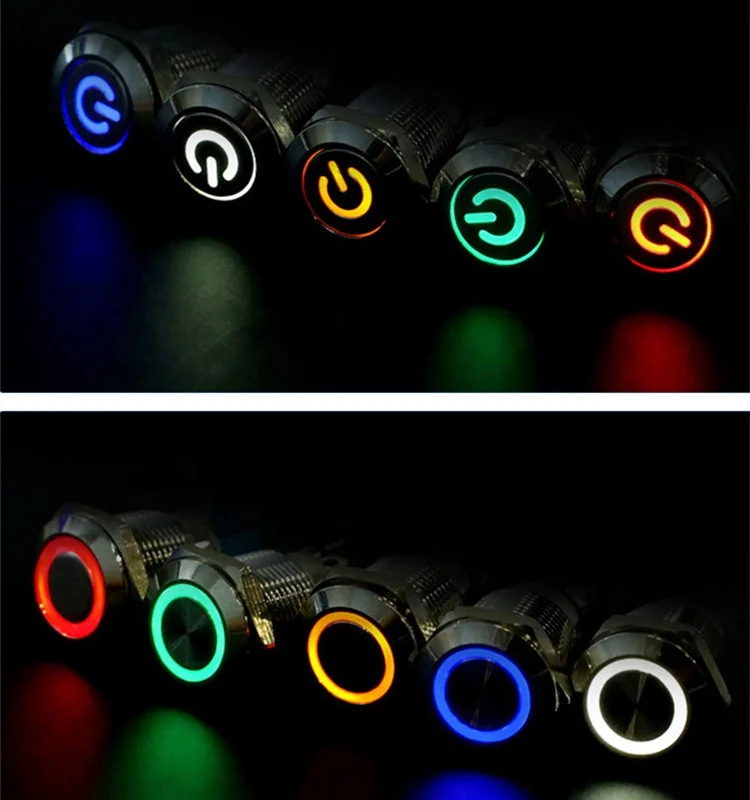

| Led Color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |

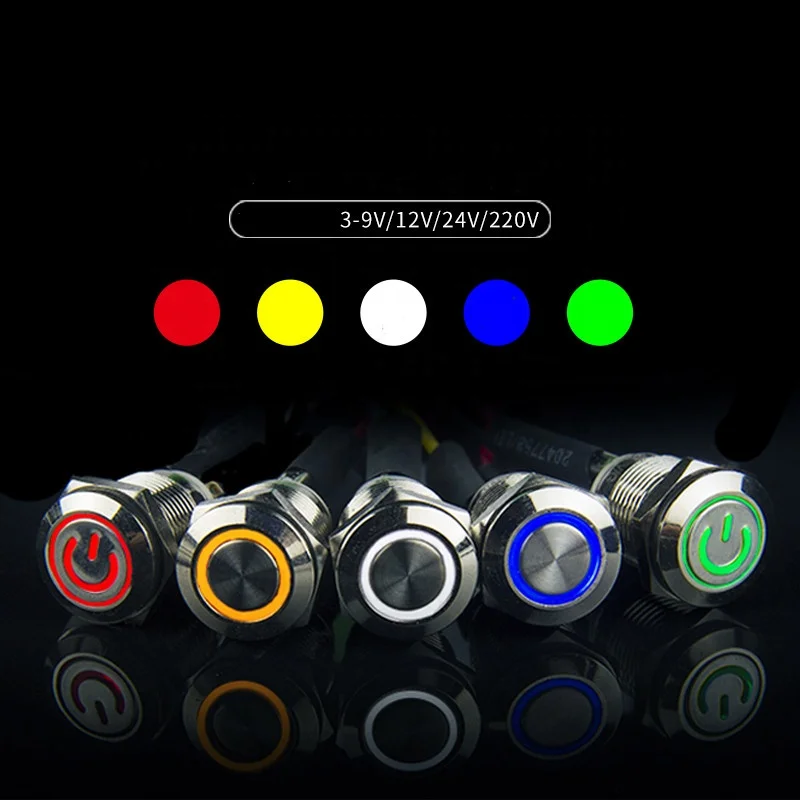

| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
