UNI-T UT210 Series Mini Digital Clamp Meters

UT210D

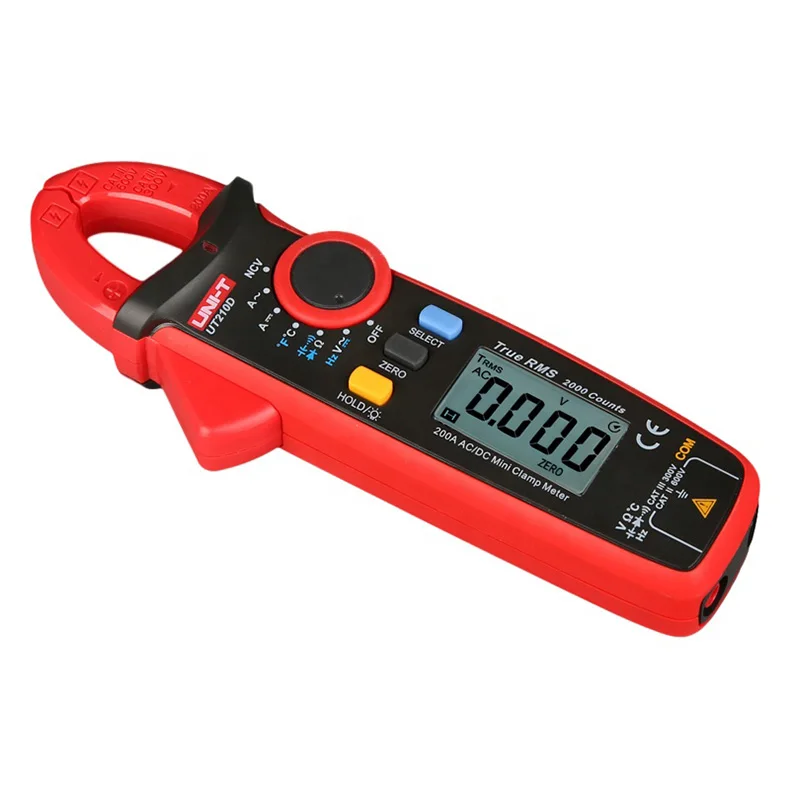

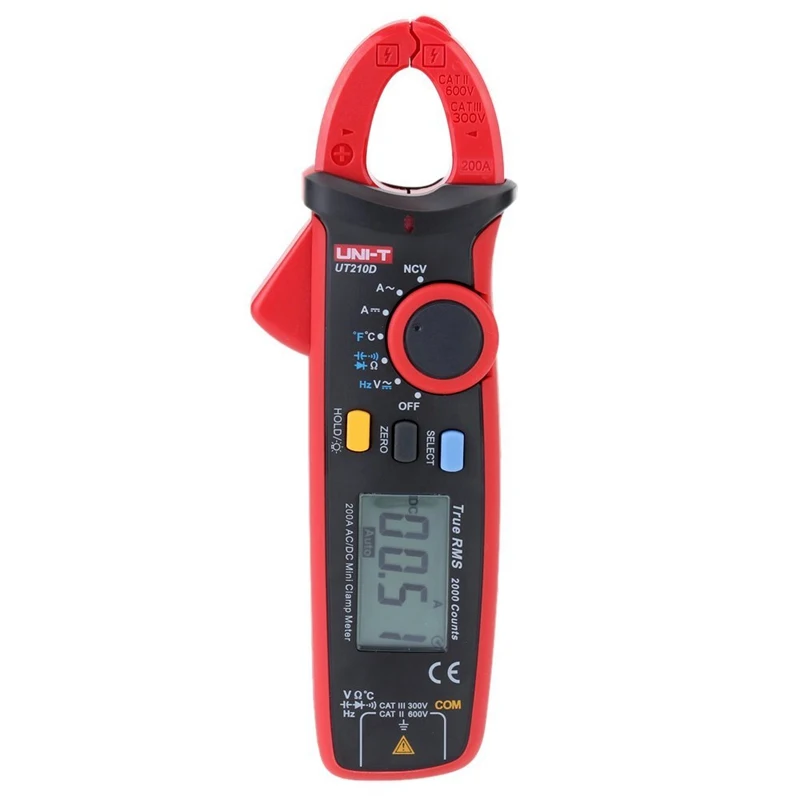

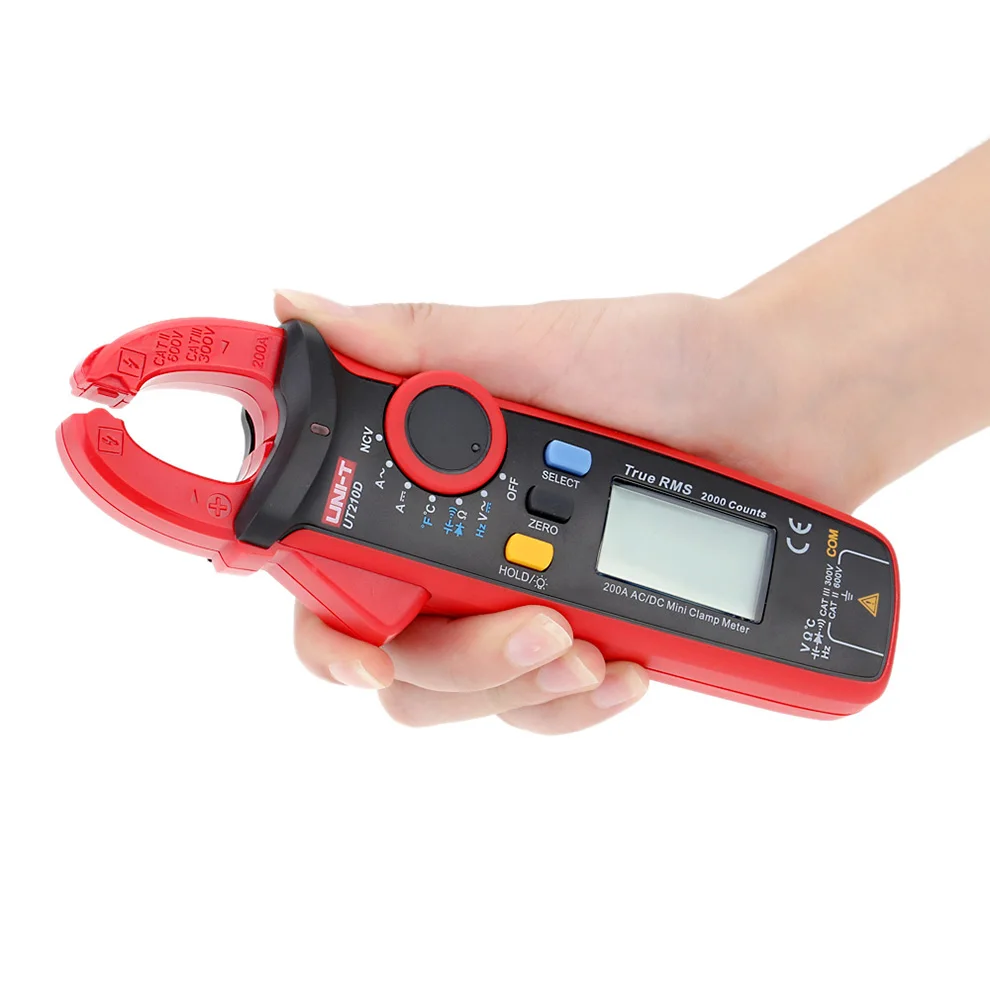

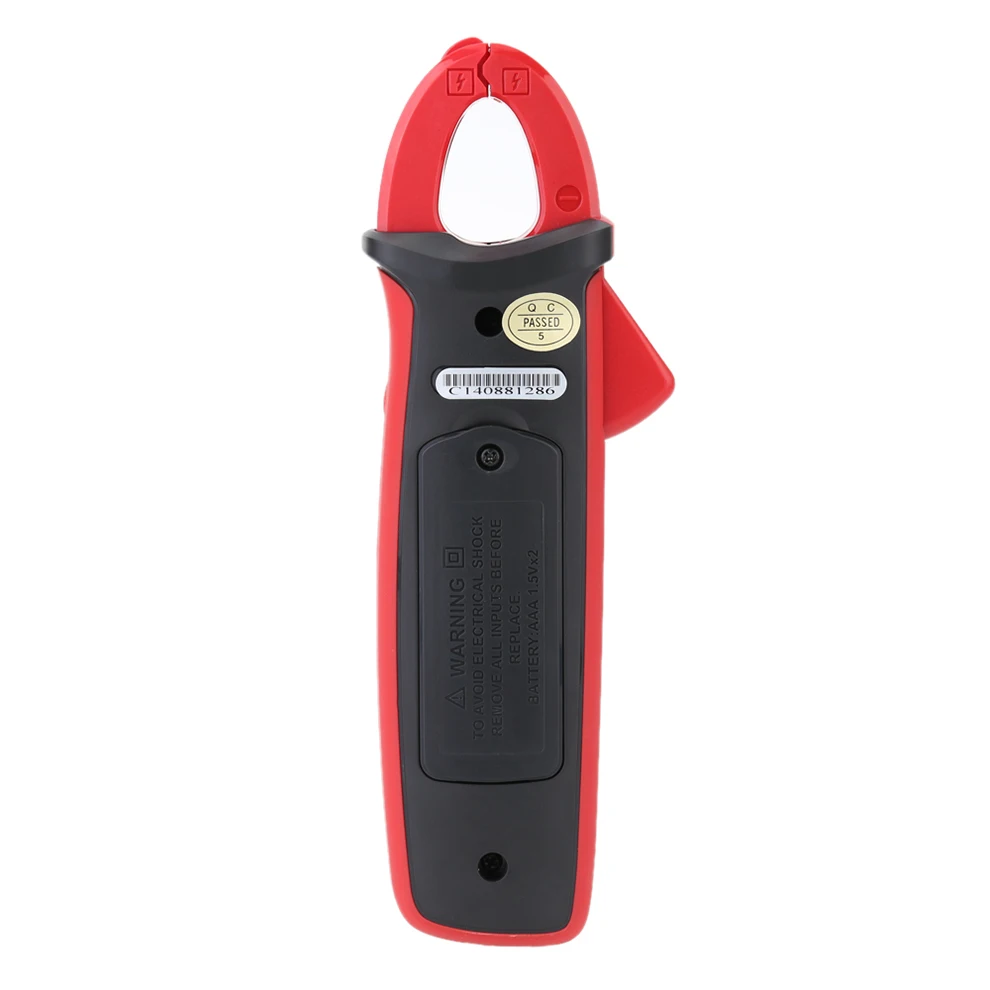

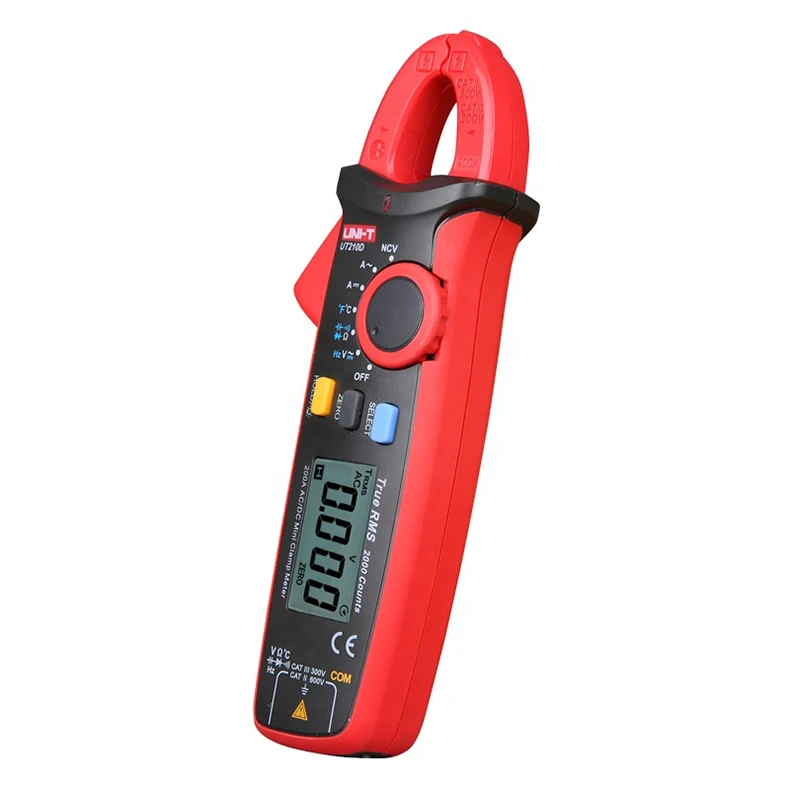

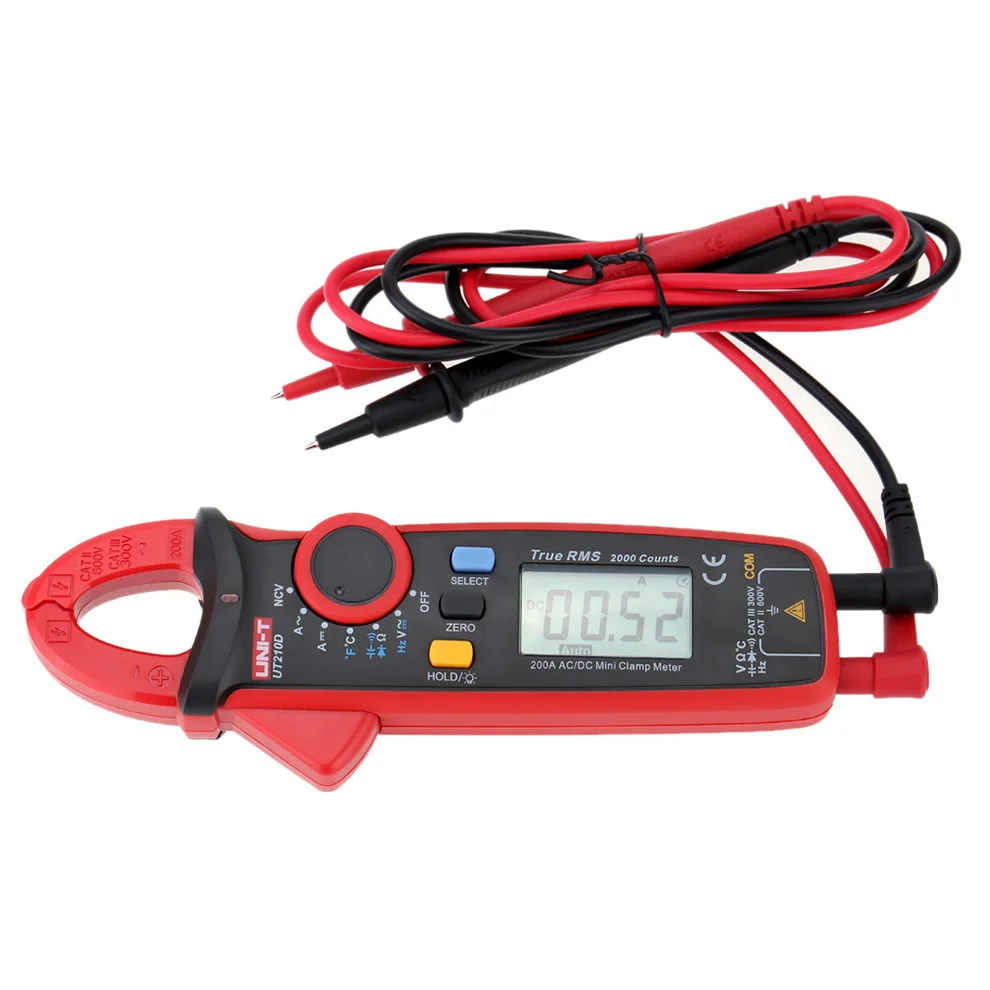

The UT210D digital clamp meter is a 2000 counts mini ammeter,features on high reliability and high safety. It can measure 200A AC current at most,and can measure small current accurately with a resolution of 1mA. Because its chip will be set to VFC start up mode when measuring the current, and the current measured can filter out the high-frequency interference signal through a specific filter circuit,so this meter can be applied to the circuit with VFC variable frequency voltage and current, and can ensure more accurate measurement data. Full range overload protection function and automatic range function make it a better and practical electrical measuring tool.It bring you not only practical, but also simple, convenient and fast with these powerful functions which measure AC/DC voltage,AC/DC current,resistance,capacitance and temperature.





Measurment,Test and Detection
Measure DC Voltage
√
Measure AC Volatge
√
Measure DC Current
√
Measure AC Current
√
Measure Resistance
√
Measure Capacitance
√
Measure Frequency
×
Measure Temperature
√
Measure Diodes
√
Test Continuity
√
NCV Detection
√
Detect Live Line
×




Functions
Counts
2000
True RMS
√
Auto Range
√
Input protection
√
Input impedance
≥10MΩ
Data Hold
√
Max/Min Value
√
Peak Value
×
Reading to Zero
√
Backlit LCD Display
√
Low Battery Reminder（≤2.5V）
√
Auto Power Off（15 mins）
×






Technical Parameters
Item
Range
Accuracy
DC Voltage
200mV/2V/20V200V/600V
±(0.7%+3)
AC Voltage
2V/20V200V/600V
±(1.0%+3)
DC Current
20A/200A
±(2.0%+3)
AC Current
20A/200A
±(1.8%+9)
Resistance
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
±(1.0%+2)
Capacitance
20nF/200nF/2μF/20μF/200μF/2mF/20mF
±(4%+5)
Temperature(℃)
-40℃～1000℃
±(1%+3)
Temperature(℉)
-40℉～1832℉
±(1.5%+5)






General Specifications
Dimensions of Body
175mm × 60mm × 33.5mm
Color of Body
Red+Grey
Size of jaw
17mm
Weight of Body
1700g
Size of LCD Screen
                                             39.3mm × 26.5mm
Power Supply
2pcs 1.5V AAA Batteries(includes)

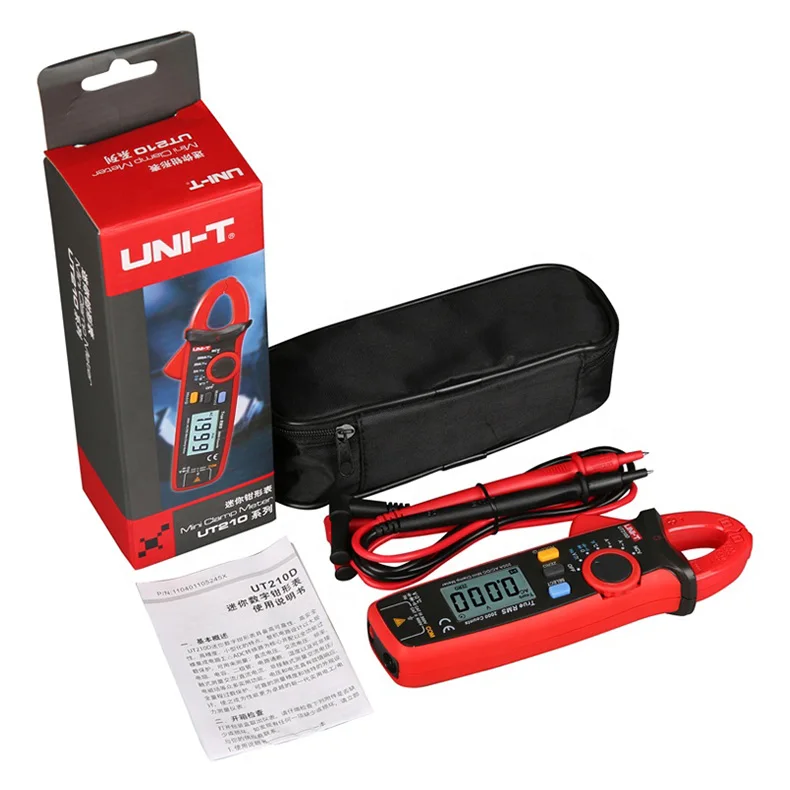

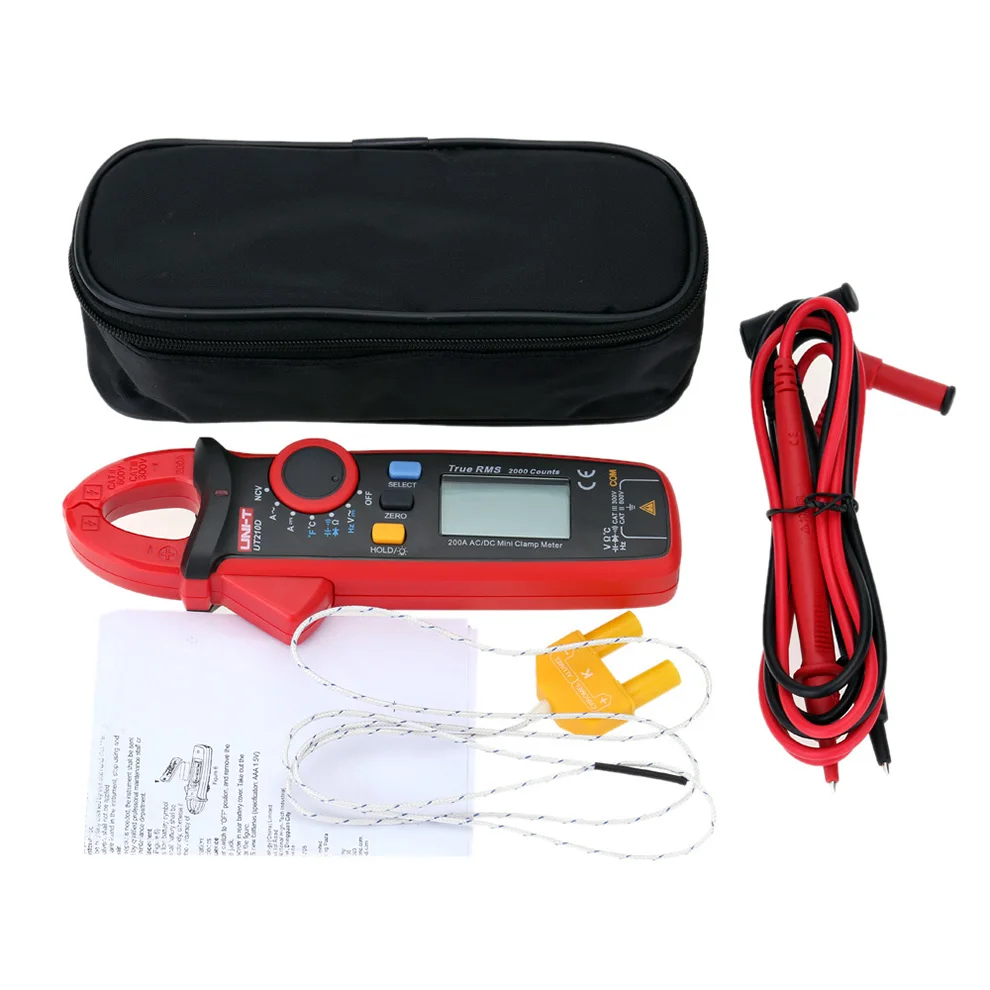

Accessories
1 × UT210D Mini Digital Clamp Meter
2 × Test Leads
1 ×  Type-K Thermocouple Lead
2 × 1.5V AAA Batteries
1 × User Manual
1 × Colorful Package Box
