Product Overview

Description







Model

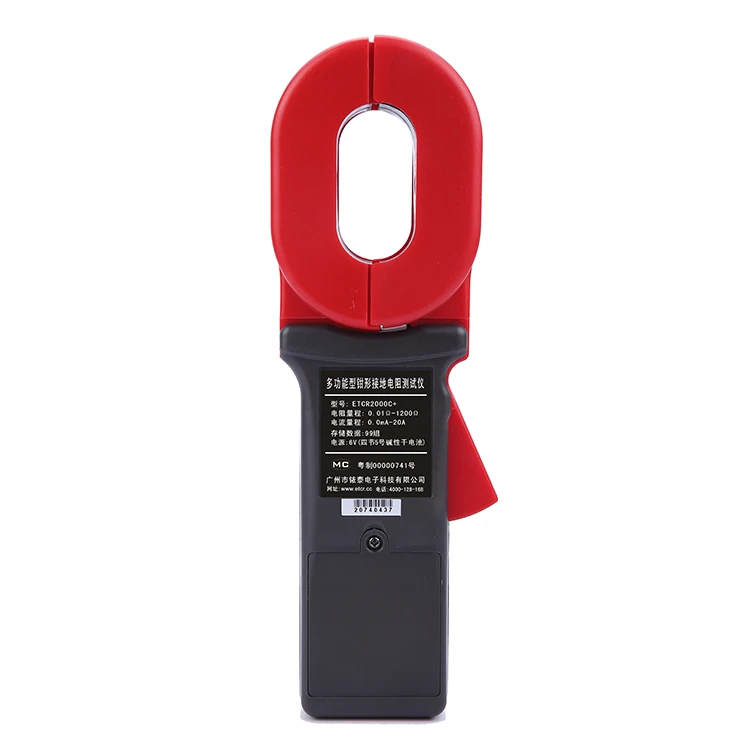

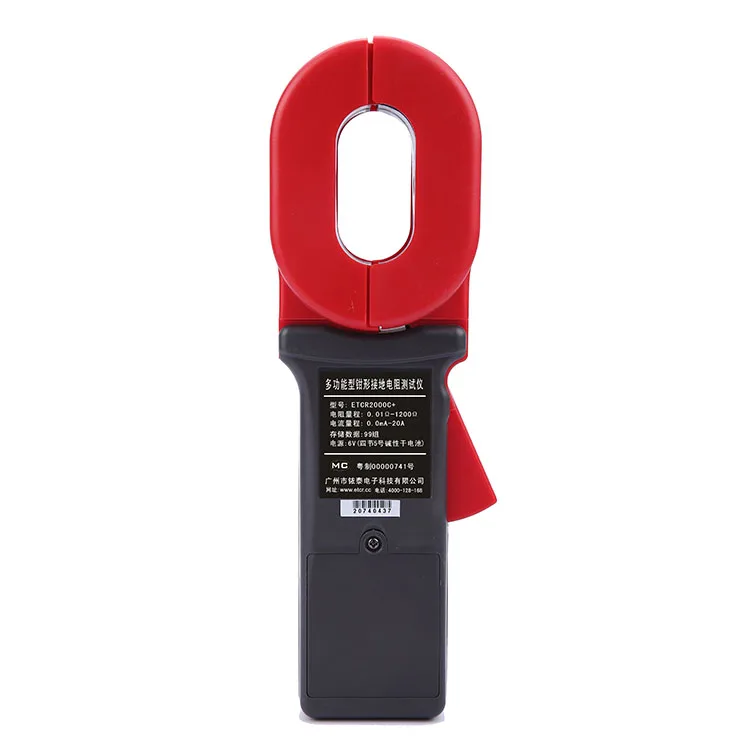

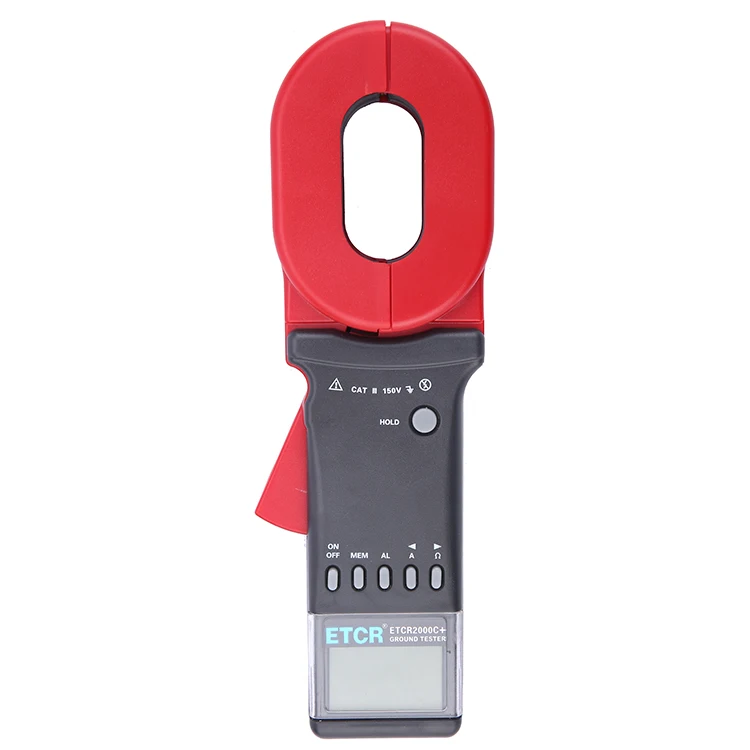

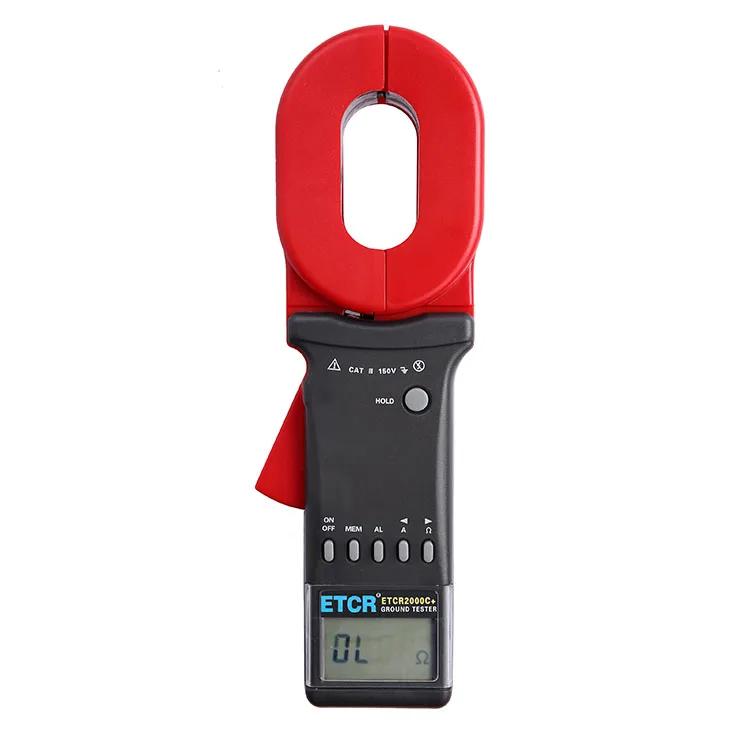

ETCR2000+ Clamp Earth ResistanceTester
ETCR2000A+ Clamp EarthResistanceTester
ETCR2000C+ Clamp Earth ResistanceTester
Resistance Range
0.010Ω～ 1200Ω
0.010Ω～200Ω
0.010Ω～ 1200
Current Range
0.00mA～20.0A







Resistance Measurement Acuracy
Range
Resolution
Accuracy
0.010Ω-0.099Ω
0.001Ω
±(1%rdg+0.01Ω)
0.10Ω-0.99Ω
0.01Ω
±(1%rdg+0.01Ω)
1.0Ω-49.9Ω
0.1Ω
±(1%rdg+0.12)
50.0Ω-99.5Ω
0.5Ω
±(1.5%rdg+0.5)
100Ω-199Ω
1Ω
(2%rdg+1Ω)
200Ω-395Ω
5Ω
±(5%rdg+5Ω
400-590Ω
10Ω
±(10%rdg+10Ω)
600Ω-880Ω
20Ω
±(20%rdg+20Ω)
900Ω-1200Ω
30Ω
±(25%rdg+30Ω)



Current Measurement Accuracy
0.00mA-9.95mA
0.05mA
(2.5%rdg+1mA)
10.0mA-99.0mA
0.1mA
(2.5%rdg+5mA)
100mA-300mA
1mA
(2.5%rdg+10mA)
0.30A-2.99A
0.01A
(2.5%rdg+0.1A)
3.0A-9.9A
0.1 A
±(2.5%rdg+0.3A)
10.0A-20.0A
0.1A
±（2.5%rdg+0.5A）
Clamp Size
65mm×32mm
Tester Size
285mmx85mmx56mm
Tester Weight
2.3kg(include accessories)
Power Supply
6VDC(4 PCS of No.5 Akaline dry batteries)
Single Measurement Time
0.5 second
LCD Screen
4 Digits LCD display, 47mm x 28.5mm
Data Memory
99 groups
Audible And Visible Alarm
"du-du—du" for alarming, press AL to turn on/off
Alarm Threshold Setting Range
Resistance 1-199Ω; current:1-499mA(only C type)

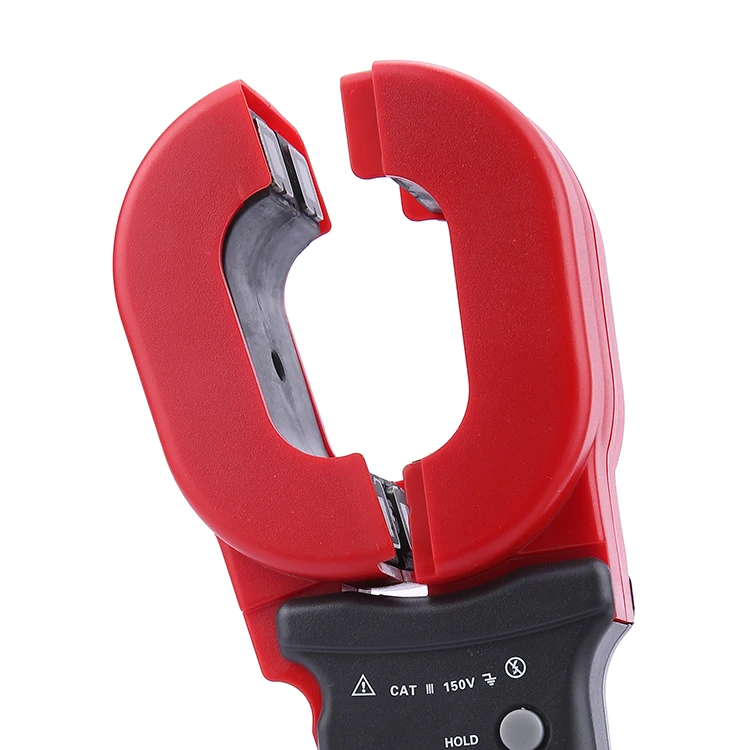

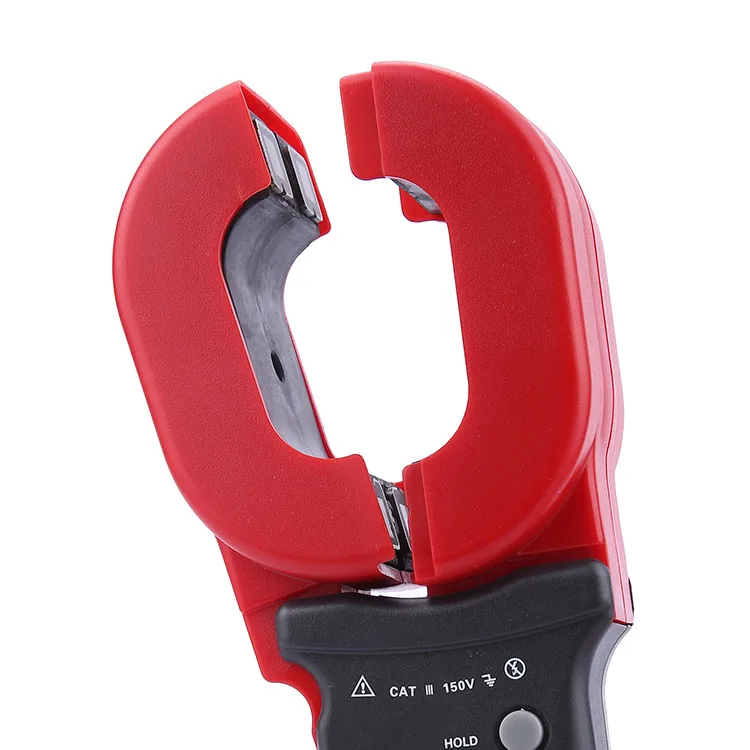

Jaw Opening Size
32mm
Protection Class
Double insulation
Shift
Automatically
RS232 Interface
Optional
Accessories

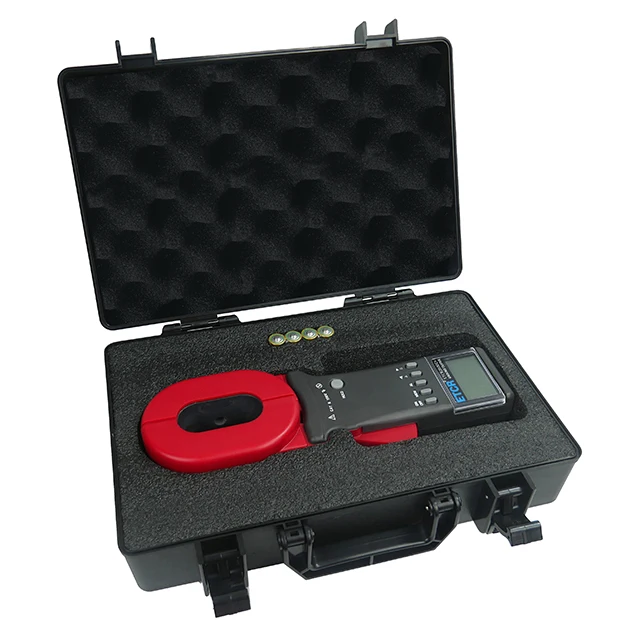

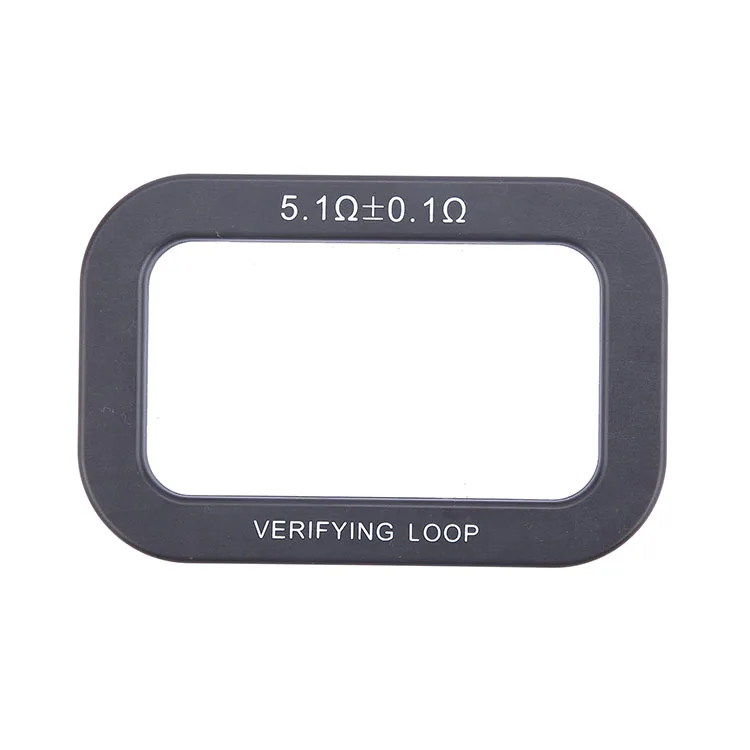

Tester:1PCS; Test Ring:1PCS; Instrument Case: 1PCS






Product Function
Earth resistance measurement, loop resistance measurement.

Product Feature
1. A major breakthrough in grounding resistance test technology, non-contact measurement is safe and fast.
2. In measuring the loop grounding system, it is not necessary to disconnect the grounding down leads, no need auxiliary grounding electrode, saving time and more effect.
3.Clamp earth resistance tester can measure the ground fault which can’t be measured by traditional method, can apply in the occasion where traditional methods are unworkable.
4.Measuring instrument manufacturing license: 2016E119-44
5.Have functions of audible and visible alarm, data memory, data hold
