Product Overview

Description



Technical Specification




MPPT solar charge controller MC2420
Specification


Model
C54620
C57620
C71420
C72020
Input
input voltage range
187~253V
Input Frequency
45～65Hz
Input current(Typ.)
5.56A/220VAC
6.56A/220VAC
PF(Typ.)
≥0.98（Test above half power）
surge current(Typ.)
50A/220VAC

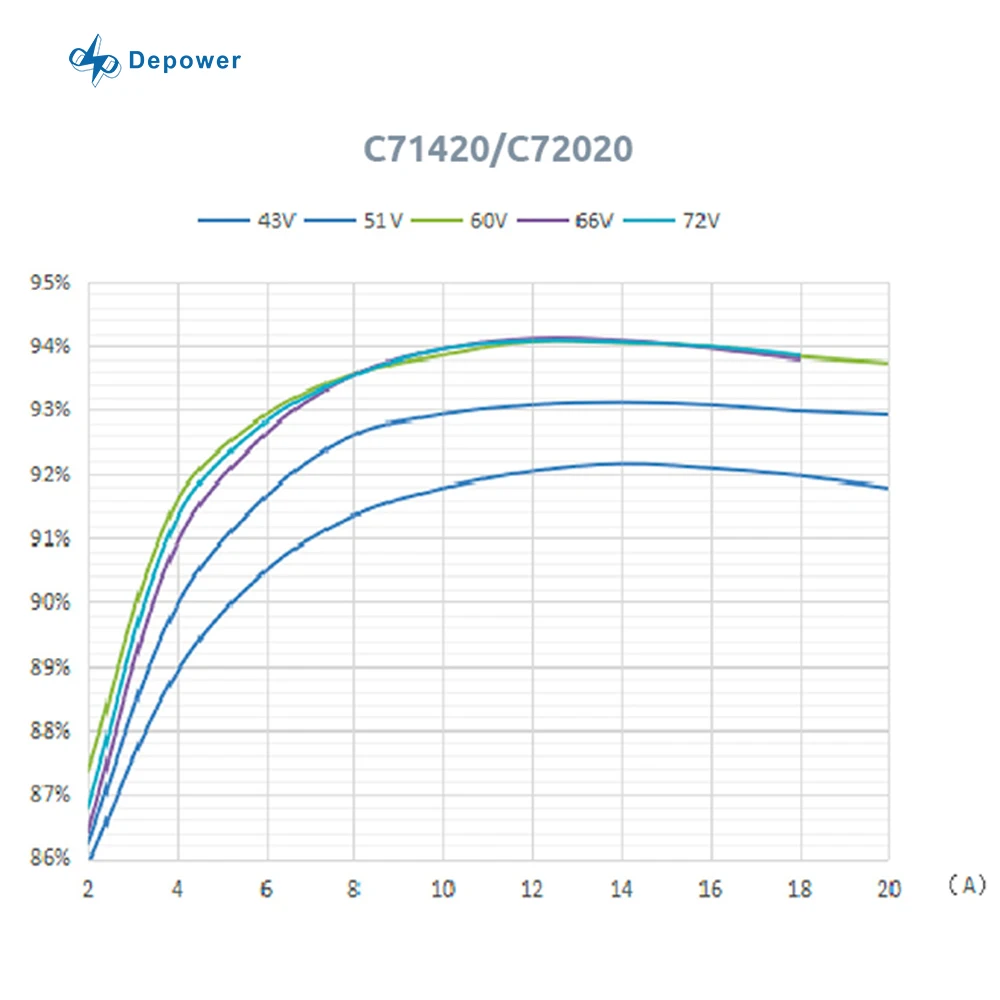

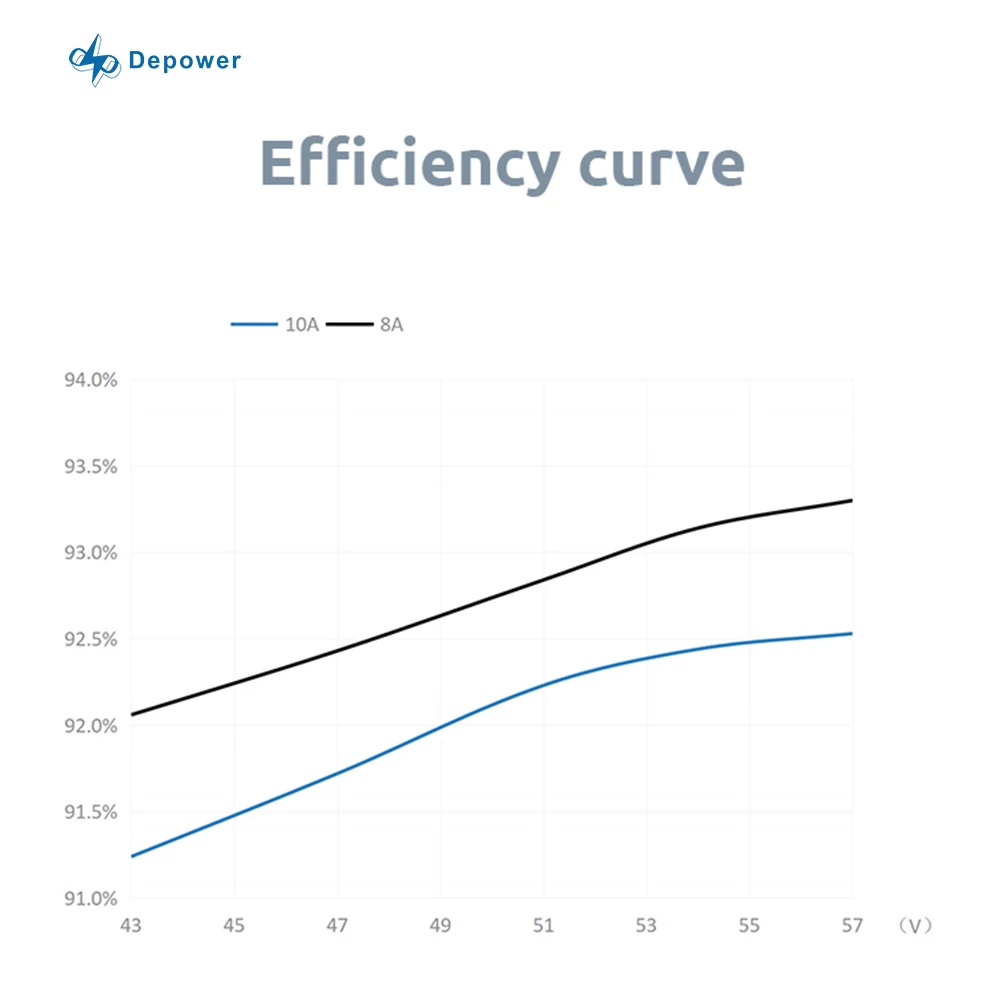

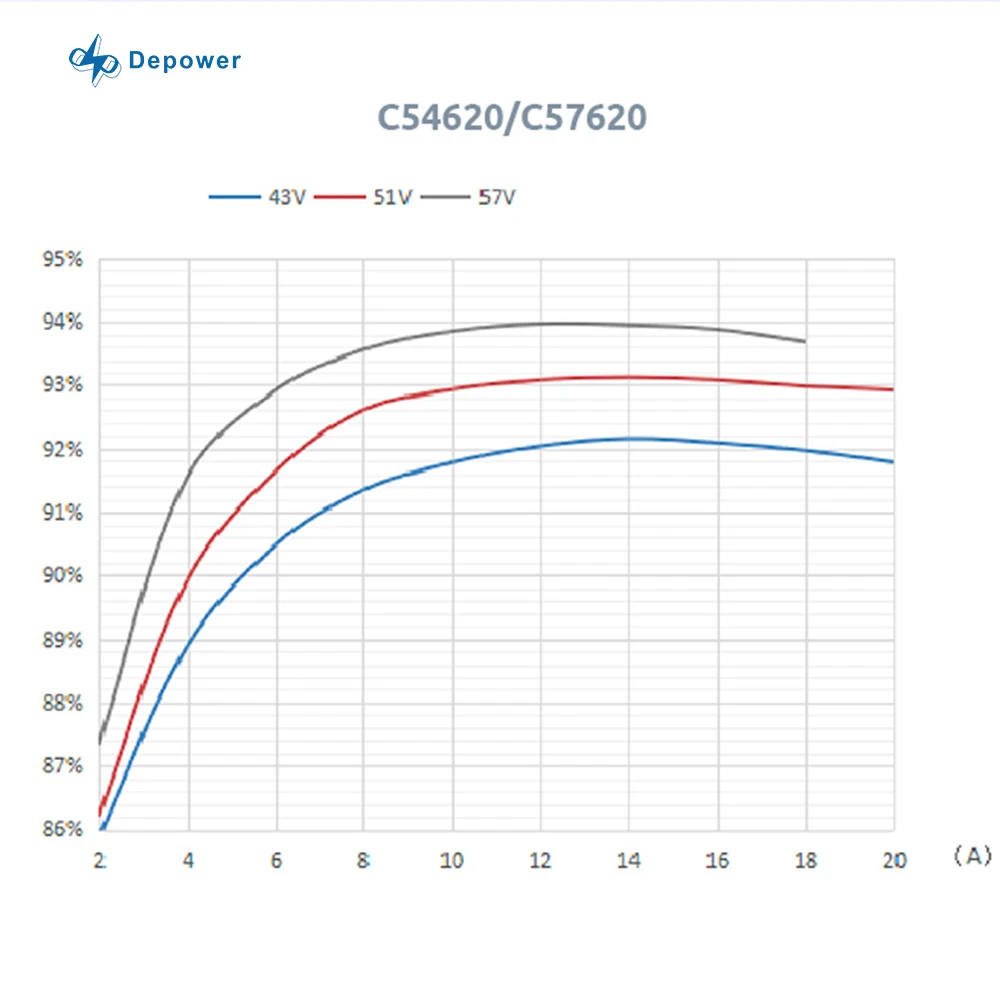

Maximum effiency(Typ.)
94%
95%
leakage current
<0.5mA/220VAC
Output
BAT type
13 in series ternary lithium batteries
16 in series ternary lithium batteries
17 in series ternary lithium batteries
20 in series ternary lithium batteries
Charge stage
CC+CV
Full charge
54.6V
57.6V
71.4V
72.0V
Maximum output power
1100W
1300W
Maximum output current
20A
Maximum current ripple
500mAp-p
Starting time
≤3S
Overvoltage protection
66V
88V
short-circuit protection
Support
over temperature protection
Support
COM
COM mode
None, RS485（optional）
COM Protocol
None, Depower charger protocol（optional）
Environment
Cooling
air cooling
Waterproof
IP65
operating temperature
–20～50℃
operating humidity
10%～90%RH non-condensing
· Storage Temp/humidity
–40～80℃ ， 10%～90%RH non-condensing
vibration resistance
10～500HZ，2G 10 mins/period，X，Y，Z axis 60 minutes each
Safety&EMC
safe code
GB/T 4706
withstand voltage
I/P-O/P：3KVAC I/P-FG：2KVAC O/P-FG：0.5KVAC
insulation resistance
I/P-O/P，I/P-FG，O/P-FG：100Mohms/500VDC/25℃/70%RH
EMC emission
Comply GB/T 9254 Class A；
EMC immunity
Comply GB/T17618;
Indicator light status
Red indicator ON
Charging
Yellow indicator ON
Almost fully charging
Green indicator ON
Fully charged
Red indicator Flashing
Charger malfunction
Others
MTBF
>100Khours

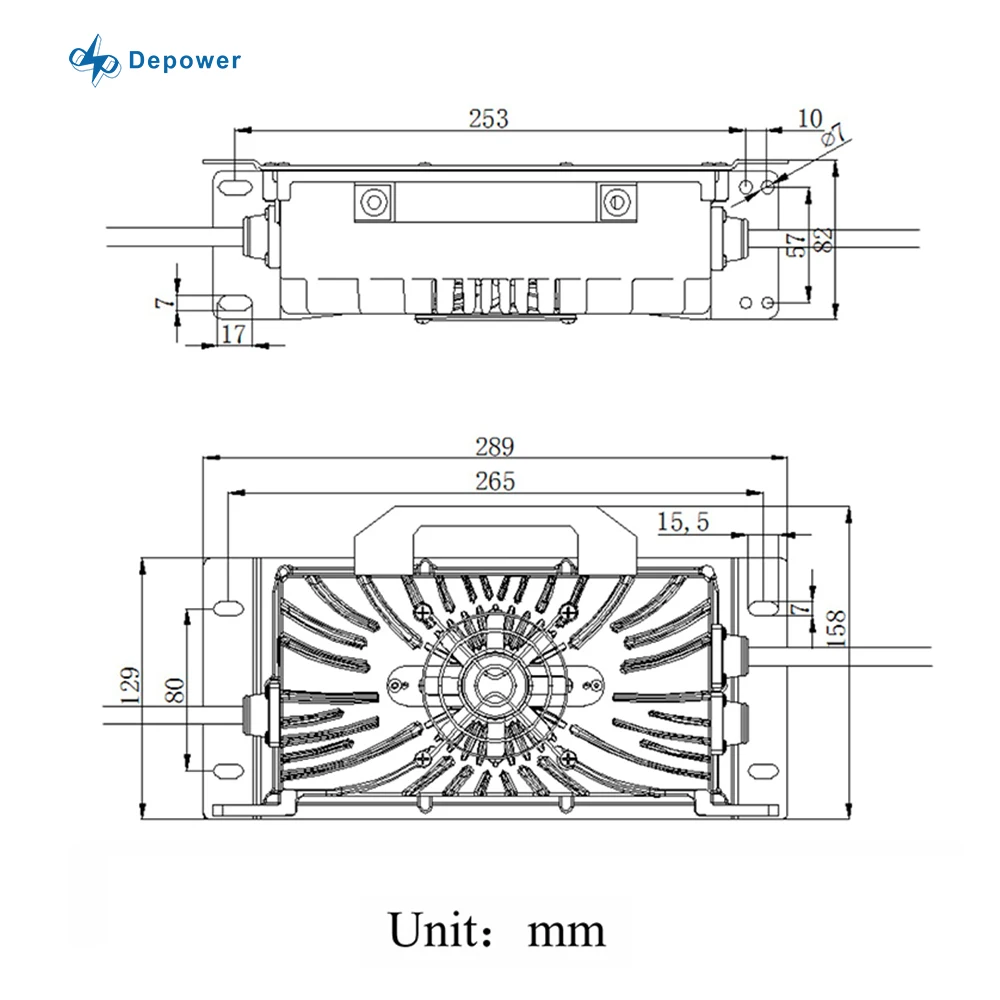

Weight/Size
3.0kg/289*158*82 mm (L*W*H)
Packing
1pcs/3.4kg/360*200*220mm (L*W*H)
Output plug type
Anderson 50A


Product Feature- 20A battery charger
1. Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
2.  Charging conversion efficiency is up to 95%
3. Over temperature protection
4. Full charge voltage is 54.6V & 57.6V & 71.4V & 72V


Battery charger 20A




FAQ


1. who are we?
We are a solar charge controller manufacturer with more than 10 years experiences. Our products sell to Domestic Market(35.00%),Africa(20.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),Northern Europe(5.00%),Mid East(5.00%),South America(5.00%),North America(5.00%). There are total about 100-150 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
Two year warranty.

3.what can you buy from us?
solar charge controller, solar inventer, Solar off grid system, solar charger, Solar system, baterry charger

4. why should you buy from us not from other suppliers?
Focused on the development, production and sales of new energy products in the new energy field. Obatained ISO9001:2015 Quality management certification system, CE and RoHS certification, and many national patent.

5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union.
