Product Overview
Description

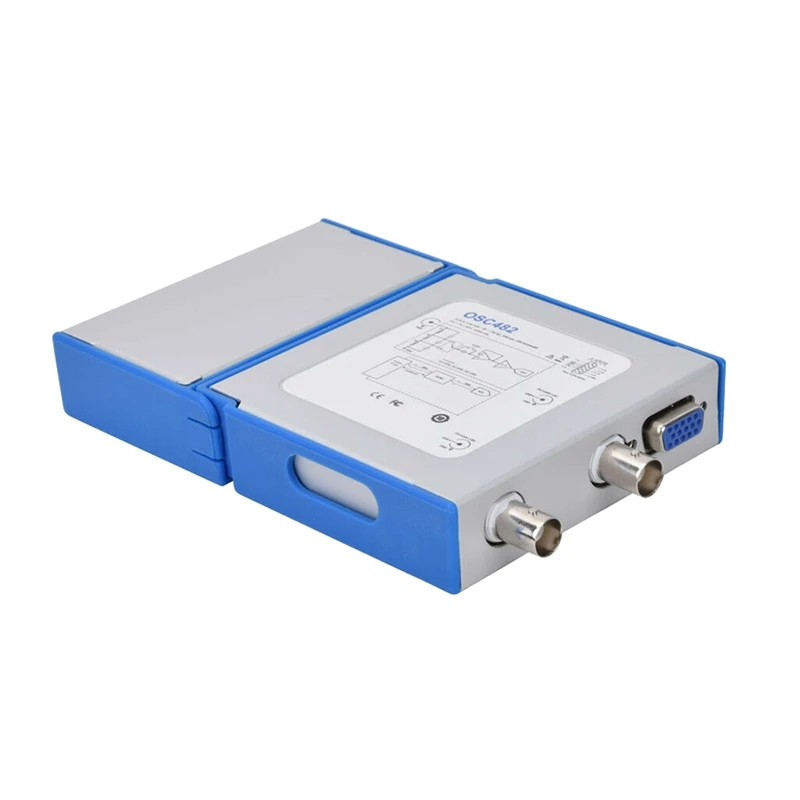

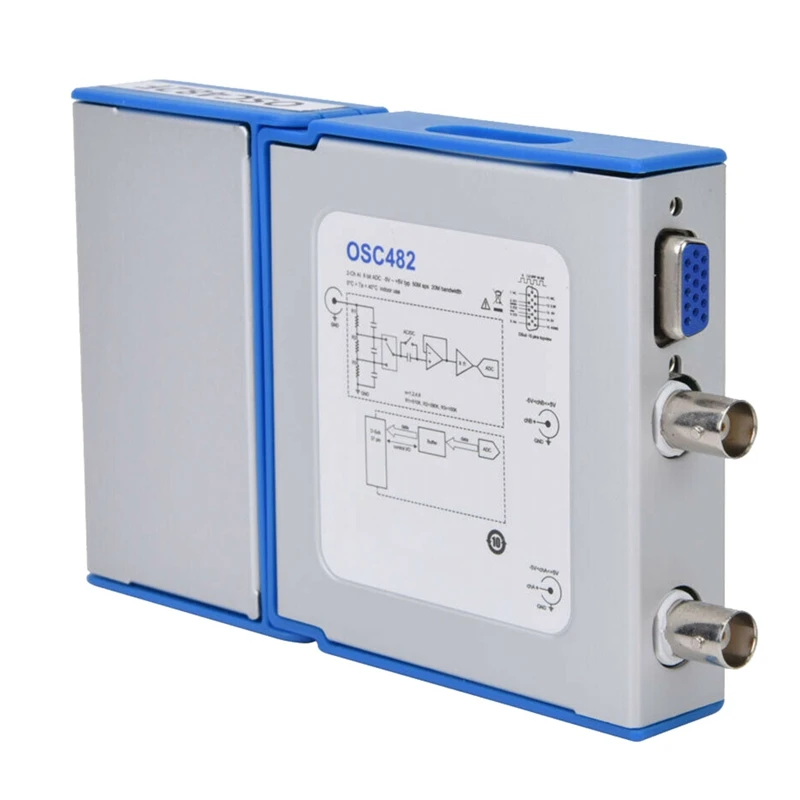

OSC482 series oscilloscopes, 2-channel, 20MHz bandwidth, 50MS/s sampling.
OSC482 is the entry level product, so easy to use and with high performance-price ratio.
Applications:
General-purpose and precision testing.
Embedded in industrial testing equipment for use.
Embedded electronics courses for the educational market.
Ripple and noise measurements for power supply characterization.
Multi-sensor systems and Serial bus decoding.
Car inspection and maintenance.
Current/Voltage recording and analysis System for Solar Power Supply and Lighting System.
Diagnosis device for field engineers.
Basic equipment for DIY makers to develop their own modules.
Features:
- Hand-held portable, 153(L) x 93(W) x 23(H) mm, up to 210g.
- General Purpose I/O and PWM interface (TTL 3.3V) .
- 8 Bit ~ 13 Bit vertical resolution.
- Open source hardware interface to support expansion modules.
- USB 2.0 interface, USB powered.
- 72 hours long time data logger.
- Optional signal generator, logic analyzer, isolated differential input and Android smart phone support module.
- Waveform recording and playback review.
- Support waveform image import as the comparison reference for real-time waveform.
- Support Serial bus decoding (RS-232,RS-485/422, I²C, CAN,SPI,Lin).
- Supports a variety of current clamps and other physical volume custom probes.
- Support buffer waveform preview and mouse wheel operations.
- Historical change trend statistics and analysis functions.
- Pass / Fail detection.
- Support spectrum analysis and frequency response curve mapping.
- Support UI characteristic curve mapping.
Connector type : | 2 channels with BNC sockets, 20 mm spacing. | |
Vertical resolution: | 8 Bit ~ 13 Bit. | |
Maximum sampling rate (S/s): | 50M | |
Bandwidth ( −3 dB): | 20MHz | |
Input coupling: | AC/DC. | |
Input characteristics: | 1MOhm || 25pF. | |
PC OS requirements: | Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). | |
Over-voltage protection: | ±60.0v (x1), ±600.0v (x10). (DC + AC peak) | |
Triggering type: | Rising/falling edge according to trigger level. | |
Triggering mode: | None, auto, normal, single. | |
pre-trigger capture: | 50% of capture size. | |
Automatic measurements: | Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value. | |
Frequency response mapping | Scanning the frequency, record the process frequency and magnification data, and draw the frequency response curve.
| |
Measurement statistical curve: | The historical trend of the automatically measured quantities can be plotted for statistics and analysis. | |
Pass / Fail detection: | You can set the upper and lower limits of the measurement quantity, and perform Pass / Fail detection and fault alarm function on the measured signal. | |
Deep measurement: | With this function, the waveform jump points are automatically numbered and marked, and the time difference between the two adjacent numbers is automatically displayed. | |
Samples Interpolation: | Linear or sin(x)/x. | |
FFT: | 1024 ~ 16k points. | |
FFT window function: | Rectangle, Hanning, Hamming, Blackman. | |
Math: | A+B, A-B, AxB, X-Y,Invert. | |
Acquisition Modes: | Normal mode / High Resolution mode / Peak detect mode. | |
Waveform recording and playback: | File format : | *.oscxxx. |
Record depth: | 50 ~ 450 frames. | |
File size: | 6 MB ~ 20GB. | |
Save as file: | txt, csv, excel, oscxxx, jpg. | |
Comparison reference | Support waveform image import and real-time waveform comparison reference. It can import waveform pictures, set gray level and transparency, move up and down, and zoom in and out horizontally and longitudinally. | |
Data logger Sampling Interval: | 1 second to 1 hour. | |
Data logger Record Duration: | 1 minute ~ 72 hours. | |
Temperature range: | Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: −20 °C to +60 °C. | |
Reference Output: | 1K Hz, 1.5 V square wave output with 50% duty cycle. Software-configurable PWM output with adjustable frequency and duty cycle, 200Hz~25K Hz, 10%~90%. | |
Size: | 153(L) x 93(W) x 23(H) mm. | |
Languages (full support): | English, Chinese (simplified). | |
Compliance: | CE, FCC. | |
