Twintex Dual Channel Made In China 30MHz Cathode Ray Oscilloscope
- Category: Oscilloscopes >>>
- Seller: Shenzhen,Funkey,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Company information
Product overview
Product Description

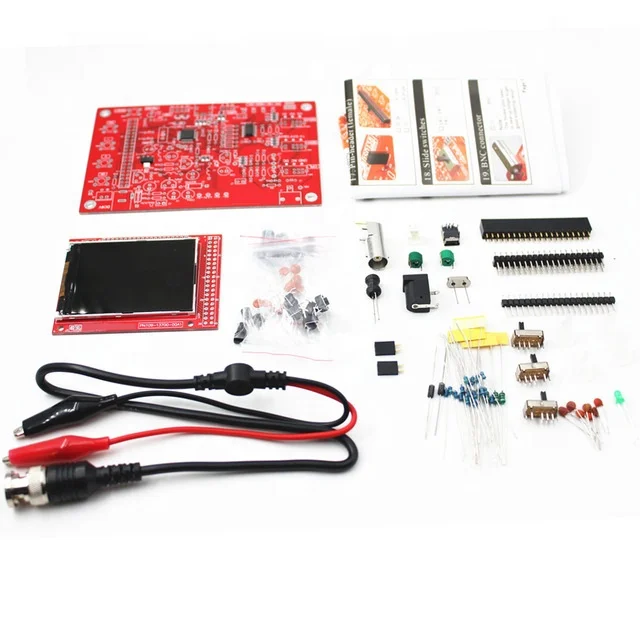

This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Features
Features
Oriented for electronic production practical training, the description information is complete and detailed, including circuit diagrams, production instructions, instructions for use, troubleshooting methods, etc., with high production success rate.
A variety of components, suitable for students to identify components, direct component welding, SMD component welding training.
Students can get a practical tool while making, which can effectively observe and measure the signal waveform on many occasions such as audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting, etc., increasing the learning interest and improving the learning effect.
The kit uses an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4" color TFT display, which can be used as an ARM development test board.
The circuit is simple and reliable at a low price.
A variety of components, suitable for students to identify components, direct component welding, SMD component welding training.
Students can get a practical tool while making, which can effectively observe and measure the signal waveform on many occasions such as audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting, etc., increasing the learning interest and improving the learning effect.
The kit uses an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4" color TFT display, which can be used as an ARM development test board.
The circuit is simple and reliable at a low price.
1. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data logger.
2. Adjustable vertical displacement, and with instructions.
3. With automatic, regular and one-shot modes, easy to capture the moment waveform.
4. Available rising or falling edge trigger.
5. Observable previous trigger waveform (negative delay).
6. Can freeze at any time waveform display (HOLD function).
7. Comes 1Hz /3.3V square wave test signal source.
8. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
9. Waveform storage function: will not lose the waveform after power off.
10. Short-circuit and open-circuit detection: this can help the user find out the soldering error.
11. Save/call out the waveform, and the waveform does not disappear when the power is turned off
To turn on/off the waveform parameter display: place the cursor in the time base position and long press the [OK] key.
Method to save waveform: Press [SEL] and [+] keys at the same time.
To call out the saved waveform: press [SEL] and [-] at the same time.
To enter the test mode:
Press [RESET] key after holding down [OK]. If you see the LED flashing rapidly, it means that there is a short circuit in the PB or PC ports of the MCU (these ports contain the connection line with the LCD), which needs to be removed after finding out; if you see the LED flashing with a cycle of about 4 seconds, you can use a voltmeter to find the possible open circuit in the connection line related to the MCU port, please refer to the manual for the specific method.
Method to save waveform: Press [SEL] and [+] keys at the same time.
To call out the saved waveform: press [SEL] and [-] at the same time.
To enter the test mode:
Press [RESET] key after holding down [OK]. If you see the LED flashing rapidly, it means that there is a short circuit in the PB or PC ports of the MCU (these ports contain the connection line with the LCD), which needs to be removed after finding out; if you see the LED flashing with a cycle of about 4 seconds, you can use a voltmeter to find the possible open circuit in the connection line related to the MCU port, please refer to the manual for the specific method.
Package
Key Parameters
Maximum Real-time Sampling Rate | 1Msps | JETSON-NANO-DEV-KIT | |
Accuracy | 12Bit | ||
Sampling Buffer Depth | 1024 bytes | ||
Analog Bandwidth | 0-200KHz | ||
Vertical Sensitivity | 10mV / Div - 5V / Div (1-2-5 progressive manner) | ||
Input Impedance | 1MΩ | ||
Maximum Input Voltage | 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) | ||
Coupling Modes | DC / AC / GND | ||
The Horizontal Time Base Range | 10μs / Div - 50s / Div (1-2-5 progressive manner) | ||
Supply Voltage | DC 9V | ||
PCB Size | 117 * 76mm / 4.6 * 3in | ||
Screen Size | 52 * 40mm / 2 * 1.57in | ||
Package Size | 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in | ||
Package Weight | 119g / 4.21oz | ||
