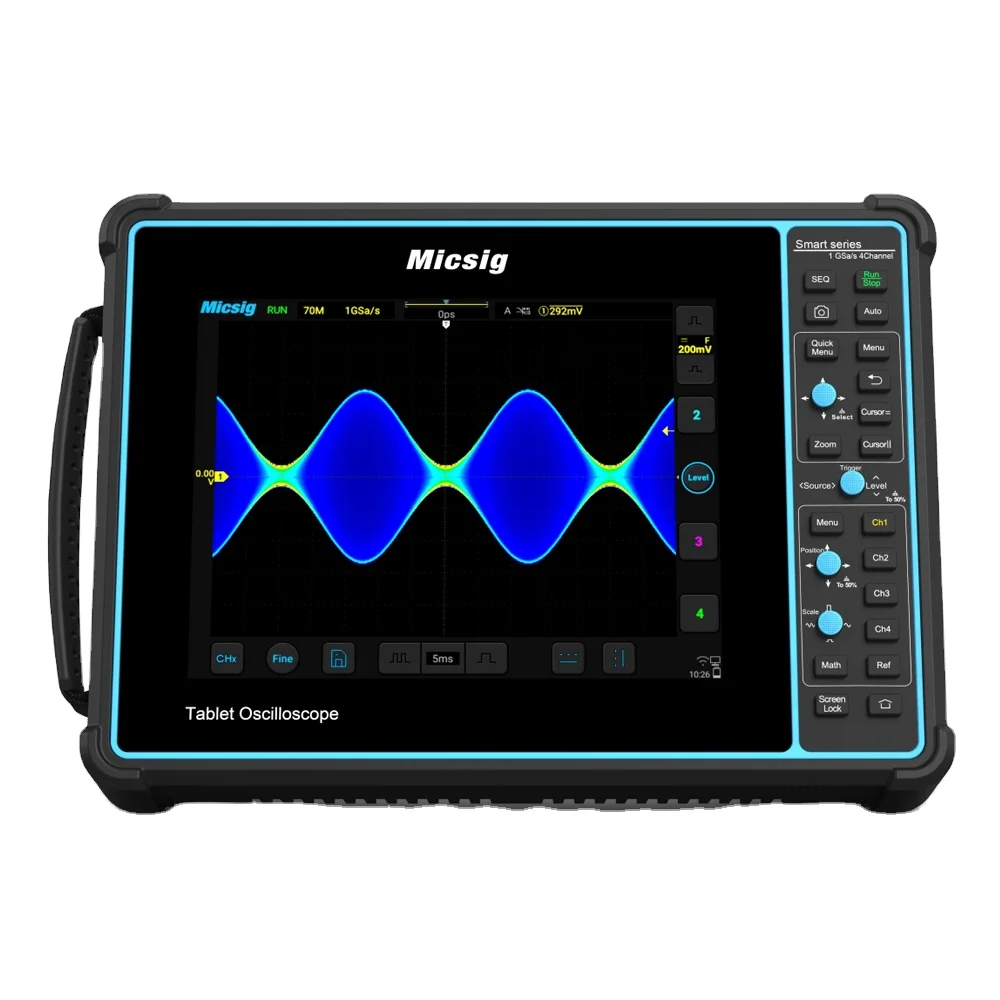

STO1004 Digital Tablet Oscilloscope 4 Channels 100MHz 1GSa/S Oscilloscope with Touch Screen

 The Micsig STO1004 oscilloscope is a digital oscilloscope with both a full-touchscreen as well as physical buttons. The tablet like properties combined with TPU+ABS protective shell make this oscilloscope ideal for both use at home as on the road.
The oscilloscope has a large 8" TFT touchscreen featuring 256-level intensity grading and a color temperature display. These features show more frequent signals with more brightness or a different color respectively. Furthermore, this oscilloscope features an ultra-deep memory of 70 Mpts, serial bus decoding/analysis and a high waveform capture rate. The STO1004 is able to be used in 3 operation modes: Fulltouch operation, Physical button control panel, and the Mixture of both.
The Micsig STO1004 has 31 automatic built-in measuring programs and a large 32GB internal storage. The software runs on a powerful Android system and works essentially the same as a tablet. For example, you can connect to the Internet via Wi-Fi to send data, use iOS/Android remote control or take photos/videos. The scope also has an HDMI connection so that the scope can be connected for example to a beamer for a live demonstration. It is also possible to control the oscilloscope via remote control.
