Product Overview
Description

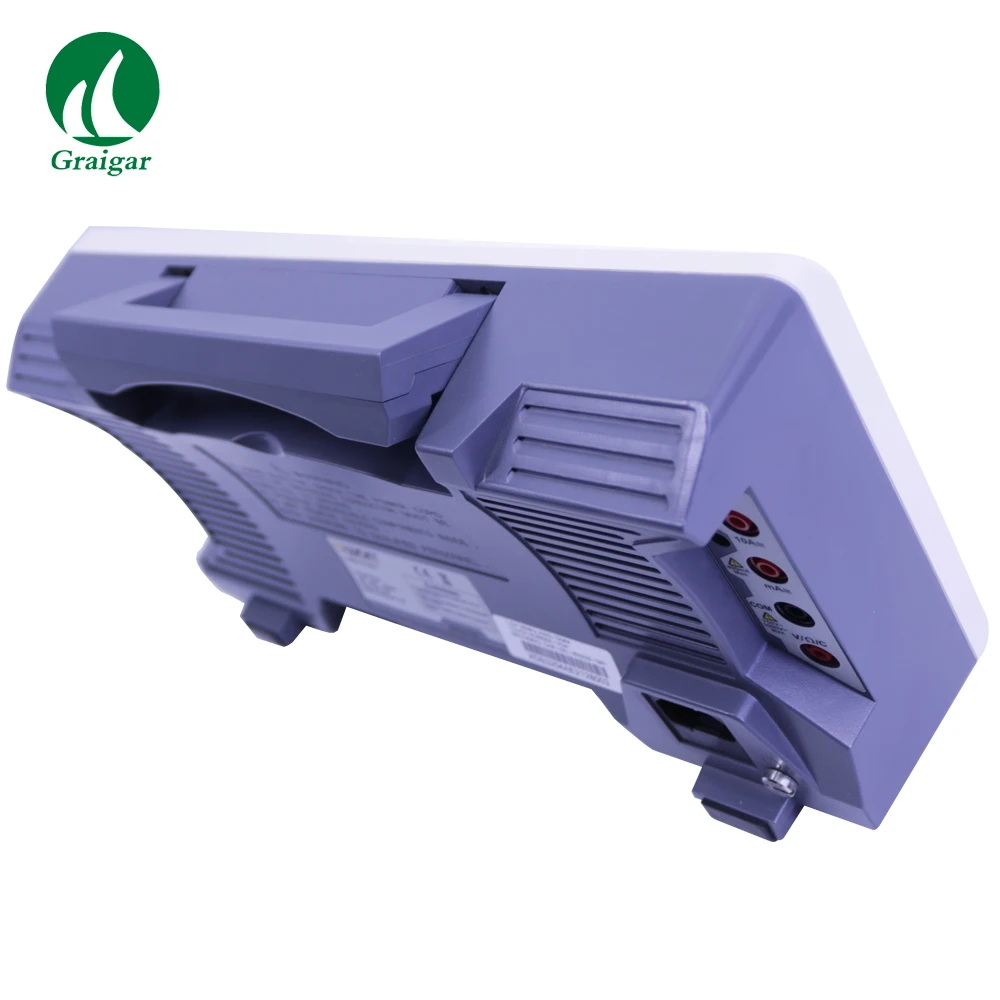

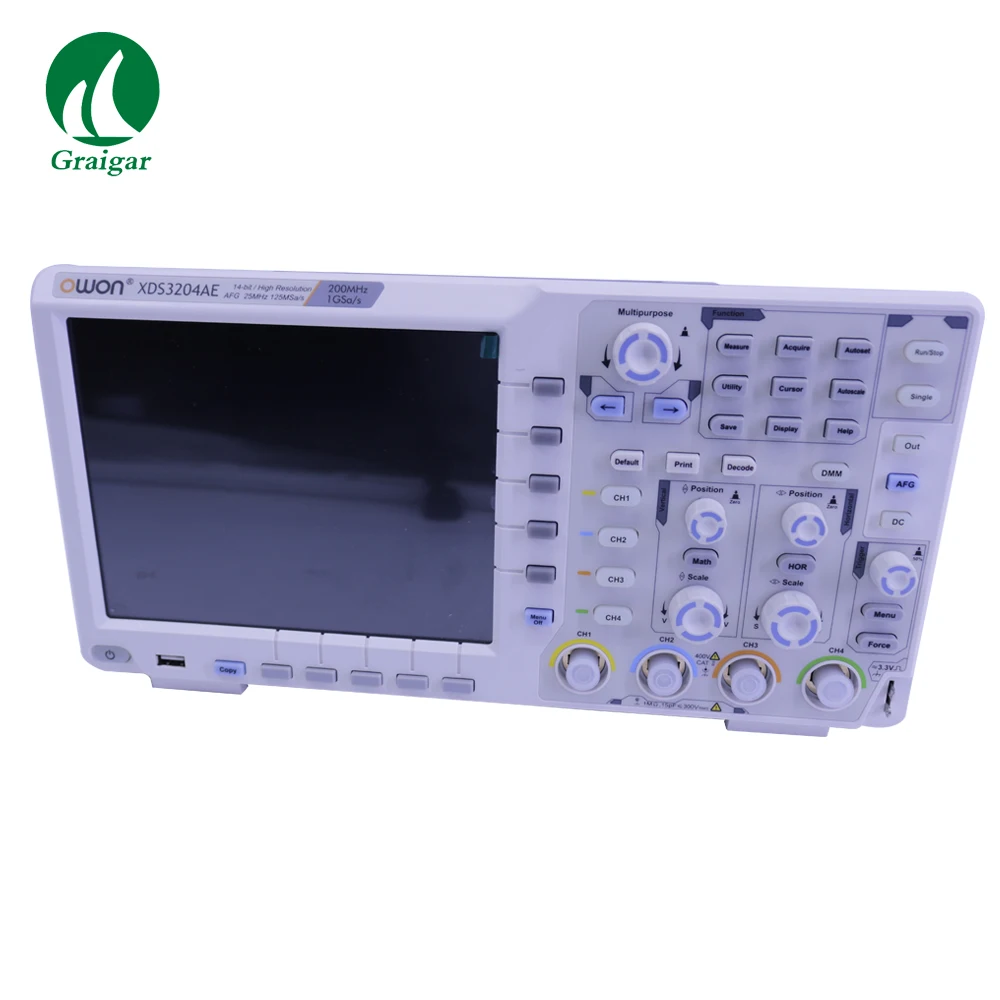

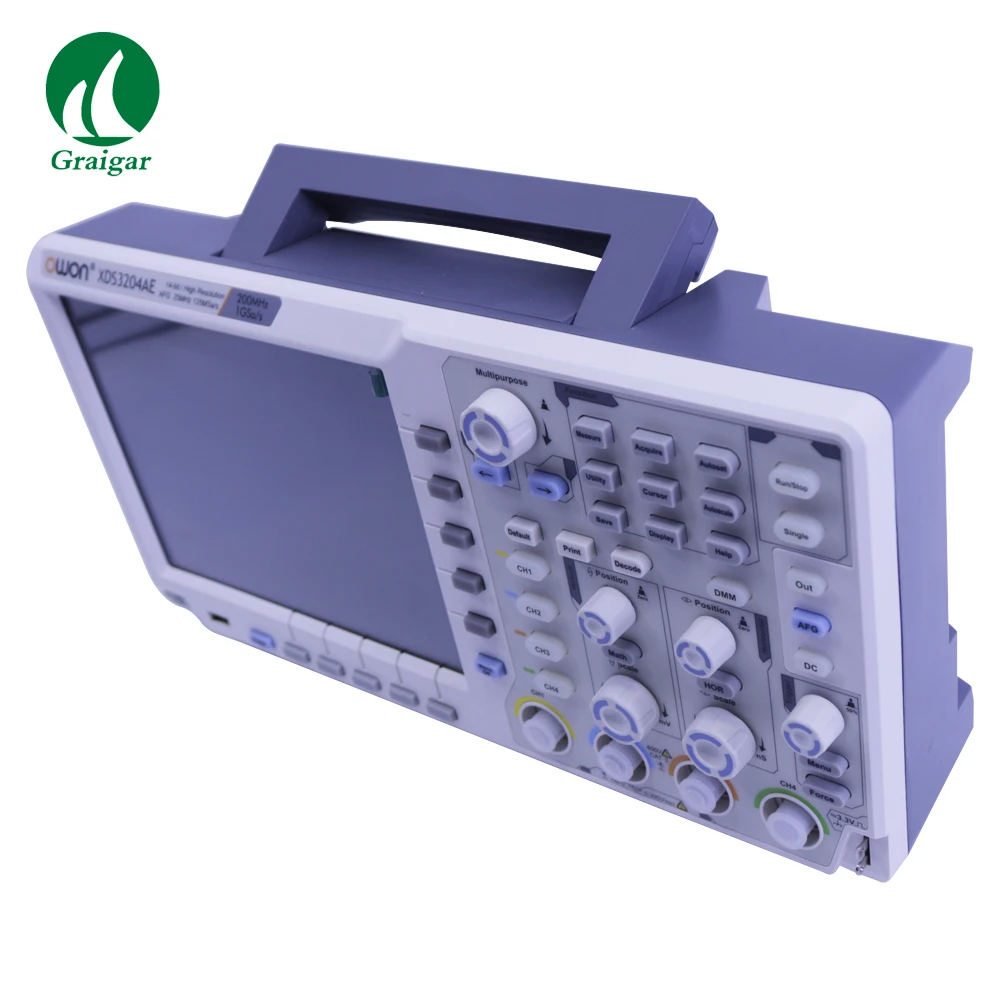

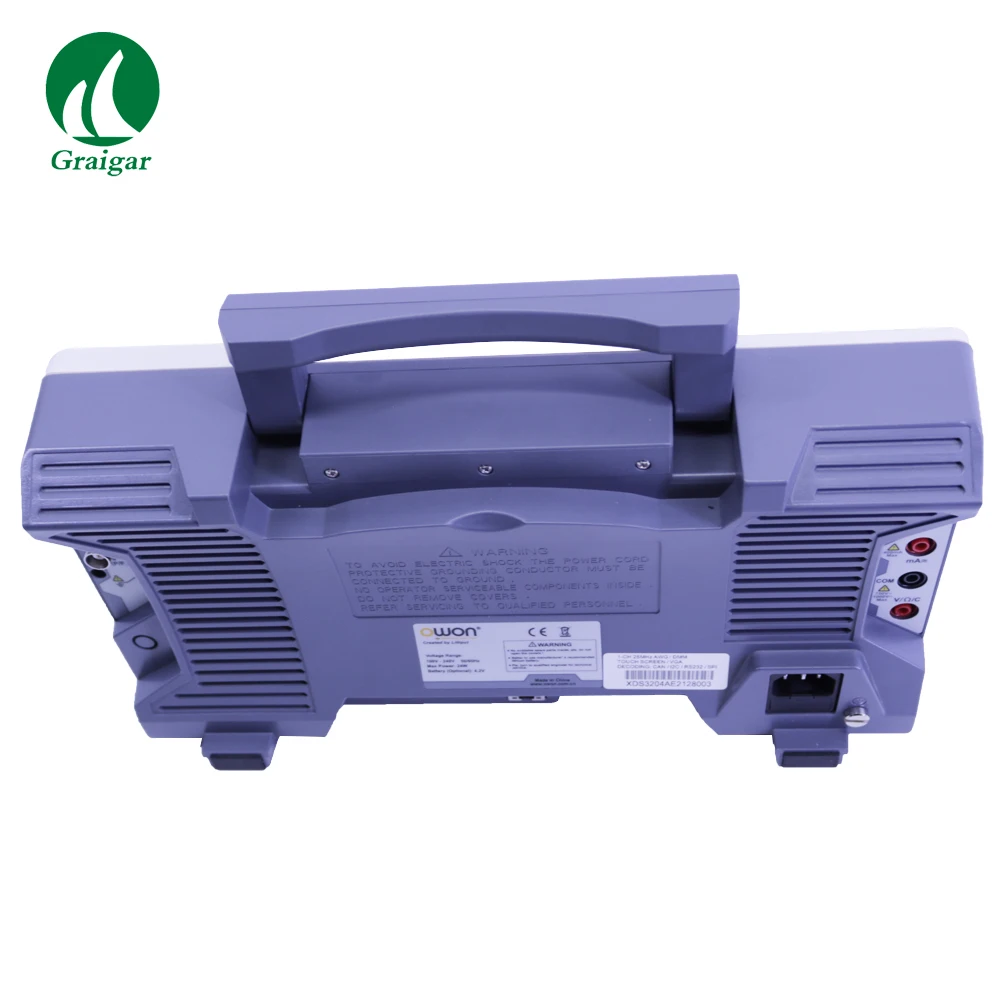

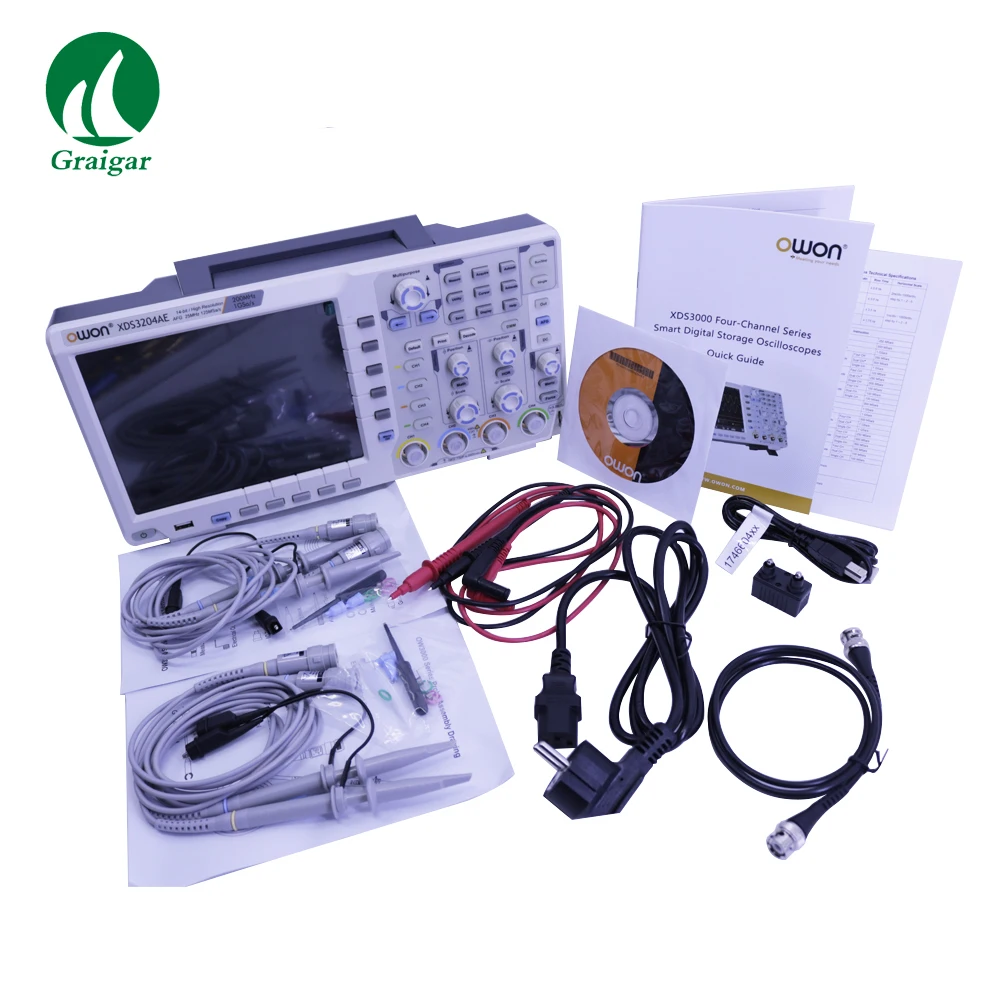

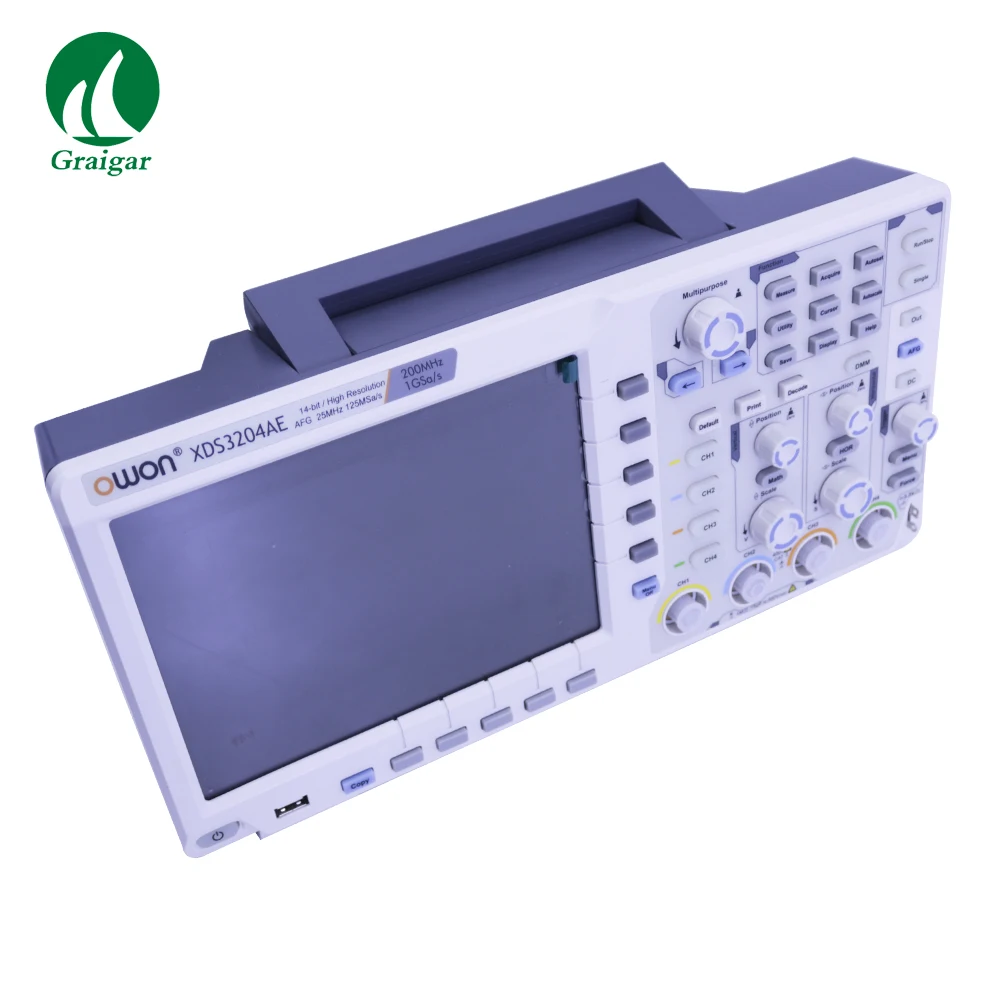

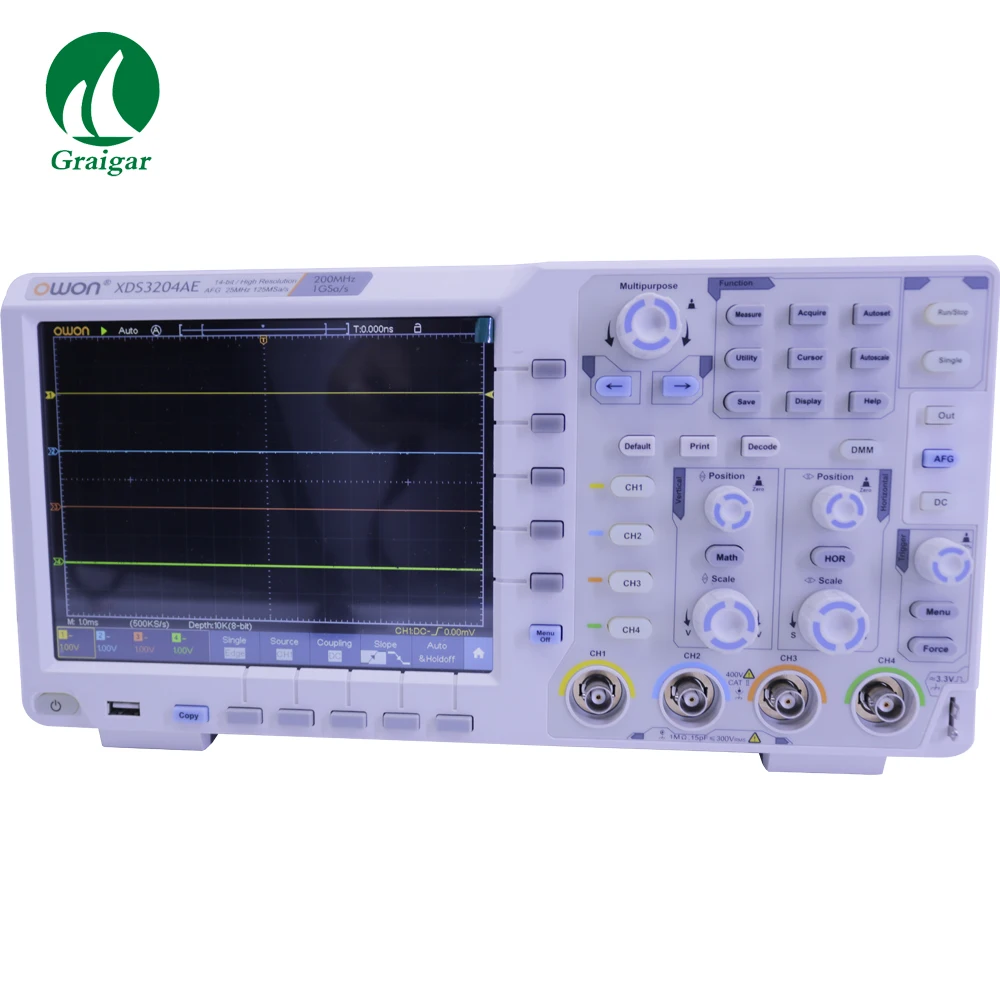

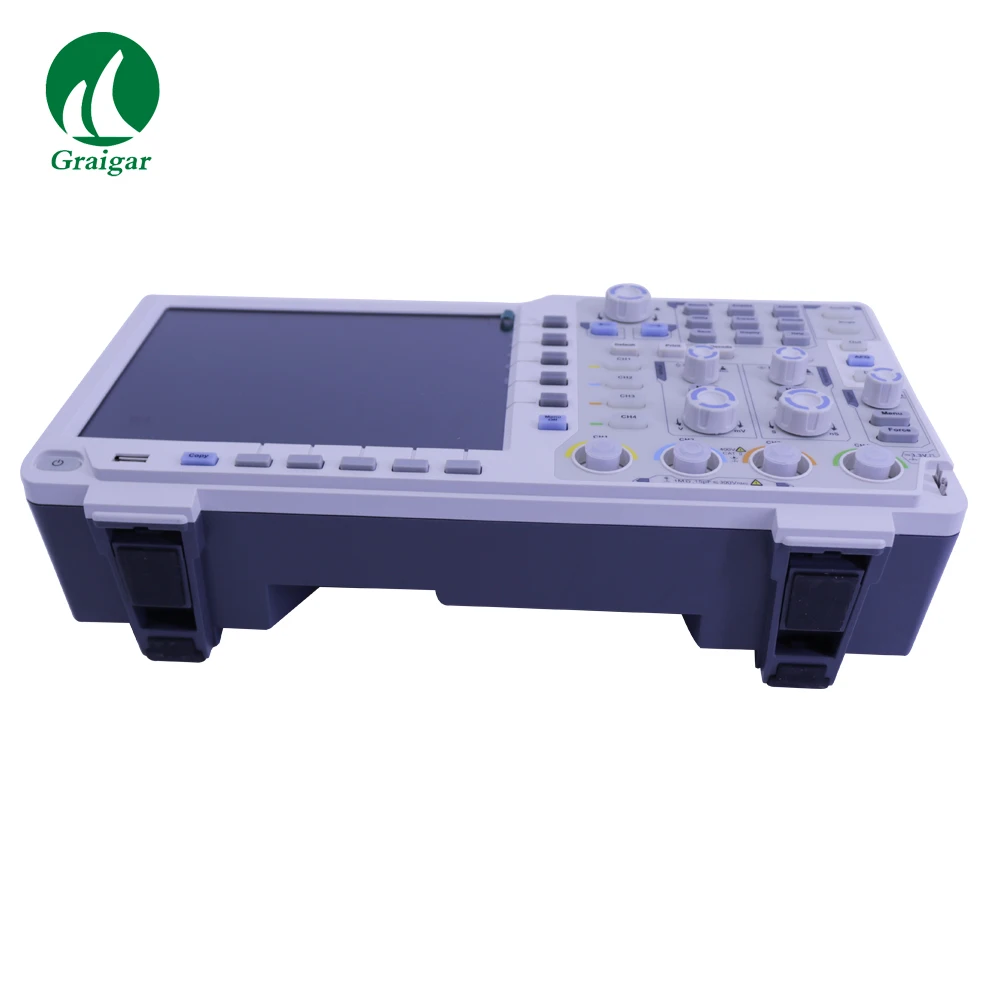

OWON XDS3204AE 4CH 14bit Touchscreen Digital Oscilloscope 200MHz Bandwidth 1GS/s Sample Rate
+ 60MHz - 200MHz Bandwidth,1GS/s sample rate
+ 8-bit or 14-bit high resolution ADC
+ 40M record length max 70,000 wfms/s waveform refresh rate
+ low back ground noise

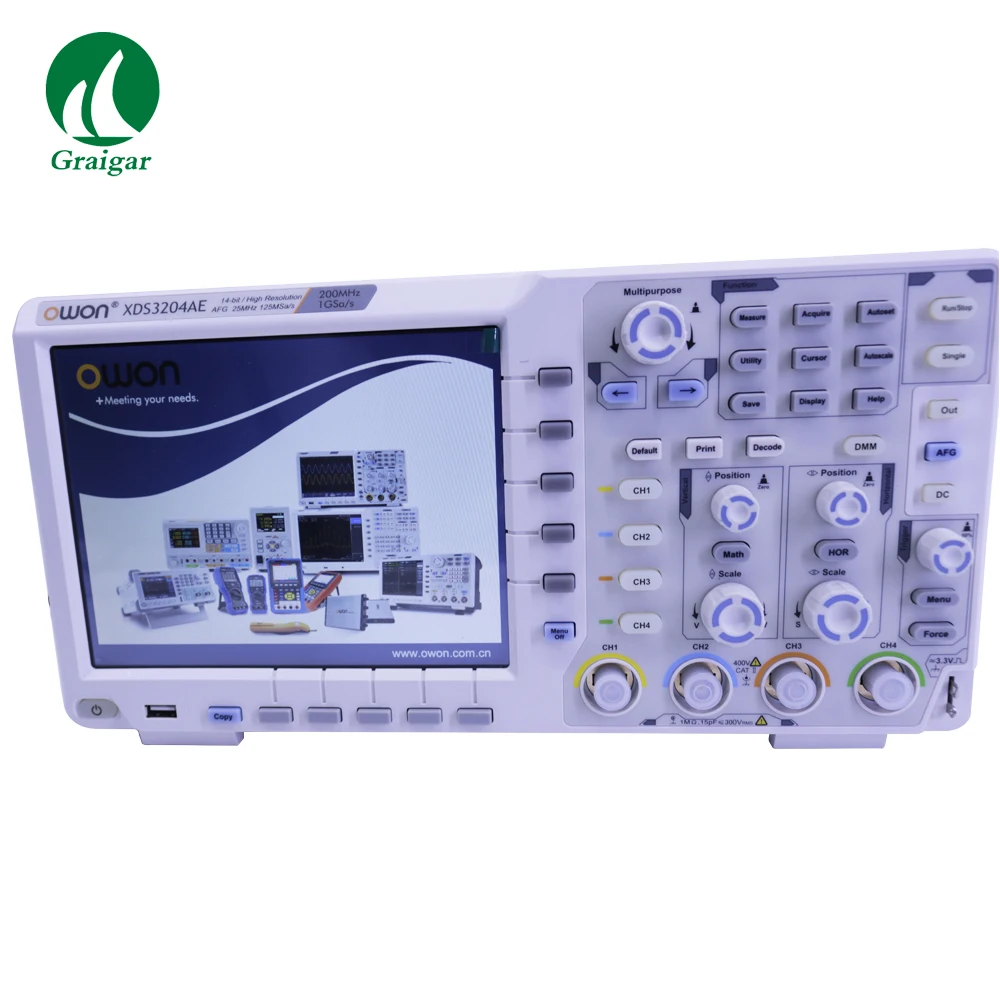

+ 8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
+ SCPI, and LabVIEW supported
+ multi- trigger, and bus decoding function
+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA
| Model | XDS3064E | XDS3104E | XDS3064AE | XDS3104AE | XDS3104 | XDS3204E | XDS3204AE |
|---|---|---|---|---|---|---|---|
| Bandwidth | 60MHz | 100MHz | 60MHz | 100MHz | 200MHz | ||
| Sample Rate | 1GS/s | 1GS/s (500MS/s for each channel) | 1GS/s | ||||
| Vertical Resolution (A/D)) | 8 bits | 14 bits | 8 bits | 14 bits | |||
| Record length | 40M | ||||||
| Waveform Refresh Rate | 45,000 wfms/s | 70,000 wfms/s | |||||
| Horizontal Scale (s/div)) | 2ns/div - 1000s/div, step by 1 - 2 - 5 | 1ns/div - 1000s/div, step by 1 - 2 - 5 | |||||
| Channel | 4 | ||||||
| Display | 8" color LCD, 800 x 600 pixels display | ||||||
| Sample Rate / Relay Time Accuracy | ±2.5 ppm | ||||||
| Input Coupling | DC, AC, GND | ||||||
| Vertical Sensitivity | 1mV/div - 10V/div (at input) | ||||||
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) | ||||||
| Bus Decoding(optional) | I2C, SPI, RS232, CAN | ||||||
| Trigger Mode | Auto, Normal, and Single | ||||||
| Vertical Range | ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div) | ||||||
| Waveform Math | +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function | ||||||

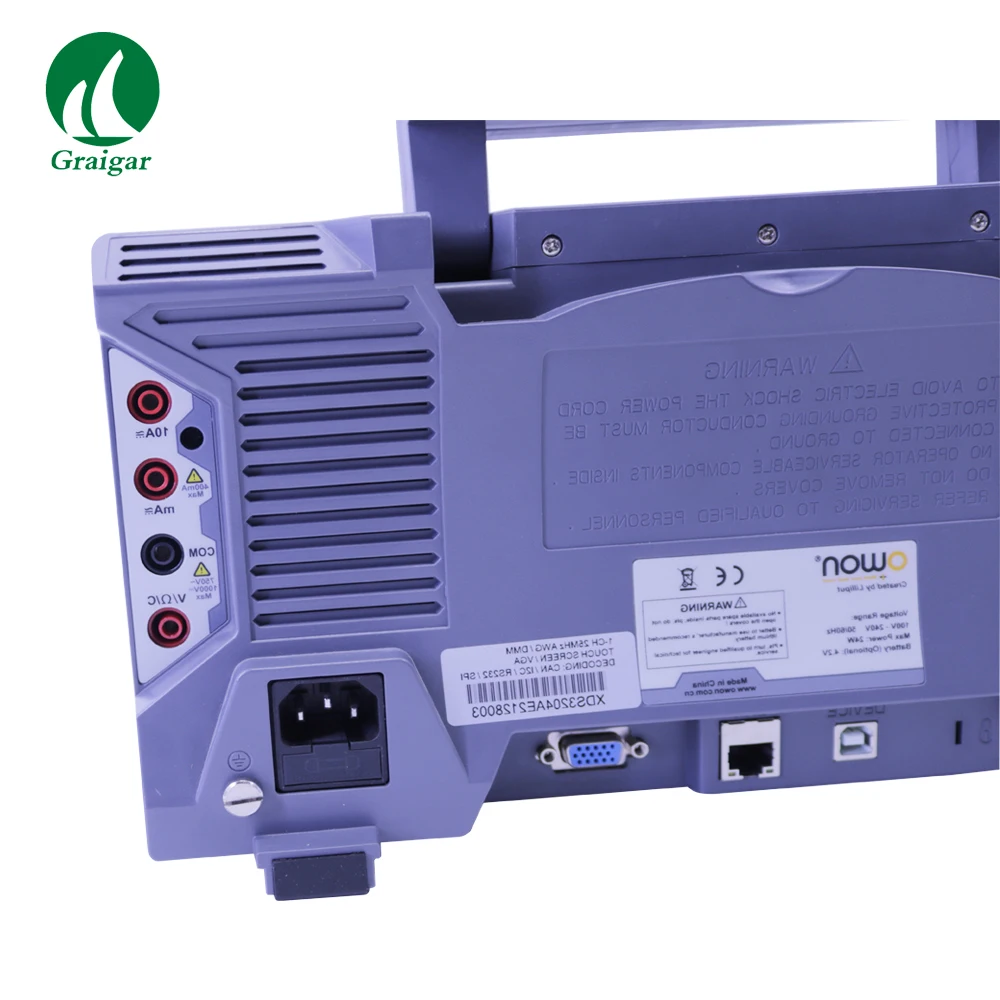

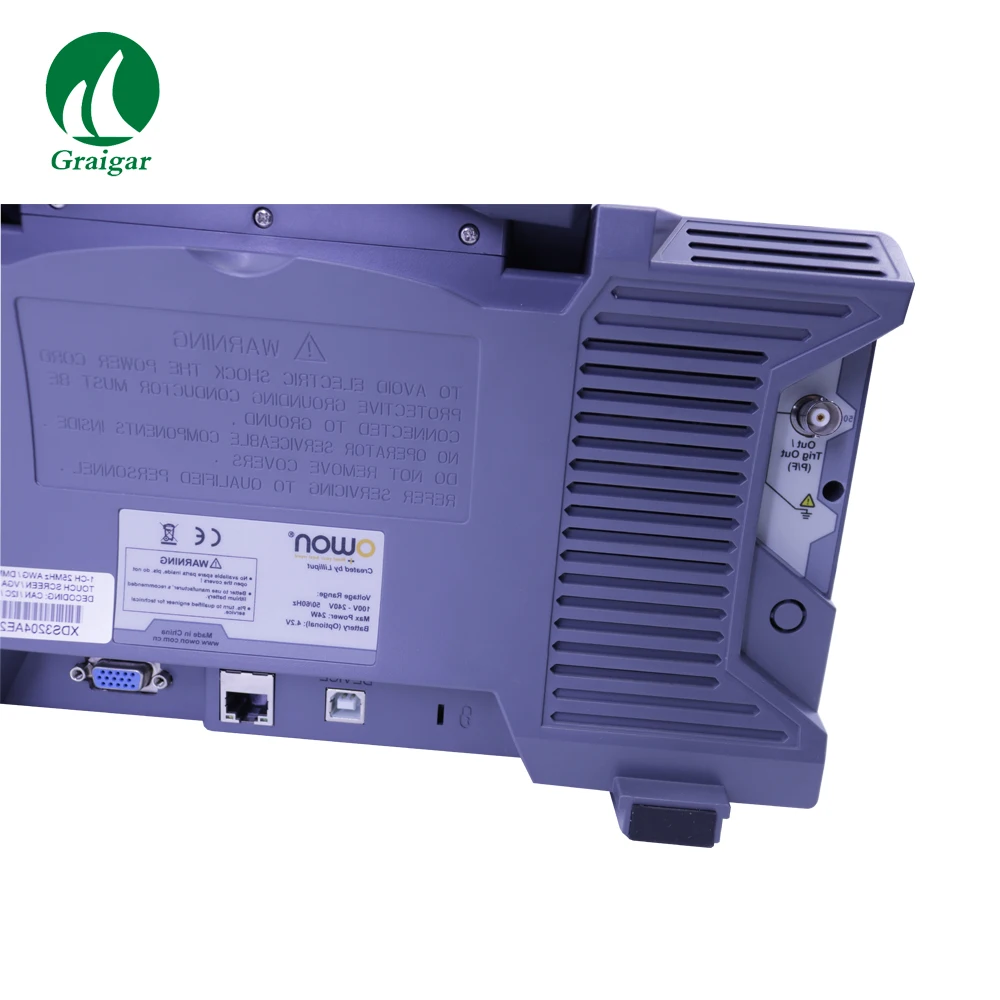

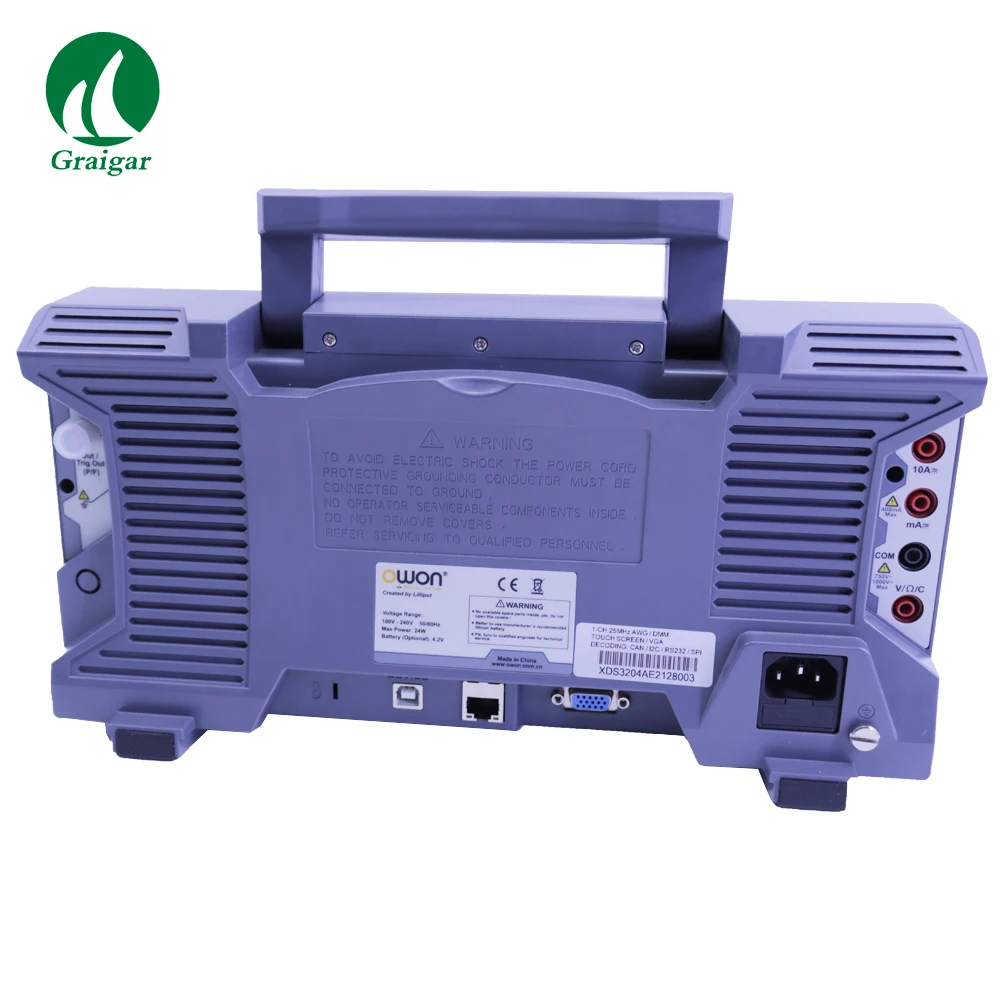

| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) | ||||||
| Frequency Counter | available | ||||||
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II | ||||||
| Fuse | 2A, T class, 250V | ||||||
| Battery (optional) | 3.7V, 13200mA | ||||||
| Dimension (W x H x D) | 340mmx177mmx90mm | ||||||
| Optional Module / Function | |
|---|---|
| VGA | VGA+AV port |
| WIF | Wifi |
| AWG | arb waveform generator (only apply to XDS3104E ,XDS3064E,XDS3014, XDS3204E) |
| DMM | digital multimeter |
| MTS | Touch screen(capacitor-type) |
| Optional Decoding Kit | |
|---|---|
| RS232 | RS232 |
| SPI | SPI |
| I2C | I2C |
| CAN | CAN |
