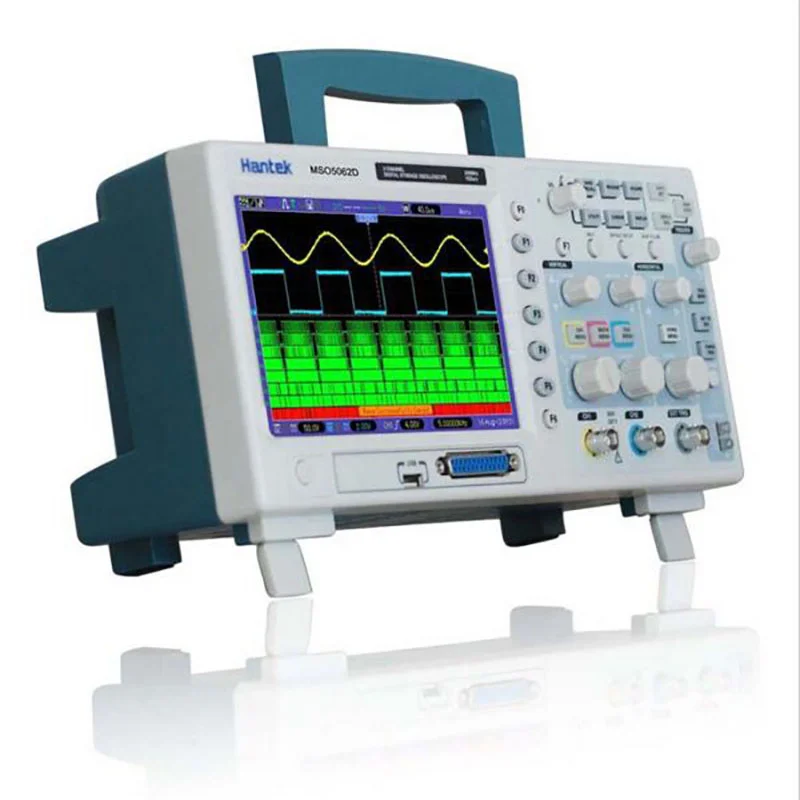

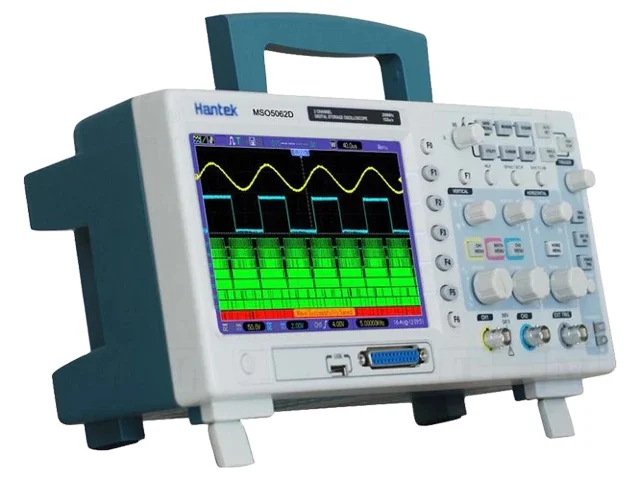

Digital 2 Channel Oscilloscope Logic Analyzer Storage Mixed Signal With Oscilloscope Function 1gsa/s Mso5062d
Features:

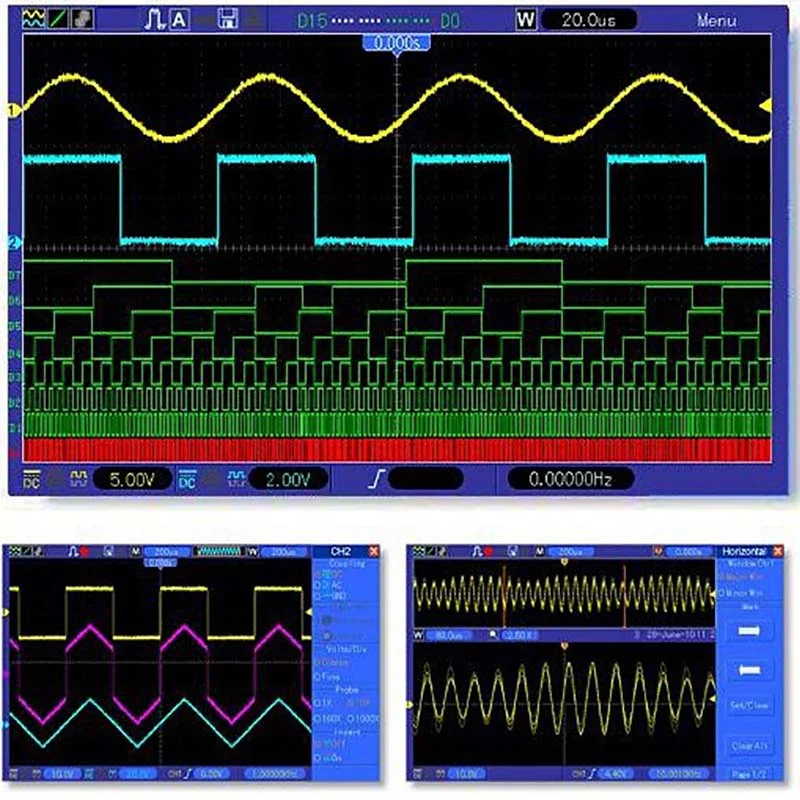

16 channels logic analyzer + 2 channels oscilloscope + external trigger.

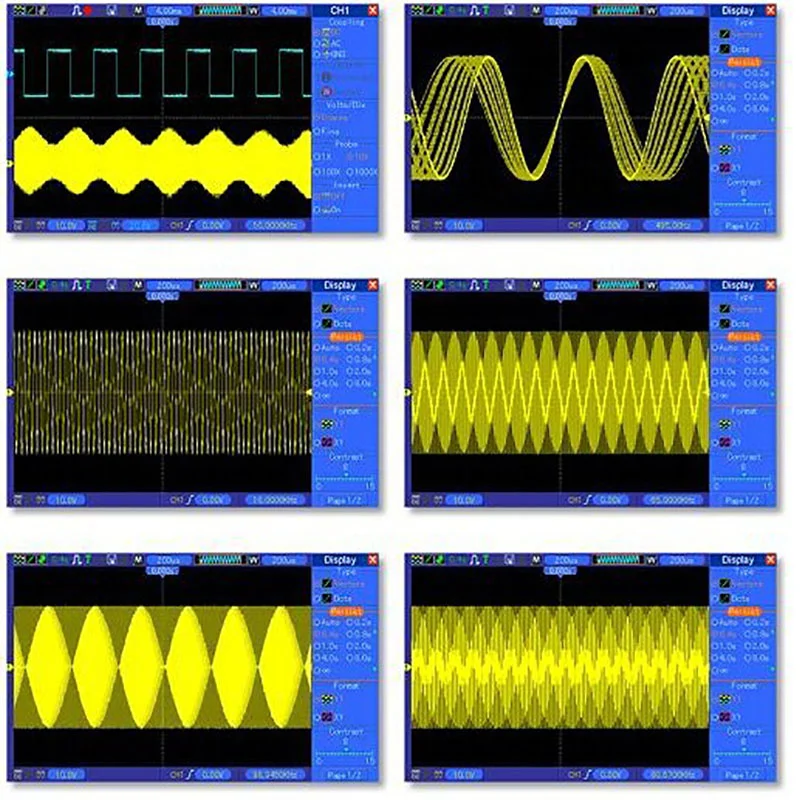

Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
1GSa/s real time sampling rate.
USB host, support flash memory card storage and USB interface system upgrade.

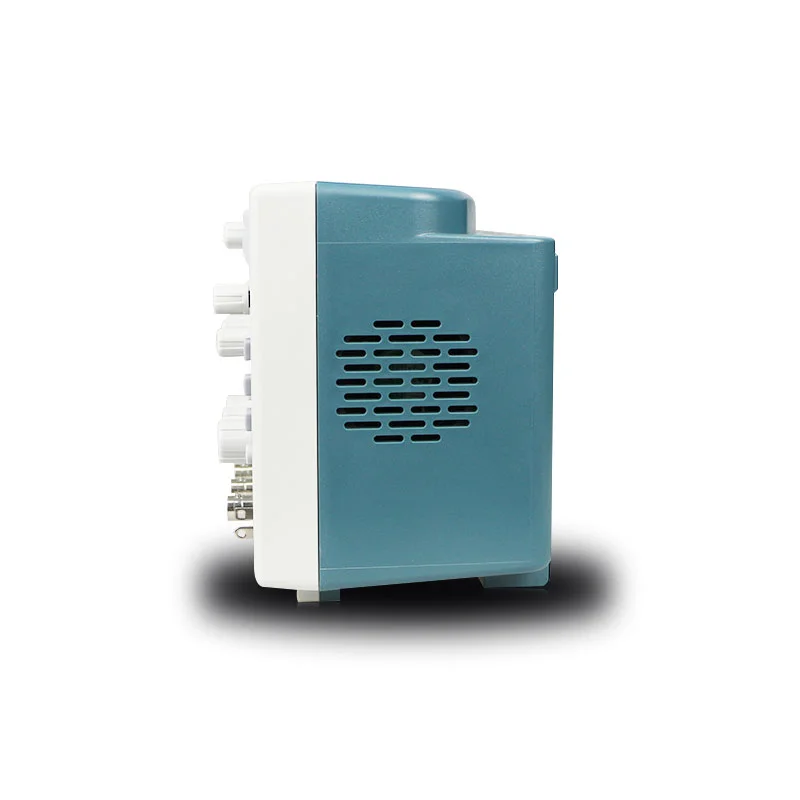

Ultrathin design, handy volume, easily portable. VGA Optional
Oscilloscope Function
60,100,200MHz Bandwidth.
Each channel record length up to 1M.
Real time sampling rate up to 1GSa/s.
Powerful trigger function.
32 kinds of automatic measurement function.
Logic Analyzer Function
16 channels divided into 2 groups which is able to setup threshold level individually.
Real time sampling rate up to 500MSa/s.
Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.
Model | MSO5062D | MSO5102D | MSO5202D | |||
Bandwidth | 60MHz | 100MHz | 200MHz | |||
Sampling Rate Range | Max. 1GS/s | |||||
Waveform Interpolation | ( sin x) /x | |||||
Memory Depth | Single-channel: maximum 1M; Dual-channel: maximum 512K (4K, 16K, 40K optional) | |||||
SEC/DIV Range | 2ns/div to 40s/div | 4ns/div to 40s/div | ||||
Sampling Rate and Delay Time Accuracy | ±50ppm over any ≥1ms time interval | |||||
Delta Time Measurement Accuracy (full bandwidth) | Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns) | |||||
> 16 times above average (1 sampling interval + 100ppm × readings + 0.4 ns) | ||||||
Sampling interval = SEC/DIV÷200 | ||||||
A/D Converter | 8-bit resolution,each channel sampled simultaneously | |||||
VOLTS/DIV Range | 2mV/div to 5V/div at input BNC | |||||
Position Range | ±400mV (2mV/div ~20mV/div) | |||||
±2V (50mV/div ~200mV/div) | ||||||
±4V (500mV/div ~2V/div) | ||||||
±50V (5V/div) | ||||||
Bandwidth Limit (typical) | 20MHz | |||||
Low Frequency Response | ≤10Hz at output BNC(-3db) | |||||
Rising Time | ≤ 5.8ns | ≤ 3.5ns | ≤ 1.8ns | |||
Vertical Gain Accuracy | 3% for sample or average acquisition mode, 5V/div to 10mV/div; | |||||
4% for sample or average acquisition mode, 5mV/div to 2mV/div | ||||||
Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative,Code-type, Duration, Queue, Repeat | |||||
Trigger Source | CH1, CH2, EXT, EXT/5, AC Line | |||||
Input Coupling | DC, AC or GND | |||||
Input Impedance, DC Coupling | 1MΩ2% for 20pF3 pF | |||||
Probe Attenuation | 1X, 10X | |||||
Support Probe Attenuation Coefficients | 1X, 10X, 100X, 1000X | |||||
Math | +,-,x,÷,FFT | |||||
Cursors Measurement | Voltage difference between cursors: delt V Time difference between cursors: delt T Reciprocal of delt T in Hertz (1/ delt T) | |||||
Automatic Measurements | Frequency, Period, Mean, Peak-to-peak, Cycle RMS, Minimum, Maximum, Rise Time, Fall Time, Positive Width, Negative Width | |||||
Logic Analyzer Specification | ||||||
Sampled Channels | 16 ( divided into 2 groups) | |||||
Max. Input Impedance | 200K (C=10p) | |||||
Input Voltage Range | -60V~60V | |||||
Logic Threshold Range | -8V~8V | |||||
Max. Sample Rate | 500MHz | |||||
Compatible Input | TTL, CMOS, ECL | |||||
Sample Depth | 512KSample | |||||
Cursors | The difference between voltage cursors V; The difference between time cursors T; 1/T calculated by Hz. | |||||
Measurement | Period and Frequency | |||||
General Specification | ||||||
Display | 7"TFT 16K Color LCD, 800*480 dots | |||||
Dimension | 313(W)mm*142(H)mm*108(D)mm | |||||
Weight | 2.08kg (Not including the weight of package and accessories) | |||||
