Product Overview
Description

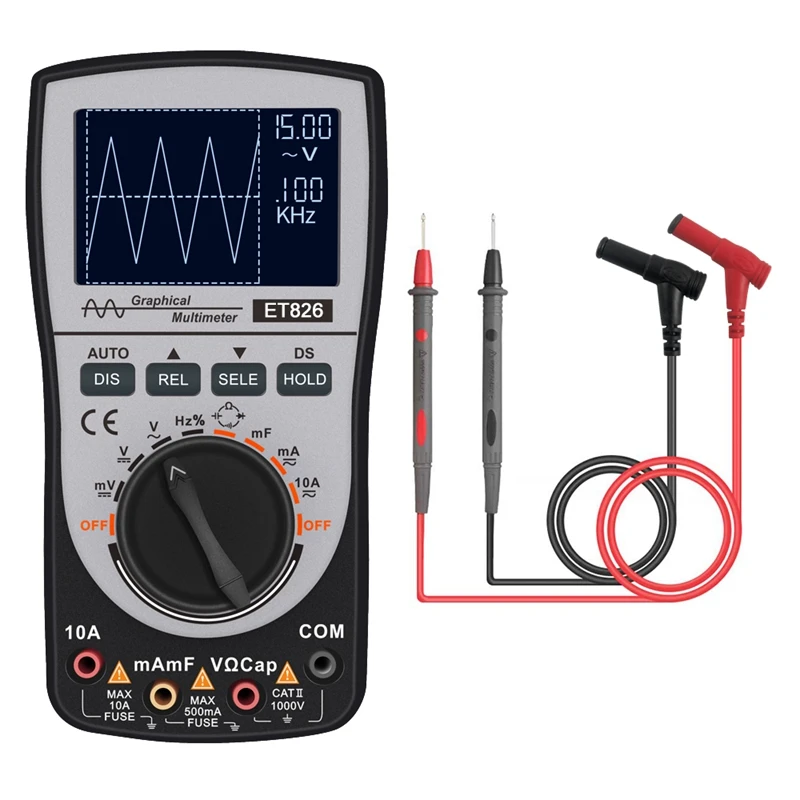

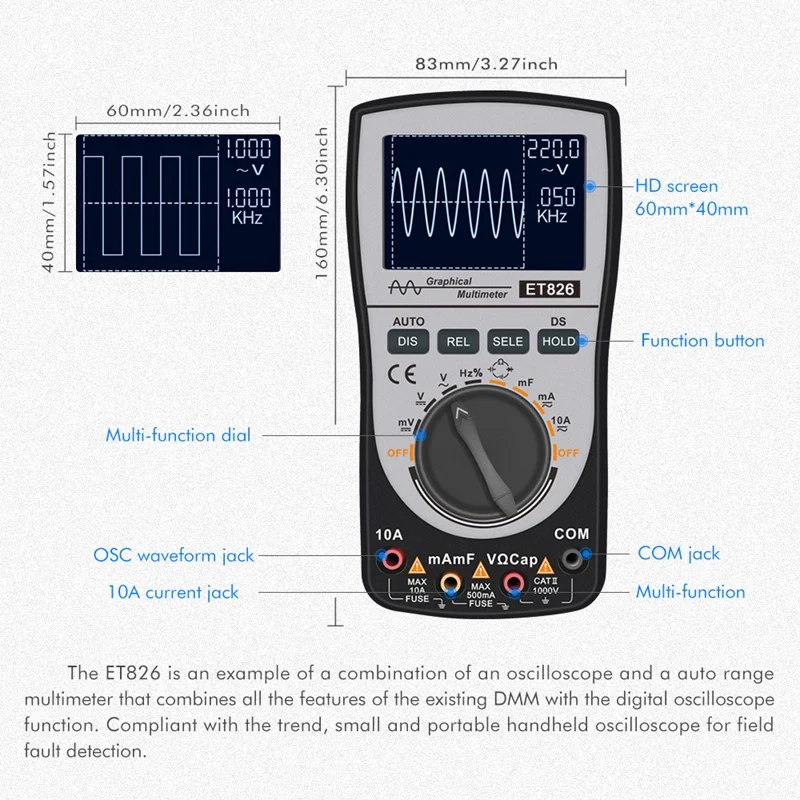

ET826 Digital Oscilloscope

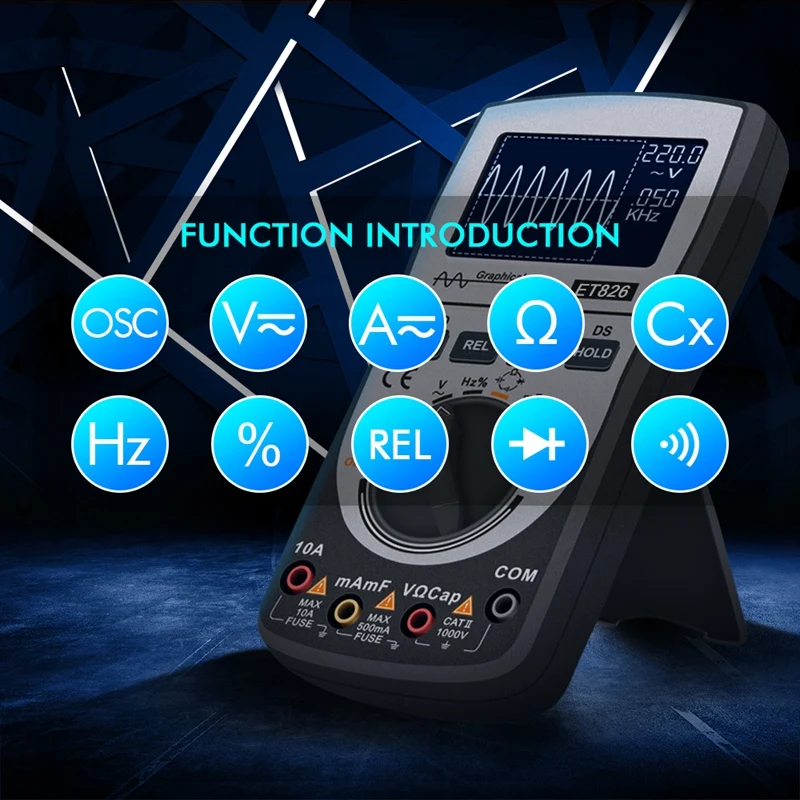

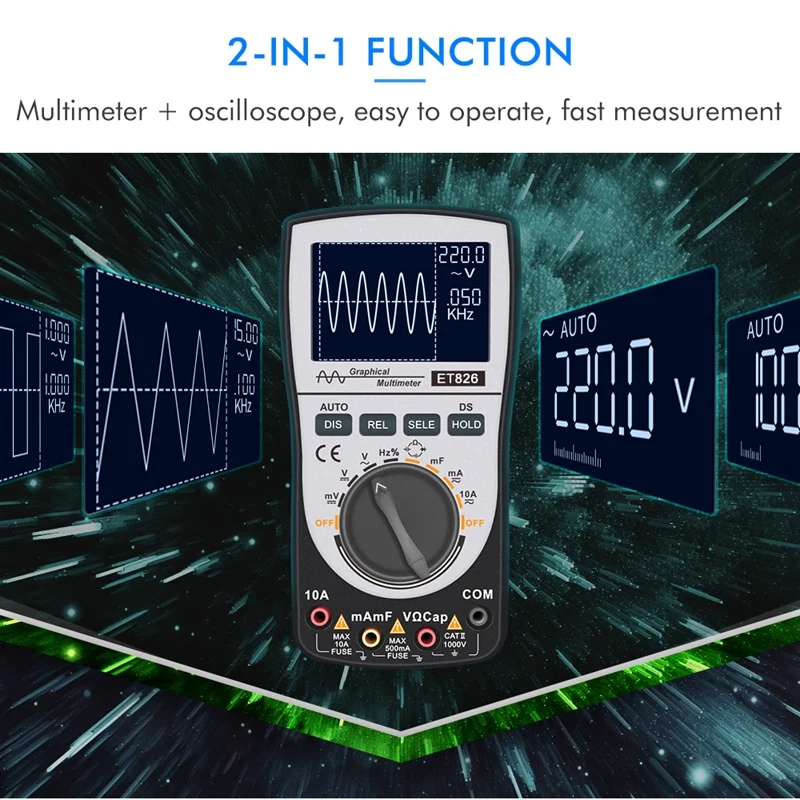

Multimeter/Digital Oscilloscope
Multi Tester

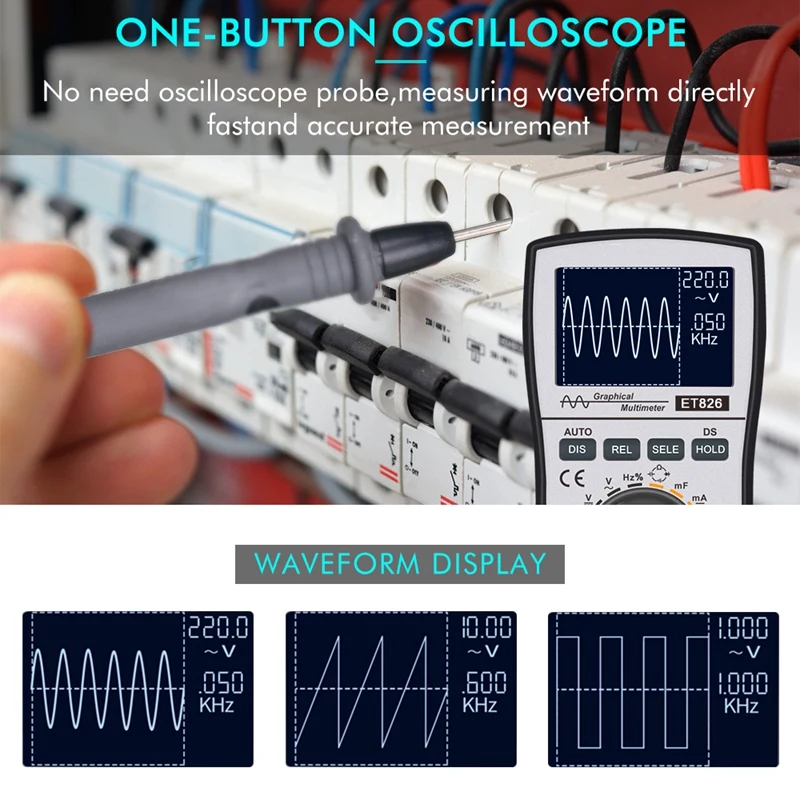

Digital multimeter with 200k high-speed A/D sampling,4000 counts auto-range,one button switch of graphical waveform display during measurement.
High reliability with panel calibration rechnology and memory calibration,sparing the need for adjustment with potentiometer.
Storing 100 sets of data and 10 waveforms independently.
Capable of holding waveform and data during measurement,easy to view and analyze.

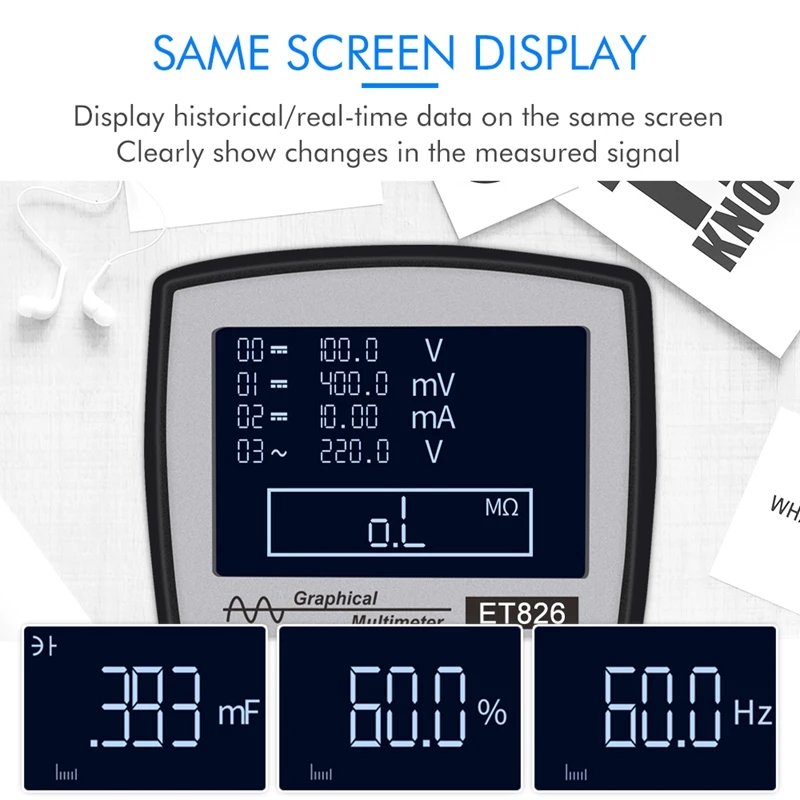

Displaying historical data and real-time measurement on the same screen with unique record reading mode for easy comparison.
Technical Parameter | ||||||
Item | Range | Resolution | Uncertainty | |||
DC Voltage Measurement | 400mV | 0.1mV | ±(0.75% rdg+10 dgt) | |||
4V | 1mV | ±(0.75% rdg+10 dgt) | ||||
40V | 10mV | ±(0.75% rdg+10 dgt) | ||||
400V | 100mV | ±(0.75% rdg+10 dgt) | ||||
1000V | 1V | ±(1.5% rdg+10 dgt) | ||||
AC Voltage Measurement | 400mV | 0.1mV | ±(2.0% rdg+10 dgt) Conditions:50Hz-1kHz, No more than 1kHz | |||
4V | 1mV | ±(2.0% rdg+10 dgt) Conditions:50Hz-400Hz | ||||
40V | 10mV | ±(2.0% rdg+10 dgt) Conditions:50Hz-400Hz | ||||
400V | 100mV | ±(5.0% rdg+10 dgt) Conditions:400Hz-20kHz | ||||
750V | 1V | ±(1.5% rdg+10 dgt) Conditions:50Hz-1kHz, No more than 1kHz | ||||
DC Current Measurement | 40mA | 10μA | ±(1.2% rdg+10 dgt) | |||
400mA | 100μA | ±(1.2% rdg+10 dgt) | ||||
4A | 1mA | ±(1.2% rdg+10 dgt) | ||||
10A | 10mA | ±(1.2% rdg+10 dgt) | ||||
AC Current Measurement | 40mA | 10μA | ±(1.2% rdg+10 dgt) Conditions:50Hz-5kHz, No more than 5kHz | |||
400mA | 100μA | ±(1.2% rdg+10 dgt) Conditions:50Hz-5kHz, No more than 5kHz | ||||
4A | 1mA | ±(1.2% rdg+10 dgt) Conditions:50Hz-5kHz, No more than 5kHz | ||||
10A | 10mA | ±(1.2% rdg+10 dgt) Conditions:50Hz-5kHz, No more than 5kHz | ||||
Resistance Measurement | 400Ω | 0.1Ω | ±(1.0% rdg+5 dgt) | |||
4KΩ | 1Ω | ±(1.0% rdg+5 dgt) | ||||
40KΩ | 10Ω | ±(1.0% rdg+5 dgt) | ||||
400KΩ | 100Ω | ±(1.0% rdg+5 dgt) | ||||
4MΩ | 1KΩ | ±(1.0% rdg+5 dgt) | ||||
40MΩ | 10KΩ | ±(3.0% rdg+5 dgt) | ||||
Capacitance Measurement | 51.2nF | 10pF | ±(3.0% rdg+10 dgt) | |||
512nF | 100pF | ±(3.0% rdg+10 dgt) | ||||
5.12μF | 1nF | ±(3.0% rdg+10 dgt) | ||||
51.2μF | 10nF | ±(3.0% rdg+10 dgt) | ||||
100μF | 100nF | ±(3.0% rdg+10 dgt) | ||||
10mF | 1μF | ±(5.0% rdg+15 dgt) | ||||
Frequency Measurement | 5Hz-5MHz | 1Hz | ±(1.0% rdg+5 dgt) Signal amplitude not less than 2Vp-p,ACV,Max.380V | |||
Diodes Test | Open circuit voltage:about 1.5V，Maximum test current:1.5mA | |||||
Continuity Test | Reference resistance:about 50Ω | |||||
Fuse Specification | 500mA/250V,10A/250V | |||||
