High Quality TEC1-12706 12706 TEC Thermoelectric Cooler Peltier
- Category: Semiconductors >>>
- Seller: Wellen,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Related Products
Specification
Parameters
Part No. | WFF-36W-12-C |
Max cooling power | 36W @ △T = 0℃ |
Voltage of peltier cell | 12VDC |
Current of Peltier cell | Starting : 6 A operating: 4.3 A |
Hot side fan | 8025, 12V, 0.25A |
Cold side fan | 8019, 12V, 0.20A |
Power supply | 51.6W |
Operating temperature | -10~70℃ |

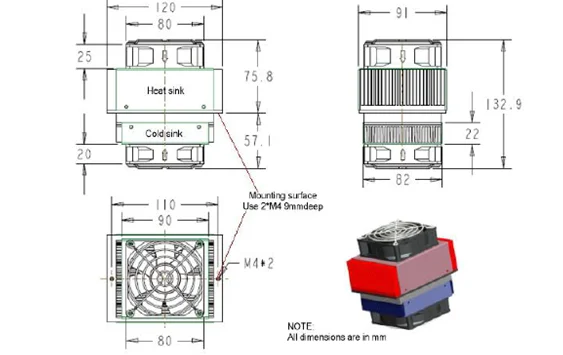

Dimension
Performance Curve
NOTES WITH USE
1. Please use 12VDC switching power, and the ripple factor is less than 10%
2. Don’t drop from than 30cm height, the Bi2Te3 will be damaged
3. Please keep away from wall or other objects more than 10cm when install it.
4. No starting up, when the ambient temperature and the heat sink over 70C, or it will be damaged
5. Please read the specification and other accessories carefully
1. Please use 12VDC switching power, and the ripple factor is less than 10%
2. Don’t drop from than 30cm height, the Bi2Te3 will be damaged
3. Please keep away from wall or other objects more than 10cm when install it.
4. No starting up, when the ambient temperature and the heat sink over 70C, or it will be damaged
5. Please read the specification and other accessories carefully

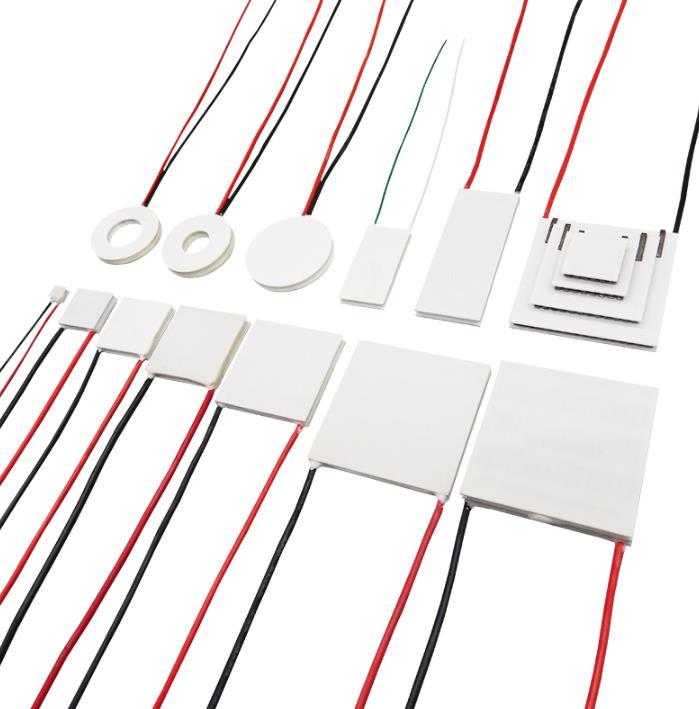

Products Show
Wellen Technology Co.,Ltd.
Specialized in thermoelectric modules, thermoelectric assemblies design and production for more than 20 years
Wellen Tech is a professional manufacturer of thermoelectric modules, peltier modules, thermoelectric assemblies. We can provide more than 1000 specifications of products and also provide customized service . Welcome to contact us !

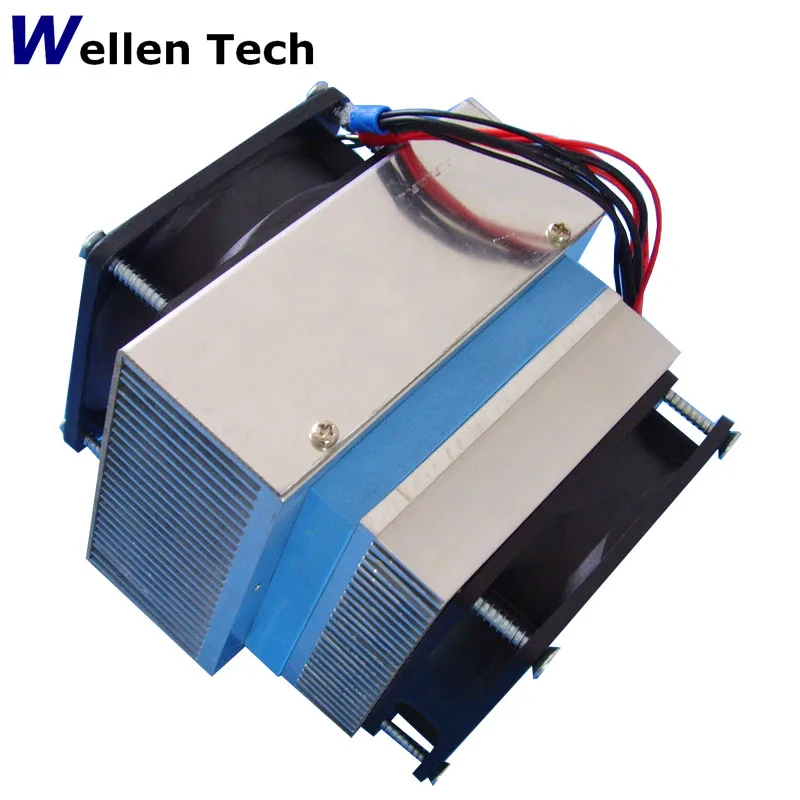

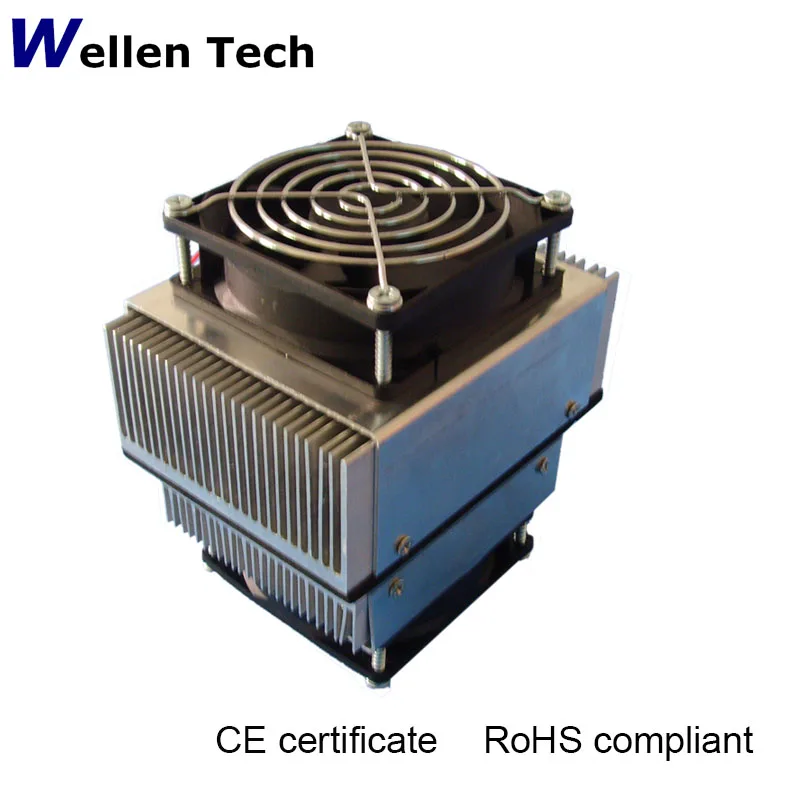

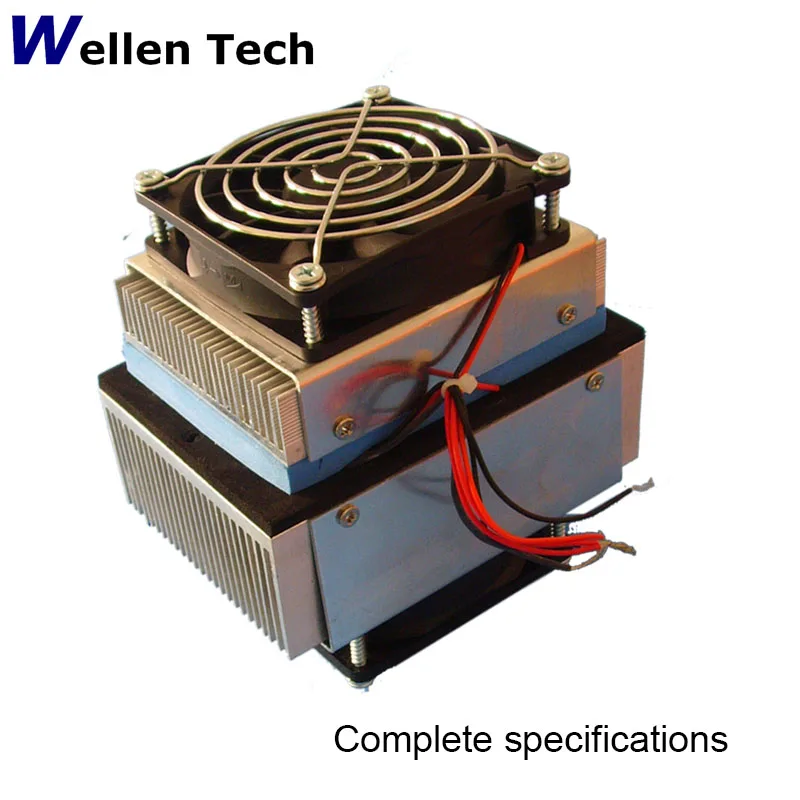

Thermoelectric Cooling Assembly Air to Air WFF-36
Features
1. Higher cooling efficiency and longer working time.2. Top quality & competitive price
3. Eco-friendly
4. Small size&Easy to operate
5. All products are RoHS and REACH compliant.
6. ISO9001 verified
7. Customizable.
Applications:
* Analytical instrumentation* Medical diagnostics
* Photonics laser systems
* Industrial instrumentation
* Food and beverage cooling
* Tele-comunication facilities

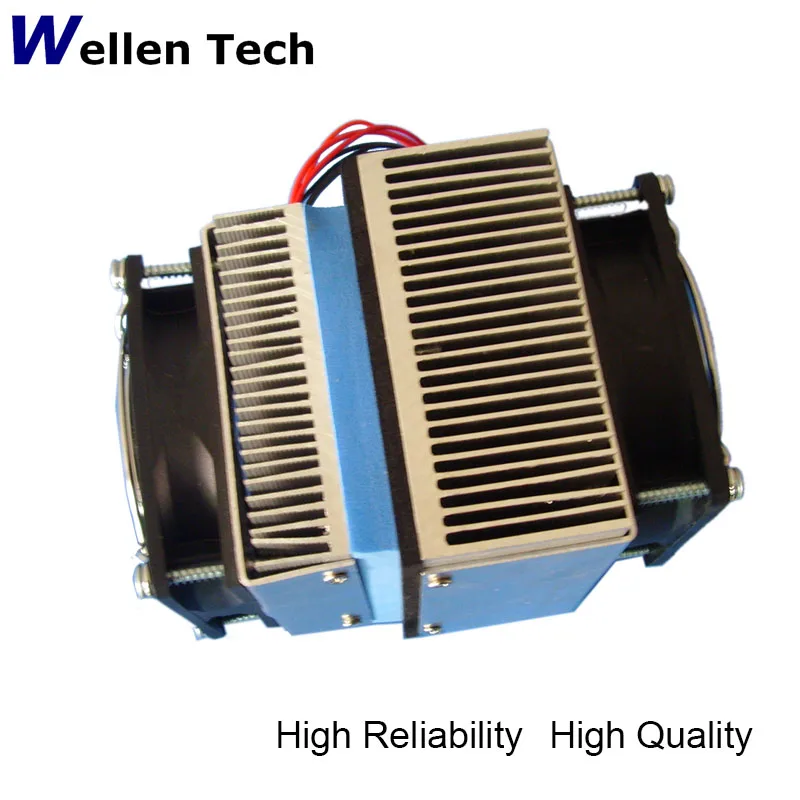

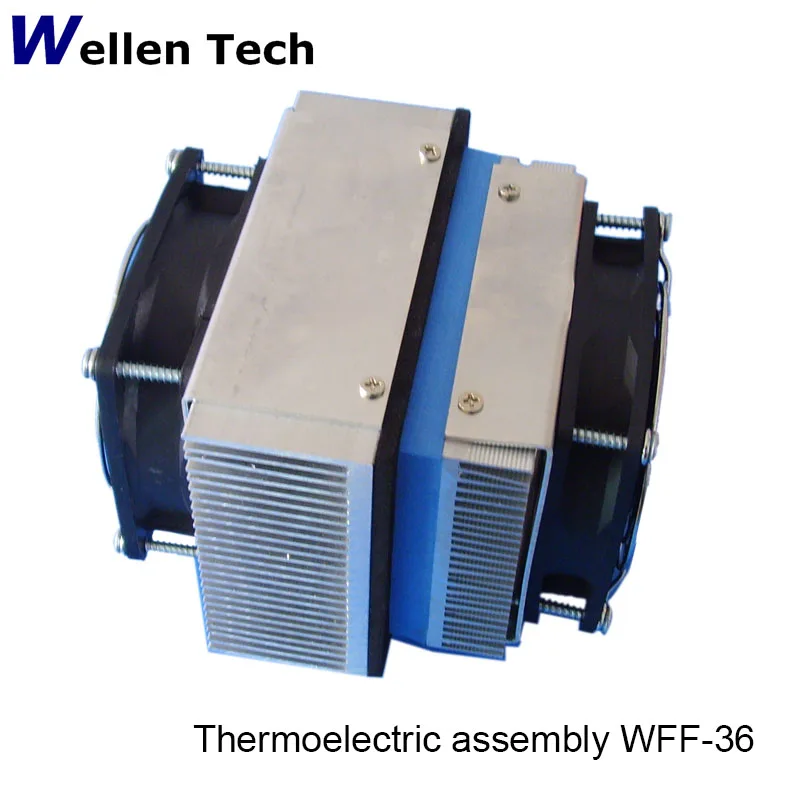

Thermoelectric assembly WFF-36W

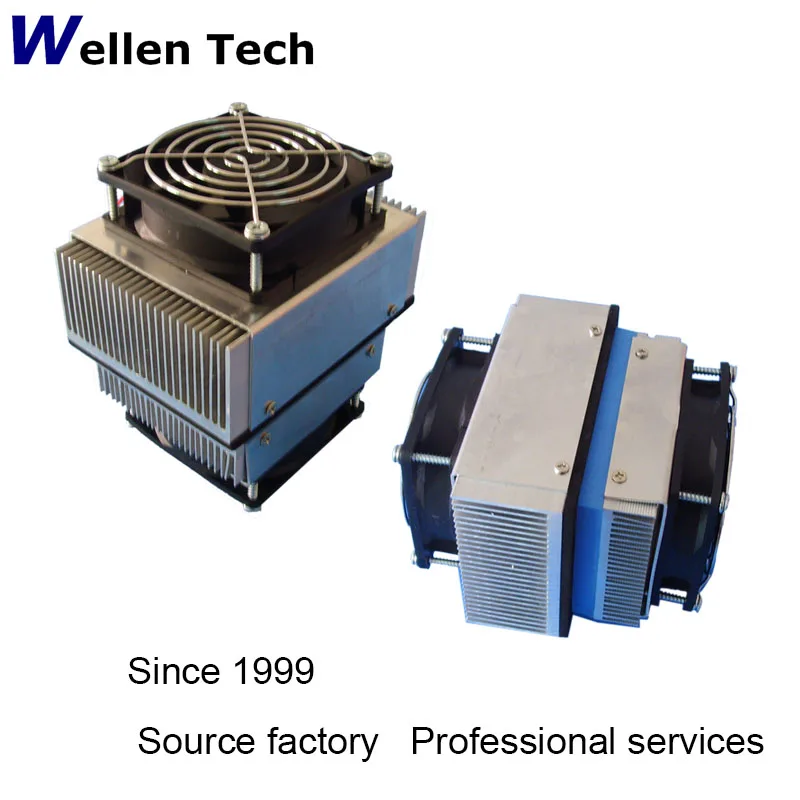

Since year 1999 High Quality High Reliability
Source factory Professional services
Custom design is acceptable .(Wellen Tech www.wellentech.com )
All products are RoHS ans REACH compliant,SGS ISO9001 certified.
Products List
We can make the thermoelectric cooling assembly according to customer's requirement
Part No. | Cooling Power | Voltage（V) | Current（A） | Operating Temp（℃） | Weight(KG) |
WFF-26W-12 | 26W | 12 | 2.8-3A | -10~+70 | |
WFF-36W-12 | 36W | 12 | 4.2-5A | -10~+70 | 0.95 |
WFF-42W-12 | 42W | 12 | 5.1-6A | -10~+70 | 1.4 |
WFF-50W-12 | 50W | 12 | 5.6-6.5A | -10~+70 | 1.8 |
WFF-50W-24 | 50W | 24 | 2.8-3.5A | -10~+70 | 1.8 |
WFF-60W-12 | 60W | 12 | 7.2-8.5A | -10~+70 | 2.6 |
WFF-60W-24 | 60W | 24 | 3.8-4.2A | -10~+70 | 2.6 |
WFF-70W-12 | 70W | 12 | 8-9A | -10~+70 | 2.6 |
WFF-70W-24 | 70W | 24 | 4-4.5A | -10~+70 | 2.6 |
WFF-100W-12 | 100W | 12 | 11.3-12.5A | -10~+70 | 3.7 |
WFF-100W-24 | 100W | 24 | 5.7-6.5A | -10~+70 | 3.7 |
WFF-110W-24 | 110W | 24 | 8.6-10.1A | -10~+70 | |
WFF-150W-12 | 150W | 12 | 17-19A | -10~+70 | 4.5 |
WFF-150W-24 | 150W | 24 | 8.5-9.5A | -10~+70 | 4.5 |
WFF-200W-12 | 200W | 12 | 22.8-25A | -10~+70 | 7.1 |
WFF-200W-24 | 200W | 24 | 11.5-13A | -10~+70 | 7.1 |
WFF-200W-48 | 200W | 48 | 5.9-7A | -10~+70 | 7.1 |
WFF-205W-12 | 205W | 12 | 22.8-25A | -10~+70 | 7.1 |
WFF-205W-24 | 205W | 24 | 11.5-13A | -10~+70 | 7.1 |
WFF-205W-48 | 205W | 48 | 5.9-7A | -10~+70 | 7.1 |
WFF-300W-24 | 300W | 24 | 16.8-19.5A | -10~+70 | 11.1 |
WFF-300W-48 | 300W | 48 | 8.5-10A | -10~+70 | 11.1 |
WFF-300W-PRO | 300W | 48 | 9.2A | -10~+70 | 11 |
WFF-380W-24 | 380W | 24 | 23A | -10~+70 | 12.5 |
WFF-380W-48 | 380W | 48 | 12A | -10~+70 | 12.5 |
WFF-400W-24 | 400W | 24 | 23-26.8A | -10~+70 | 12.5 |
WFF-400W-48 | 400W | 48 | 11.6-13.5A | -10~+70 | 12.5 |
WFF-500W-PRO | 500W | 48 | 16.5A | -10~+70 | |
WFF-700W-48 | 700W | 48 | 20A | -10~+70 | 30 |
WFF-1200W-48 | 1200W | 48 | 30A | -10~+70 |

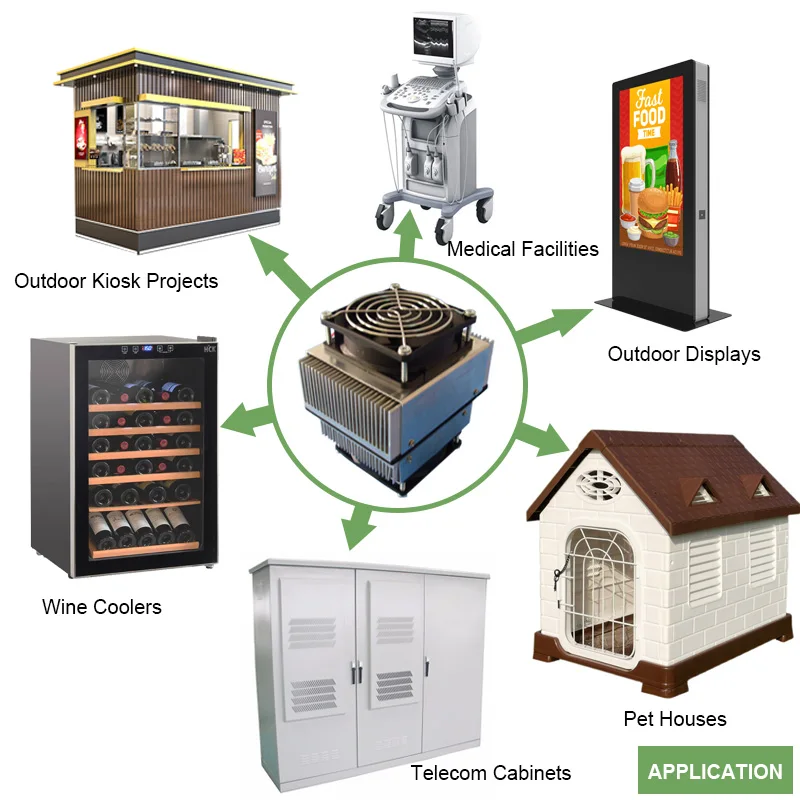

Products Application
Power Industry
Construction Industry
Communications Industry
Electrical Automation Industry
Company Profile
Pictures of workshops
Certifications
1) ISO 9001:2008 audited factory, Patented design
2) More than 20 years R&D and manufacturing experience for thermoelectric modules peltier coolers and design for dehumidifier; Cabinet air conditioner; Protection relay; Digital Meter; Temperature and humidity controller etc
3) ODM and OEM are warmly welcomed
4) Quality guarantee, 1 years warranty
5) 7/24h service, better pre-sale and after-sale service.
6) Professional suggestions.
2) More than 20 years R&D and manufacturing experience for thermoelectric modules peltier coolers and design for dehumidifier; Cabinet air conditioner; Protection relay; Digital Meter; Temperature and humidity controller etc
3) ODM and OEM are warmly welcomed
4) Quality guarantee, 1 years warranty
5) 7/24h service, better pre-sale and after-sale service.
6) Professional suggestions.
