Product Overview
Description
SUYEEGO inverter charger 7.2kw 8kw 8.2kw 10kw 10.2kw solar charge controller 180A pure sine wave hybrid solar inverter
Product Description
1.Inverter running without battery
2.Built-in Lithium battery automatic activation
3.Smart battery charge design to optimize battery life
4.Built-in anti-dusk kit for harsh environment

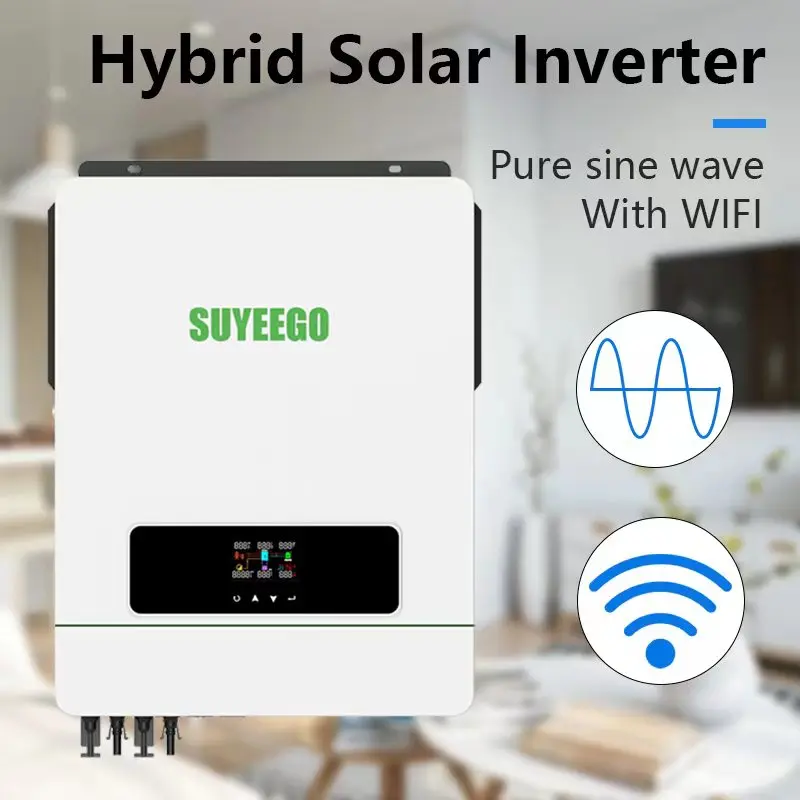

5.Pure sine wave solar inverter(on/off Grid)
6.High PV input voltage range(90~500VDC)
7.One-click restoration to factory Settings

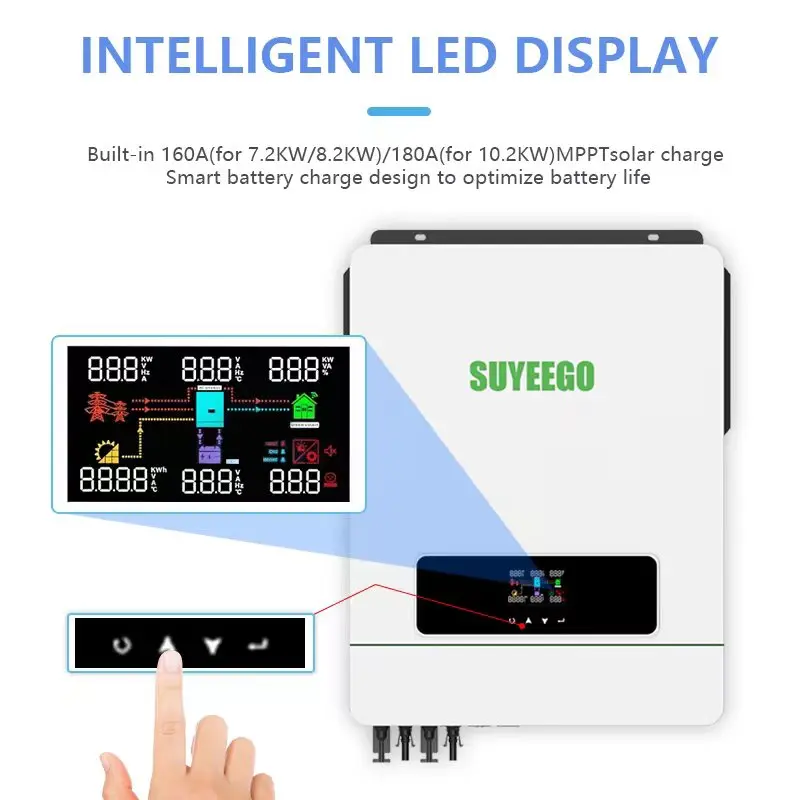

8.Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
2.Built-in Lithium battery automatic activation
3.Smart battery charge design to optimize battery life
4.Built-in anti-dusk kit for harsh environment
5.Pure sine wave solar inverter(on/off Grid)
6.High PV input voltage range(90~500VDC)
7.One-click restoration to factory Settings
8.Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
Product Paramenters

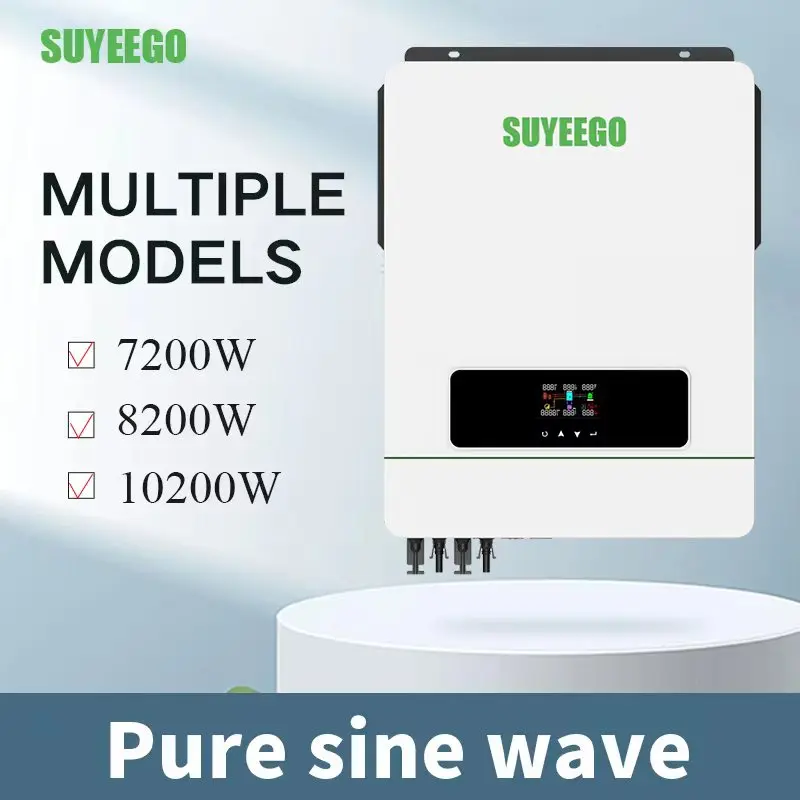

Model | SYGMAX 7.2KW | SYGMAX 8.2KW | SYGMAX 10.2KW | |||
Maximum PV Input Power | 7200w | 8200w | 10200w | |||
Rated Output Power | 7200w | 8200w | 10200w | |||
Maximum Solar Charging Current | 160A | 160A | 180A | |||
PV Input(DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||
Start-up Voltage/Initial Feeding Vol tage | 90VDC/120VDC | |||||
MPPT Voltage Range | 90VDC~450VDC | |||||
Number Of MPPT Trachers/Maximum Input Current | 1/27A | |||||
GRID OUTPUT(AC) | ||||||
Nominal Output Voltage | 200/230/240VAC | |||||
Output Voltage Range | 195.5~253VAC | |||||
Nominal Output Current | 31.3A | 35.6A | 44.3A | |||
Power Factor | >0.99 | |||||
Feed-in Grid Frequency Range | 49~51±1Hz | |||||
TWO LOAD OUTPUT POWER(V2.0) | ||||||
Full Load | 7200W | 8200W | 10200W | |||
Maximum Main Load | 7200W | 8200W | 10200W | |||
Maximum Second Load(Battery mode) | 2400W | 2700W | 3400W | |||
Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | |||
Main Load Return Voltage | 48VDC | 48VDC | 48VDC | |||
AC INPUT | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||||
Maximum AC Input Current | 40A | 40A | 50A | |||
Nominal Operating Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||
Surge Power | 14400W | 16400W | 20400W | |||
BATTERY MODE OUTPUT(AC) | ||||||
Nominal Output Voltage | 48VDC | |||||
Output Wavefrom | Pure sine wave | |||||
Efficiency(DC to AC) | 94% | |||||
BATTERY & CHARGER | ||||||
Nominal DC Voltage | 48VDC | |||||
Maximum Solar Charging Current | 160A | 160A | 180A | |||
Maximum AC Charging Current | 140A | 160140A | 160A | |||
PHYSICAL | ||||||
Dimension,D x W x H | 537*390*130mm | |||||
Net Weight(kgs) | 14.2 | 14.2 | 15 | |||
Client feedback
Company Introduction
FAQ
1. How does a power inverter work?
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2.What is the difference between PWM inverter and MPPT inverter?
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%. MPPT is Maximum PowerPoint Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%.
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%. MPPT is Maximum PowerPoint Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%.
3.How to distinguish Low voltage and high voltage inverter ?
Low voltage, Max PV voltage Voc 150V. High voltage, Max PV voltage Voc 450V
Low voltage, Max PV voltage Voc 150V. High voltage, Max PV voltage Voc 450V
4. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.

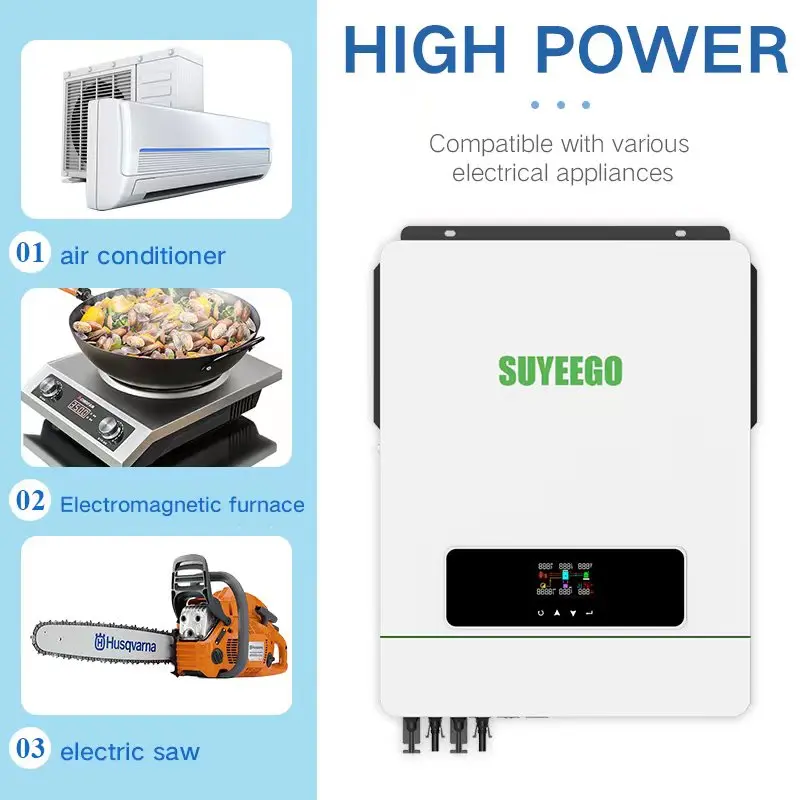

Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid. Devices such as air conditioner, freezer and most medical equipment require a pure sine wave inverter to run.
5. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
6. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
Yes, we accept OEM and ODM service.
7. How long of the delivery time, sample order and wholesale order?
For Sample order, within 7 days; For 100pcs wholesale order, 7-15 working days.
For Sample order, within 7 days; For 100pcs wholesale order, 7-15 working days.
8. How do I know which inverter to buy?
Different devices require specific wattage to run. Please check the following formula to determine the correct watt model.
Different devices require specific wattage to run. Please check the following formula to determine the correct watt model.
