Product Overview
Description
Products Description

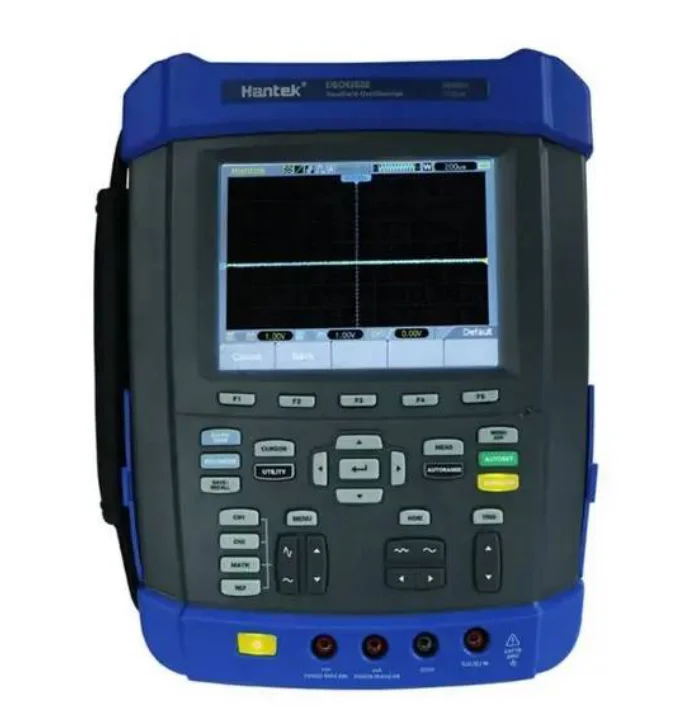

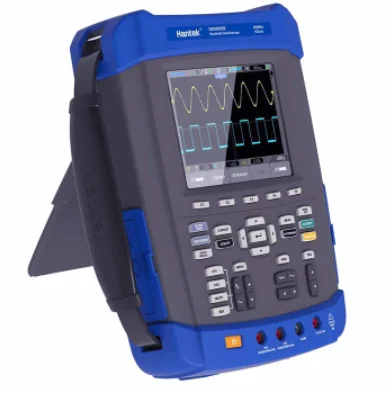

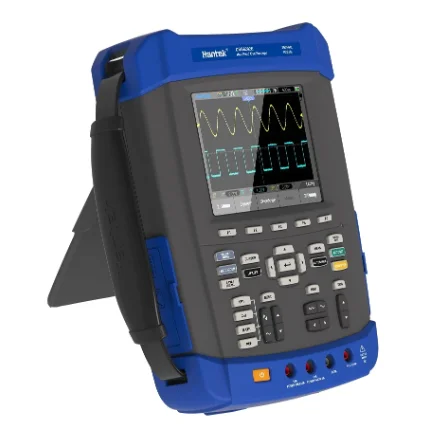

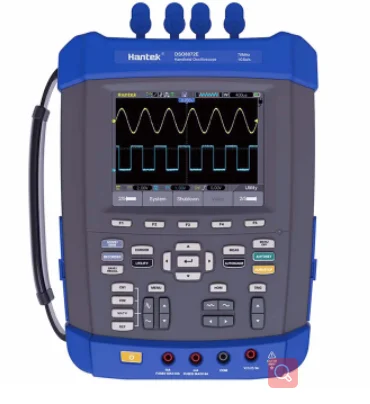

Hantek DSO8202E Handheld Digital Oscilloscope 2ch 200Mhz 1GS/s Sampling Rate 2M Memory Depth Portable Osciloscopio
Dsodso8202e Handheld Oscilloscope 2 Channel 200MHz 1GSa/s Sampling Rate Digital Spectrum Analyzer
DSO8000E series
Six in one: oscilloscope/recorder/DMM/spectrum analyzer/frequency counter/arbitrary waveform generator. IP-51 score for evidence of dust, drops and flickering to withstand harsh environments. The major insurance confirms the European safety standard. Battery indicator with easy-to-change ports. 18650 battery box which can be selected to pair the 18650 battery by yourself. Anti-theft lock hole, tripod fixed hole, hang rope, flash light that can be used in the dark. Interchangeable BNC safety links and an additional set of joints. 1GSa/s sampling rate, 2M memory depth, 6000 DMM DMM. Large 5.6 inch TFT color LCD screen; High resolution (640*480)
Overview:
* Six in one: oscilloscope/recorder/DMM/spectrum analyzer/frequency counter/arbitrary waveform generator.
* IP-51% rating for evidence of dust, drops and flickering to withstand harsh environments.
* Major insurance approvals to European safety standard.
* Battery indicator with easy-to-change ports. 18650 battery box which can be selected to pair the 18650 battery by yourself.
* Anti-theft lock hole, tripod fixed hole, hang rope, flash light that can be used in the dark.
* Interchangeable BNC safety links and an additional set of joints.
* High bandwidth 70MHz-200MHz oscilloscope, 1GSa/s sampling rate, 2M memory depth.
* 25Mz Arb. Waveform generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy to simulate converter
* 6000 counting DMM, AC/DC voltage, AC/DC current, resistance, breakage, capacity and diode function.
* FFT spectral analysis; Waveform mathematics: add, subtraction, multiplication and division; X-Y mode; 20 automatic measurements,
pass/error checking function, applies engineering application.
* Abundant trigger function, double time base sampling, easy to observe two waveforms of different frequency.
* Recording and repetition of more than 1000 waveforms.
* Large 5.6 inch TFT color LCD screen; High resolution (640*480)
* USB Host/device 2.0 full speed interface; Removable disk support; The WIFI/LAN option is easy to control by PC or long distance.
* Waveform data can be output in WORD,EXCEL, BMP, jpg as time and voltage.

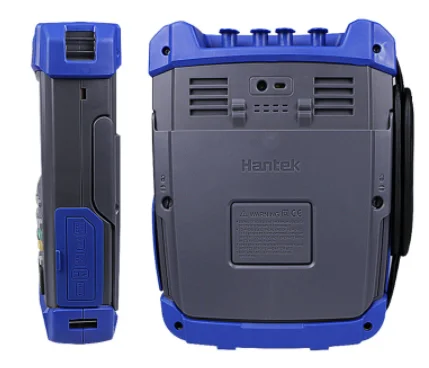

Details Images
