Product Overview

Description



Product Description

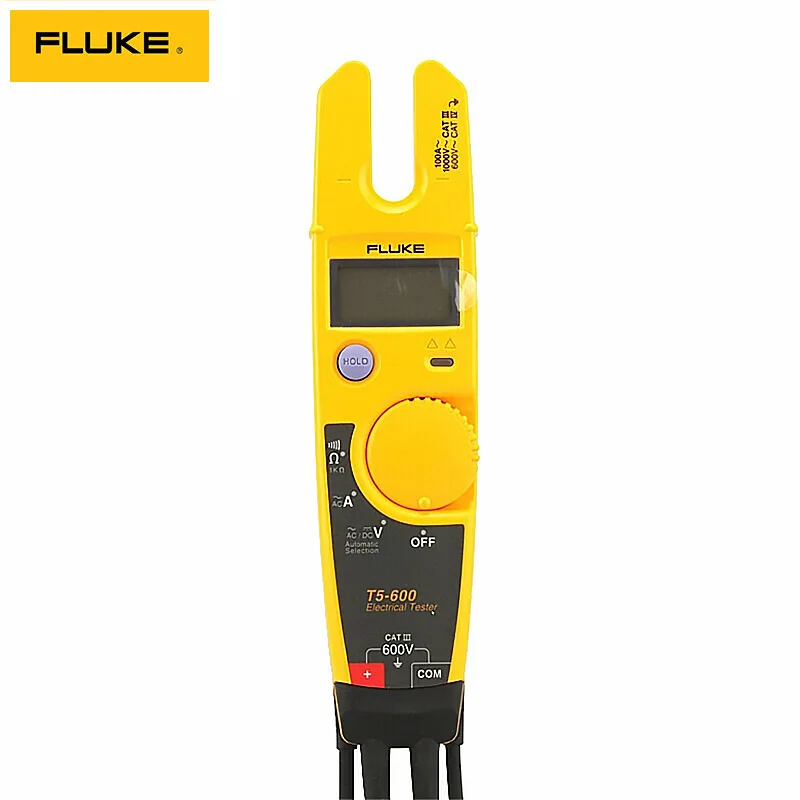

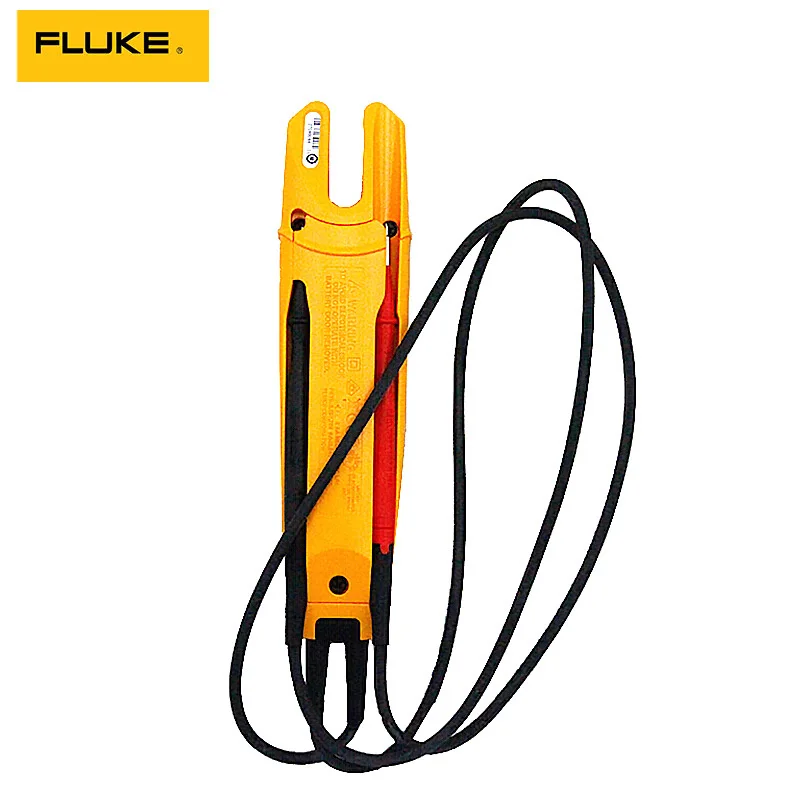

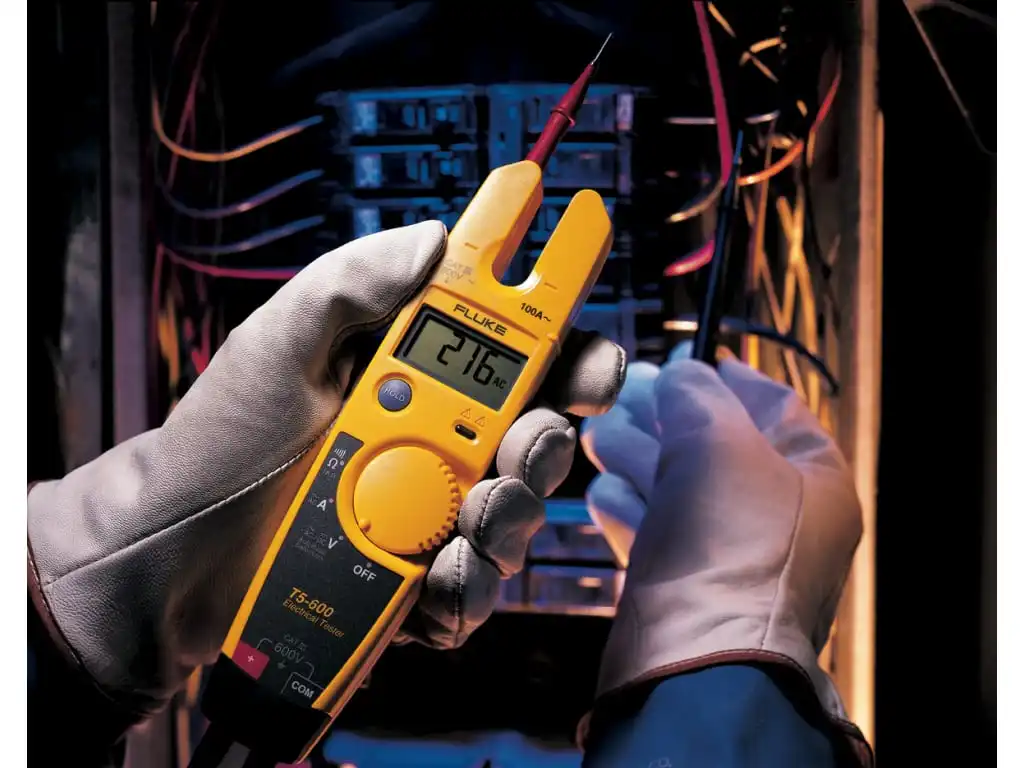

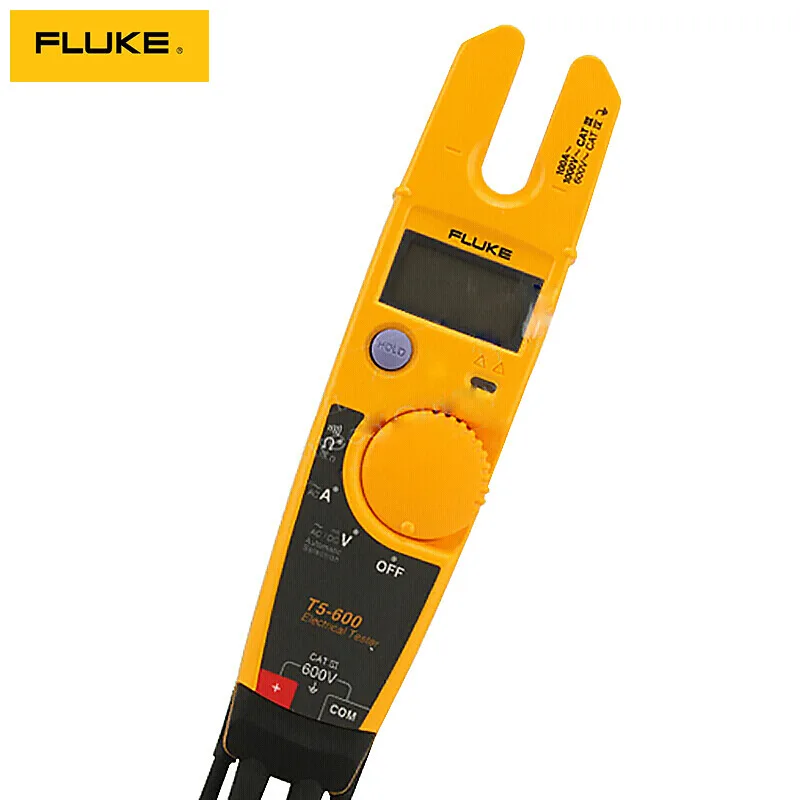

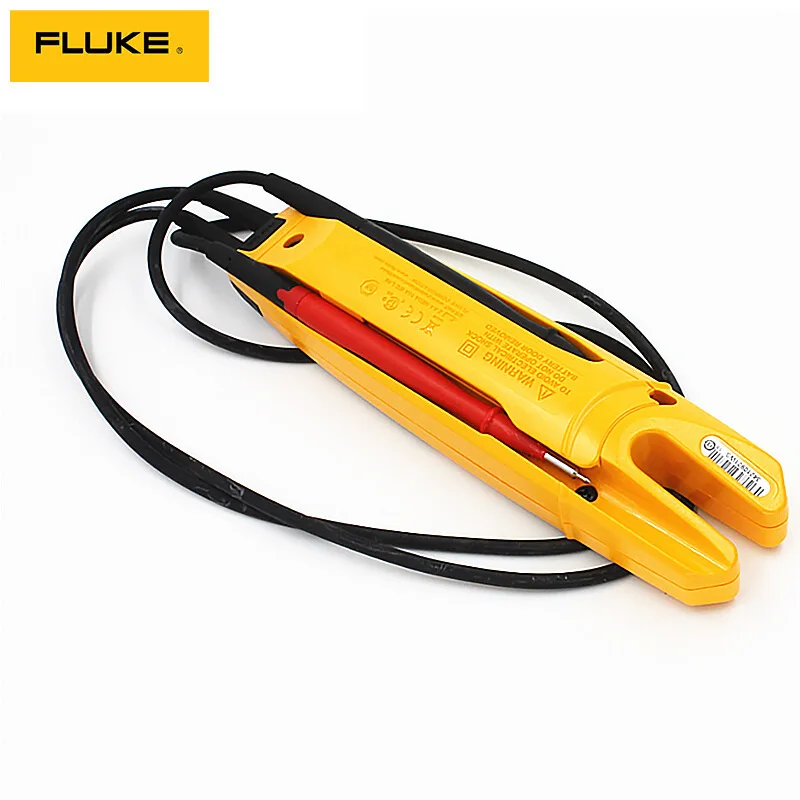

Fluke T5-600 Continuity and Current Tester, 600V AC/DC
* Automatically measures volts ac and volts dc with precise digital resolution
* Displays resistance to 1000Ω, current to 100 amps AC
* Easy and accurate OpenJaw™ current measurement
* Continuity beeper
* Compact design with neat probe storage
* Rugged enough to withstand a 10-foot (3m) drop
* Detachable SlimReach™ probe tips are customized for national electrical standards
* Test leads accept Fluke accessory test clips
* Can stay connected much longer than solenoid type tester
* Auto off mode to conserve battery life
* Optional holster attaches to a belt and neatly stows test leads




Specification


Jaw Opening
0.5" (12.9 mm)
Max Wire Size
1/0 THHN Cable
Current Range AC RMS
0 to 100.0 A
Accuracy AC Current (50/60 Hz)
3% ± 3 counts
AC Response
Averaging
Voltage Range AC
0 to 600 V
Accuracy AC Voltage
1.5% ± 2 counts
Voltage Range DC
0 to 600 V
Accuracy DC Voltage
1% ± 1 count
Resistance Range
0 to 1000 Ω
Continuity Beeper Threshold
On at <25 Ω, off at >400 Ω
Volts Indicator LED Threshold
Guaranteed on by 30 V AC
Environmental Specifications
Operating Temperature
50 to 122°F (10 to 50°C)
Storage Temperature
-22 to 140°F (-30 to 60°C)
Humidity (Without Condensation)
0 to 95% at 41 to 86°F (5 to 30°C)
0 to 75% at 86 to 104°F (30 to 40°C)
0 to 45% at 104 to 122°F (40 to 50°C)
Dust/Water Resistance
Yes
Operating Altitude
6561.7' (2000 m)
Temperature Coefficient
0.1 x (specified accuracy)/°C (<18°C or >28°C)
Safety Specifications
Overvoltage Category
CAT III 600 V ac/dc (EN61010-1)
Agency Approvals
CSA, TUV and CE
Maximum Voltage
Between any terminal and earth ground
Mechanical Specifications
Calibration Cycle
One-year
Current Sensor Opening
0.5" (12.9 mm)
Low Battery Indicator
Yes
Battery Type
2 x AA batteries
Battery Life
200 hour zinc chloride, 400 hour alkaline
Dimensions
1.2 x 2 x 8" (30.5 x 51 x 203 mm)
Weight
0.66 lb (300 g)
