Product Description

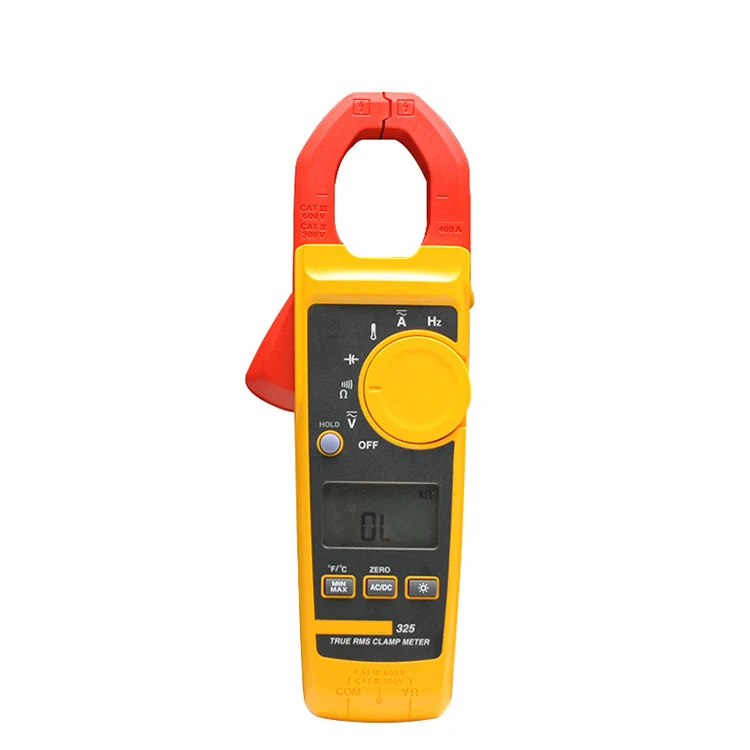

The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians.
Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
* DC current
* DC voltage
* Temperature
* Frequency
Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
* DC current
* DC voltage
* Temperature
* Frequency
Features：
* Measures AC/DC current up to 400 A through jaw
* AC/DC voltage to 600 V using test leads
* Measures frequency from 5 Hz to 500 Hz; resistance to 40 k
* Measures temperature from -10 °C to 400 °C with included K-type thermocouple
* Min/Max function records important values * CAT III 600 V, CAT IV 300 V safety rating
* Measures AC/DC current up to 400 A through jaw
* AC/DC voltage to 600 V using test leads
* Measures frequency from 5 Hz to 500 Hz; resistance to 40 k
* Measures temperature from -10 °C to 400 °C with included K-type thermocouple
* Min/Max function records important values * CAT III 600 V, CAT IV 300 V safety rating
Specification
Product number | 323 | 324 | 325 | |||
AC current | ||||||
Range | 400.0 A | 40.00 A/400.0 A | 40.00 A/400.0 A | |||
Accuracy | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) | |||
DC current | ||||||
Range | - | - | 40.00 A/400.0 A | |||
Accuracy | - | - | 2 % ± 5 digits | |||
AC voltage | ||||||
Range | 600.0 V | 600.0 V | 600.0 V | |||
Accuracy | 1.5 % ± 5 digits | 1.5 % ± 5 digits | 1.5 % ± 5 digits | |||
DC voltage | ||||||
Range | 600.0 V | 600.0 V | 600.0 V | |||
Accuracy | 1.0 % ± 5 digits | 1.0 % ± 5 digits | 1.0 % ± 5 digits | |||
Resistance | ||||||
Range | 400.0 Ω/4000 Ω | 400.0 Ω/4000 Ω | 400.0 Ω/4000 Ω/40.00 kΩ | |||
Accuracy | 1 % ± 5 digits | 1 % ± 5 digits | 1 % ± 5 digits | |||
Continuity | ≤ 7Ω | ≤ 3Ω | ≤ 3Ω | |||
Capacitance | - | 100.0 µF to 1000 µF | 100.0 µF to 1000 µF | |||
Frequency | - | - | 5.0 Hz to 500.0 Hz | |||
AC response | True-rms | True-rms | True-rms | |||
Backlight | - | Yes | Yes | |||
Data hold | Yes | Yes | Yes | |||
Contact temperature | - | -10.0 °C to 400.0 °C (14.0 °F to 752.0 °F) | -10.0 °C to 400.0 °C (14.0 °F to 752.0 °F) | |||
Min/Max | - | - | Yes | |||
Size | ||||||
H x W x D (mm) | 207 x 75 x 34 | 207 x 75 x 34 | 207 x 75 x 34 | |||
Max wire diameter | 30 mm (600 MCM) | 30 mm (600 MCM) | 30 mm (600 MCM) | |||
Weight | 265 g | 208 g | 283 g | |||
Category rating | CAT III 600 V CAT IV 300 V | CAT III 600 V CAT IV 300 V | CAT III 600 V CAT IV 300 V | |||
Packing & Delivery

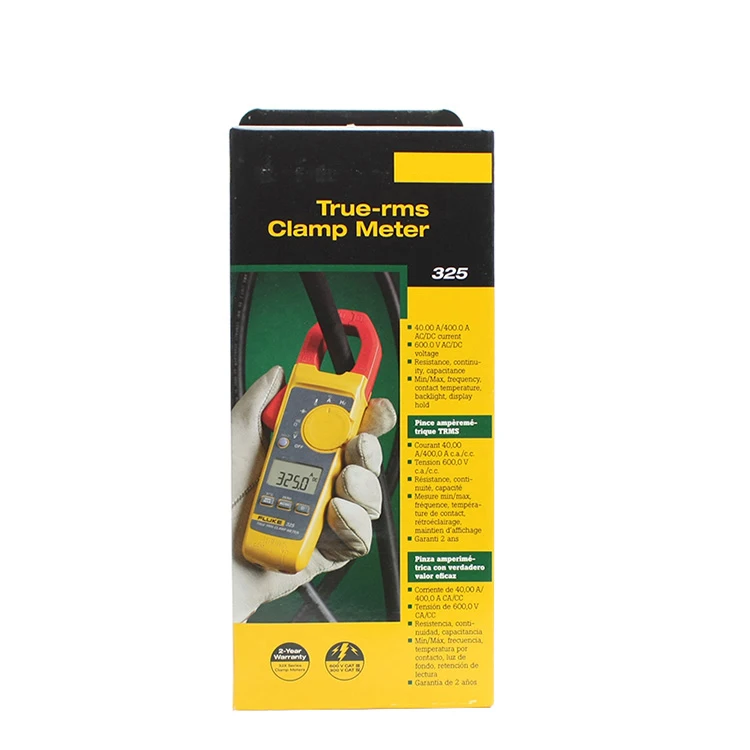

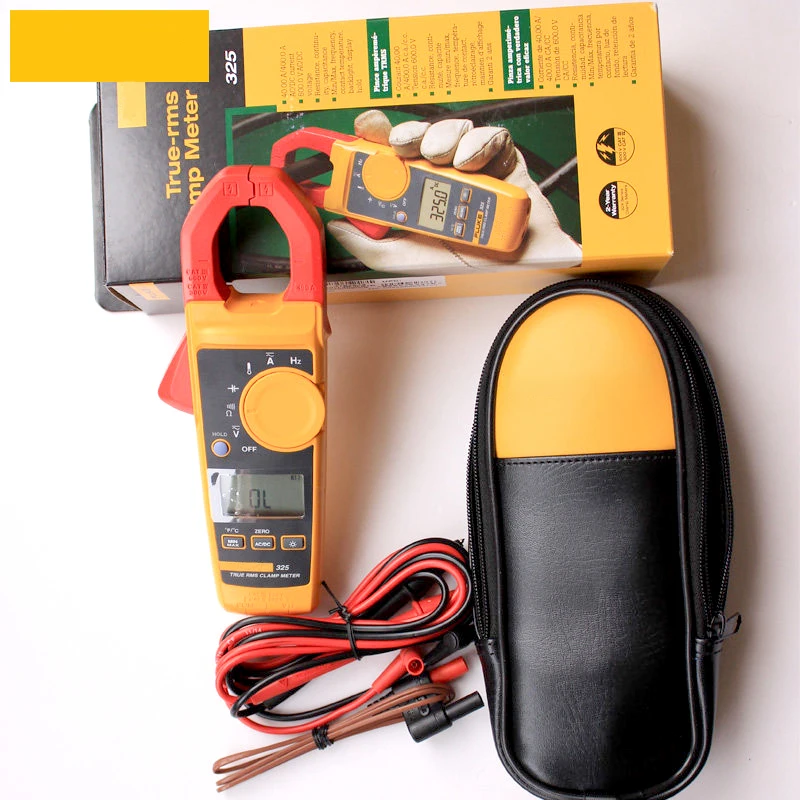

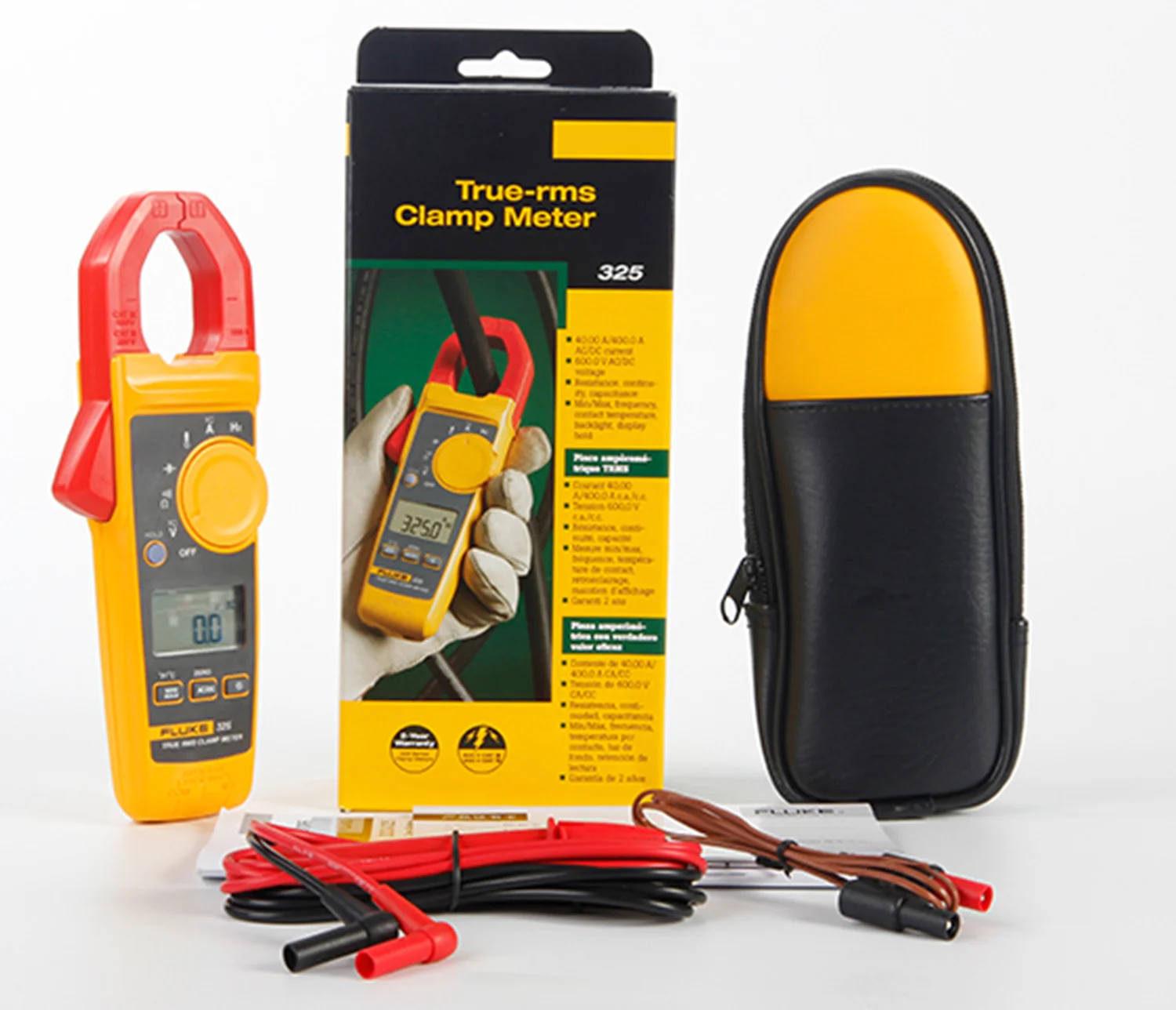

* * Fluke 325 True-RMS Clamp Meter
* * TL75 Test Leads
* Test Leads
* Soft Carrying Case
* AA Alkaline Batteries
* * TL75 Test Leads
* Test Leads
* Soft Carrying Case
* AA Alkaline Batteries
