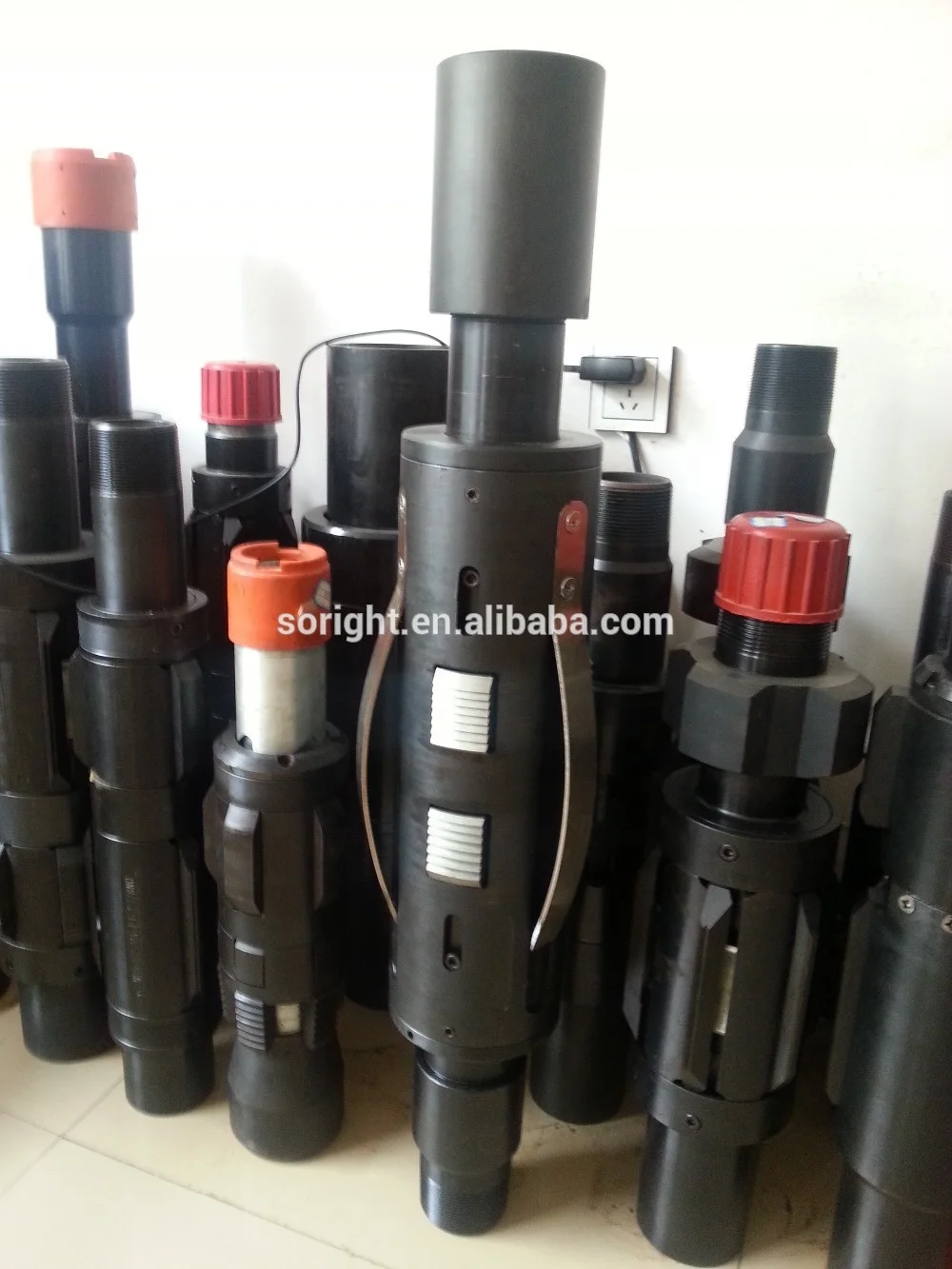

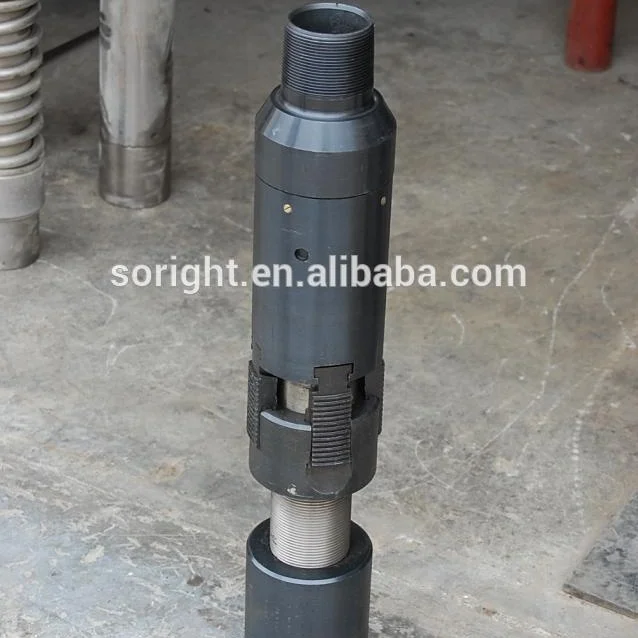

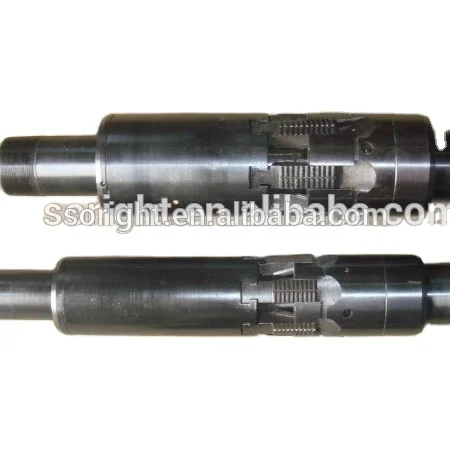

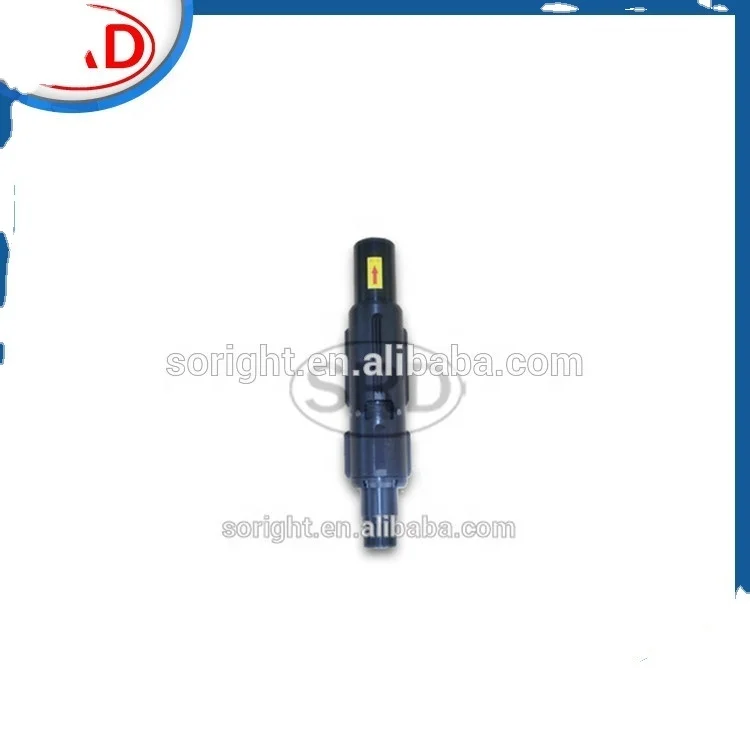

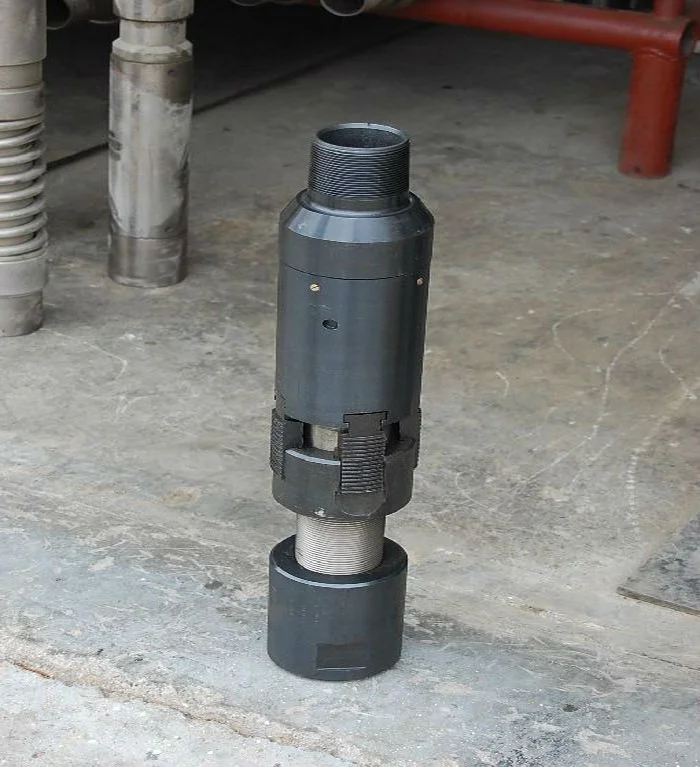

API 5CT standard alloy steel tubing anchor for PC pump

Product Overview

Description



API 5CT standard alloy steel tubing anchor

for PC pump







Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing. The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing as the well is pumped by a rod pump.



Place of Origin	Tianjin, China (Mainland)
Brand Name	China Petroleum Equipment
Model Number	2-3/8" to 4-1/2"
Type	Tubing anchor
Machine Type	Oil production
Certification	API 5CT
Material	alloy steel, stainless steel
Processing Type	Forging
Use	Oil production



1. Characteristics:

    (1)effectively anchoring the tubing string on the wall of well during the PC pump operation.

    (2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 2-3/8” to 4-1/2”
3. Connecting thread type: EUE, NUE







Specification of the tubing anchor



Specification	Max OD (mm)	Drift diameter (mm)	Slip free OD(mm)	Slip open max OD (mm)	Working pressure(Mpa)	Pulling tension (KN)	Setting pressure (Mpa)	Release force (KN)	Lift Load (KN)	Suitable casing diameter (mm)
Tubing Anchor	114	62	112	132	35	≤60	8~10	90~100	≤400	121.4~124.3



Feature:

1. Safely and firmly set in all type of casing, including premium grades.

2. Bi-directional slip anchoring, which improved the ability of pressure difference resistance between upper and lower pressure

3. Hydrostatic setting, straight pull releasing, suitable for all kinds wells (vertical Wells, deviated well and horizontal well)

4. Bore diameter could satisfy the requirements of different kind wells.

























Tianjin Soright Technology & Development Co.,Ltd is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.







The company keeps on the Quality is the first. Quality Management System has been set up to ensure the whole process being properly controlled. All of products are designed and processed meeting API Specifications.







Our main products are: stuffing box, sucker rod, subsurface sucker rod pump, thread protector, split cone packing, tubing crossover, float shoe and float collar etc.
