API 5CT Down Hole Tool Oil Well String Tubing Anchor

Product Overview

Description

API 5CT standard downhole tool oil well string tubing anchor

Basic information

Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing. The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing as the well is pumped by a rod pump.

1. Characteristics: (1)effectively anchoring the tubing string on the wall of well during the PC pump operation.

                            (2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 2-3/8” to 4-1/2”
3.Connecting thread type: EUE, NUE

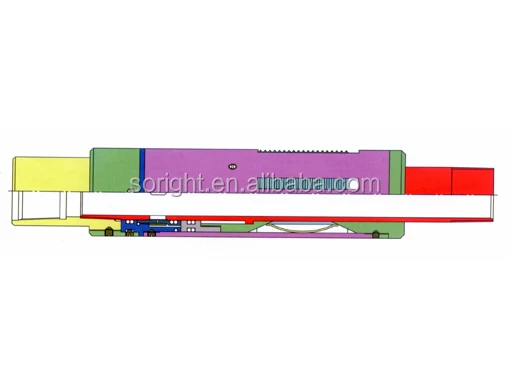

Specification of the tubing anchor

Feature:

1. Safely and firmly set in all type of casing, including premium grades.

2. Bi-directional slip anchoring, which improved the ability of pressure difference resistance between upper and lower pressure

3. Hydrostatic setting, straight pull releasing, suitable for all kinds wells (vertical Wells, deviated well and horizontal well)

4. Bore diameter could satisfy the requirements of different kind wells.

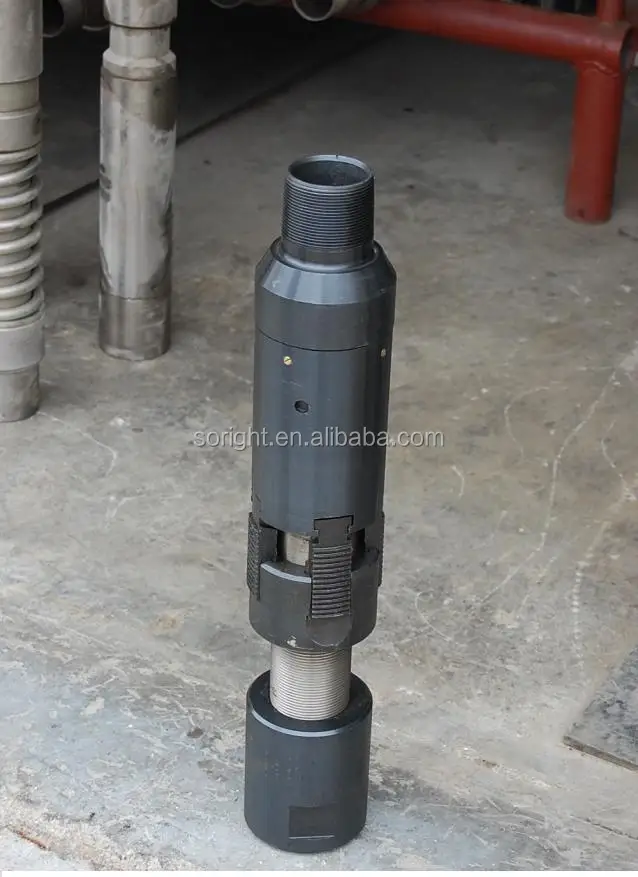

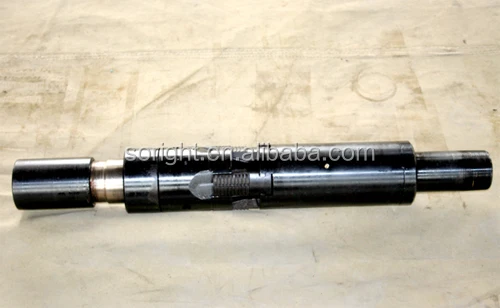

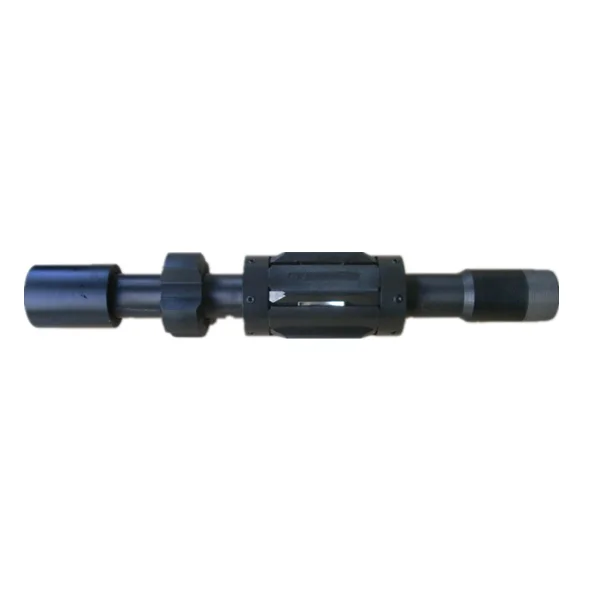

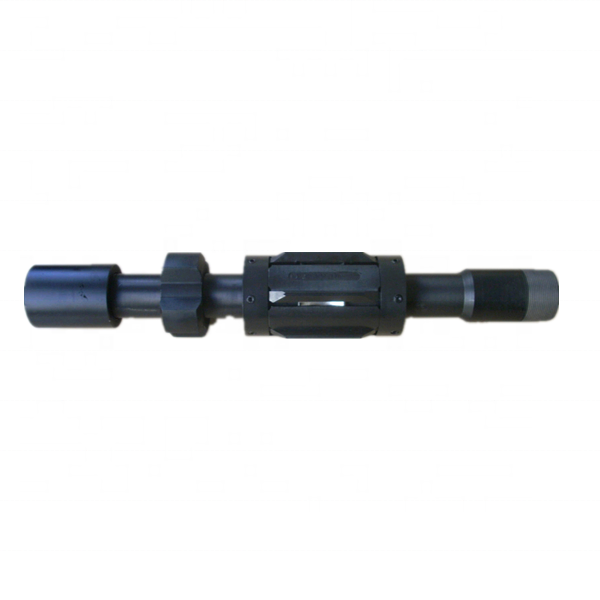

Photos of tubing anchor

Our working procedure

1. Demonstrated company product on Alibaba web

2. Received the inquiry from potential customer

3. Provided the quotation and product techincal information to customer

4. Negotiated with customer about the price, payment terms, delivery terms etc.

5. Signed the product procurement contracts

6. Customer remitted the advance payment

7. Received the prepayment and arranged the production

8. Finished the production and inspection, chartered ship and booked space

9. Customer payed the follow-up payment for goods

10. Timely delivered the products to carrier and done customs clearance

11. Sent out the files to customer which including bill of lading, invoice, packing list, certificate of origin, product test report, certificate of quality etc.

Tianjin Soright Technology & Development Co.,Ltd is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.

The company keeps on the Quality is the first. Quality Management System has been set up to ensure the whole process being properly controlled. All of products are designed and processed meeting API Specifications.

Our main products are: stuffing box, sucker rod, subsurface sucker rod pump, thread protector, split cone packing, tubing crossover, float shoe and float collar etc.

API 5CT standard downhole tool oil well string tubing anchor
