Product Overview

Description

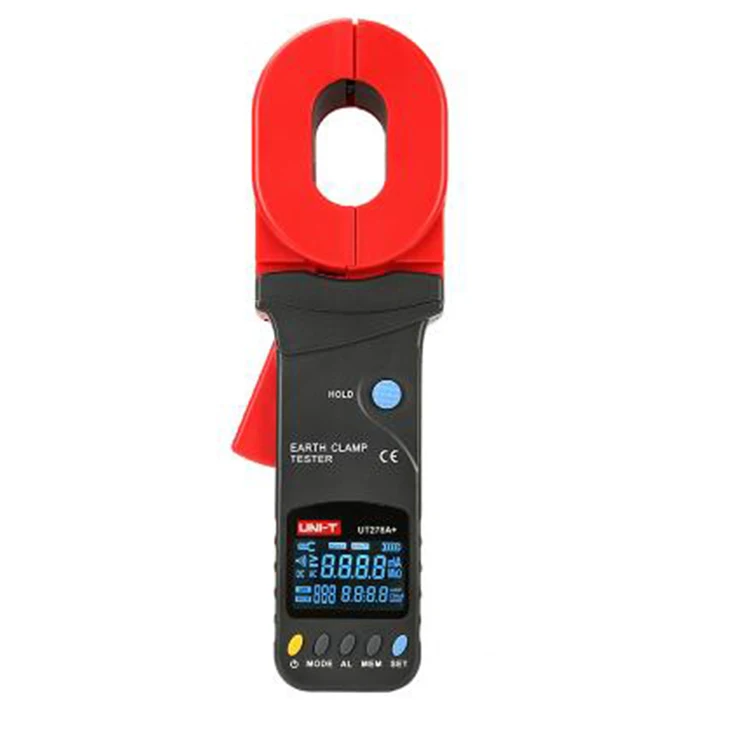

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter

Product Description

UT270 series clamp earth resistance tester is widely used in electric power, telecommunications, meteorology, oil field, construction and industrial electrical equipment, such as the ground resistance measurement, loop resistance measurement. In the measurement of the grounding system with a loop, it is not necessary to disconnect the ground from the assembly line, without the need of auxiliary electrode, safe and fast.

UT278A series clamp grounding resistance instrument with long jaw and round jaw points, long jaw, especially suitable for the flat ground.

Specifications	Range	Best Accuracy
Model		UT278A
Earth Ground Resistance (Ω)	0.01Ω-0.099Ω	±(1%+0.01)
	0.1Ω-0.99Ω	±(1%+0.01)
	1.0Ω-49.9Ω	±(1%+0.1)
	50Ω-99.5Ω	±(2%+0.5)
	100Ω-199Ω	±(3%+1)
	200Ω-395Ω	±(6%+5)
	400Ω-590Ω	±(10%+10)
	600Ω-800Ω	±(20%+20)
	800Ω-1200Ω	±(25%+30)
Leakage Current(A)	0mA-9mA	±(2.5%+1)
	10mA-99mA	±(2.5%+5)
	100mA-299mA	±(2.5%+10)
	0.30A-2.99A	±(2.5%+0.1)
	3.0A-9.9A	±(2.5%+0.3)
	10.0A-20.0A	±(2.5%+0.5)
	3A-30A	±(2.5%+0.5)
Features
Display Count	4 Digits Display LCD	√
Auto Range		√
Jaw Capacity		32mm
Single Measure Time	1 Second	√
Resistance Measurement Frequency	>1KHz	√
Current Measurement Frequency	50Hz/60Hz	√
Resistance Limit Alarm	1Ω-199Ω	√
Current Limit Alarm	1mA-499mA	√
Beeper and Light Alarm		√
Jamming Signal Recognition		√
Over-Range Display		√
Low Battery Indication		√
Data Logging		99

Accessories:

Batteries,
Test Ring,

Tool Box
