Product Overview
Description

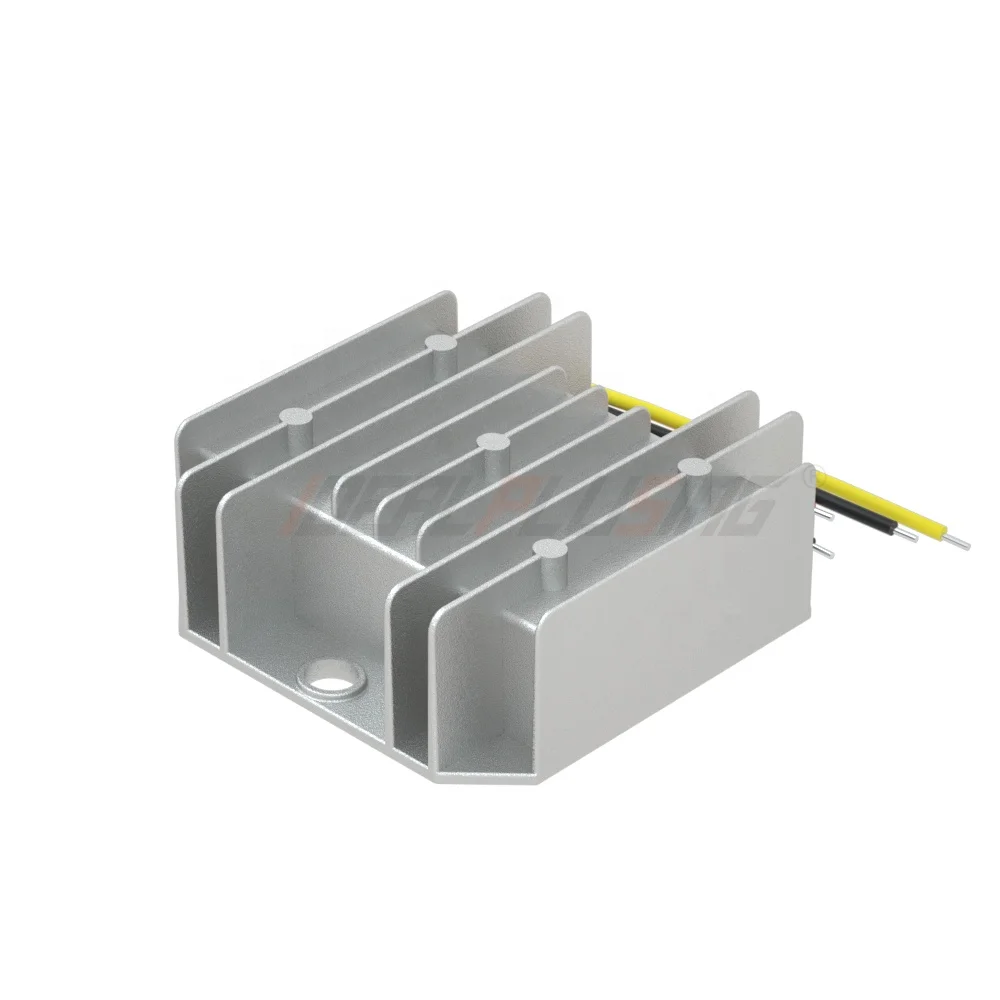

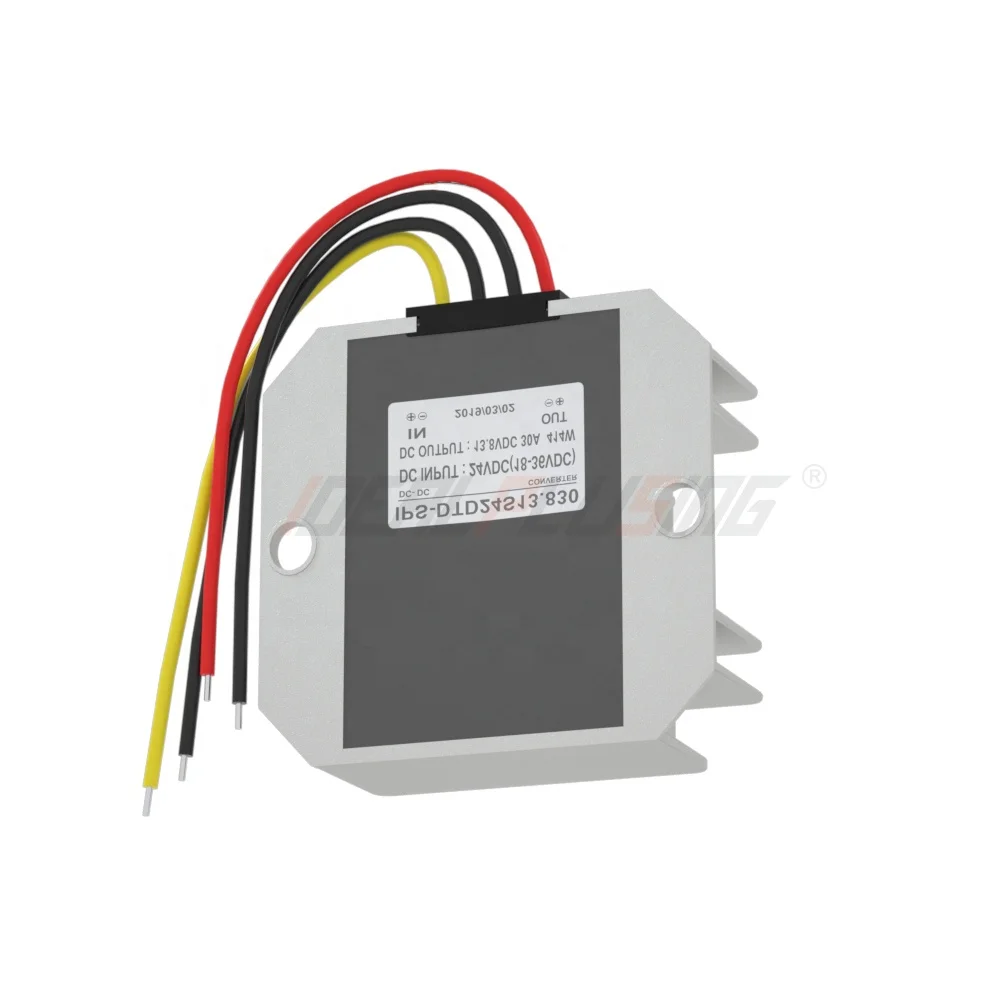

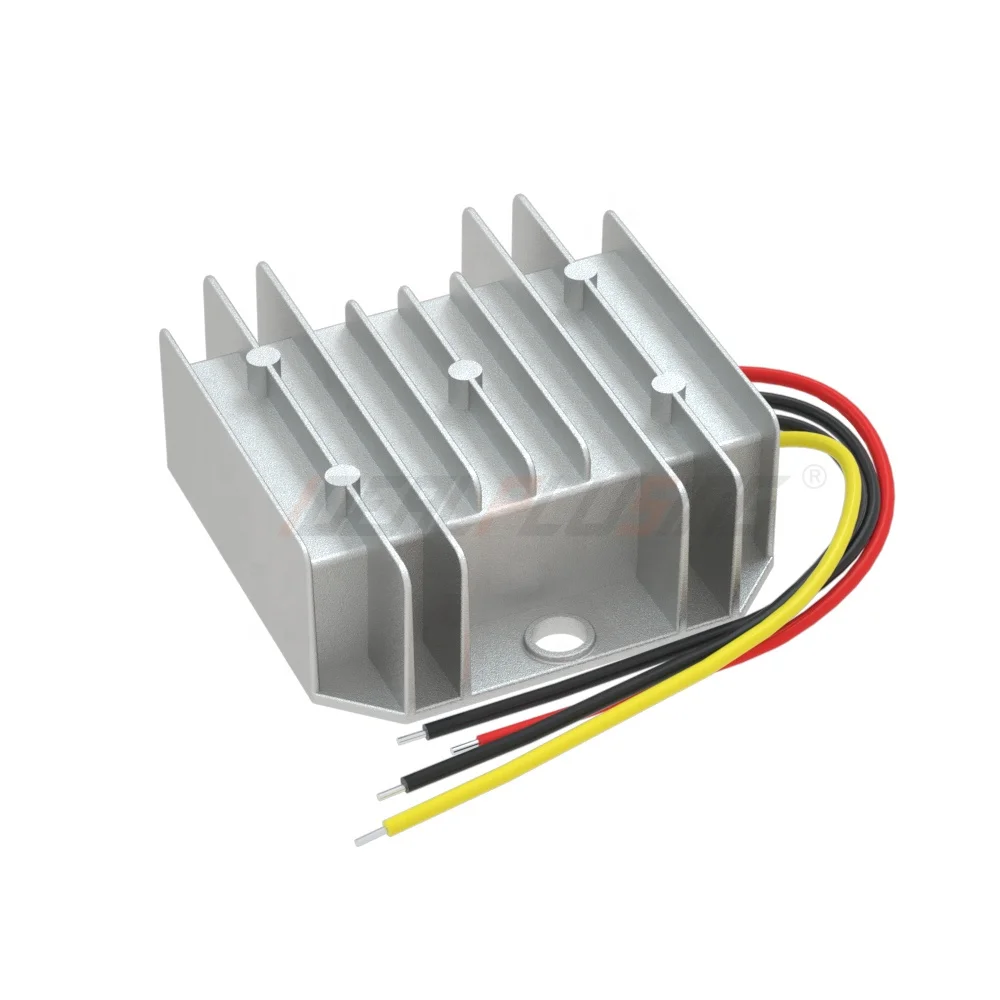

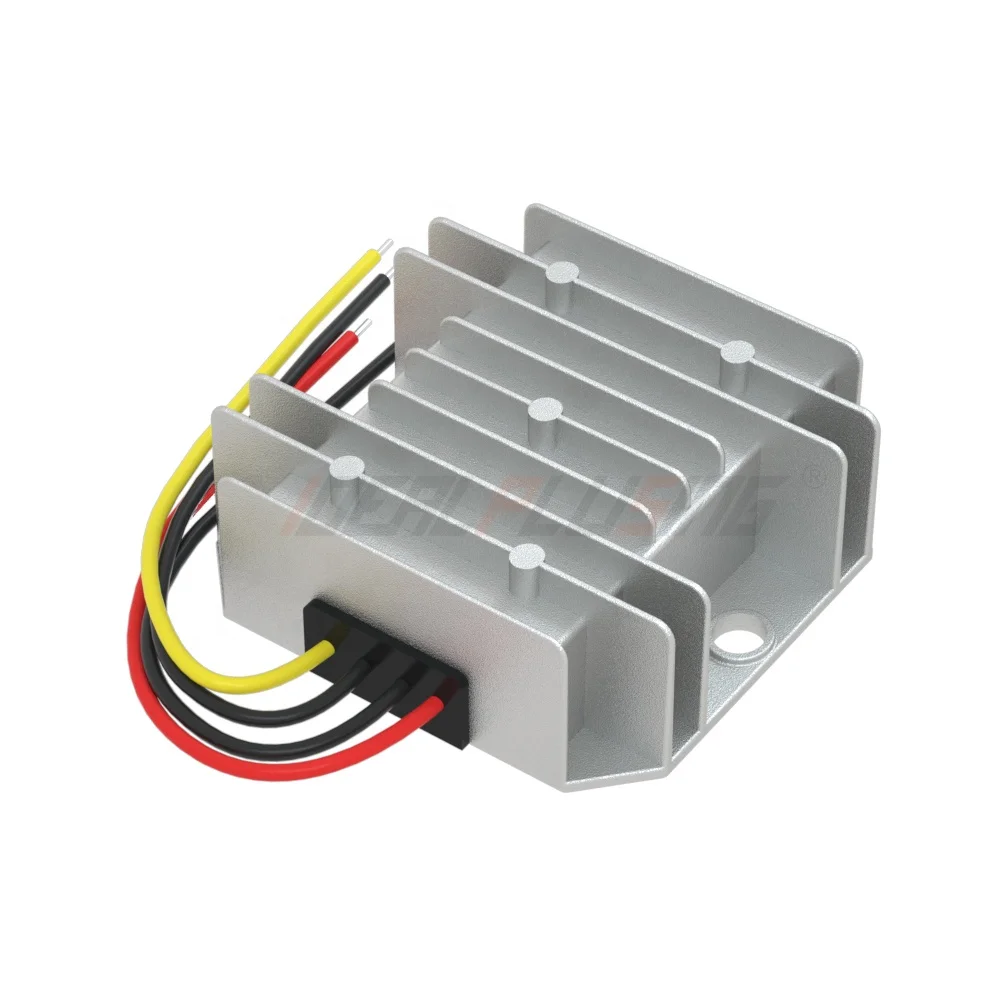

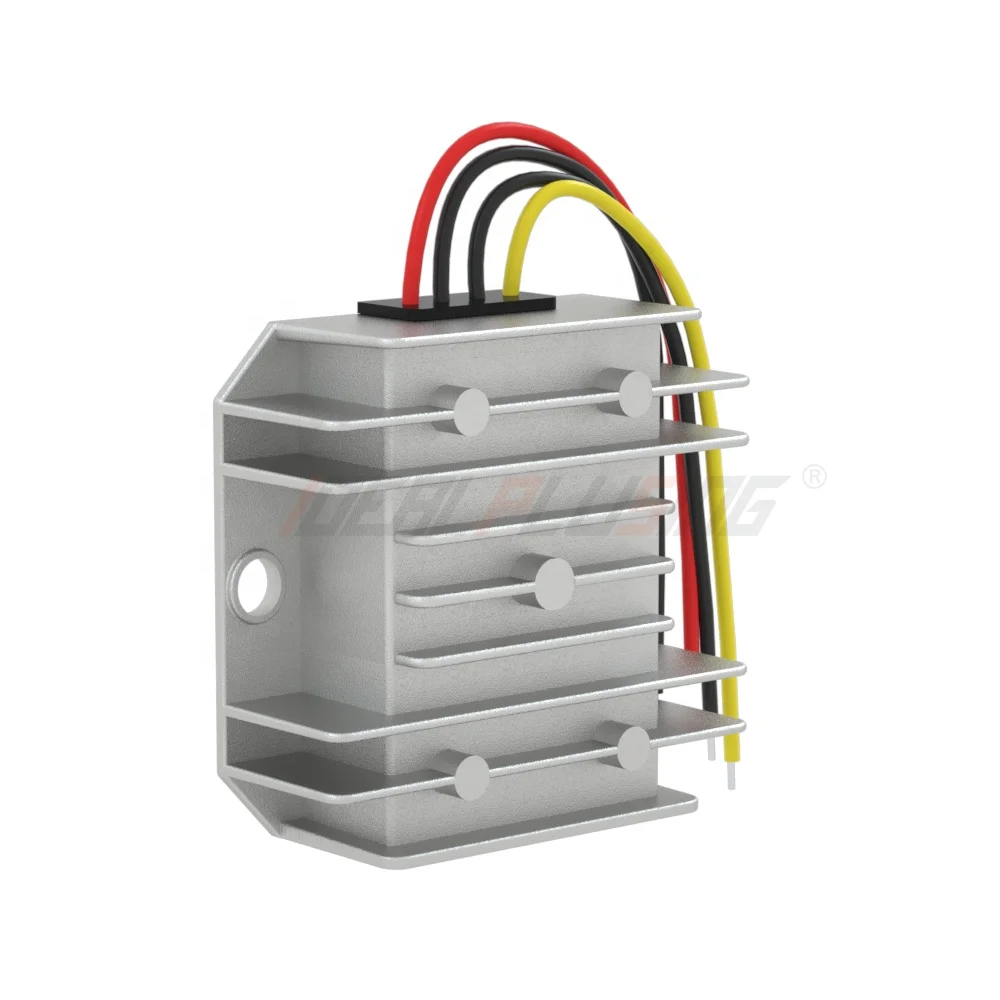

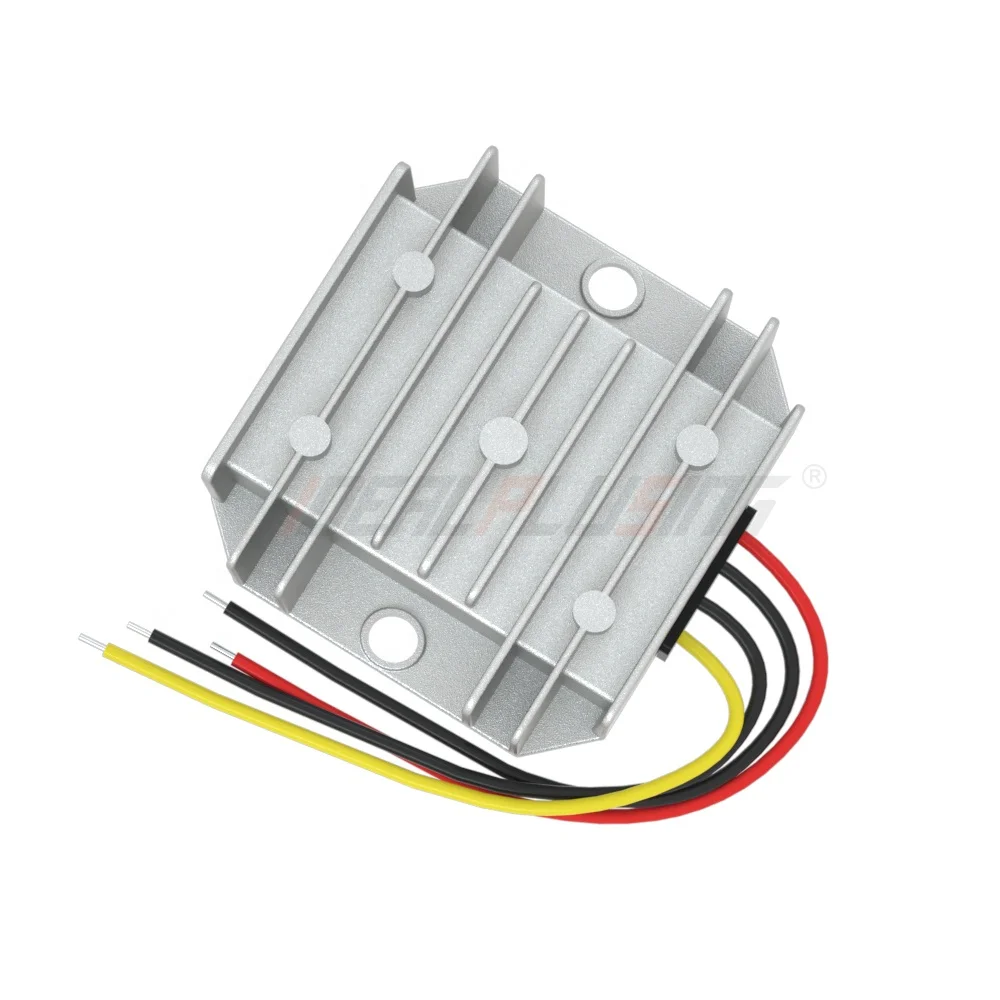

IDEALPLUSING 24v dc to 19v dc converter 5A 95W for car laptop
24v dc to 19v dc converter
Step Down DC/DC(HOT)
How to get a sample quickly? Please click. | |||
Hot selling (Step Down DC/DC Converter) | |||
NO | DC Input Range to DC Output | NO | DC Input Range to DC Output |
#1 | #7 | ||
#2 | #8 | ||
#3 | #9 | ||
#4 | #10 | ||
#5 | #11 | ||
#6 | #12 | ||
How to get a sample quickly? Please click. | |||
Features
1. 100% full power & stable current output.
2. 100% Imported components.
3. Wide input voltage from 15~40Vdc.
4. 100% waterproof & anti-shock protection, Ultra compact size, lightweight.
5. Industry grade 24v dc to 19v dc converter efficiency up to 96%.
6. Certificates: CE/RoHS.
7. Waterproof level: IP68.
8. Aluminum shell, epoxy potting, Cooling by free air convection.
9. Protections: Over-current, Over-voltage, Over-temperature.
10. Over-load and Short-circuit, Auto-recovery when the device is back to normal operating.
11. Non-Isolated Module.
12. 1-year warranty, lifetime up to 100,000 hours.
13. Constant Voltage Design.
Specification
Brand | IDEALPLUSING |
Product Name | 24v dc to 19v dc converter |
Model | IPS-DTD24S195 |
Input voltage | 24VDC |
Input voltage range | 15~40VDC |
Conversion Efficiency | 96% |
Output voltage | 19VDC |
Output current | 5Amps |
Output rated power | 95Watts |
Output peak power | 125% |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple (full load test) | < 50mV |
No-load current | < 20mA |
Working Temperature | -40°c ~ +80°c |
Waterproof rating | IP 68 |
Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage |
Machine size | 57*64*22MM |
N. Weight | 125G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Others | White box packing |
Middle aluminum
Customize Range
Type | Model/ Series | Voltage convert | Output Current |
Boost | IPS-DTD5S12** | 5v to 12v | 1/2/3/5/8/10A |
IPS-DTD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A | |
IPS-DTD12S15** | 12v to 15v | 1/2/3/5/8/10/15A | |
IPS-DTD12S19** | 12v to 19v | 5/8/10/15/20A | |
IPS-DTD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40A | |
IPS-DTD12S28 | 12v to 28v | 3/5/8/10/15/20/25/30/40A | |
IPS-DTD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30A | |
IPS-DTD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A | |
IPS-DTD24S48** | 24v to 48v | 3/5/10/20/32/42A | |
Buck | IPS-DTD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
IPS-DTD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A | |
IPS-DTD3648S5** | 36v/48v to 5v | 3/5/6/8/10/12/15/20/25A | |
IPS-DTD3648S12** | 36v/48v to 12v | 5/10/15/20/25A | |
IPS-DTD3648S24** | 36v/48v to 24v | 5/8/10/12/15/18/20A | |
IPS-DTD48S36** | 48v to 36v | 5/10A | |
IPS-DTD60S5** | 60v to 5v | 5/10/15/20A | |
IPS-DTD60S12** | 60v to 12v | 5/8/10/12/15/20A | |
IPS-DTD60S24** | 60v to 24v | 5/10/15A | |
IPS-DTD60S36** | 60v to 36v | 3/5/8/10/15A | |
Auto Buck and Boost | IPS-DTD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
IPS-DTD12S13.8 | 12v to 13.8v | 3/5/10A | |
IPS-DTD24S24 | 24v to 24v | 1/2/3/5/8/10A |
Further information request for 24v dc to 19v dc converter, please contact with IDEALPLUSING Sale team.
