1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE,3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT
Electrical Safety
IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III
Contact Us Directly
For quick reply
For more discounts
For update info : www.weLLzion.com
Product Overview

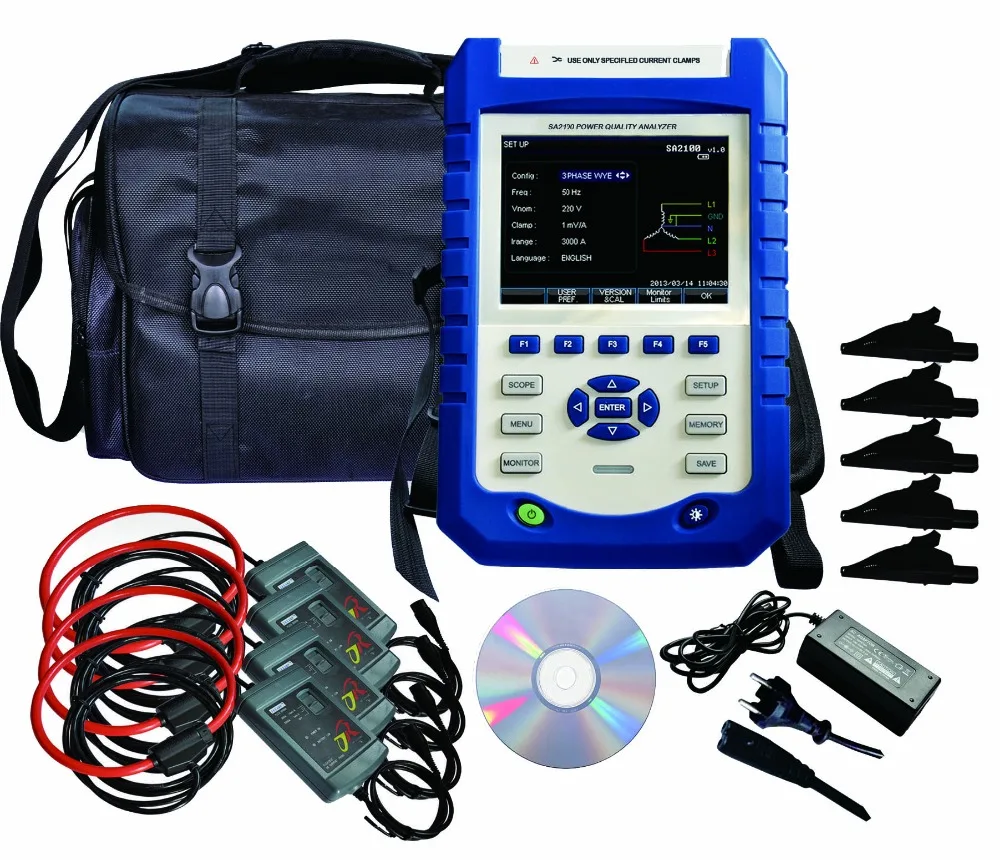

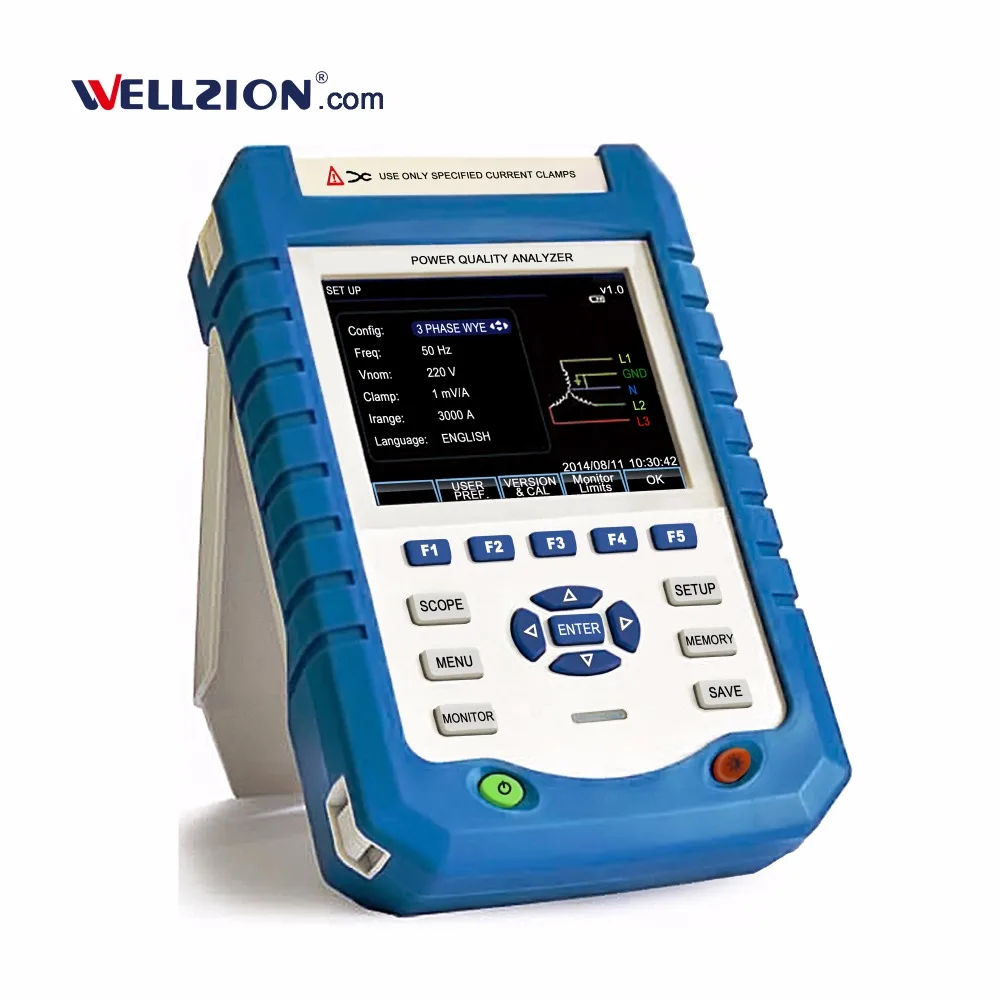

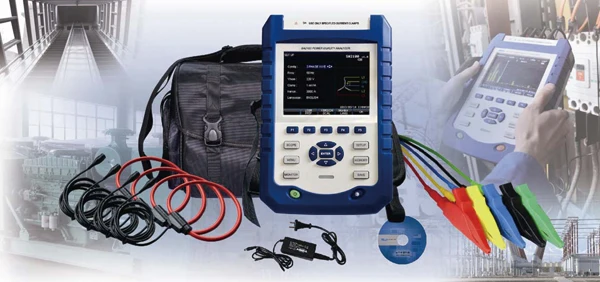

SA2100 Power Quality Analyzer is the professional potable device to measure and analyze the power system quality, supply the harmonics analysis and power quality data analysis, also provide big memory for the data storage, which is used to make the long term logger measuring to power system.
Function & Benefits
Waveform real-time display(4 voltages/4 currents)
Half-period RMS measurement (voltage and current)
Measurement of TRMS currents up to 5000A (sensor dependent)
Active power,reactive power,apparent power and energy,shift power factor and true power factor
Three-phase unbalance (voltage and current)
Detect according to EN50160 or grid with user-defined limit
Built-in 8G memory card
Specifications
Input
Voltage Input
Input channels
4 (3 phase + neutral) DC coupling
Max. Input Voltage
1000Vrms
Range of nominal voltage
50 ~ 500V
Max pulse peak voltage
6kV
Bandwidth
3kHz
Input impedance
4MΩ/5pF
Current Input
Numbers of input
4 (3 phase + neutral) DC coupling
Type
Clamp Current Sensor, with mV output
Input range
1 to 3000Arms with supplied current clamp
Input impedance
50kΩ
Bandwidth
3kHz
Sampling System
Resolution
8 channels 16 bits AD
Sampling rate
20kS/s for each channel, 8 channels sample synchronously
RMS sampling
5000 points for 10/12 cycles (according to IEC 61000-4-30)
PLL sync
4096 points for 10/12 cycles (according to IEC61000-4-7)
Measurement
Measurement range
Resolution
Accuracy
Voltage/Current/Frequency
Vrms (AC+DC)
1~1000Vrms
0.1Vrms
±0.5% of nominal voltage
Vpk
1~1400Vpk
0.1Vpk
±0.5% of nominal voltage
V(Crest Factor)
1.0~2.8
0.01
±5%
Arms (supplied current clamp)
1~1000A/3000/5000A
1A
±1%±2A
1~100A
0.1A
±1%±0.2A
Apk
1~4000Apk
1A
±1%±2A
A(Crest Factor)
1~10
0.01
±5%
Frequency
42.5~57.5 (50Hz nominal)
0.01Hz
±0.01%Hz
51~69 (60Hz nominal)
0.01Hz
±0.01%Hz
Dips&Swells
Vrms1/2
0~200% nominal voltage
0.1Vrms
±1%
Arms1/2
1~3000A
1A
±1%±2A
Threshold value
Threshold is settable according to nominal voltage percentage Detectable events type: Dips, Swells, Interruption, Voltage Rapid Change.
Duration
hour-minute-second-microsecond
0.5 period
1 period
Harmonic
Harmonic number
1~50
Inter-harmonic
1~49
Harmonic voltage
0.0~100.0%
0.10%
±0.1%±n×0.1%
Harmonic current
0.0~100.0%
0.10%
±0.1%±n×0.1%
THD
0.0~100.0%
0.10%
±2.5%
DC relative
0.0~100.0%
0.10%
±0.2%
Frequency
0~3500Hz
1Hz
1Hz
Phase
-360°~ 0°
1°
±n×1.5°
Power and Energy
Active power/apparent Power/reactive power
1.0~20.00MW
0.1kW
±1.5±10 digits
Energy
0.00kWh~200GWh
10Wh
±1.5±10 digits
Power Factor
0~1
0.01
±0.03
Flicker (only for SA2100)
Pst (1min), Pst, Plt, PFS
0.00~20.00
0.01
±5%
Unbalance
Voltage
0.0~5.0%
0.10%
±0.5%
Current
0.0~20.0%
0.10%
±1%
Voltage Phase
-360°~ 0°
1°
±2 digits
Current Phase
-360°~ 0°
1°
±5 digits
Voltage Transient
Vpk
±6000Vpk
1V
±15%
Vrms
10~1000Vrms
1V
±2.5%
Min test time
50μs
Sampling rate
20kS/s
Inrush current
Arms (AC+DC)
0~3000Arms
0.1
±1%±5 digits
Inrush Duration
6s~32min selectable
10ms
±20ms
Logger
Recording
user-defined parameters for 4 phases at the same time
Memory
Data stored in TF card, 8GB
Duration Time
2 hrs to 1 year
Interval
1s to 1 hrs
Wiring Combinations
1Ø+NEUTRAL
Single phase with neutral
1Ø SPLIT PHASE
Split phase
1Ø IT NO NEUTRAL
Single phase system with two phase voltages without neutral
3Ø WYE
3-phase 4-wire system, Y type
3Ø DELTA
3-phase 3-wire system delta (Delta)
3Ø IT
3-phase Y type without neutral
3Ø HIGH LEG
4-wire 3-phase delta system (Delta) with center tapped high leg
3Ø OPEN LEG
Open-delta (Delta) 3-wire system with two transformer windings
2-ELEMENT
3-phase 3-wire system without current sensor on phase L2/B (2 Watt meter method)
2 1/2-ELEMENT
3-phase 4-wire system without voltage sensor on phase L2/B
General Characteristics
Display
5.6 inch 320× 240 Color TFT LCD
Brightness
Adjustable
Interface

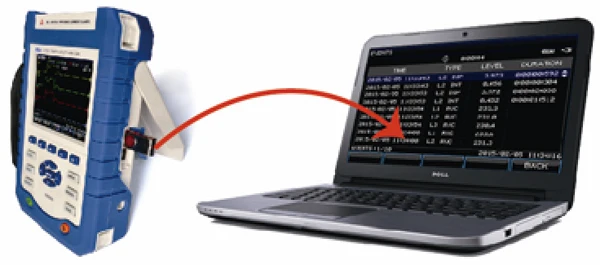

USB Host,LAN
Memory
128M Flash memory ;Standard 8G TF card
Dimension
262mm*173mm*66mm
Weight
1.6 kg
Battery
Rechargeable Ni-Mh 7.2V 3.8Ah,7 hours working time,4 hours charging time
Standard
Measurement method
IEC61000-4-30 Class-S
Measurement performance
IEC61000-4-30 Class-S
Power quality monitoring
EN50160
Flicker
IEC61000-4-15
Harmonic
IEC61000-4-7
Electrical Safety
Comply with
IEC61010-1, Safety Degree:600V CAT IV 1000V CAT III
