GW Instek MSO-2102EA 100 MHz, 2-Ch. Digital Storage Oscilloscope
- Category: Oscilloscopes >>>
- Seller: Shenzhen,Sweet,Ocean,Technology,Limited
Share on:
Product Overview
Description
GW Instek MSO-2102EA 100 MHz, 2-Ch. Digital Storage Oscilloscope
Product Features:
- 100 MHz bandwidth
- 2 channels
- Equipped with a 16-Channel Logic Analyzer and a dual channel 25 MHz arbitrary waveform generator
- Real time sample rate for each channel is 1GSa/s

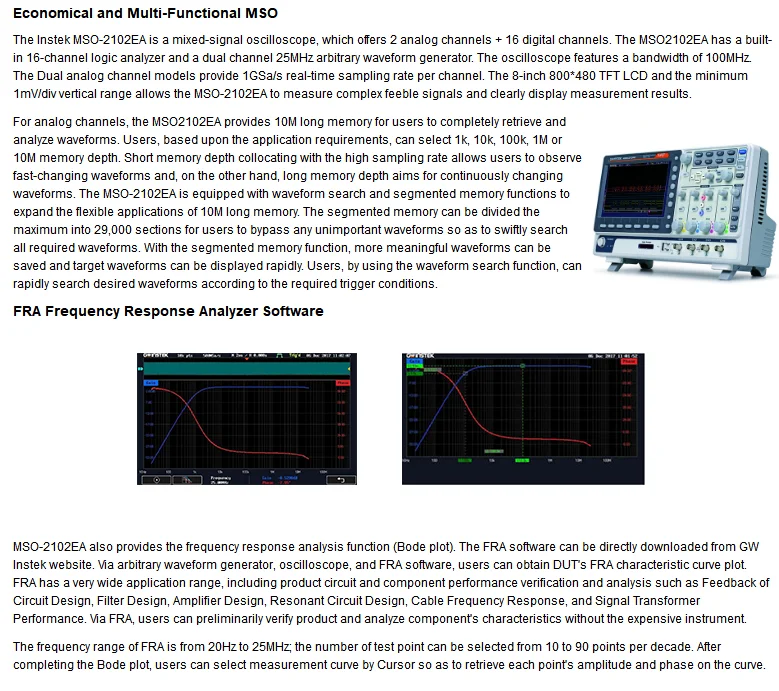

- Free Frequency Response Analyzer Software (Download from manufacture website only)
- Maximum 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8" WVGA TFT LCD screen display
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High Pass, Low Pass and Band Pass Filter Functions
- 29,000 segmented memory sections and waveform search function
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- Data log function is able to track signal changes up to 100 hours
- Network storage function
