Best price Unit Clamp Multimeter true RMS AC DC Current Mini Digital Clamp Meter uni t

Best price Unit Clamp Multimeter true RMS AC DC Current Mini Digital Clamp Meter uni t

Category: Clamp Meters >>>
Seller: Guangzhou,Zhengneng,Electronic,Technology,Co.,Ltd.

Price:206,00 $ - 251,00 $

Price in USD:Details

Quantity:

Price request

add to wishlist

Product Overview

Description

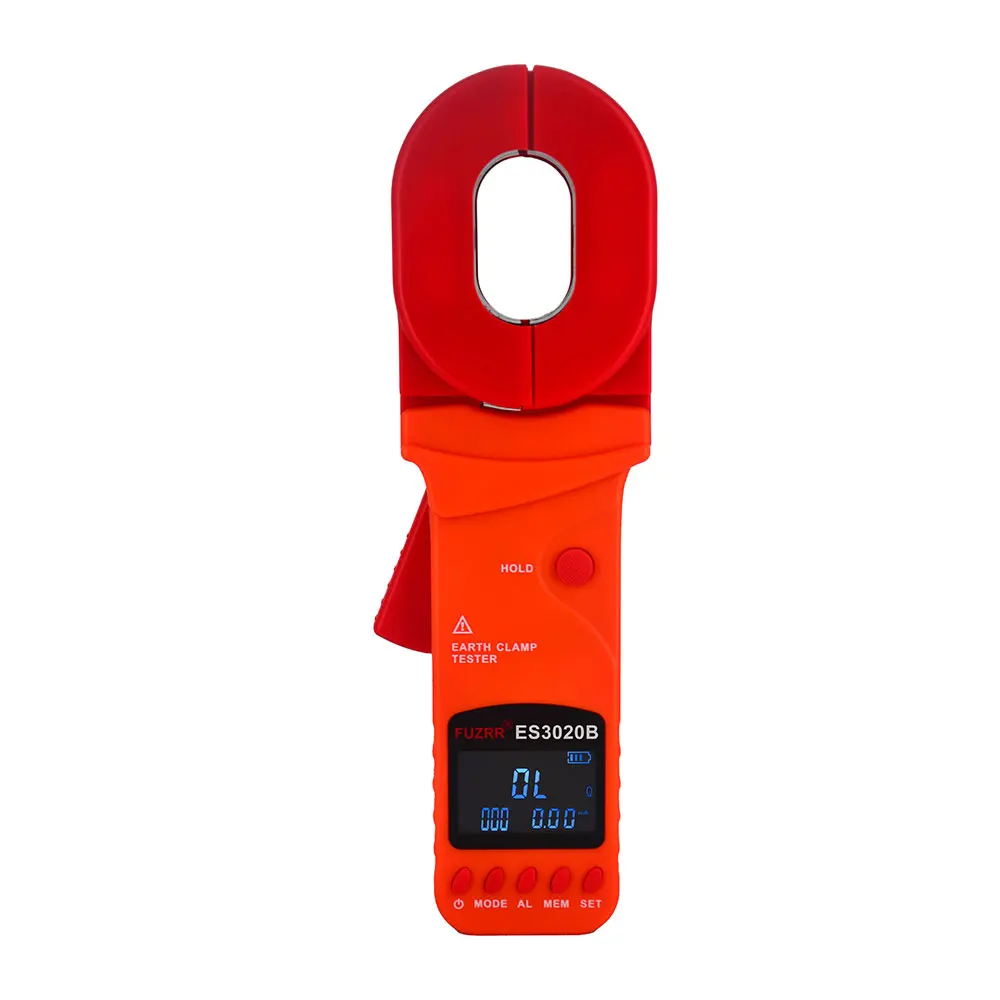

Product Name: The Best Leakage Current ES3020B Ground Resistance Earth Clamp Meter

Resistance Range: 0-1200Ω

Current Range: 0.00mA-20.0A

Ω+A same screen dispay

Fully isolated USB technology, can be connected to the computer

Real-time clock function

New black screen design,luxury

Quick self-test functionwithout waiting

Using fast filteringtechnology, strong anti-interference ability

New design,long life clamp head

Safe and reliable,500 sets of storage

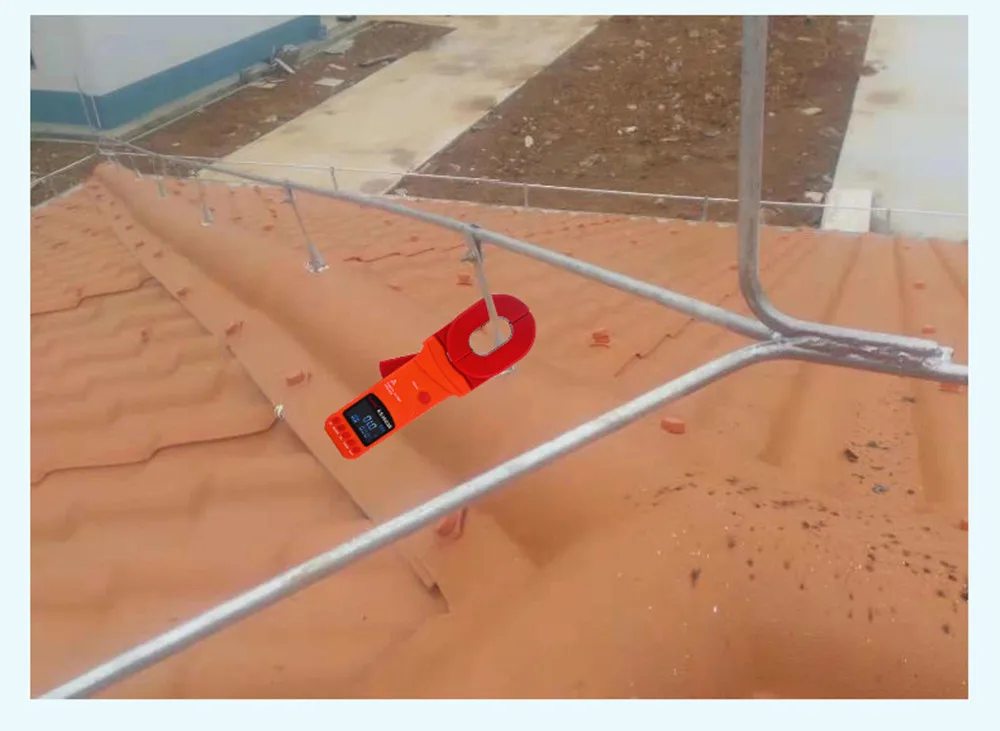

Application: telecommunications,electricity, meteorology, computer rooms, oil fields, power distribution lines,iron tower transmission lines, gas stations, factory grounding networks,lightning rods and so on

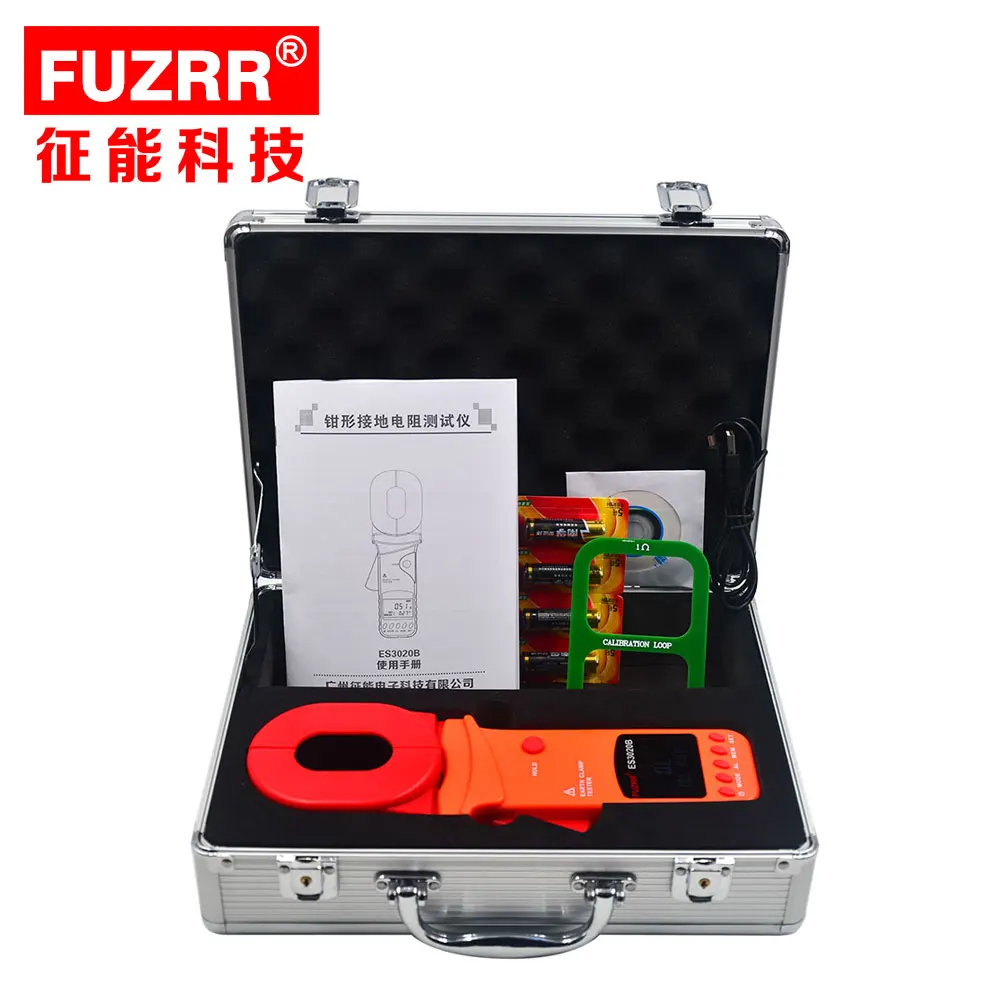

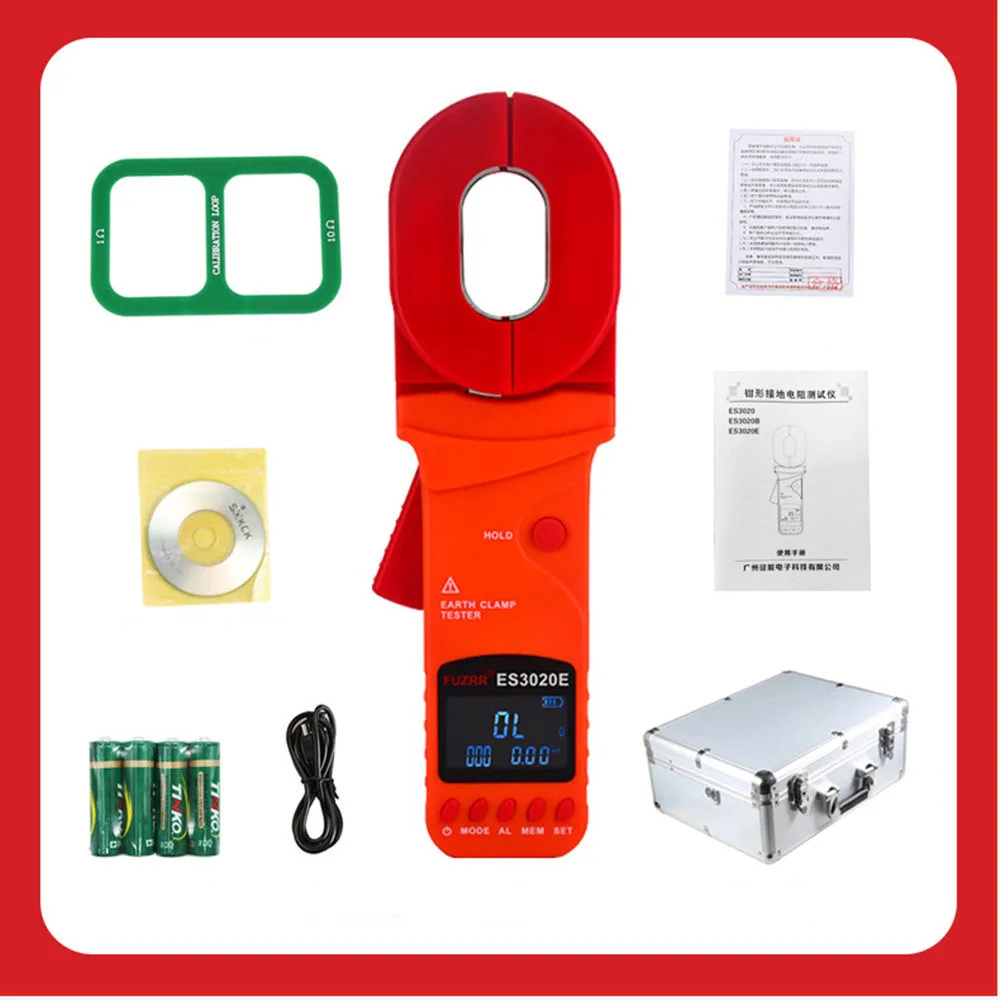

Accessories

Meter	1PC
Meter box	1PC
5# battery	4PCS(the battery is not included)
Monitoring Software CD	1PC
Calibration ring	1PC
USB communication line	1PC
Manual, certificate	1SET

Technical Specification

Function	Ground resistant test, Loop resistance test, leakage current test
Resistance Range	0.01Ω-1200Ω ; Resolution: 0.001Ω; Accuracy: ±1%±0.01Ω
Current Range	0.00mA-20.0A ; Resolution:0.01mA; Accuracy: ±2%±1mA
Power Supply	DC6V Alkaline Dry Battery (1.5V LR6 X 4)
Measurement Method	Mutual induction
Clamp Diameter	55mm×32mm
Clock Function	Have
Ω+A Synchronized display	Ω+A same screen display
Display Mode	4-digit LCD display, black screen design
LCD Dimension	46mm×29mm
Meter Dimension	W/T/H: 85mm×58mmx285mm
Sampling Speed	About 2 times/second
USB interface	With USB interface, software monitoring, storage data can be uploaded to the computer, save the print
Communication Line	USB communication line 1
Data Storage	500 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full
Data Review	"MR" symbol indication when reviewing data
Overflow Display	Exceed measurement range overflow function: “OL ” symbol display
Interference Test	Automatic identify interference signal, "NOISE" symbol indication when the interference current is large
Alarm Function	Alarm when the measured value exceeds the alarm setting value
Battery Voltage	Real-time display of battery power, reminding timely charging when battery voltage is low
Automatic shut-down	"APO" instruction, automatic shutdown after 5 minutes boot
Power Consumption	50MA Max
Weight	Instrument: 1180g (with battery)
Working Temperature and Humidity	-10°C~40°C; below 80% rh
Insulation Resistance	20Ω or more (500V between circuit and outside)
Pressure Resistance	AC 3700V/rms(between circuit and outside)
Suitable for Safety Regulations	IEC61010-1(CAT III 300V, CAT IV 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance)
