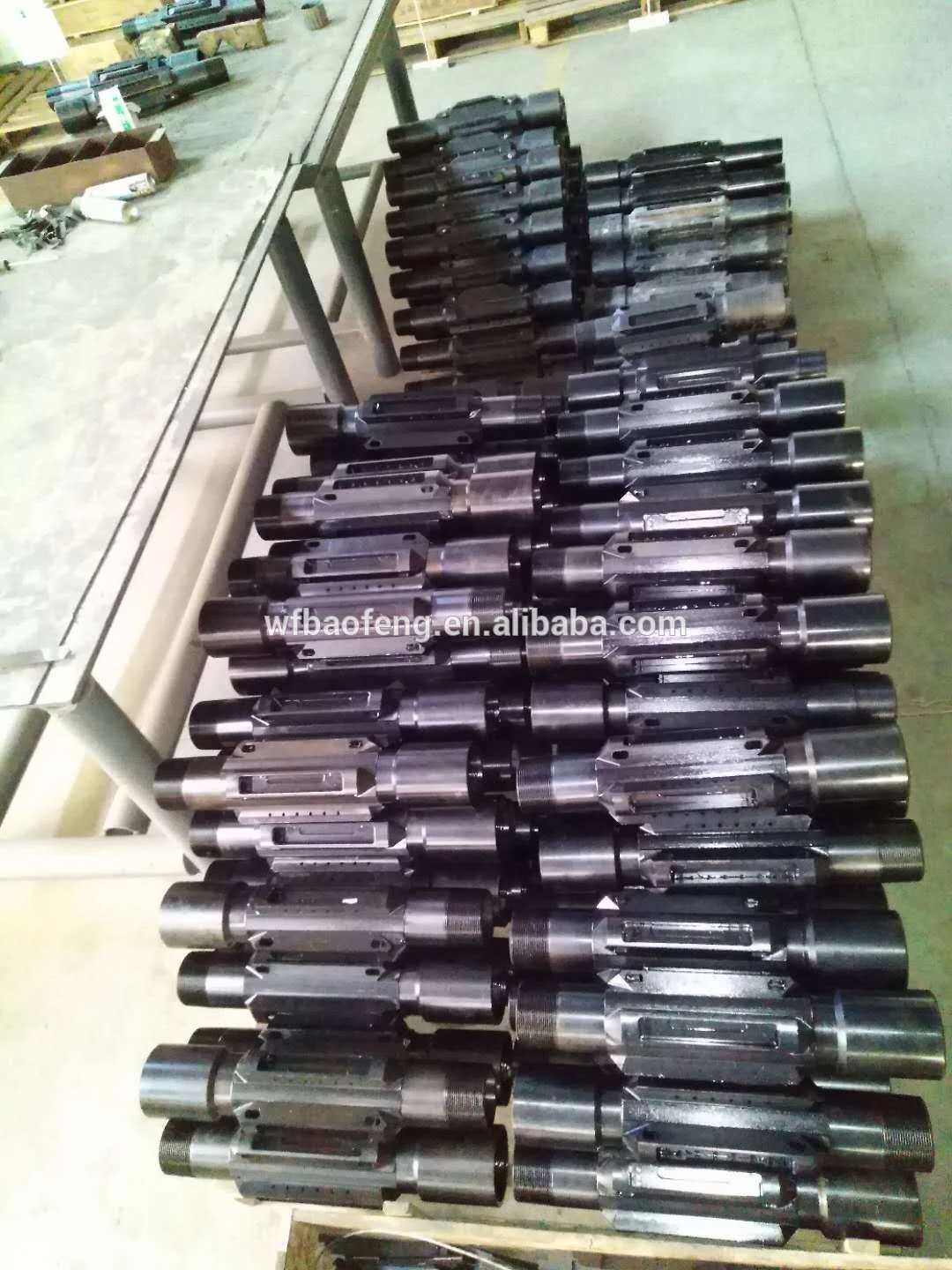

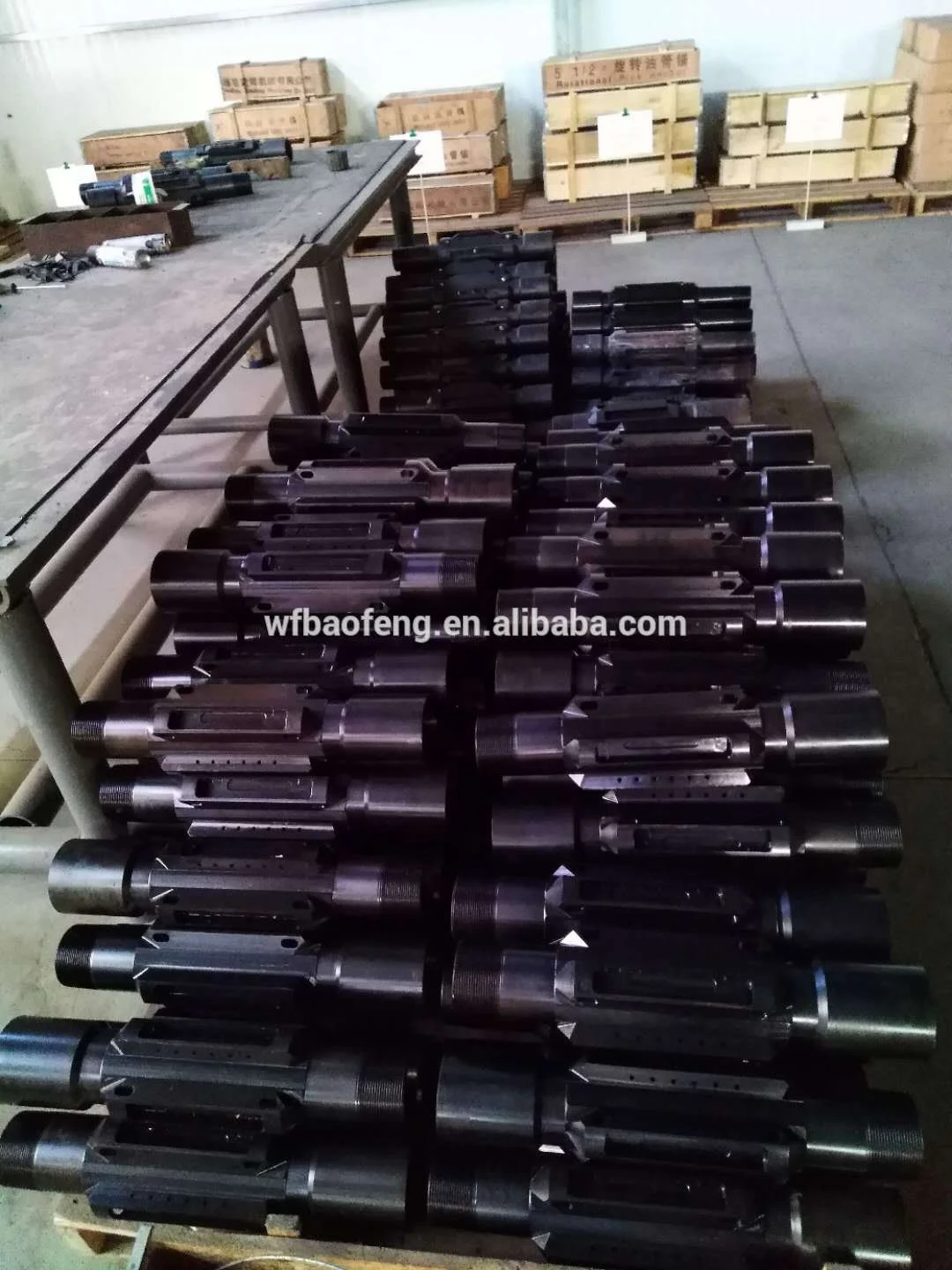

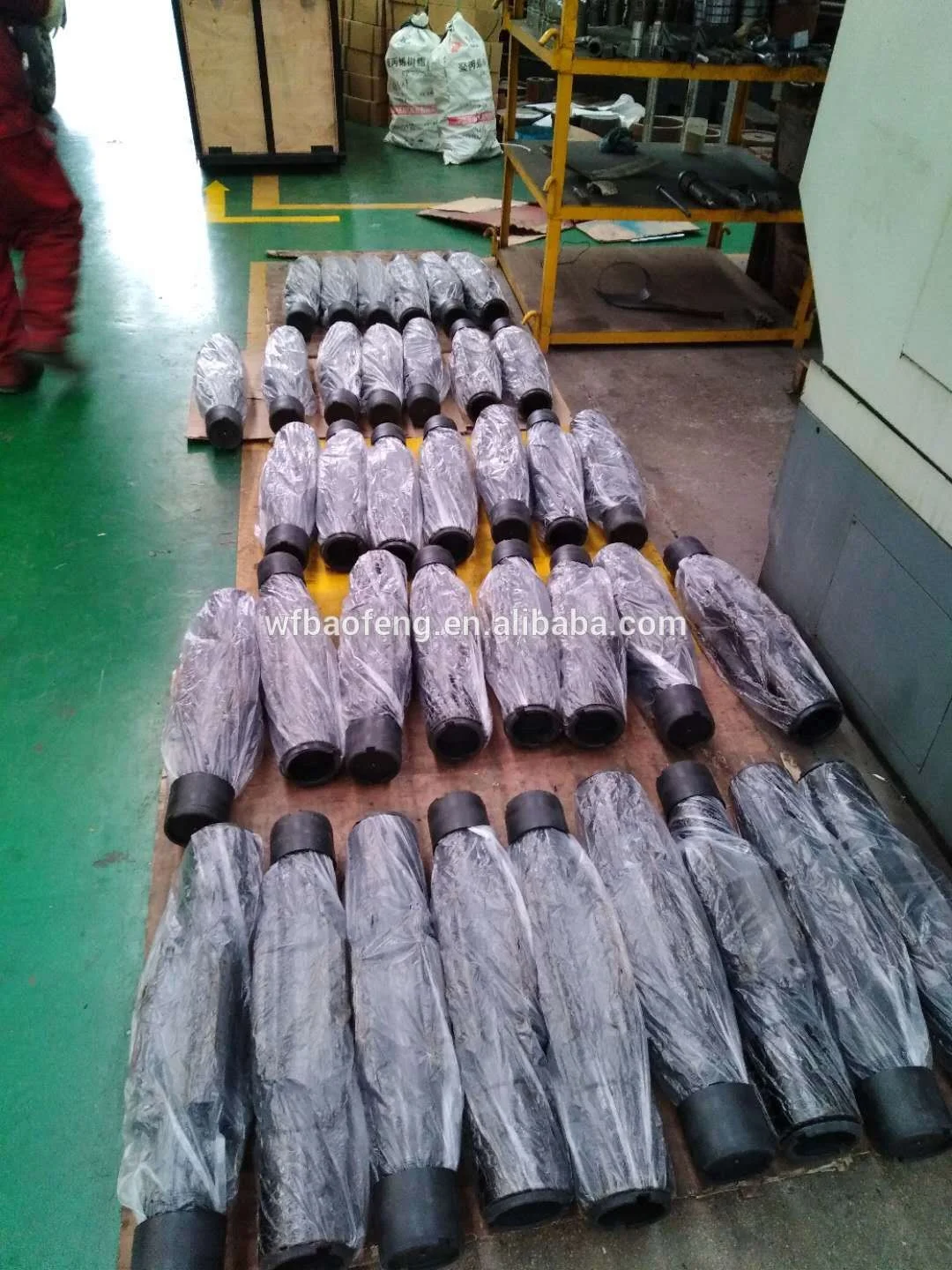

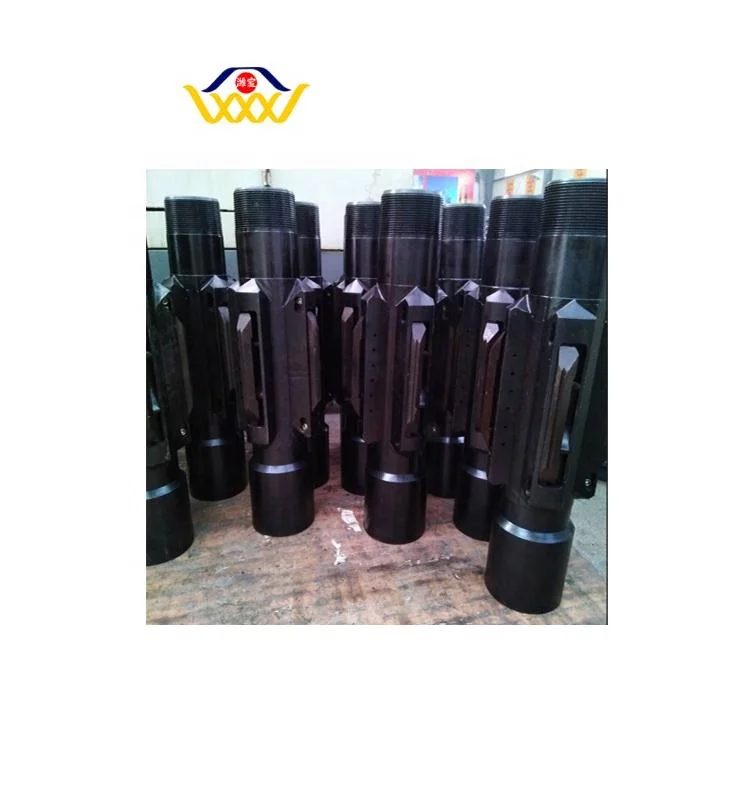

Artificial Lift Downhole Centralized Torque Anchor 5 1/2 "*2 7/8"EUE
- Category: Torque Anchor >>>
- Seller: Weifang,Baofeng,Machinery,Co.,Ltd.,[Shandong,China]Weifang
Share on:
Product Overview
Description
Product Description

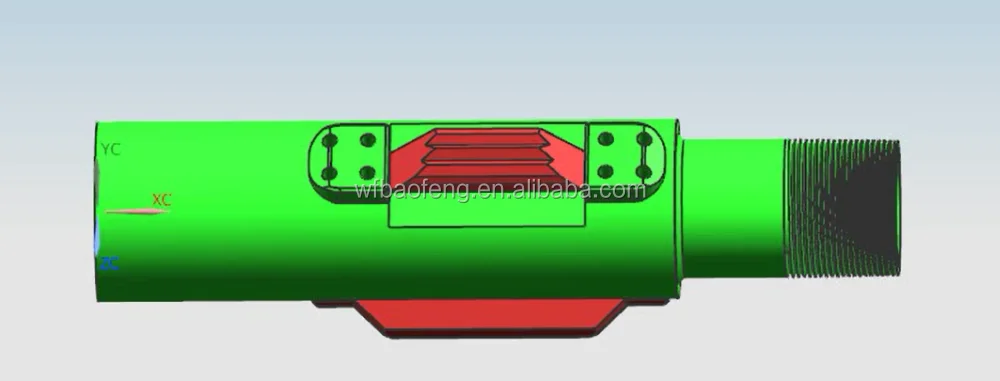

The Centralized Torque Anchor (CTA) is designed to anchor the Tubing String and Progressive Cavity Pump (PCP) within the wellbore. The CTA consists of a unique anchor design, which incorporates 1 Floating Slip and 2 Rigid Slips that guarantee the Torque Anchor stays concentric within the wellbore casing. The CTA stops the right hand rotation of the PC Pump, by providing "Superior Stabilization" of the PC Pump and eliminates tubing back-off.
Benefits: The following are additional features incorporated in the design:
Centralizing the Torque Anchor in the casing, allows for increased production, by lifting the Slotted Tag Bar and Gas Separator Intakes off the casing ID and out of the Sand
The open By-Pass area and centralized design, allows for greater annular space, for gas migration up the annulus, rather than inside the PC Pump. It also, allows for sand and coiled tubing to pass the CTA
The CTA having a main body the same OD as the Stator leaves no place for sand to build up on the Tool. Result, the tool can be removed easily from sanded in wells
The Rigid Slips provide a space to carry and protect the tech cable and/or diluent cables down well
Solid Drive Pin and Floating Slip design for simple setting and straight pull-up release procedures
Inconel springs for H2S and CO2 resistance
Rebuilding procedure can be performed in the field.
Operation: The Centralized Torque Anchor (CTA) is threaded onto the tubing string above or below the PC Pump. The CTA is run to the desired setting depth, and right hand pre-torque is applied to the Tubing String/PC Pump.
Downhole Tool Centralizered Torque Anchor for PC Pump Technical Parameter:
